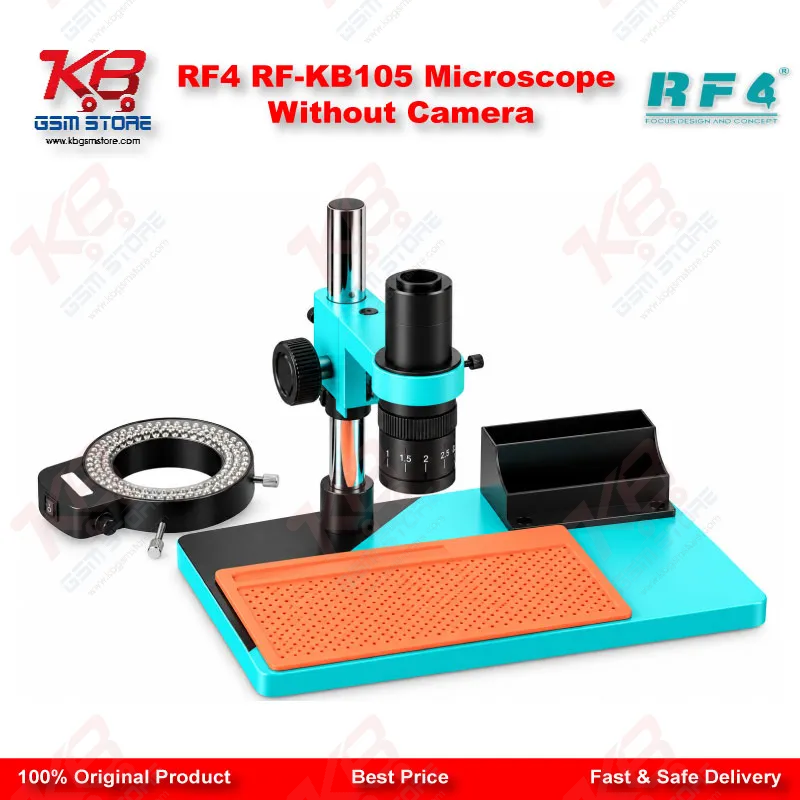

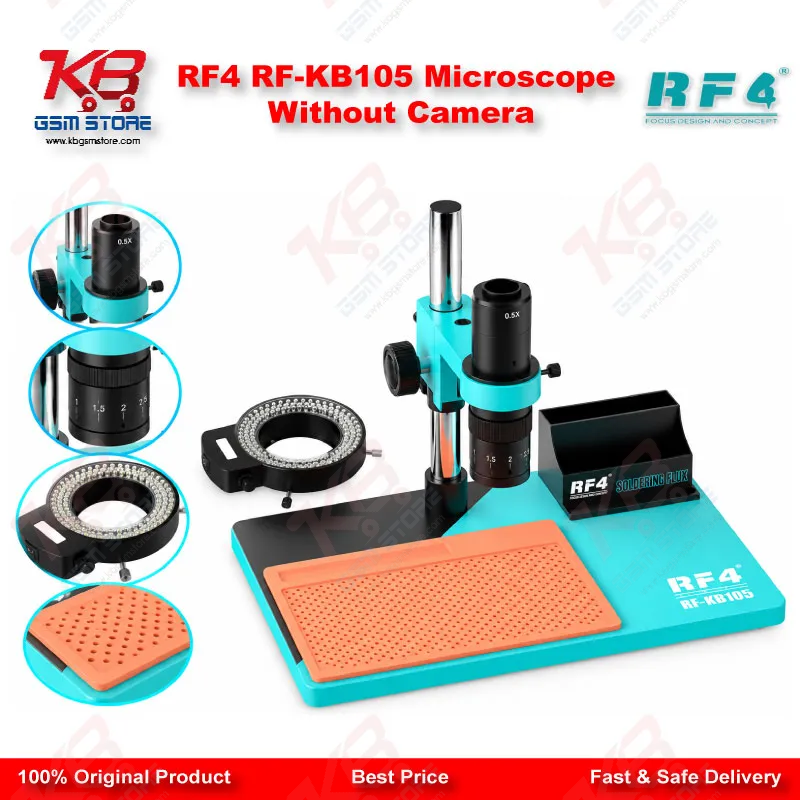

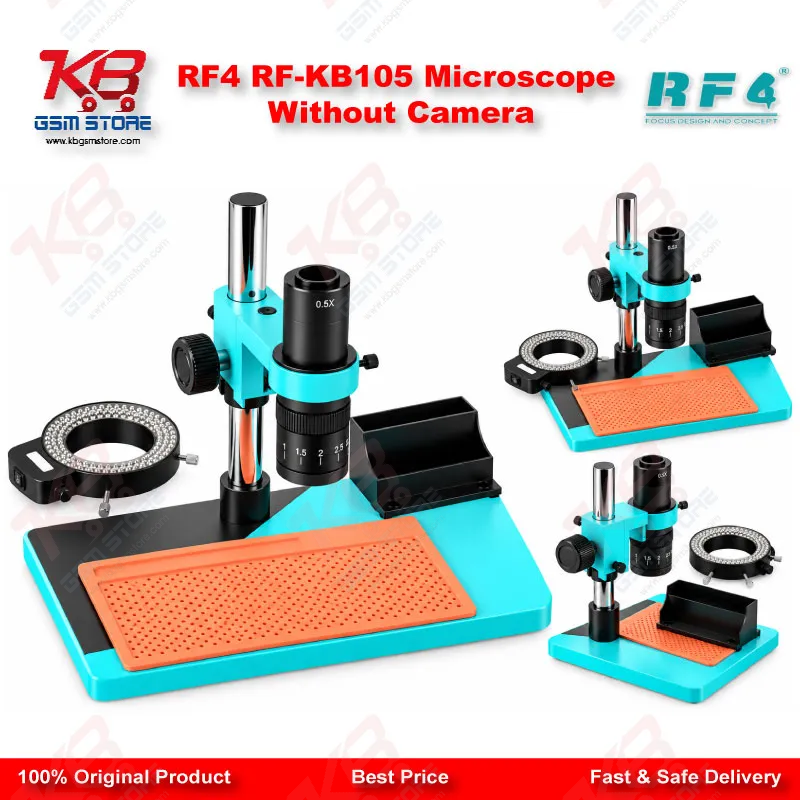

Every board-level fault starts as something you cannot see with the naked eye, and the RF4 RF-KB105 Microscope Without Camera exists to close that gap on your repair bench. RF4 builds this unit around a 7-45X optical monocular zoom, which means you look through the eyepiece and move smoothly from a wide view of the whole motherboard down to the pins of a single PMIC or charging IC without swapping lenses or losing your place. That range covers most of what a mobile technician does in a day: at the low end you trace a power line across the board, check for corrosion after water damage, or locate the section that heats up during a short test, and at the high end you inspect solder joints along a BGA edge, read tiny component markings, and confirm that a small capacitor sits flat after rework. Optical magnification also gives you a real-time view with zero screen lag, which matters when your tweezers and soldering tip move in the same frame as the component you are working on. The 144 LED ring light surrounds the objective and throws light onto the board from every side, so shadows stop hiding fine joints, lifted pads, and hairline cracks in tracks. The LED brightness adjusts, which helps when you switch between a dark matte PCB and a shiny shield frame or a freshly fluxed area that reflects glare back into the eyepiece. Good lighting sounds like a small detail until you spend an hour chasing a charging issue that turns out to be a cracked joint on the charging connector, and then you realise that most missed faults come from poor illumination rather than poor skill. The base measures 260 x 375mm, and that space changes how you work. You can place a full smartphone motherboard, a sandwich board after separation, or a laptop board under the lens, move it around inside a PCB holder, and scan section by section without lifting and repositioning the whole setup every few minutes. A wide, stable base also keeps the microscope steady when you press down with tweezers or bring a hot air handpiece close, and that stability directly affects your accuracy during microsoldering. Think about the typical jobs that land on a Pakistani repair counter: a dead phone after a failed charging session, a handset with a hang on logo problem, a boot loop issue that software flashing cannot fix, a network issue after a drop, or a display problem that points toward a damaged connector. Each of these repairs eventually reaches a stage where you need to look closely at the board, and the RF-KB105 gives you that view before you commit to removing any part. You can check whether an IC shows burn marks, whether a coil has cracked, whether a filter near the charging port has corroded, or whether a previous technician left solder bridges behind. That inspection step saves you from replacing good parts, and it gives you something concrete to explain when you tell the customer about the hardware fault. In the rework stage, the microscope stays in use throughout the job. When you lift an IC with a hot air station, you watch the solder turn shiny and the part release, so you avoid overheating nearby plastic connectors and underfill. When you clean pads with a soldering station and desoldering wick, you see exactly where old solder remains and where a pad starts to lift. When you reball a chip with a reballing kit and stencil, you check each ball for size and alignment before placing the part back on the board. When you add a jumper wire to restore a broken track, you route it cleanly and confirm that it stays clear of neighbouring pads. That full cycle of inspect, remove, clean, reball, place, and verify becomes faster and far more consistent once a proper microscope sits at the centre of your bench. The RF-KB105 also supports software-side technicians more than many people expect. When you run ISP work on a dead board, you solder fine wires onto test points using ISP pinout tools as your reference, and at those sizes a clean optical view decides whether your connection holds or fails halfway through a read. The same applies when you prepare a board for an eMMC programmer or connect a UFS adapter after chip removal, since a single weak joint can ruin a long read or a dead after flash recovery attempt. Pair the microscope with a multimeter and a DC power supply or test box, and you get a complete diagnostic flow: measure the short, locate the hot component, then confirm the damage visually under magnification. Choosing the version without a camera makes sense for many workshops. You get the full optical capability of the RF-KB105 body at a lower entry cost, and you work directly through the eyepiece the way many experienced microsoldering technicians prefer. If your shop later needs live display, recording for training, or a screen that lets customers see the fault, KB GSM Store already offers the RF-KB105 in bundles with cameras such as the RF4 RF-C68 and the RELIFE MC1, so you have a clear upgrade path instead of replacing the whole microscope. That flexibility suits a growing repair business, a technician moving from software work into hardware repair, or a training institute that wants students to master optical inspection first. RF4 is a well-known brand in the mobile repair tools market, and the RF-KB105 sits in its practical, shop-oriented range rather than among its lab-grade stereo trinocular models. For a technician who needs dependable magnification, strong lighting, and enough base space for real motherboards, it covers daily work without charging you for features a typical service centre never uses. Place it next to your soldering station, hot air station, PCB holder, and reballing kit, and you have the core of a complete board-level repair bench. If you plan to step up later to a trinocular microscope with higher zoom, the habits you build on this unit transfer directly, because the inspection workflow stays the same. For repair shops in Lahore, Karachi, Islamabad, and beyond that handle charging faults, water-damaged boards, CPU and PMIC-related dead phone cases, and connector repairs every day, the RF4 RF-KB105 Microscope Without Camera gives you the visibility you need to diagnose accurately, rework cleanly, and hand back repairs that do not return with the same complaint.
