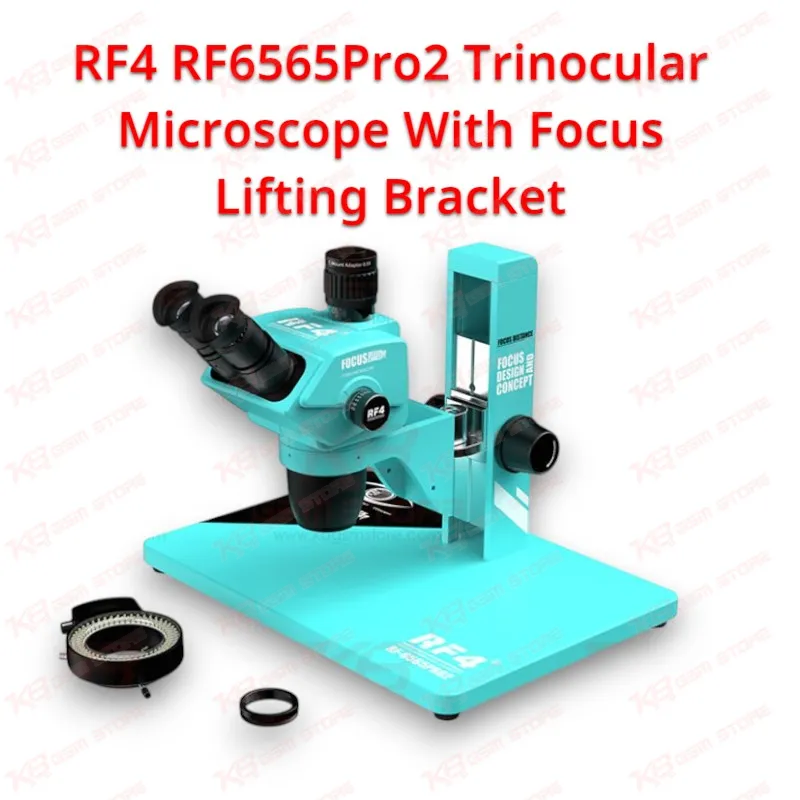

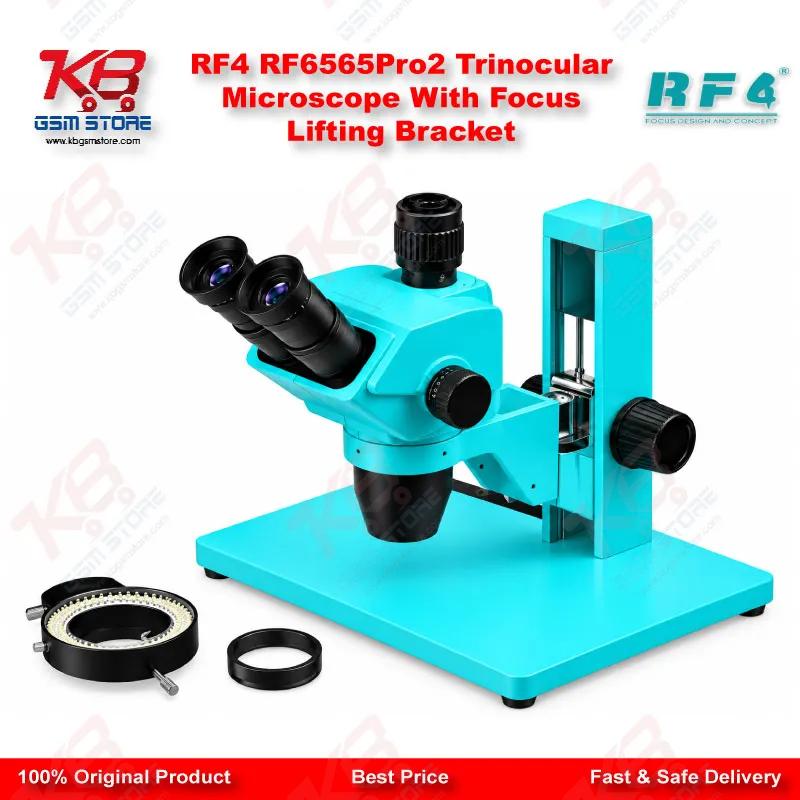

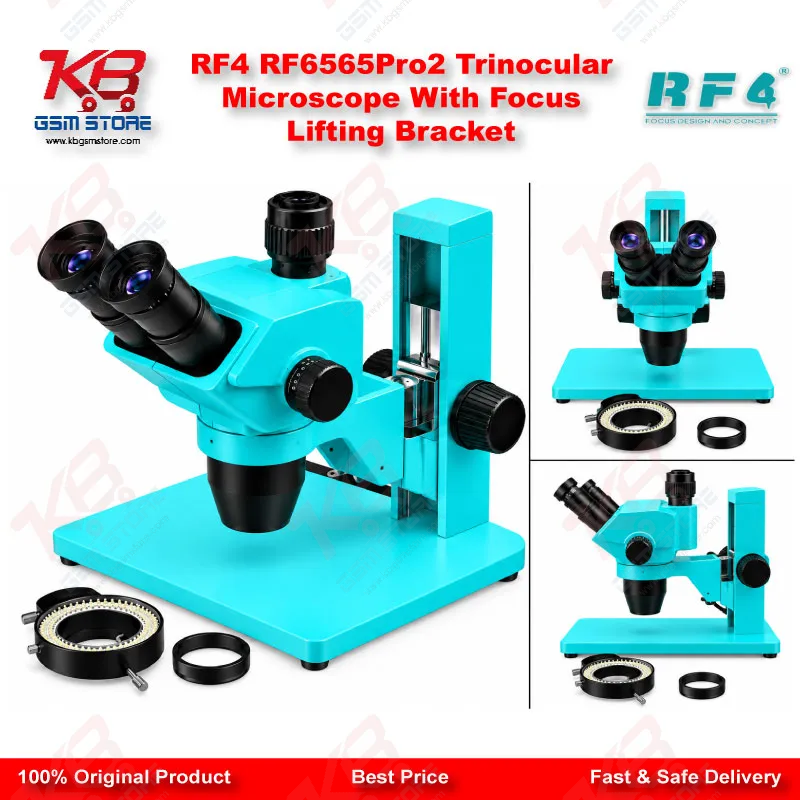

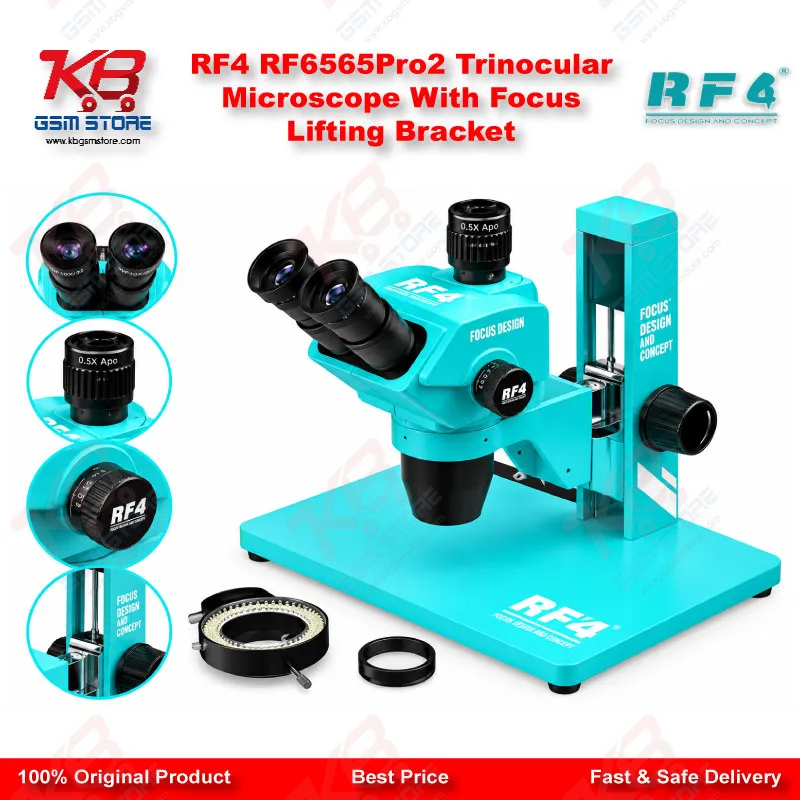

Board-level repair depends on what you can actually see, and the RF4 RF6565Pro2 Trinocular Microscope With Focus Lifting Bracket puts a workshop-grade optical system on your bench so you stop guessing about solder joints, lifted pads, and cracked capacitors. RF4 builds this unit around a continuous 6.5X to 65X zoom. You can start wide to find the right section of the motherboard, then turn the zoom knob smoothly toward 65X to inspect the smallest SMD resistors, all without swapping lenses or losing your target. The objective runs from 0.65X to 6.5X and pairs with WF10X/22mm wide-field eyepieces, which give you a broad, flat field of view, so you can scan a full PMIC area or the underfill around a CPU in one look. The head sits at a 45-degree incline and swivels through a full 360 degrees. That matters more than most buyers expect: you can turn the head to suit your seating position, let a second technician look in, or re-angle it when you move the board holder, all without shifting the base. The trinocular design is where this model earns its place in a modern repair shop. The third port accepts the included 0.5X CTV camera adapter, and RF4 designed the optics so the monitor image and the eyepiece image zoom in sync. When you turn the zoom knob, your camera feed follows exactly, so a customer at the counter, a trainee at your institute, or a recorded video sees the same frame you see through the eyepieces. The CTV adapter uses an all-metal body, with a black aluminum alloy section and a copper chrome-plated bayonet. It lets you set focus manually against your LCD, which gives you precise control over the recorded image instead of autofocus hunting over reflective solder. That synchronous zoom setup pays off in Pakistani workshops where technicians record repairs to build customer trust, keep before-and-after proof on expensive iPhone and Samsung boards, or teach apprentices IC replacement step by step. The feature that sets the Pro2 variant apart is the focus lifting bracket. The stand uses a Φ32mm column, a Φ76mm lens aperture mount, a 155mm center distance, and a 50mm lifting range. You can raise or lower the whole optical head to match the height of your PCB holder, a tall fixture, or a phone frame that still has the display attached. The 155mm center distance leaves comfortable room under the lens for tweezers, a soldering iron tip, and a hot air nozzle at the same time, which is exactly what you need during CPU reballing or when you lift an eMMC or UFS chip for data recovery or programming. Lighting often decides whether you catch a fault or miss it, and the included 144-LED adjustable ring light delivers bright, even white light through a 60mm inner diameter. The ring light accepts AC 100–240V 50/60Hz input and puts out DC 12V at a maximum of 700mA, so it runs directly on Pakistani mains supply and stays steady through long sessions. Current supplier listings note that RF4 upgraded the bundled ring light from the OK-8 to the OK-9 model. A dustproof lens sits under the objective and shields the optics from flux smoke, solder spatter, and the dust that builds up in busy market shops, protecting the clarity you paid for. The package also includes an aluminum alloy base plate and a silicone pad. The aluminum alloy plate anchors the microscope firmly and helps protect the motherboard from static damage. The silicone pad gives you an anti-slip textured surface, multi-scale measurement markings on four sides, a non-slip bottom that grips the bench, and storage space for solder paste, green oil, screws, chips, and small tools. In daily use, this microscope sits at the center of nearly every hardware workflow. When a customer brings a dead phone that draws no current on the DC power supply, you use the microscope to check for burnt components, corrosion, or a shorted capacitor on the main power line before you inject voltage. When a device shows a charging issue, you inspect the charging IC, the USB connector pins, and the nearby filters for cracks or missing parts. For network issues, you examine the RF section, PA chips, and antenna switch pads. For display problems, you study the display connector and backlight circuit for lifted pins or damaged coils. Boot loop and hang on logo complaints often trace back to a failing eMMC or UFS chip or a weak CPU solder joint. At 65X you can clearly see cracked balls, underfill damage, and lifted pads before you decide between reballing and chip replacement. Jumper wire work gets far more reliable too, because you can follow a broken trace, scrape the solder mask cleanly, and place a thin jumper wire without touching neighboring components. The microscope connects naturally with the rest of your repair bench. You pair it with Hot Air Stations and Soldering Stations for rework, with Reballing Kits and stencils for BGA work on CPUs and memory chips, and with PCB Holders that lock the board at a comfortable height under the lens. Software-side technicians who work with ISP Pinout Tools benefit directly, since soldering fine wires onto ISP test points for eMMC Programmers or UFS Adapters demands exact placement on tiny pads, and one slipped wire can leave you with a dead after flash situation. Test Boxes and Multimeters handle the electrical diagnosis, and the microscope confirms the physical fault you measured. If you currently work with a basic binocular or a digital USB microscope, the RF4 RF6565Pro2 is a clear upgrade path. You gain true stereo depth perception for soldering, a higher 65X ceiling, and a camera port that keeps your recording in step with your eyes. Repair shop owners, mobile service centers, hardware engineers, and technical training institutes in Lahore, Karachi, Islamabad, and across Pakistan will find that this one tool shortens diagnosis time, cuts rework mistakes, and raises the quality of every board-level job. For anyone serious about motherboard repair, IC replacement, and professional PCB rework, this trinocular stereo microscope gives you the visibility, stability, and documentation capability that a busy repair bench demands.
