When a board comes in with a dead phone fault or a short that keeps draining the battery overnight, the first real diagnostic step happens under the lens, not in software. The RF4 RF6745TVP gives you a 6.7X to 45X continuous zoom range on a single eyepiece adjustment, so you move from a wide overview of the motherboard down to a tight view of a single CPU ball or resistor pad without swapping lenses or losing your working distance. That kind of smooth range matters when you are tracing a short point across dozens of components, because every stop and restart costs time on a busy bench.
The head sits at a 45-degree incline and rotates a full 360 degrees, which means two or three technicians can share the same view from different sides of the table during training or while cross-checking a tricky board. The WF10X/22MM eyepieces are adjustable for interpupillary distance, so the microscope stays comfortable for long sessions whether you are doing fine jumper lagana work on a logic board or just doing a visual check before flashing.

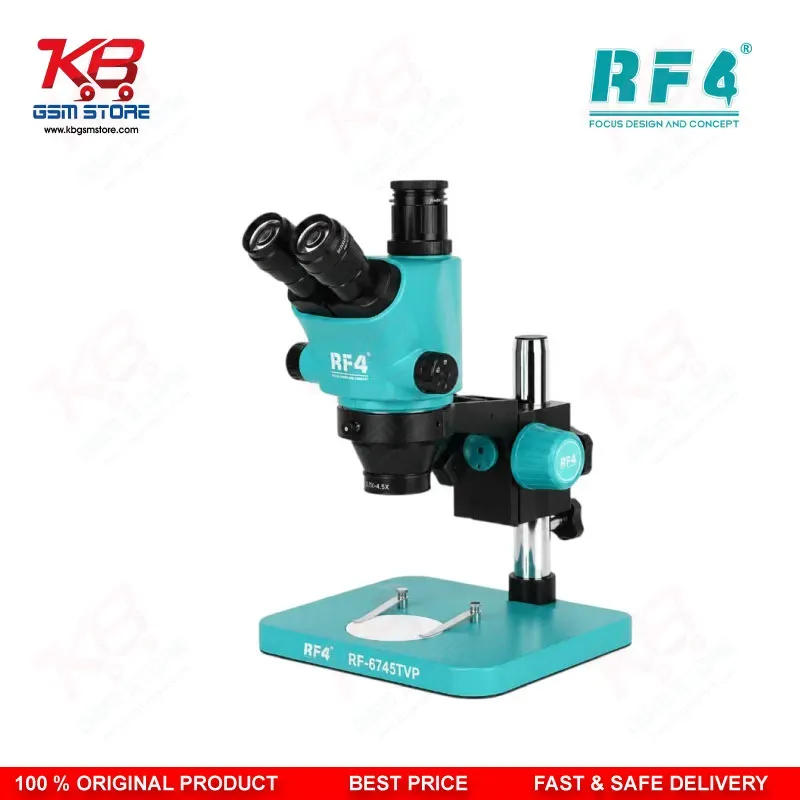

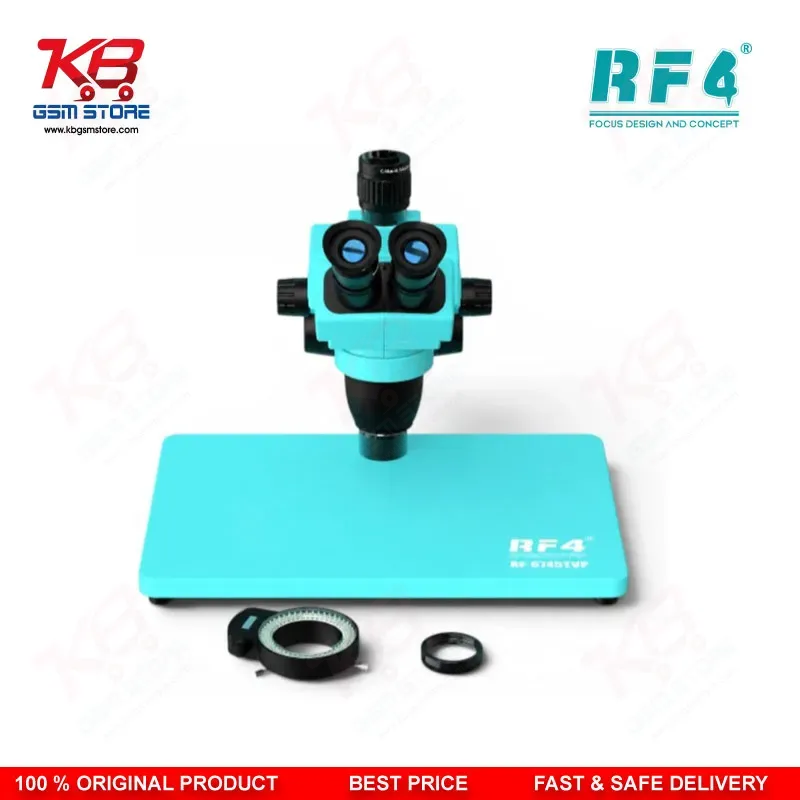

What sets this model apart on the bench is the aluminum alloy big base. Mobile repair work involves constant pressure from soldering irons, hot air, and pry tools right next to the microscope stand, and a lightweight base tends to shift or tilt under that kind of vibration. The RF6745TVP's heavier base keeps the column steady through repeated zoom adjustments and lifting movements, which protects your focus point when you are mid-reflow on a BGA chip and cannot afford the image to drift.
The 0.5X CTV camera connector is built for synchronous zoom between the eyepiece and an external monitor. The adapter ring uses LCD focus, which is a manual focus method, and it carries a transparent mirror inside that lets the monitor display track the same magnification as the eyepiece view in real time. For workshops that record repair sessions, train juniors, or simply prefer working on a screen instead of bending over the eyepiece for hours, this synchronous setup means the monitor image always matches what the technician sees through the lens, without a separate focus adjustment.

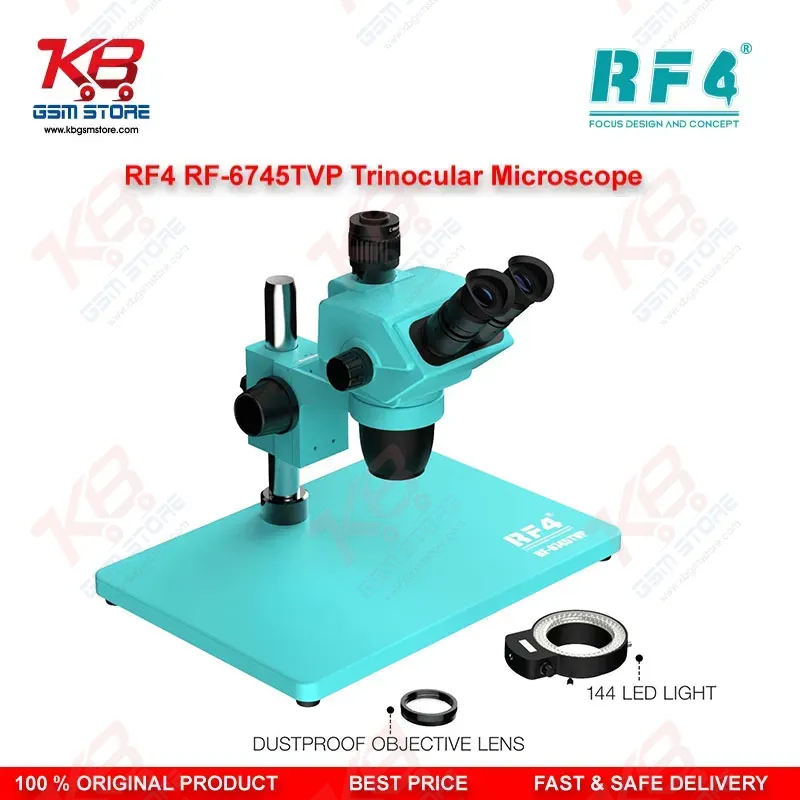

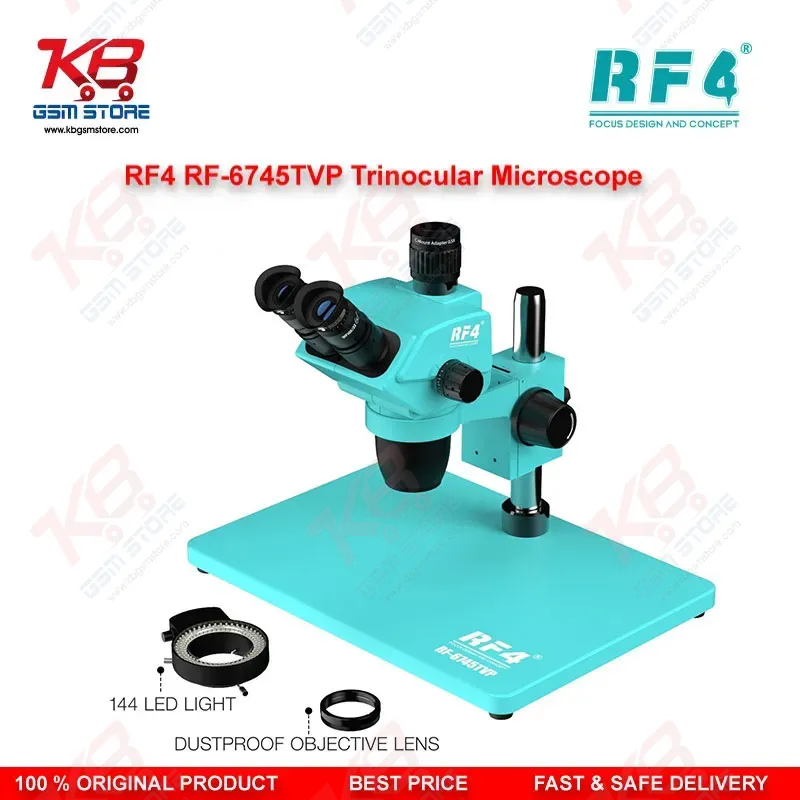

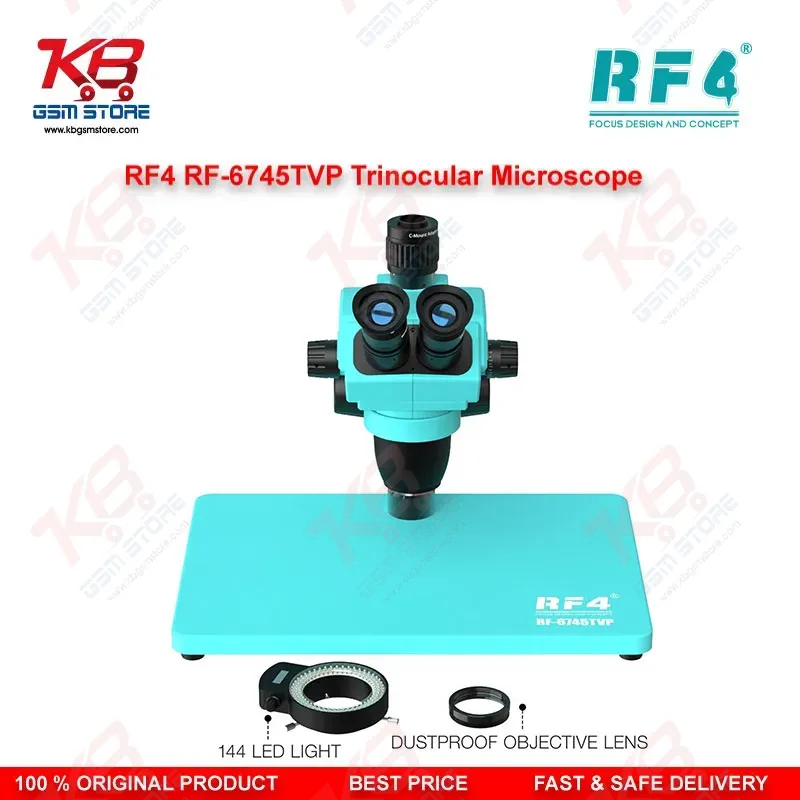

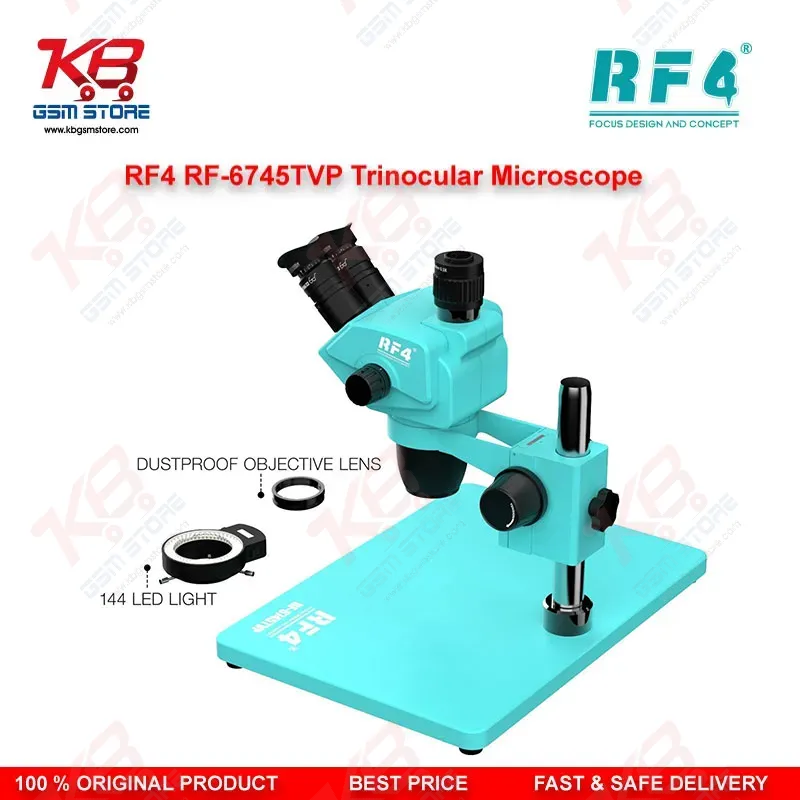

Lighting is handled by a 144 LED ring light rated for AC 100 to 240V input and DC 12V output at a maximum of 700mA, with a 60mm inside diameter that fits directly around the objective lens. White light output keeps colors accurate, which matters when you are checking solder joint quality, board discoloration from a burnt IC, or corrosion around a charging port connector. Even shadowing across the board reduces the chances of missing a hairline crack or a lifted pad during inspection.
The included 0.5X CTV lens is fully metal construction, with an aluminum alloy black section and a copper chrome-plated bayonet on the silver section. This kind of build holds up to repeated mounting and dismounting better than plastic-bodied adapters, which is a common failure point on cheaper microscope camera kits.
On the support side, the column aperture is Φ32mm, the lens aperture is Φ76mm, the center distance is 155mm, and the lifting range covers 50mm of vertical adjustment. Together these numbers determine how the microscope mounts on a standard boom stand and how much working height flexibility you get when switching between board sizes, from a compact phone motherboard to a larger tablet or laptop PCB.
It is worth noting that the package configuration has been updated from earlier listings of this series. The OK-8 ring light originally shown with this model has been upgraded to the OK-9 ring light, and the EM5 eye mask has been replaced with the EM6 eye mask. If your workshop already uses EM5 eye masks on other microscopes, keep this in mind when ordering spare eye cups, since the EM6 is the current matching part for this unit.

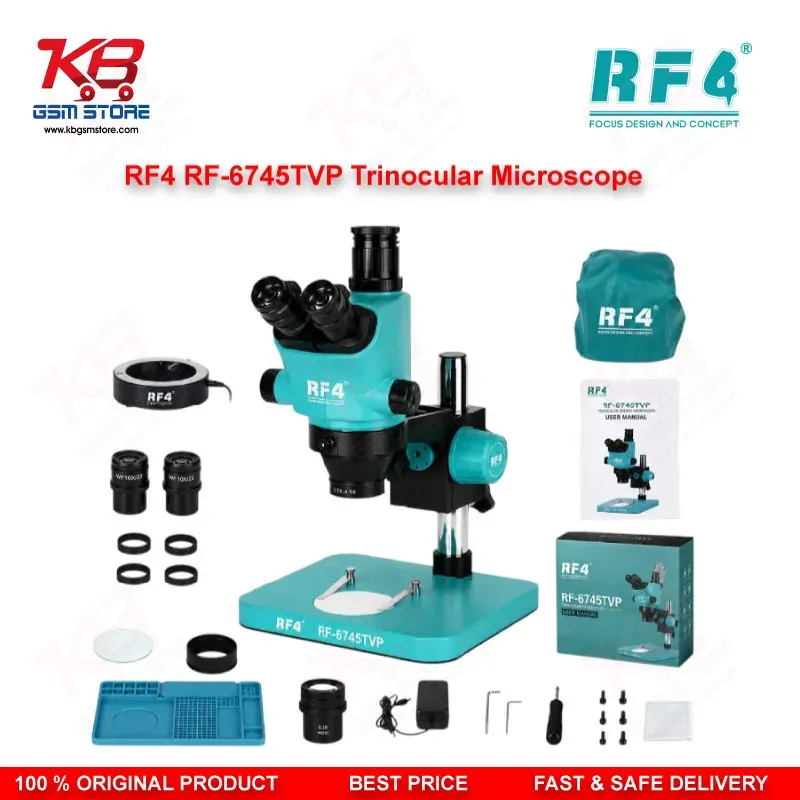

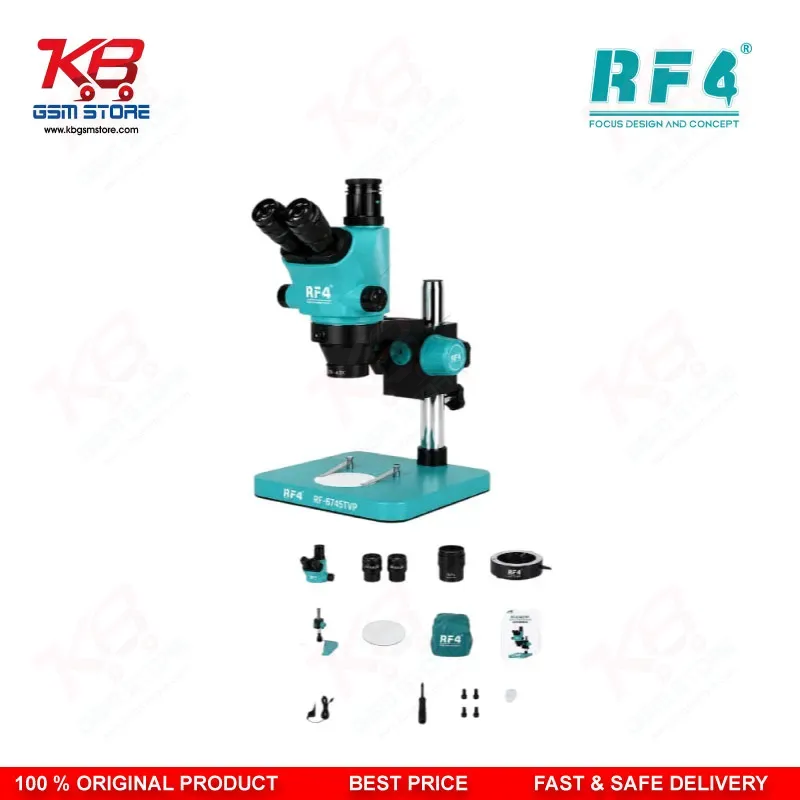

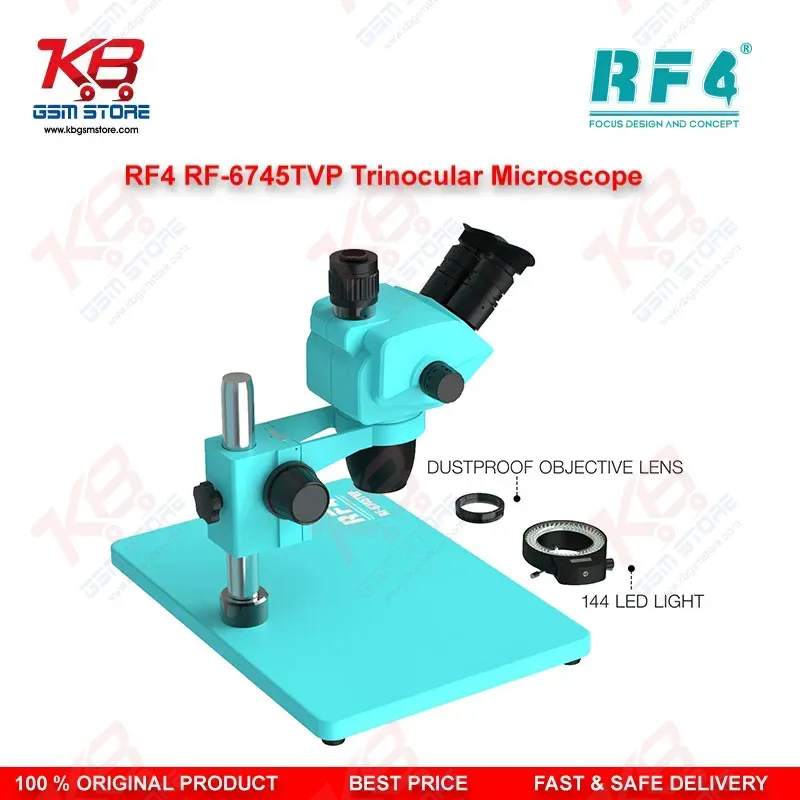

Inside the box, you get the microscope body, an aluminum alloy mounting plate, the 144 LED ring light, a dustproof lens, and the 0.5X CTV lens. This covers the core setup needed for board-level visual inspection straight out of the box, leaving boom stand selection and camera body as the main add-ons depending on how your bench is already configured.
For a GSM repair shop, this microscope fits into the diagnostics and rework stages of the workflow. It is the tool you reach for before software marna on a board with a hang on logo issue, to rule out a visible hardware fault first. It is also the tool you keep running during IC change karna on a BGA chip, where alignment accuracy under magnification directly affects whether the reflow goes clean or leaves a bridge. For training purposes, the synchronous CTV output makes it practical to demonstrate jumper placement or component-level fault finding to new technicians on a shared screen, while the senior technician keeps working through the eyepiece.
