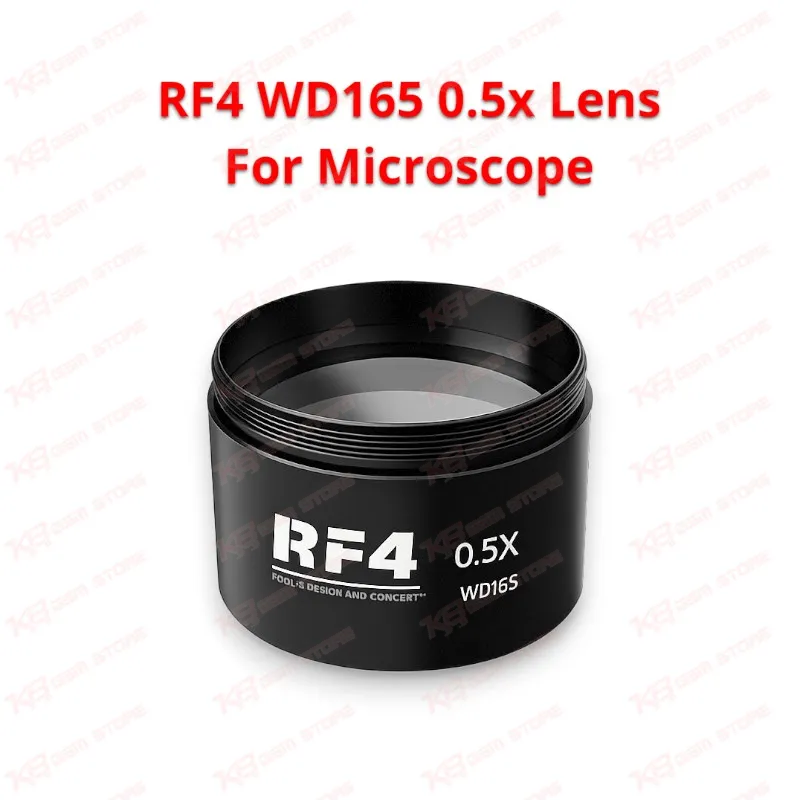

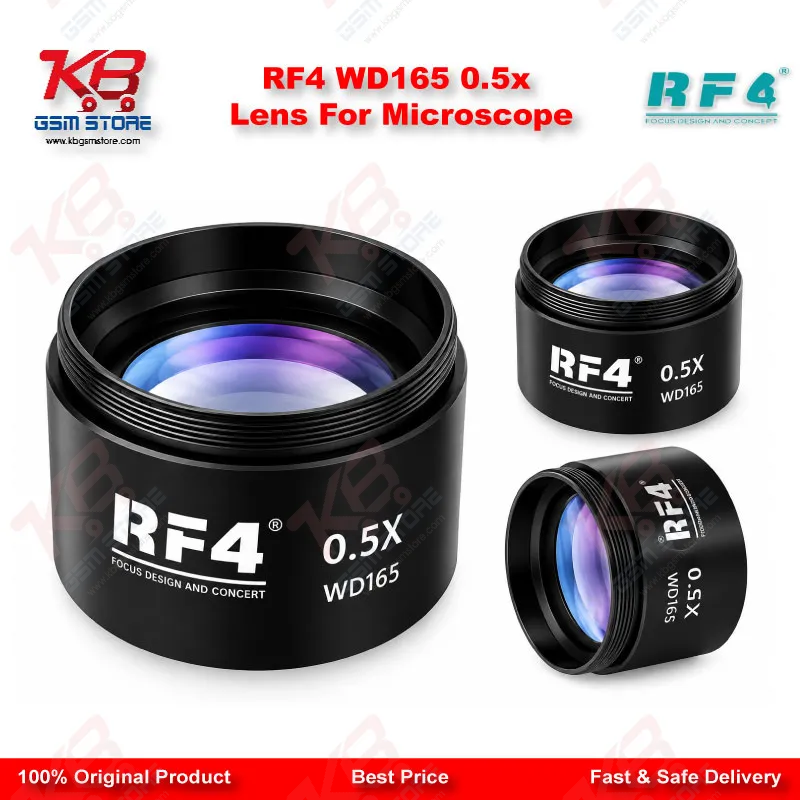

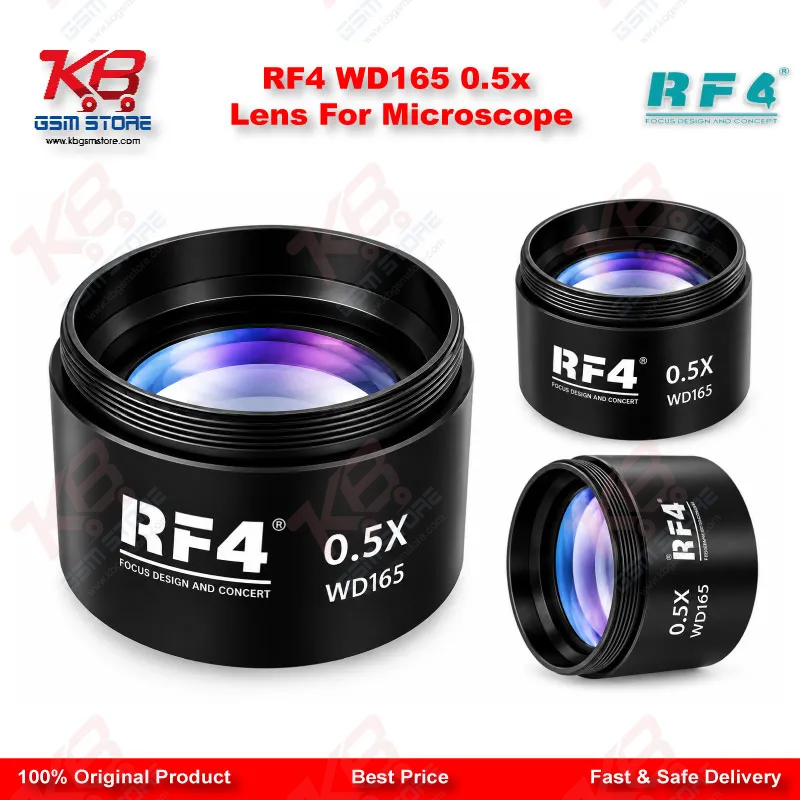

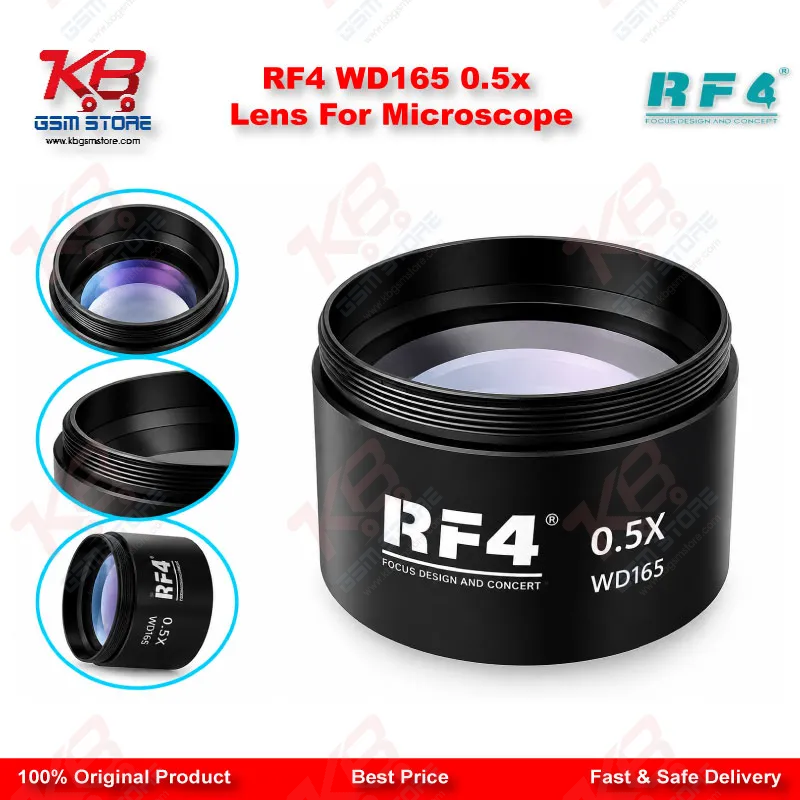

RF4 WD165 0.5x Lens For Microscope

Every technician who works under a stereo microscope knows the moment when the hot air nozzle bumps the objective or the soldering iron barely squeezes into the gap above the board, and the RF4 WD165 0.5x Lens For Microscope fixes exactly that problem by screwing onto the bottom of your microscope's main objective and extending the working distance to 165mm. A stereo zoom head without an auxiliary lens leaves a much tighter gap between the optics and the PCB, and that tight gap forces awkward hand angles during IC removal, underfill cleaning, and BGA rework. This Barlow auxiliary objective combines a metal body with glass optics and a 48mm mounting thread, so it threads directly onto most stereo zoom and trinocular microscopes that share this standard thread size. You need no tools, adapters, or calibration; you screw it on, refocus, and return to work. The 0.5x rating tells you exactly how the lens changes your view: it cuts the total magnification of your microscope in half, and in exchange you see a wider area of the motherboard at once. That trade works in your favor for most board-level jobs, because the majority of motherboard work does not demand maximum zoom. When you diagnose a dead phone with a short on the main power line, you want the PMIC area, the surrounding capacitors, and the battery connector in one frame while you hunt for the heating component. When you replace a charging IC to fix a charging issue, you need room for the nozzle and enough field of view to watch neighbouring components so they stay in place. When a display problem traces back to a damaged FPC connector, you need space to angle the iron and the tweezers at the same time. The 165mm working distance gives you that space. Your hot air station nozzle sits comfortably above the board, your soldering station handle moves without touching the lens housing, and flux smoke rises further from the glass before it reaches the optics, which keeps your objective cleaner through long rework sessions. Technicians running a trinocular setup with a camera also gain, because the wider field lets you record or stream a full section of the board instead of a narrow patch, which helps when you train junior staff or show a customer the corrosion or burnt component you found. Think about where this lens sits on a complete repair bench. Your microscope remains the center of all board-level work, and this auxiliary objective adapts it to the job in front of you. It pairs naturally with a stable PCB holder that keeps the board flat at the right height, a reballing kit for CPU and storage chip work, and a multimeter for measuring lines while you inspect them under magnification. Software technicians who handle ISP work spend time under the microscope too, because locating ISP pinout points and soldering fine jumper wires to them demands both clarity and hand clearance; the extra working distance makes that jumper work far less frustrating, whether you connect the board to a test box, an eMMC programmer, or a UFS adapter afterward. For a phone that hangs on logo or goes dead after flash because of a failed storage chip, chip removal and reballing become easier when your tools have room to move. Keep a few practical points in mind before you buy. Confirm that your microscope objective uses a 48mm thread, since that thread size decides the fit. Expect to raise the focus height after installation, because the lens moves the focal plane to around 165mm below the objective, so your stand needs enough vertical travel. Remember that halving magnification means you may remove the lens for the finest inspection work and screw it back on for general rework, although many workshops keep it mounted permanently and rely on the zoom knob for closer views. Wipe the glass with a soft lens cloth and cap it when you store it, and it will serve your bench for years. For Pakistani repair shops that handle dozens of motherboard jobs every day, from network issue fixes to boot loop repairs, the RF4 WD165 0.5x Lens For Microscope is a low-cost upgrade that makes an existing microscope far more comfortable to work under.
