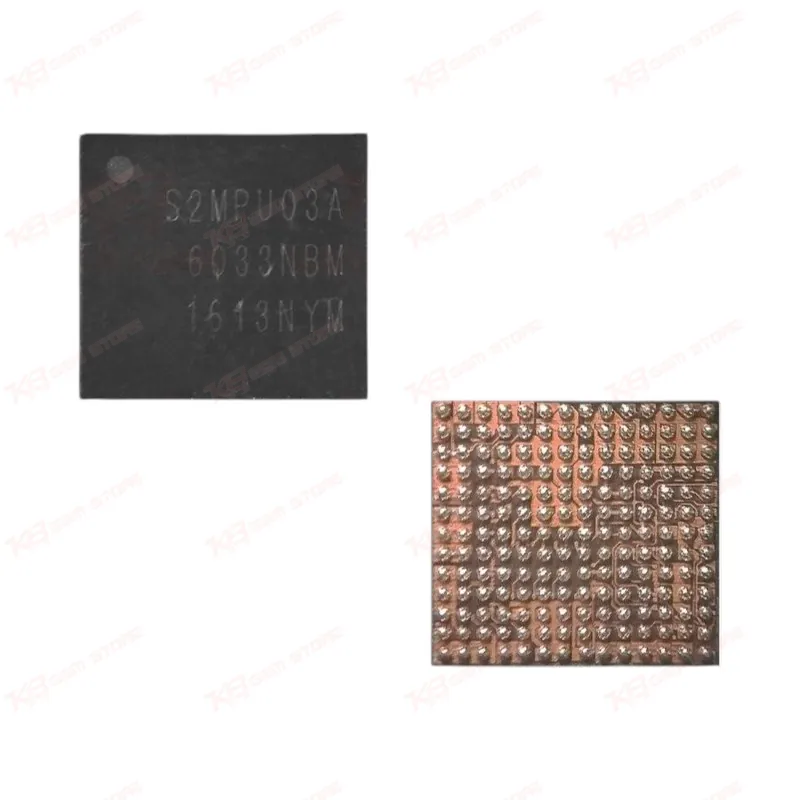

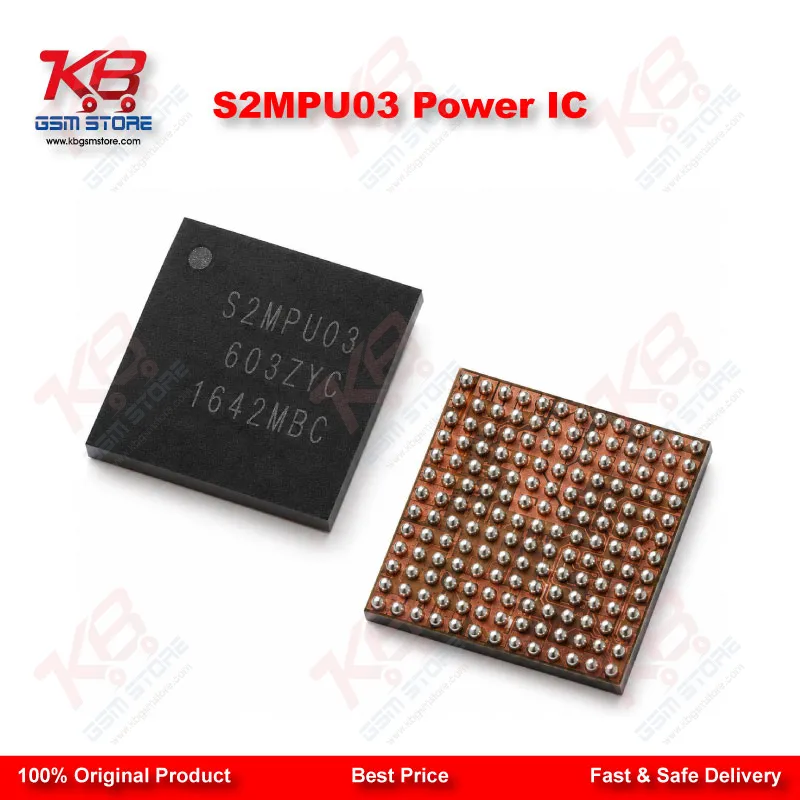

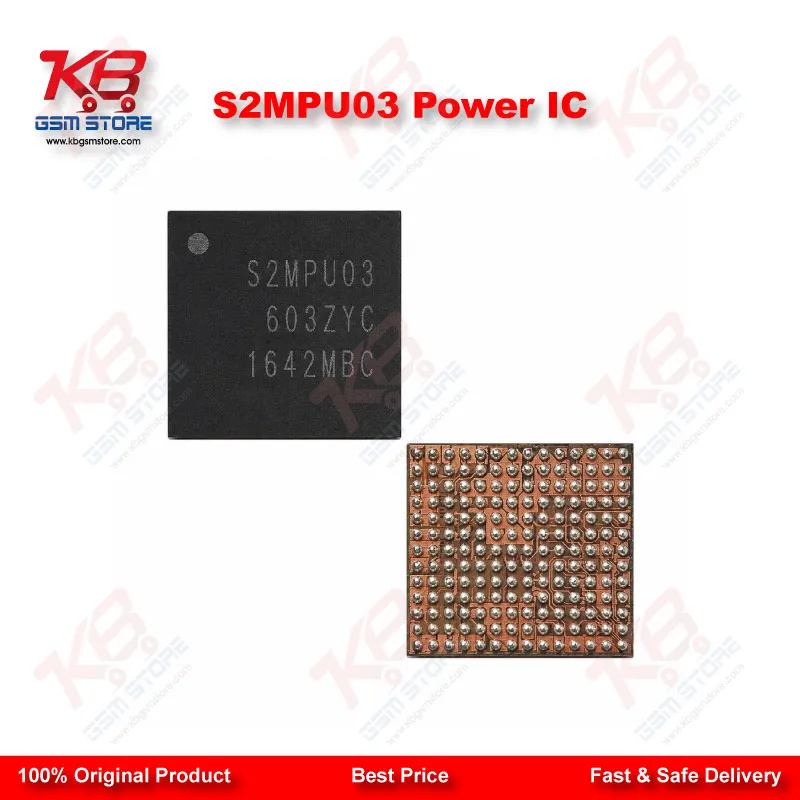

When a Samsung A-series phone comes into your shop completely dead, showing no display, no charging response, and no boot activity, the power management IC is almost always on your checklist before you touch anything else on the board. The S2MPU03 sits at the center of this power delivery chain on the Galaxy A3 (2016), A5 (2016), and A7 (2016) motherboards, models identified by part numbers A310F, A510F, A710F, and A7100. Its job is straightforward but critical: it regulates and distributes voltage rails to the processor, memory, and other essential ICs on the board, sequencing power-up correctly so the rest of the phone can boot.
You'll typically reach for this IC in a few recurring repair scenarios. A phone that's dead after flash, one that hangs on logo no matter how many times you reflash the software, or one that shows zero response after liquid exposure, these are the classic symptoms pointing toward a power IC fault. Corrosion around the power management section is common on these boards, especially on units that have come in after water damage in humid conditions, which is a frequent complaint from customers across Lahore, Karachi, and Islamabad workshops. Once corrosion sets in near the S2MPU03, short circuits or open connections on its power rails can knock out the entire board, and no amount of software marna will bring it back until the hardware fault is addressed.
Diagnosing a suspected power IC issue starts with current draw testing on your bench power supply. If the board pulls excessive current at a fixed voltage without showing any display activity, or pulls almost nothing at all, that's a strong signal pointing to the power management section. From there, thermal imaging or a simple resistance check across the IC's pins can help confirm whether the S2MPU03 itself is faulty or whether the problem lies elsewhere on the rail. Many technicians in Pakistan working on high repair volume benches keep original-spec S2MPU03 units in stock specifically because guesswork on power ICs wastes time and risks damaging the board further with repeated reflow attempts.
Replacing this IC is chip level work that calls for a proper hot air rework station, quality flux, and a steady hand, since the pads are compact and closely spaced. Reballing is often necessary rather than a straight swap, and getting the reflow profile and preheat temperature right matters more here than with larger components, because the surrounding capacitors and resistors on the A-series boards are sensitive to prolonged heat exposure. A jumper lagana approach is sometimes used as a temporary fix for a lifted pad, but for a lasting repair, a full IC change karna with a properly reballed replacement is the standard practice among experienced technicians.
Beyond board-level failures, this power IC also comes into play on boards that show intermittent shutdown, batteries that drain unusually fast, or charging issues that don't resolve after replacing the charging IC or battery connector. Because the S2MPU03 governs multiple voltage domains at once, a partial fault can produce symptoms that look unrelated to power at first glance, an unstable display, random restarts, or a phone that only boots when connected to a charger. Ruling the power IC in or out early in your diagnostic process saves time compared to chasing symptoms individually.
For repair shops and service centers handling regular volume of Samsung A-series units, stocking the S2MPU03 alongside your other chip-level consumables means you're not waiting on parts when a dead board comes in. It fits directly into standard motherboard repair, PCB repair, and IC-level diagnostic workflows already used on hardware fault cases, and pairs naturally with your existing hot air station, microscope, and reballing stencil setup for this generation of Samsung boards.
