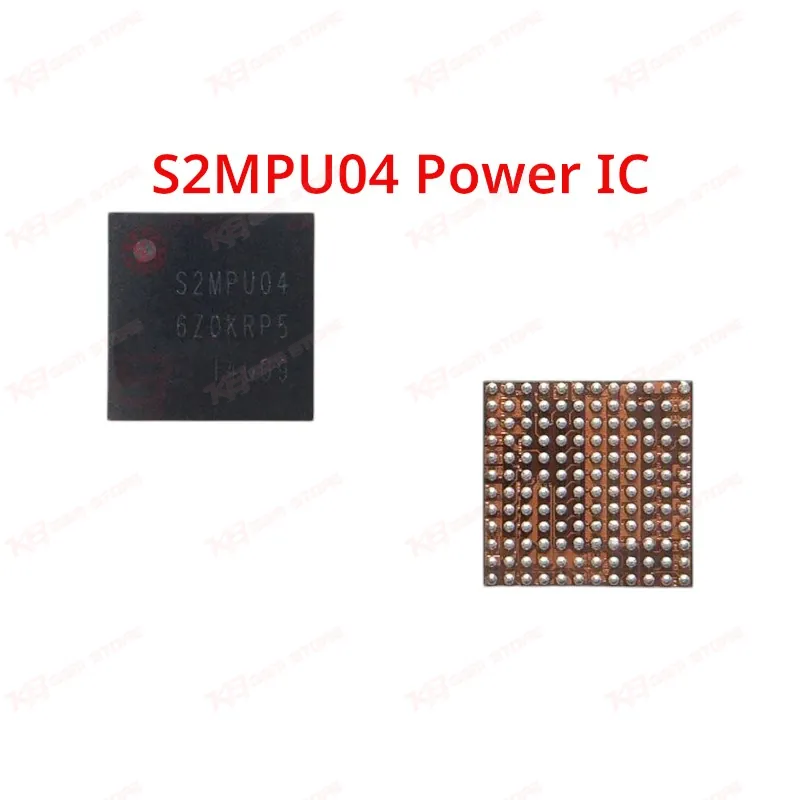

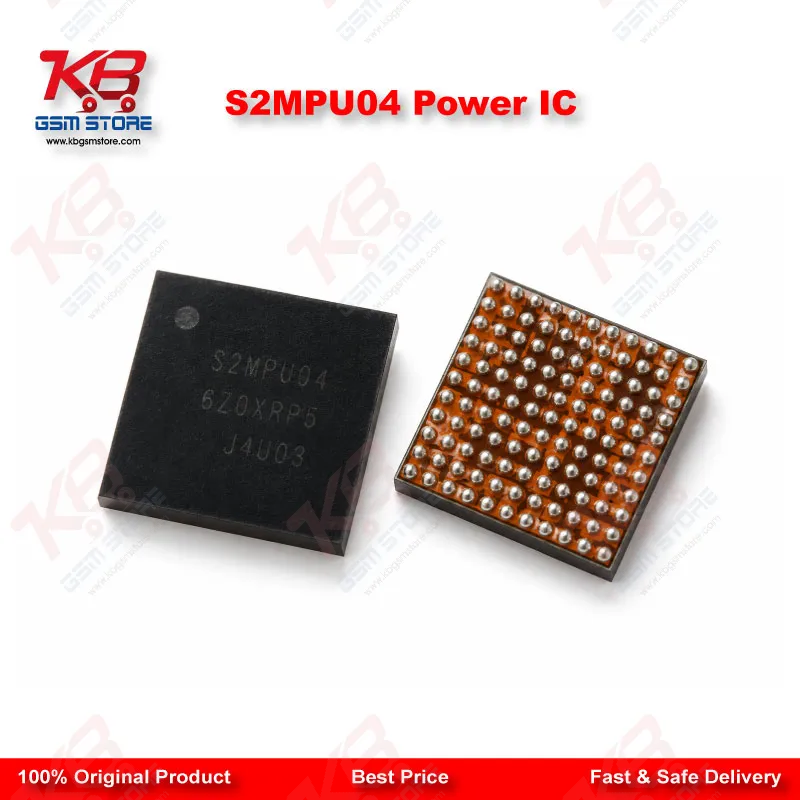

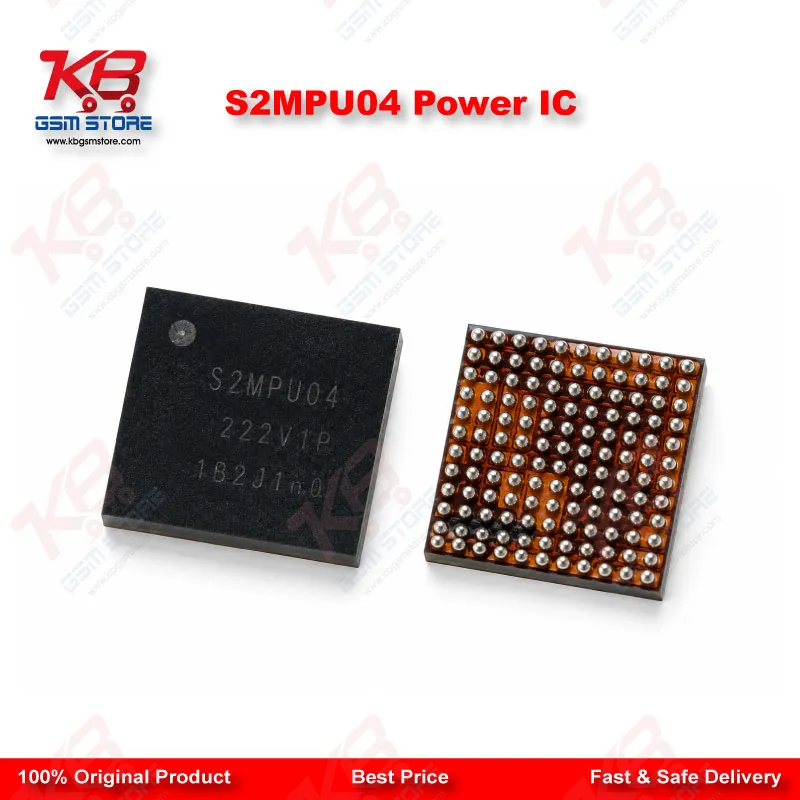

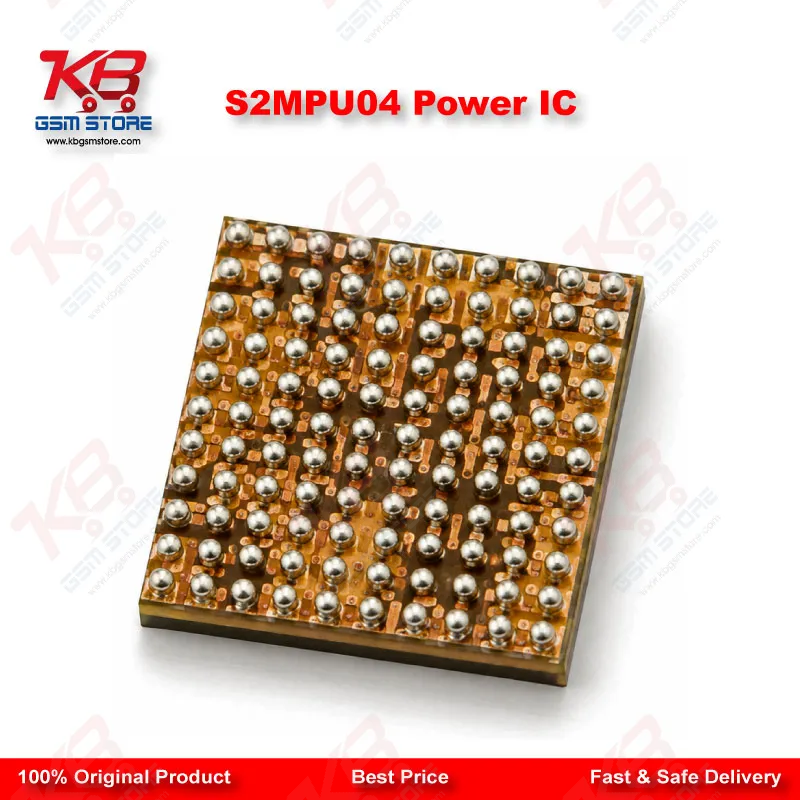

S2MPU04 Power IC

Power IC failure is one of the most common reasons a Samsung J-series phone goes completely dead on your bench. The S2MPU04 handles voltage regulation across the motherboard, and when it fails or shorts, you'll see a phone that won't power on, won't charge, or drains the battery even when off. This chip is the exact replacement Samsung used on the Galaxy J2 (2016) / J200, Galaxy J7 (2016), Galaxy J4 (2018), and Galaxy A7 (2016) / A7100 boards, so you're not guessing about fitment — it's the OEM part number for that board family.On the repair bench, this IC comes into play during dead-after-flash cases too. Sometimes a board flashes fine in the software, but the phone still won't boot because the power IC itself is the fault, not the firmware. If you've already ruled out software issues — reflashed, checked the boot chain, and the phone still shows a dead board or hangs before the logo — the power IC is next on your checklist. A quick diode-mode check on the power rails against a known-good board will usually confirm whether the S2MPU04 is shorting or not holding voltage.Installation is straightforward for anyone running a proper hot air station or BGA rework setup, but it's not a beginner part. You're pulling a 144-pin BGA chip off a dense multi-layer board, so preheating the board correctly matters — rush the heat profile and you risk lifting pads or damaging neighboring components. Clean the pads fully after removal, reball if your existing balls look uneven, and reflow with a controlled hot air profile rather than eyeballing it. A microscope helps a lot here for pad inspection before you drop the new chip on.Some suppliers list the S2MPU04 as interchangeable with the S2MPU03A on the same board family — worth checking against the specific motherboard revision you're working on before you commit to a soldering job, since board revisions do shift IC options across production runs.This chip earns its place on the bench because power rail failures are common enough on this Samsung series that having the exact IC on hand saves you a diagnosis-to-repair cycle you'd otherwise lose waiting on parts. For a shop running regular Samsung J-series and A7 traffic, it's a stock item, not a one-off order.
Pair it with your existing ISP or eMMC tools if the board also needs a software-side check after the hardware fix — a dead board can have both a power IC fault and a corrupted eMMC sitting underneath it, so confirm the power rail is stable before you move to the software diagnosis.
