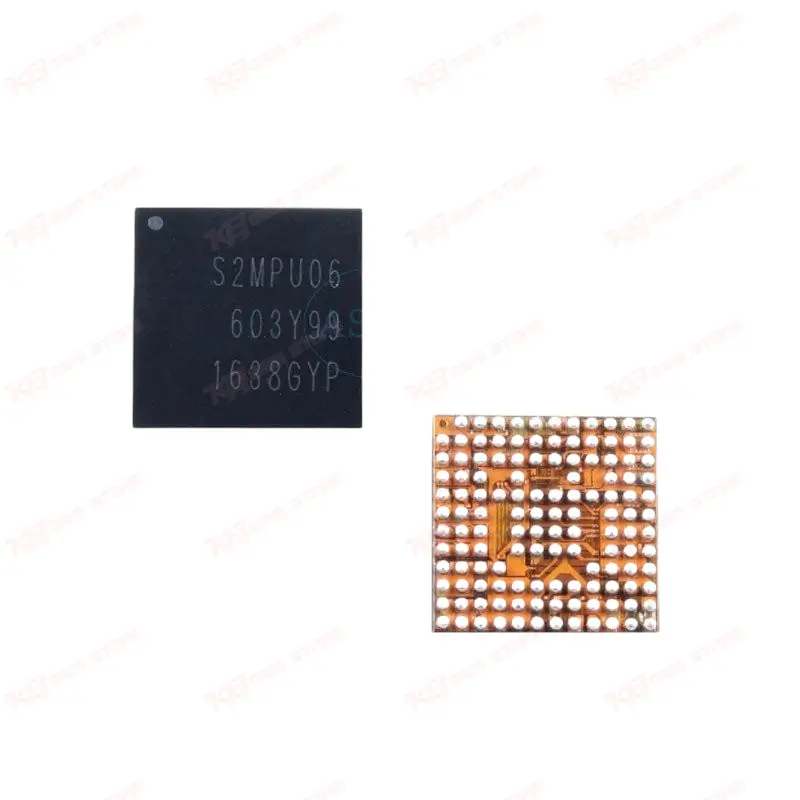

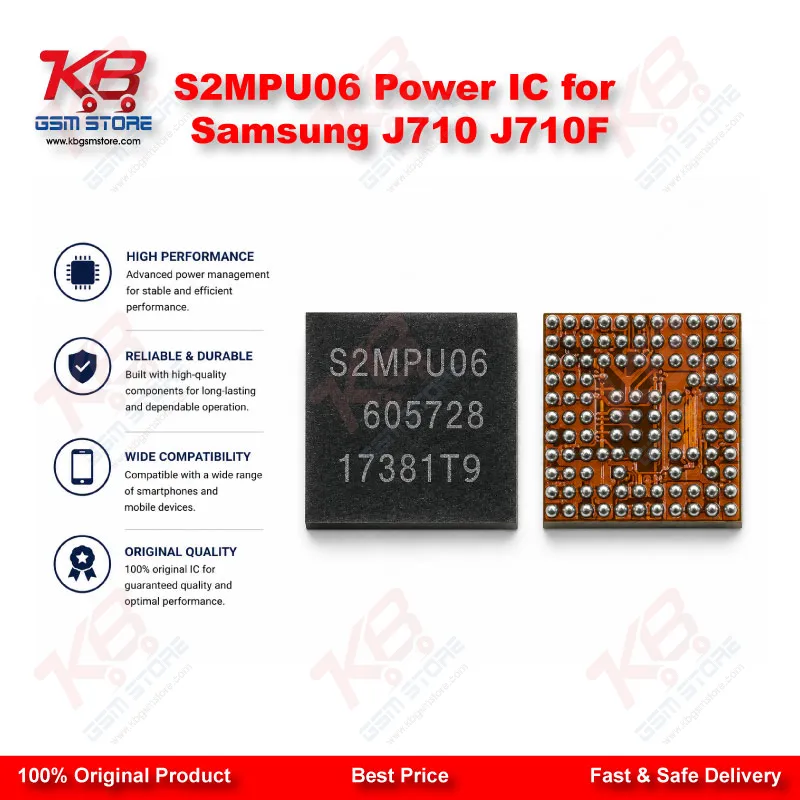

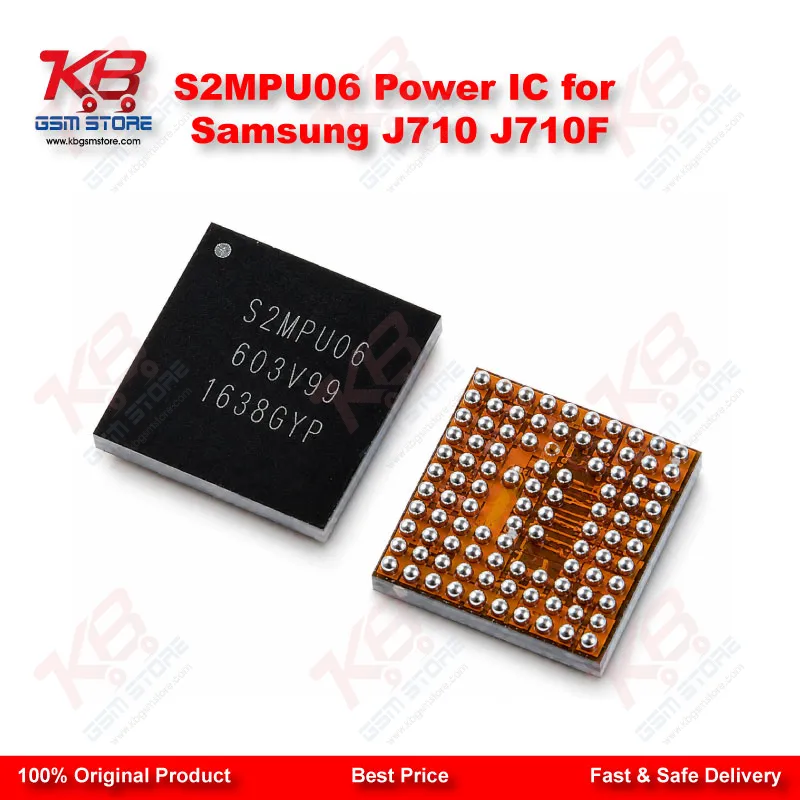

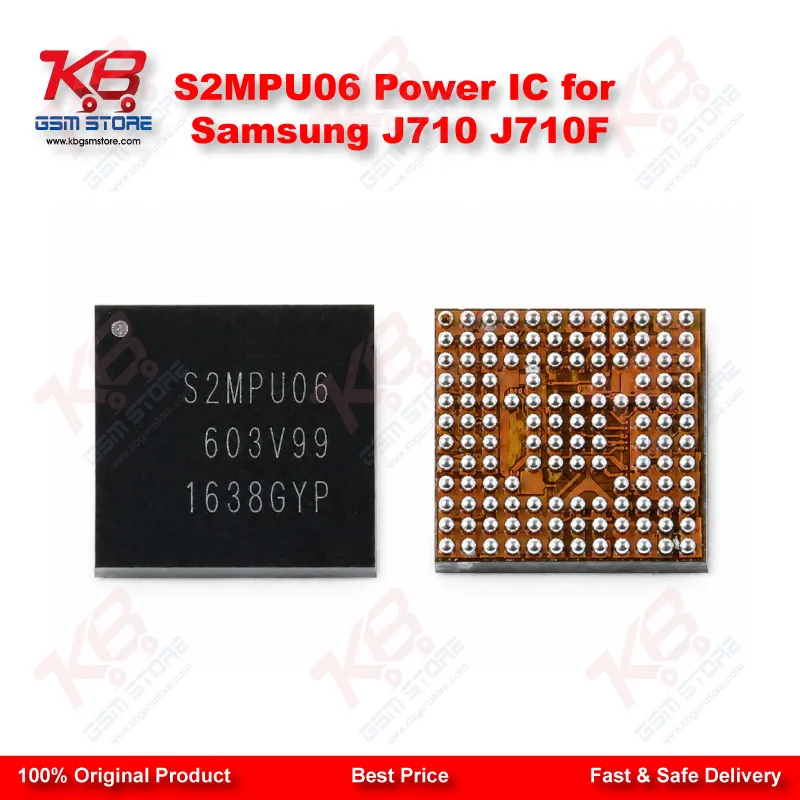

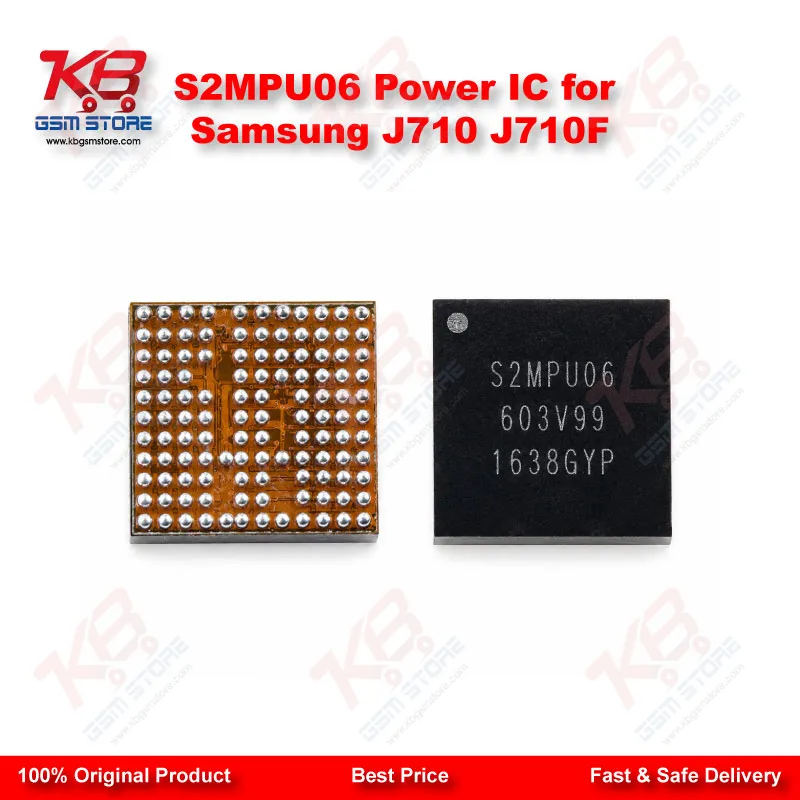

When a Galaxy J710F comes into your workshop showing no charging response, sudden shutdown while on charger, or a battery that swells from overcharging, the fault almost always traces back to the power control IC on the motherboard. The S2MPU06 sits directly in the charging path, managing how current flows from the charging circuit into the battery cell. Once this chip degrades from moisture exposure, a bad drop, or a previous unprofessional repair attempt, the phone either stops accepting charge completely or charges without ever cutting off, damaging the battery over time. You get a direct like-for-like replacement here, not a generic substitute. The S2MPU06 comes in BGA package form, so you need a hot air station and reballing stencil on your bench to remove the damaged chip and mount the new one with proper solder balls. Supply voltage on this IC runs 1.0–6V, and dissipation power sits around 0.6W, matching the tight power budget of a J-series board where thermal management already runs close to the edge. Getting the reflow temperature and preheat stage right during rework matters more here than on larger ICs, since the board pad density around this location is high and neighboring components can shift if the hot air nozzle runs too wide. This chip is not exclusive to the J710. Samsung reused the same power management block across the G570F/DS Galaxy J5 Prime, J330F Galaxy J3 (2017), and Galaxy J7 Pro (2017), so if your bench sees a mix of J-series and mid-range Galaxy boards, stocking the S2MPU06 covers several charging-fault repair jobs at once instead of ordering a different IC per model. In your repair workflow, this part fits at the IC-level power diagnostics stage — after you have already ruled out the charging port, flex cable, and battery itself as the fault. A quick check with your multimeter across the power rail near this IC, or a thermal camera check for a hot spot during charging, usually confirms the chip is the actual failure point before you commit to reballing. Technicians handling dead-after-flash boards or hang-on-logo cases sometimes find the same IC implicated when the board draws no current at all on the power supply test, since this chip also plays a role in the initial power-on sequence. Order handling matters with a part this small. Store it in an anti-static bag until you're ready to reball, and keep your tweezers and workstation grounded, since these ICs are static-sensitive. If you're running a busy service center working through multiple J-series boards a week, keeping a small stock of this IC on hand saves you the wait time of ordering per-repair and keeps your turnaround time competitive for customers who need same-day phone repair. For KB GSM Store customers across Pakistan, this part ships ready for direct use on your reballing station — no additional pre-tinning needed, letting you move straight into the reflow and testing stage of the repair.
