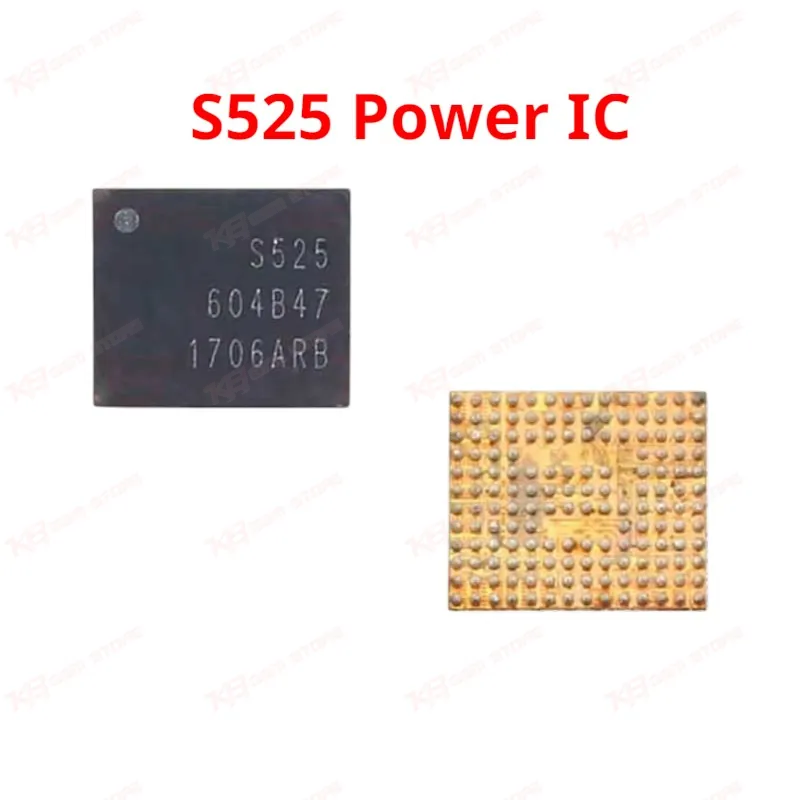

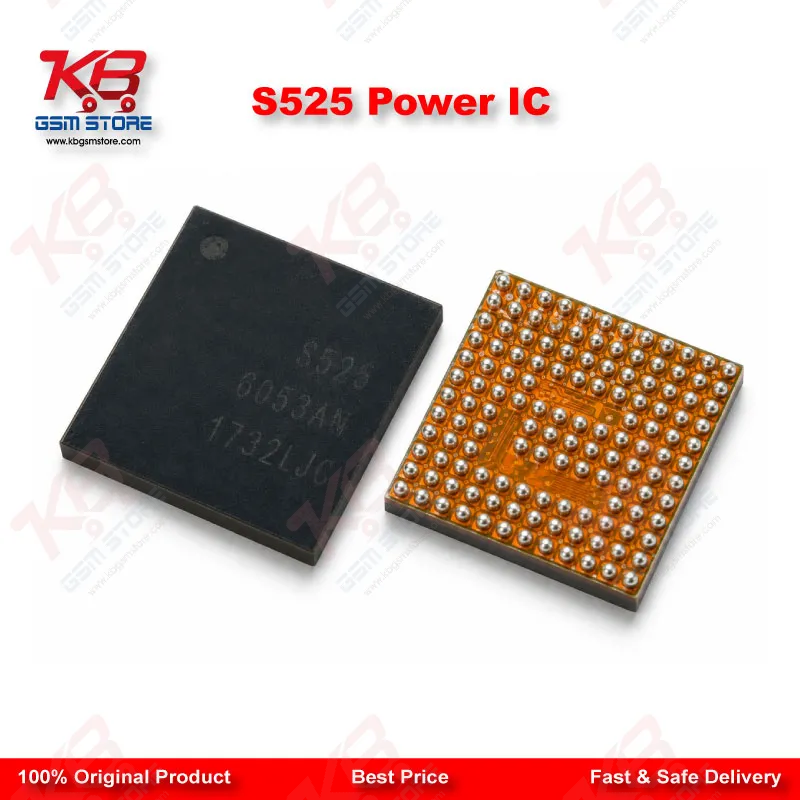

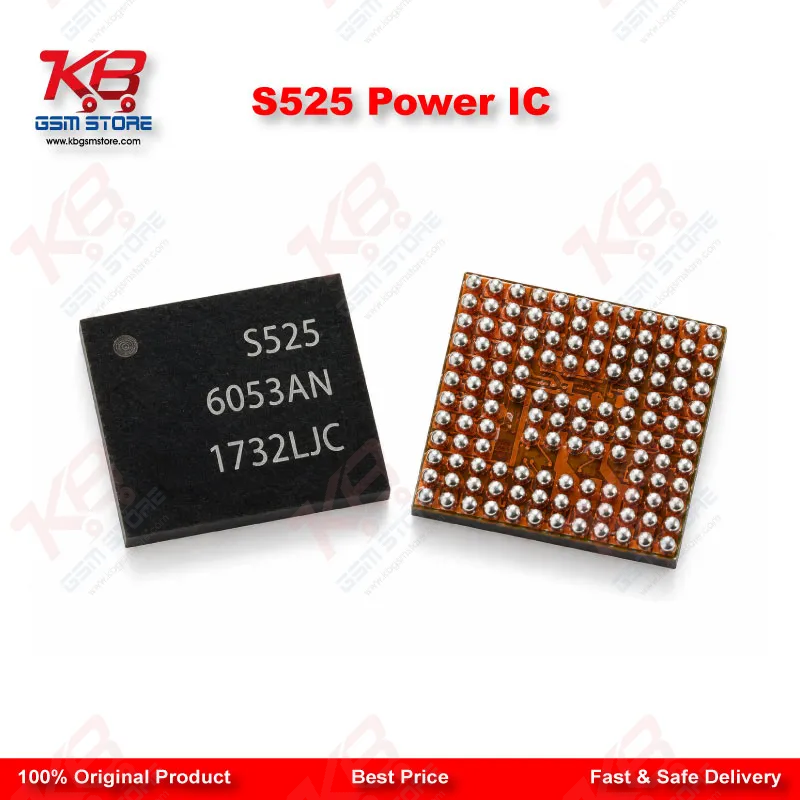

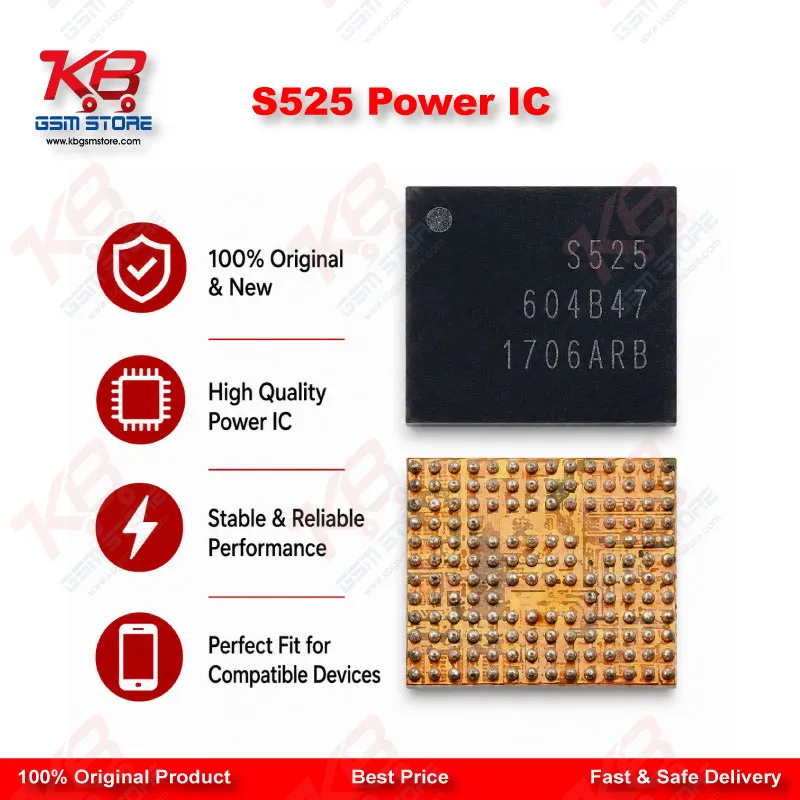

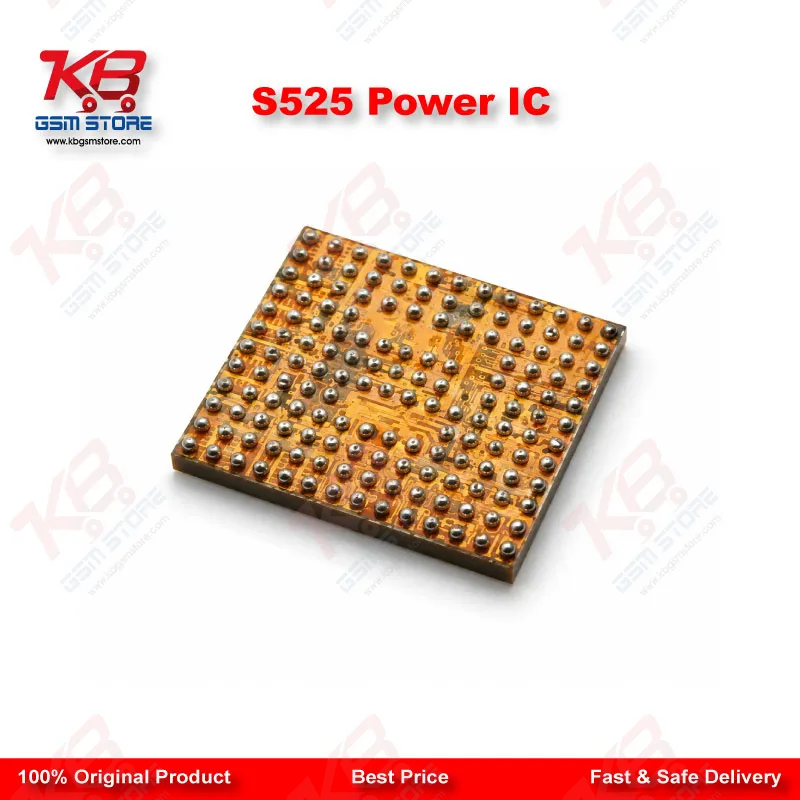

S525 Power IC

Every GSM technician knows the S525 by sight before they even flip the board — it sits in the power section and keeps the whole motherboard alive. On Samsung Galaxy S7, S7 Edge, and the 2017 A-series (A3, A5, A7), this chip manages the power rails that feed the CPU, memory, and charging circuit. When it fails, you don't get a soft glitch — you get a dead phone that won't even show the charging logo.You'll usually land on this IC after ruling out the battery and charging port. Put the board on your bench power supply, check current draw, and if you see a short or abnormal amperage pulling from the power rail, the S525 becomes your prime suspect. A burnt or shorted power IC often traces back to liquid damage or a failed charge cycle after a deep discharge. Reflow it off with your hot air station, clean the pads properly, and reball before mounting the new chip — rushing this step is where most repairs go wrong.This is a straightforward IC swap for anyone comfortable with BGA rework, but precision still matters. Alignment has to be exact, since a shifted pad bridges adjacent pins and creates a fresh short the moment you power the board back up. Use flux generously during reflow, keep your hot air temperature controlled, and inspect under a microscope before you close up the phone. A hang on logo issue after replacement usually means a cold joint, not a bad chip — so check your soldering before you assume the part is faulty.For repair shops handling Samsung board-level work regularly, keeping the S525 in stock alongside other Samsung power ICs (S515, S535, S555, S518) saves a diagnostic delay when a customer's phone shows up dead. Pair it with your ISP pinout tools if you're also reflashing firmware after the swap, and keep a set of reballing stencils on your bench — a clean reball is what separates a permanent fix from a repeat comeback.This IC ships as a brand-new, factory-tested compatible replacement — not a pulled or refurbished part — so you're not gambling on unknown wear when you commit board time to a repair. For a workshop running Samsung repairs day to day, having verified power ICs on the shelf cuts your turnaround time and keeps dead-phone jobs from sitting on the bench waiting for parts.Whether you're running a solo repair bench or managing a service center handling multiple Samsung boards a week, the S525 covers one of the most common board-level failures you'll see on this device family — no power, no charging response, dead after flash.
