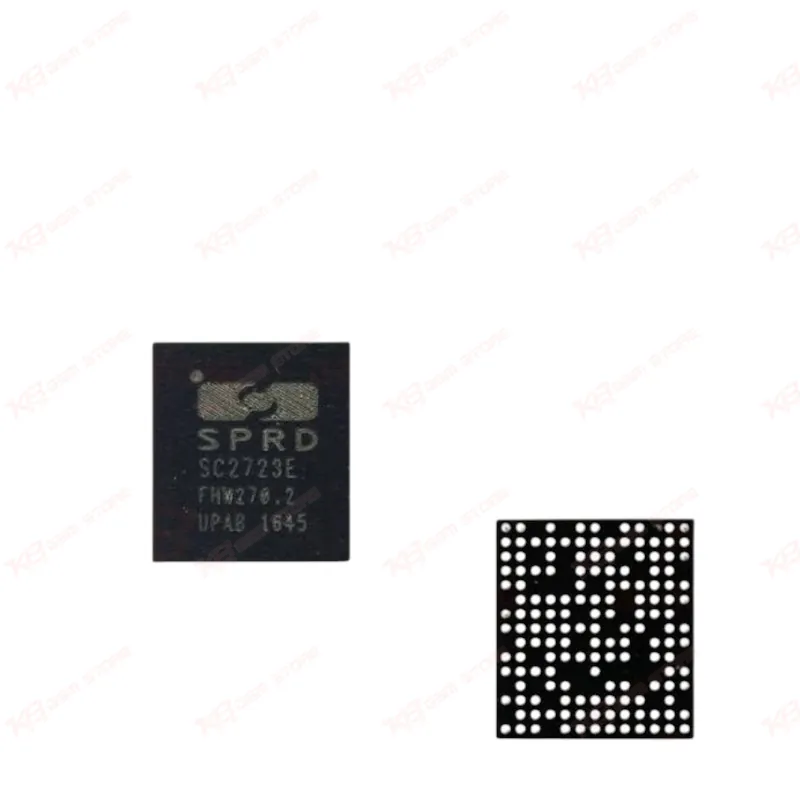

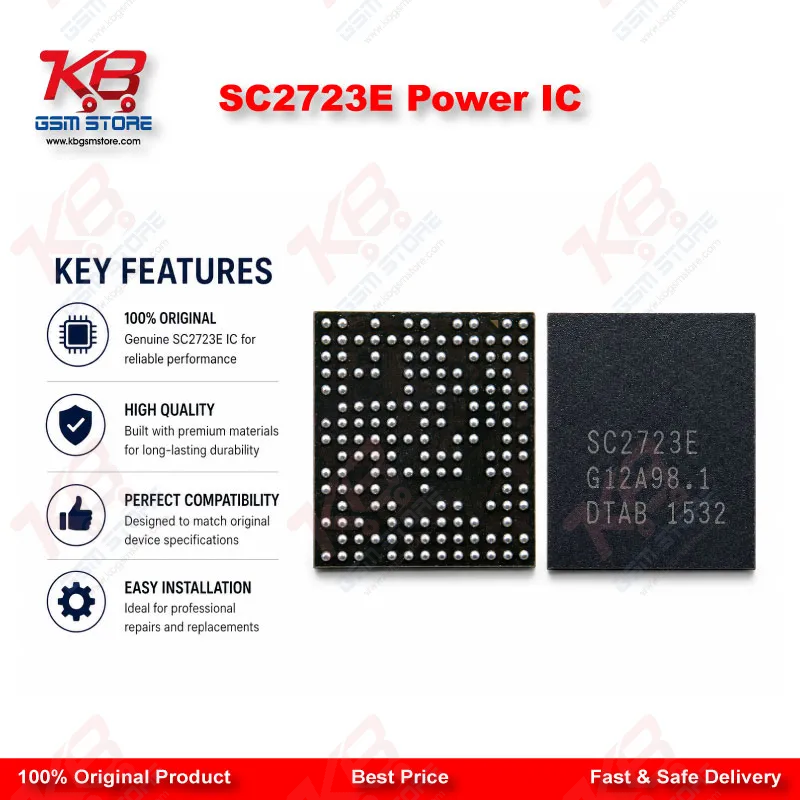

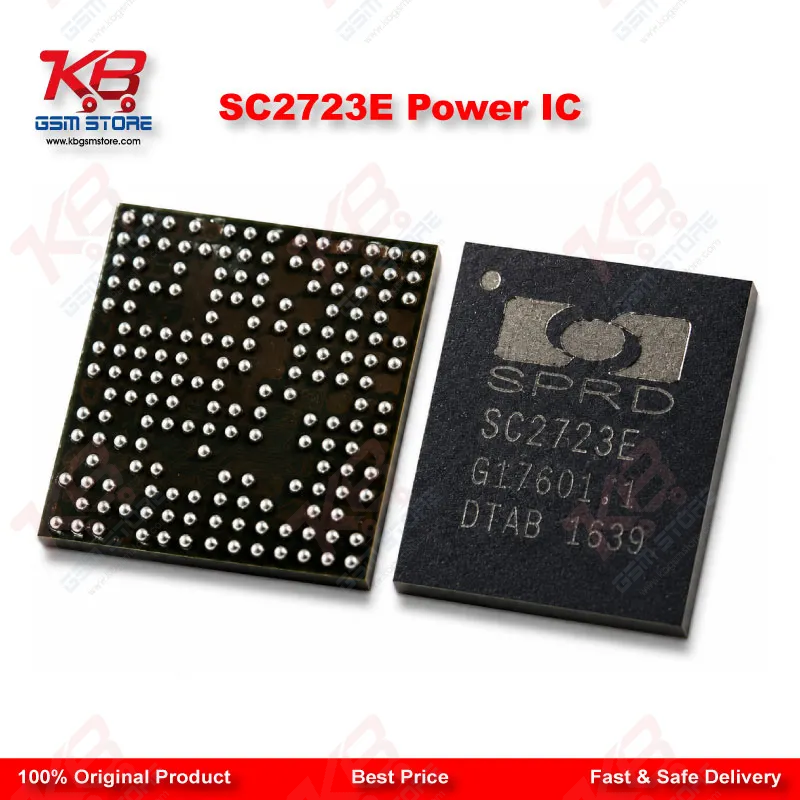

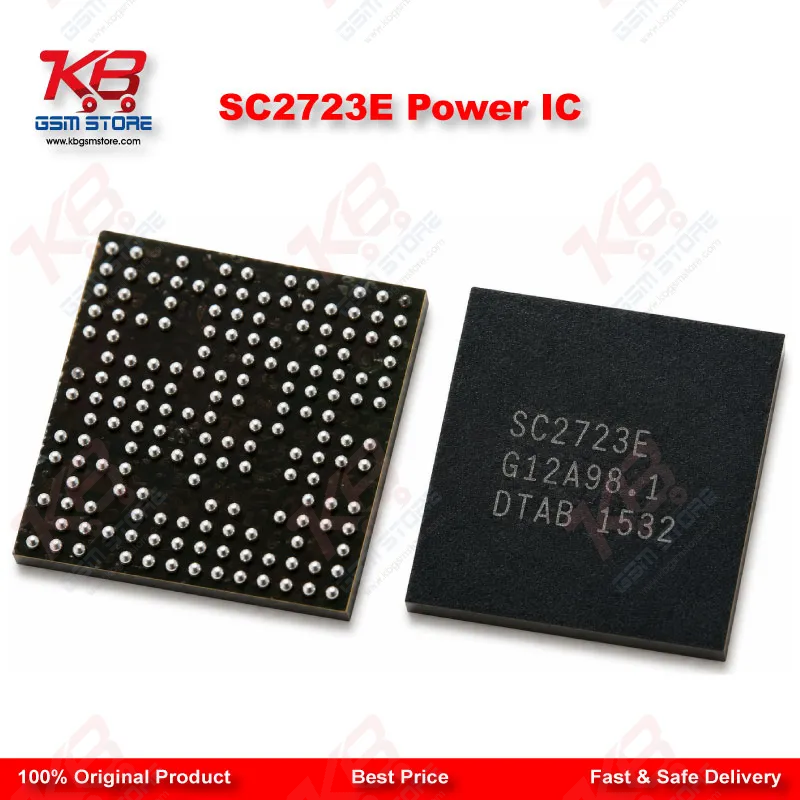

SC2723E Power IC

Power IC failures sit near the top of the list when a Samsung board comes in dead. The SC2723E is the chip technicians pull out for exactly that situation — a BGA power management IC that controls voltage delivery to key sections of the board on supported Samsung models. When this chip goes bad, the phone typically won't power on at all, won't take a charge, or boots to the logo and hangs there no matter how many times you reflash it.

You get a chip rated for a 1.0V to 6V supply voltage window with a 0.6W dissipation power rating, matching the electrical profile of the original part on the boards it supports. That matters on the bench: swap in a chip with the wrong voltage tolerance and you risk repeat failures or a board that never fully stabilizes. This one is built to the same electrical spec, so once it's reballed and seated correctly, the power rail behaves the way it should.The BGA package means this isn't a drop-in-with-tweezers job — you need a hot air station set to the right profile, fresh solder balls sized for the pad pitch, and a steady hand under the microscope. Reflow too hot and you risk lifting neighboring components or damaging the substrate; reflow too cool and you get cold joints that pass a visual check but fail under load a week later. Preheat the board evenly, keep your air pressure controlled, and clean the pads thoroughly before reballing — that's where most first-attempt failures on power IC swaps actually come from, not the chip itself.On the diagnostic side, a failing SC2723E rarely announces itself cleanly. You'll see a phone that's completely dead with no current draw on the bench power supply, or one that pulls current but never boots — sometimes with a mA reading that stays flat where a healthy board would show a boot spike. Some units come in after a customer tried a software fix at home: dead after flash is the classic symptom when someone flashes firmware on a board that already had a marginal power section, and the flash pushes it over the edge. Isolate the power rail with your multimeter before you commit to a reball; confirming continuity and checking for shorts on the supply lines first saves you from pulling a chip that wasn't actually the fault.This IC is a hardware fault fix, not a software one — don't waste bench time trying box chalana or software marna on a board where the power section itself is dead. If your diagnostics point to the PMU section and the board matches the compatible model list, IC change karna with a verified replacement like this one is the direct path back to a working charging port and a phone that powers on normally.Stock condition on these chips is tested before listing, and each unit ships ready for reballing straight out of the tray — no extra prep needed beyond your normal reballing workflow. Keep a few in your parts drawer alongside your other Samsung PMU stock; power IC failures on these model families are common enough on the repair bench that having verified replacements on hand cuts your turnaround time significantly.
