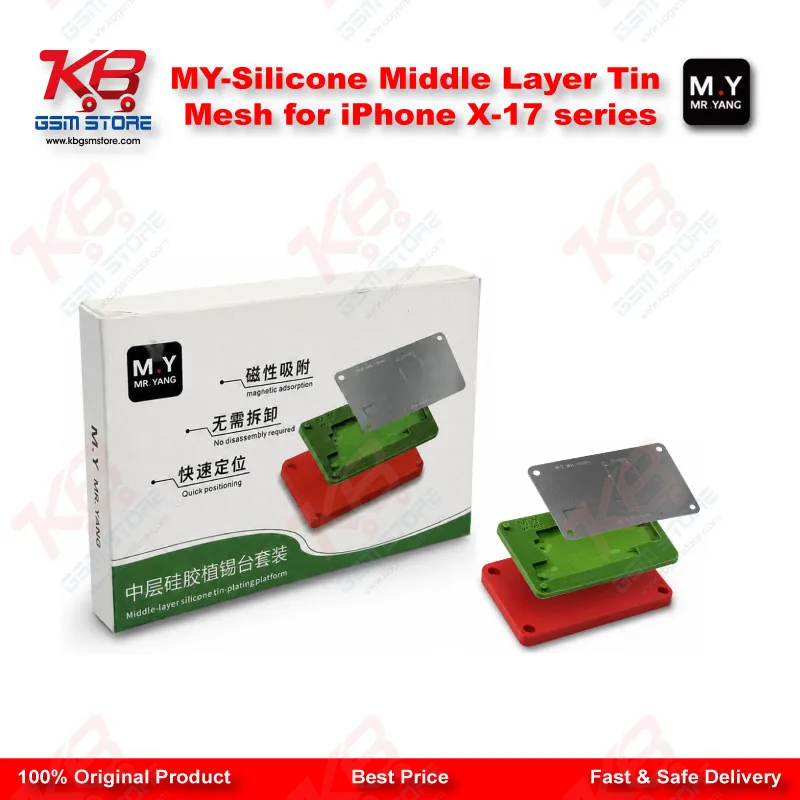

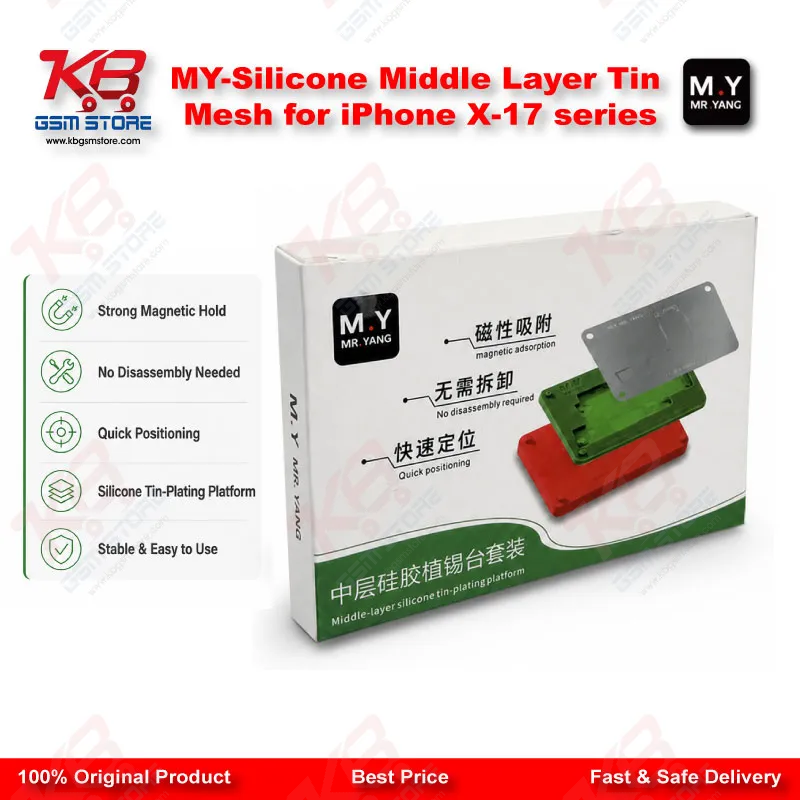

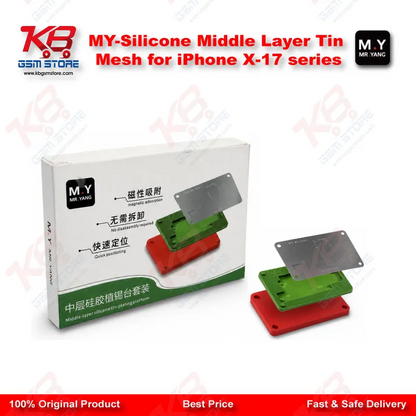

Silicone Middle Layer Tin Mesh Reballing Stencil for iPhone X to 17 Series

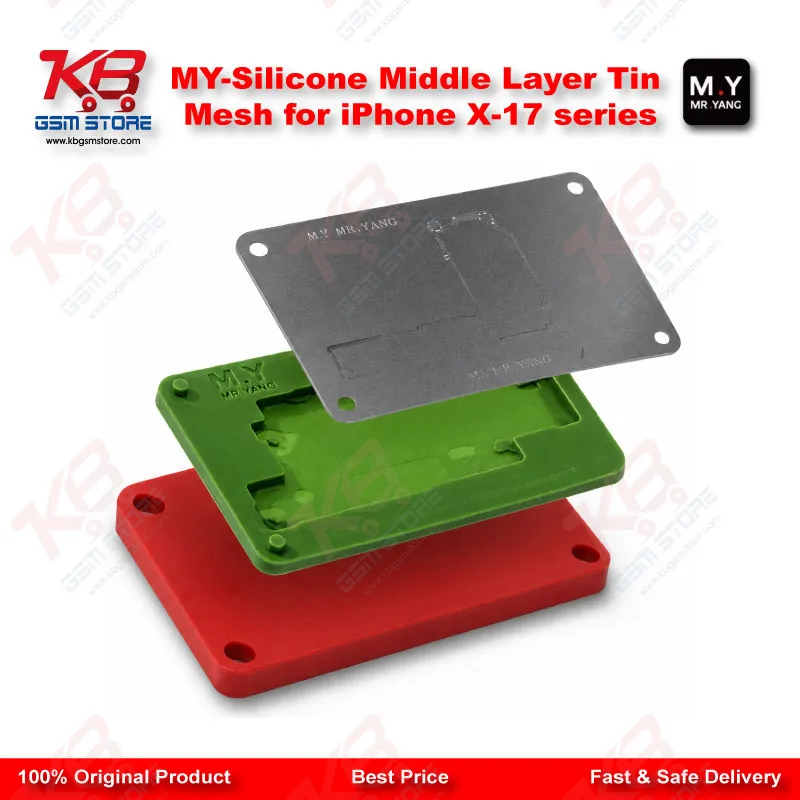

Reballing an iPhone motherboard IC without a proper middle layer platform is one of the fastest ways to turn a dead phone into a scrapped board, and that is exactly the problem this silicone middle layer tin mesh is built to solve. When a technician removes a CPU, NAND, or power IC for a boot loop issue, hang on logo, or dead after flash situation, the chip has to go back onto the board with every ball seated correctly, and that only happens if the stencil stays locked in position while the tin melts. This tool uses an anti-static silicone base paired with a precision steel mesh, so the mesh sits flush against the iPhone middle frame area instead of warping under heat the way thin metal-only stencils do after repeated use. The silicone layer absorbs some of the thermal stress from the hot air gun, which keeps the mesh from deforming and keeps hole alignment consistent from the first reball to the hundredth. For a workshop that handles iPhone X, 11, 12, 13, 14, 15, 16, and 17 series boards on a regular basis, that consistency directly affects first-time success rate, and a lower success rate on IC change jobs means more comebacks, more wasted chips, and more time lost per bench. The mesh itself uses a direct-heat square hole pattern, the same style used across Qianli, Kaisi, and XZZ middle layer platforms that most Pakistani repair shops already recognize, so tin balls drop through cleanly and plant in a uniform grid rather than clumping at the edges. Technicians working ISP and eMMC recovery jobs often need to pull the CPU or NAND chip to access test points or replace a faulty IC entirely, and this platform fits directly into that workflow: you remove the chip, clean the pads, place the mesh over the correct middle frame profile, apply flux, and reflow the tin balls before reseating the IC. Because the platform is designed around the middle frame contour rather than a flat universal grid, it holds the phone's internal geometry accurately, which matters most on tightly packed boards where a millimeter of misalignment means a short or an open circuit after reassembly. The build also holds up under the heat cycles that come with daily bench work in a busy service center, where a single platform might see dozens of reball cycles a week; a stencil that degrades after a few uses ends up costing more in replacement purchases than a properly built silicone-backed one. For shops that also handle PCB repair beyond straightforward IC swaps, such as board-level shorts, charging issues traced back to a damaged PMIC, or a network issue linked to a faulty RF IC, having a dependable reballing platform on hand means those repairs stay in-house instead of getting sent out. The tool pairs naturally with a hot air rework station, flux, solder paste, and a decent microscope or magnifier for pad inspection before reflow, and most technicians keep it alongside their ISP pinout tools and eMMC programmers since board-level and software-level repairs often happen back to back on the same dead phone. Color-coded or clearly labeled middle layer platforms also help when a shop has multiple technicians pulling stencils for different iPhone generations during a busy day, cutting down mix-ups that lead to a wrong-size mesh being used on the wrong board. Whether you are running a solo repair bench or managing a full service center handling iPhone X through 17 series work, a stable, heat-resistant middle layer tin mesh is one of those tools that quietly prevents a large share of failed reballs, and investing in one that holds its shape under real workshop conditions pays for itself within the first few jobs.
