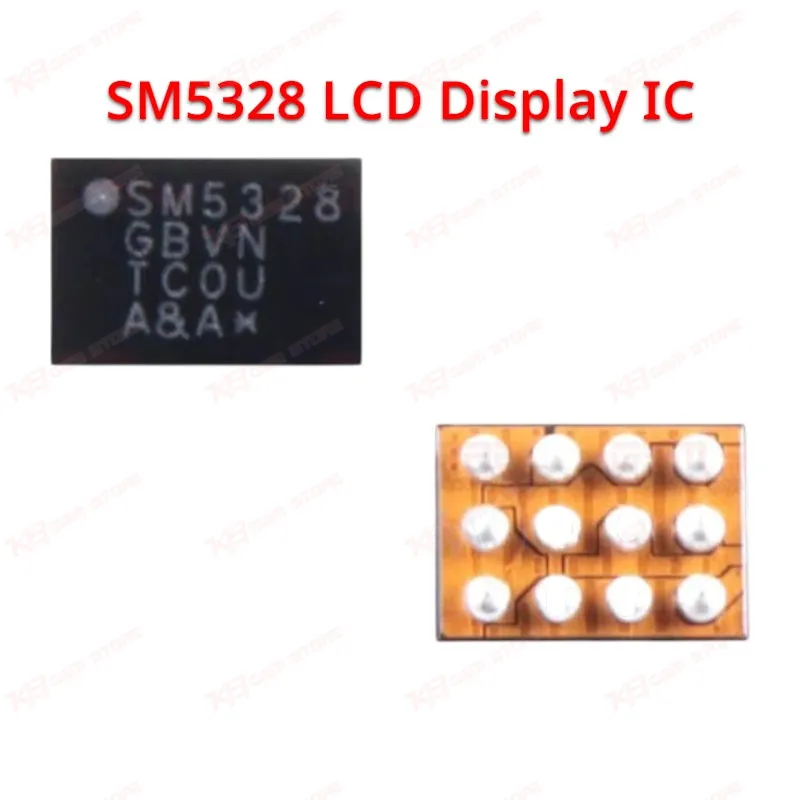

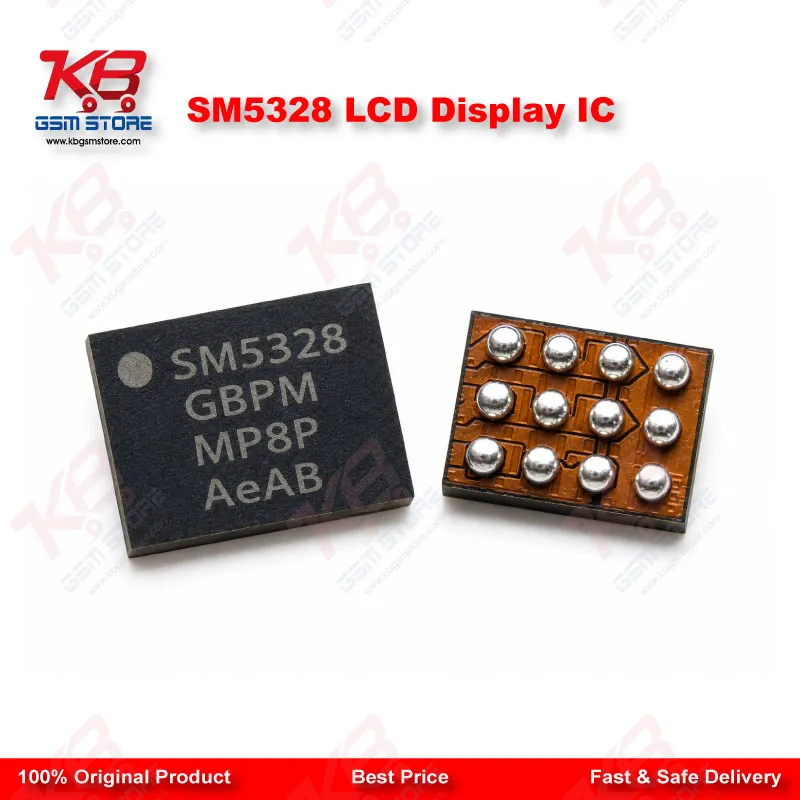

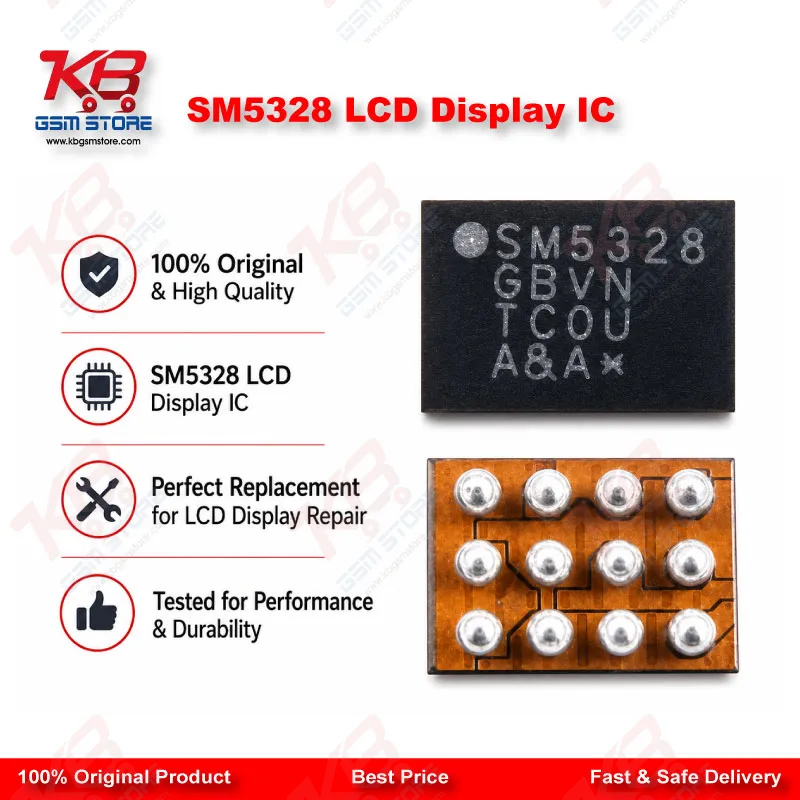

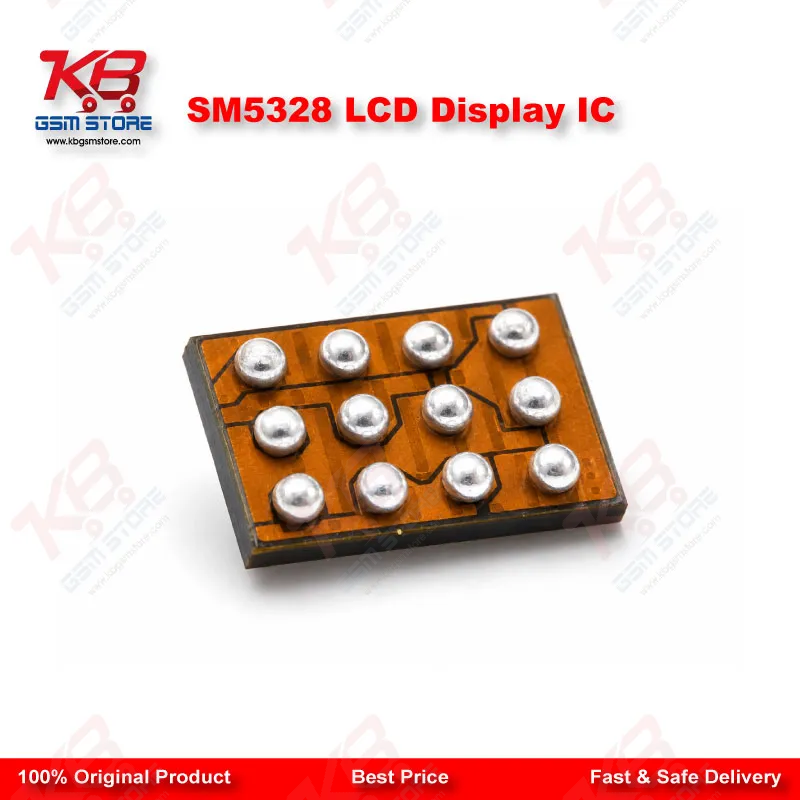

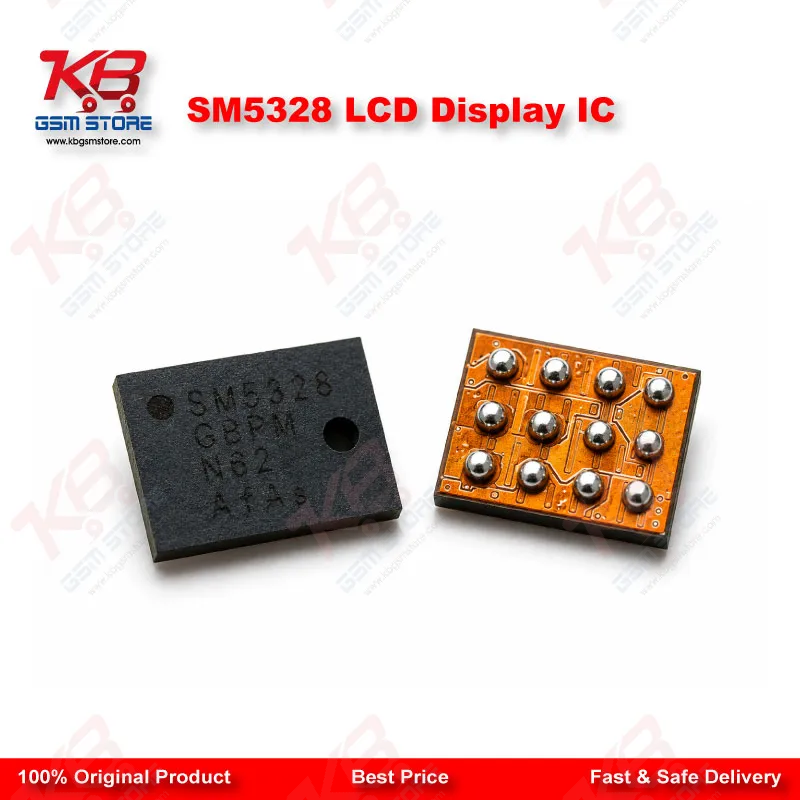

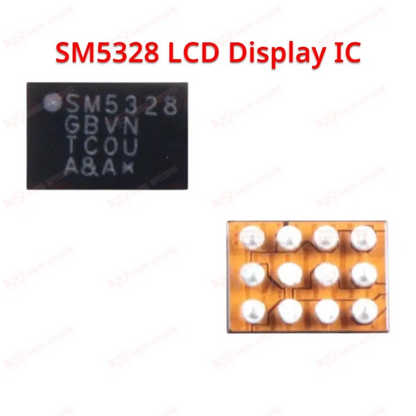

SM5328 LCD Display IC

Every technician who works display faults long enough runs into a board where the panel lights up fine on another phone but stays dark or dim on the original motherboard. That's usually where the SM5328 comes into the picture. This is a Samsung Semiconductor BGA IC built specifically to control backlight power delivery to the LCD panel — not the image data itself, but the current and voltage that drive the backlight LEDs behind the glass.On boards like the Vivo Y93, Samsung Galaxy A10S, and Meizu M6 Note, the SM5328 sits between the power management circuit and the display connector. When it fails, you get a specific pattern: the phone boots, you can hear notification sounds, the touch panel responds, but the screen stays black or shows a very weak backlight glow. Some boards show partial flicker before going dark completely. This is different from a cracked panel or a loose display flex — those faults usually show physical damage or a clearly dead touch response too.Common causes of SM5328 failure on your bench include liquid ingress that shorts the display power line, a drop that cracks the BGA solder joints under the chip, or a previous reflow job that overheated the IC without technicians noticing right away. If you've already checked the display flex connector, reseated the panel, and confirmed the original screen works on a known-good board, the SM5328 becomes the next logical suspect on the power rail feeding the backlight.Replacing this IC is a standard reballing job. You remove the old SM5328 with your hot air station at a controlled temperature, clean the pads properly, and reball or install the new chip using your usual BGA workflow. Because the package is small, a stencil matched to the SM5328 footprint keeps your solder balls even and reduces the chance of a cold joint or bridge on reflow. After mounting, a continuity check on the backlight rail before powering the board saves you a second round of rework if something didn't align.This chip fits directly into your ISP and board-level repair workflow — it's the kind of fault you diagnose after ruling out the LCD flex and the battery connector, and before you start suspecting the main PMIC. Keeping SM5328 stock on your bench means you're not waiting on parts when a customer walks in with a dead-screen phone that still powers on underneath.Sourcing genuine, new stock matters here. A worn or counterfeit IC often causes the same backlight fault again within days, which means redoing a job you already charged for. This listing gives you a verified Samsung-branded SM5328, ready for direct use in your reballing and rework process without any guesswork on part authenticity.Whether you're running a solo repair bench or managing a service center with daily display-fault intake, having a reliable SM5328 supply cuts your turnaround time on one of the more common backlight complaints you'll see on these boards. It's a small part, but getting it right the first time is what keeps a display repair job profitable instead of turning into a comeback.
