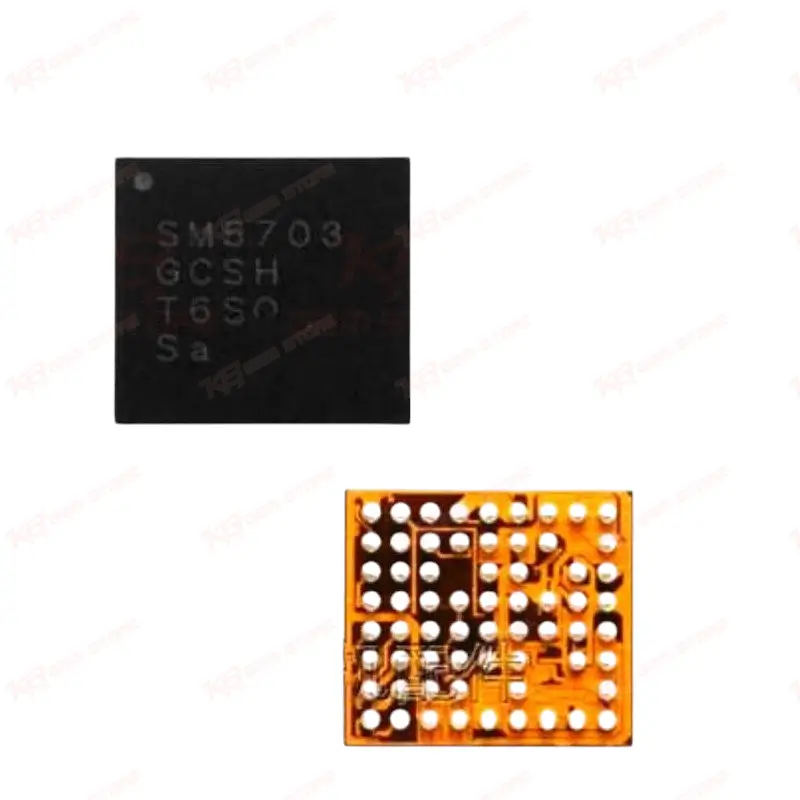

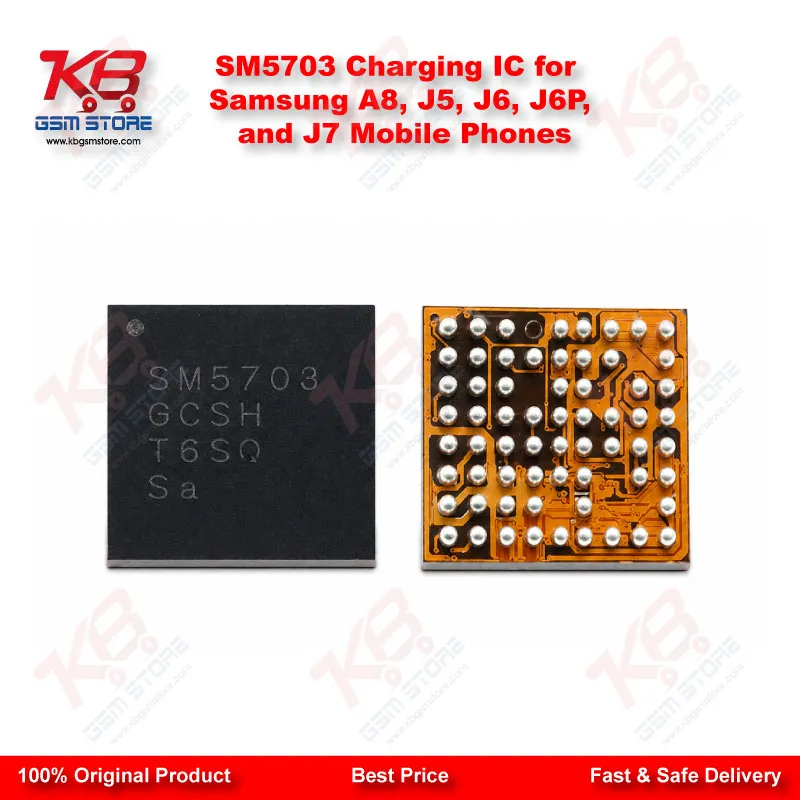

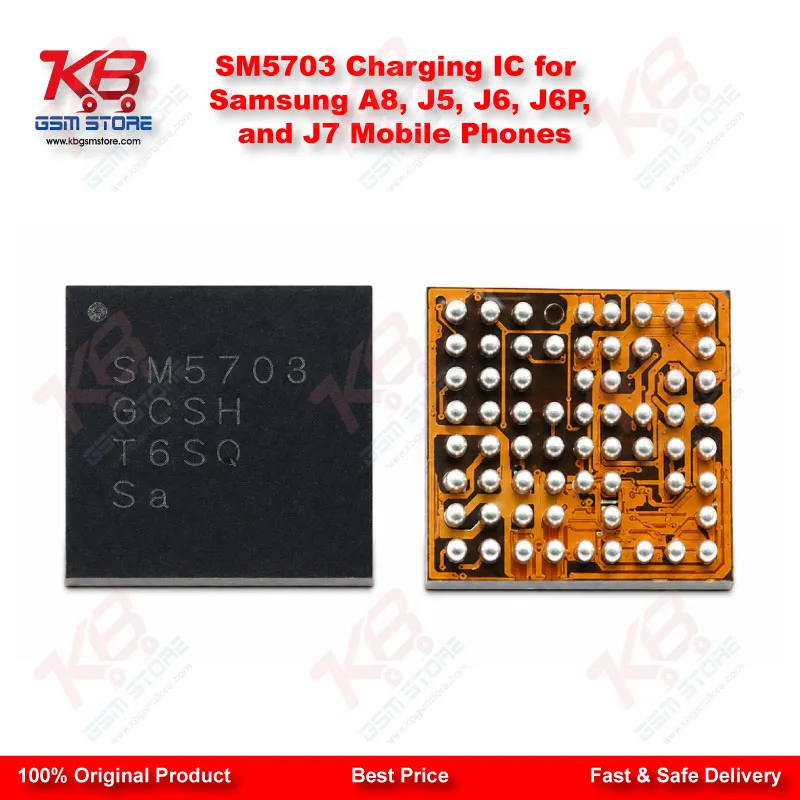

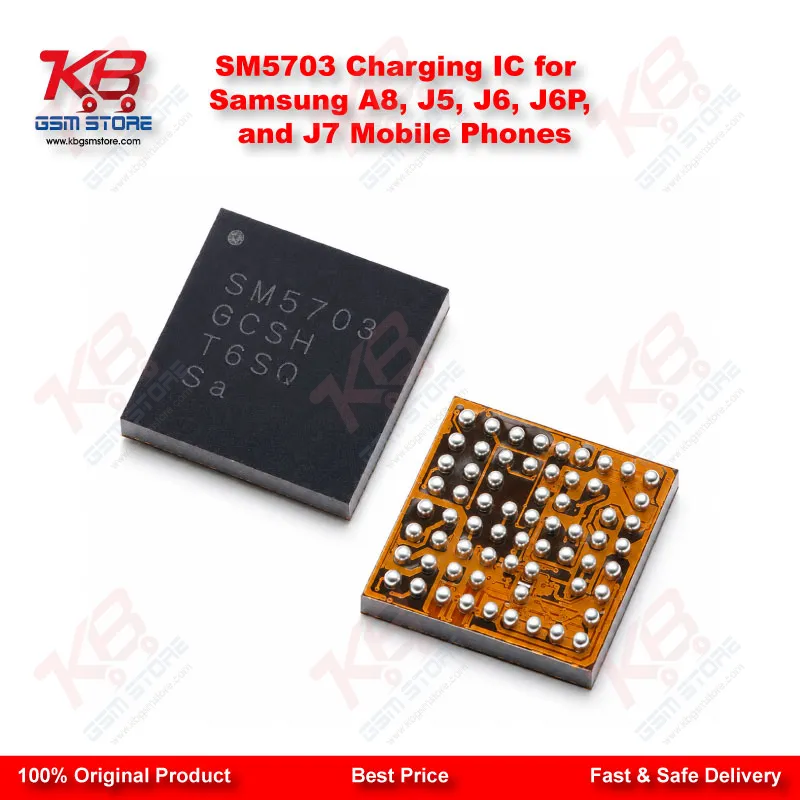

SM5703 Charging IC for Samsung A8, J5, J6, J6P, and J7 Mobile Phones

Charging complaints on Samsung A8, J5, J6, J6P, and J7 units rarely start at the charging port. Technicians who swap the port first and still get a dead phone on charger know the fault usually sits one step deeper, at the SM5703 power management IC. This chip sits between the USB input and the battery charging circuit, and it controls how current gets regulated, distributed, and protected as the phone charges. When it degrades — from moisture, a bad reflow, or age — you see symptoms that mimic a battery or port problem: charging LED with no current draw, charging that starts and cuts off, or a phone that only charges when the cable sits at an exact angle.

On your repair bench, the diagnostic path is usually the same. Confirm the charging port pins test fine on the multimeter, confirm the battery holds a charge when boosted externally, then move to the SM5703 itself. A visual check under the microscope for lifted legs or corrosion often tells the story before you even touch a jumper. If continuity from the IC to the battery connector reads open or unstable, that's your signal to reball or replace the chip rather than keep chasing the symptom with a new battery or cable.

This SM5703 replacement is made for exactly that workflow. It drops into the same footprint used across the A8 (A8000), J5 (J500F/J500H/J500M), J6, J6 Plus (J6P), and J7 (J700F/J700H/J700M) boards, so you're not adapting a part meant for a different chipset family. Reflow with hot air at a controlled temperature, keep the board clean of old paste before mounting, and retest charging current with a USB meter before closing the phone back up — that last step catches a bad reflow before the customer does.

For workshops handling volume Samsung repairs, keeping SM5703 stock on hand cuts turnaround time significantly. Instead of sending a board out for BGA rework or telling a customer to wait for a part order, you isolate the fault and swap the IC in the same sitting. It also protects you from misdiagnosis costs — a technician who guesses "battery" and later finds it was the IC ends up doing the job twice.
Beyond straightforward charging issue jobs, this IC comes up in boot loop and hang on logo cases too, where a phone that won't hold enough charge to boot gets mistaken for a software fault. Before you reach for a box to reflash or software marna the device, verify the power rail is actually delivering current — a starved battery circuit can produce boot behavior that looks identical to a corrupted firmware issue.

This is a genuine repair-grade IC sourced for board-level replacement work, not a generic substitute. It's built for technicians who need the part to match the original footprint exactly, since a mismatched pin layout on a power IC risks damaging the board on first power-up. Store it in an anti-static container until use, and avoid handling the legs directly to prevent oxidation before reflow.
