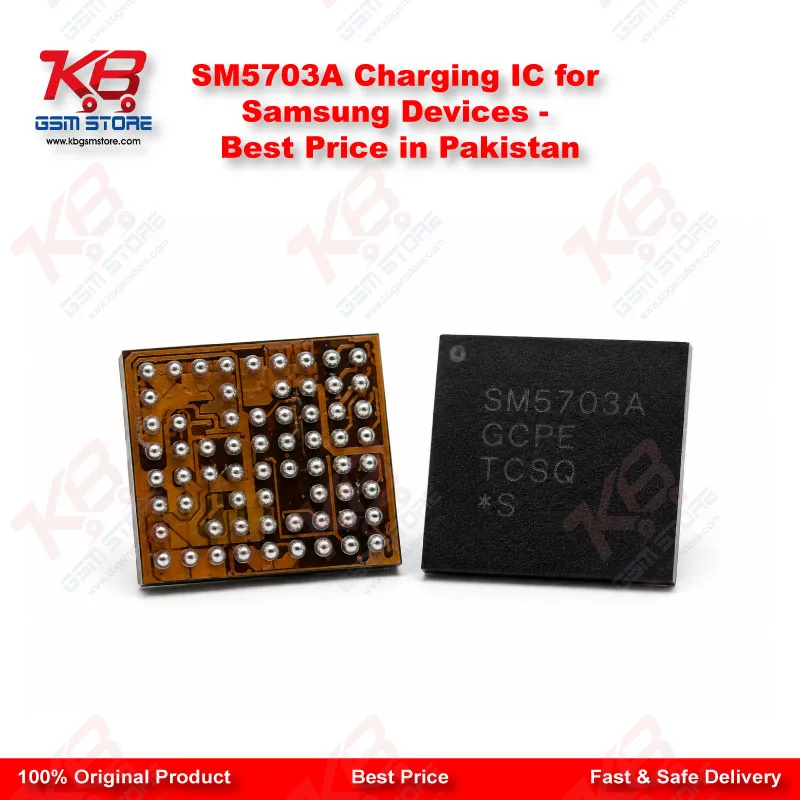

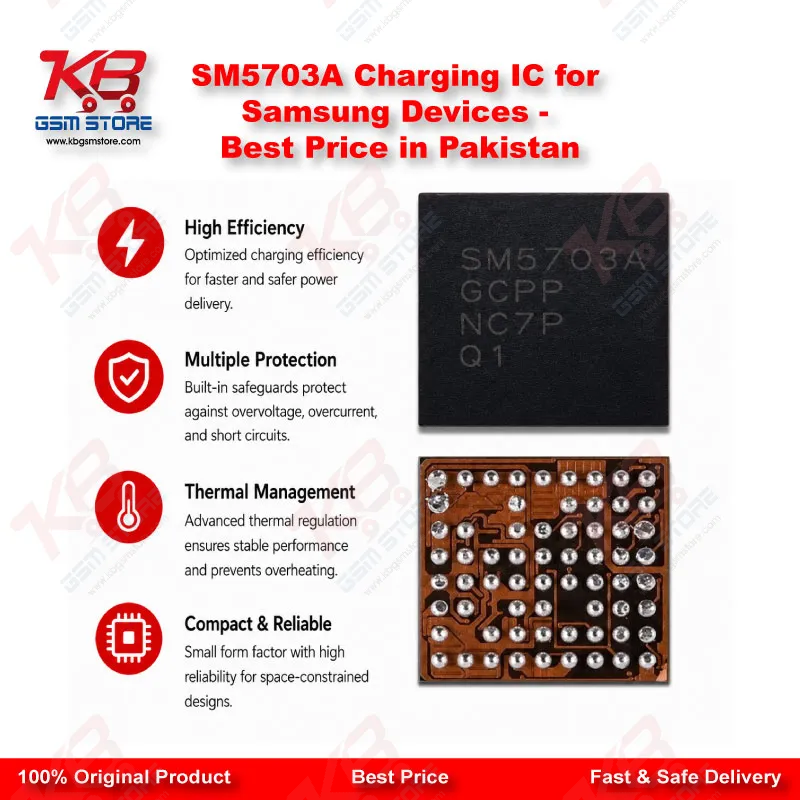

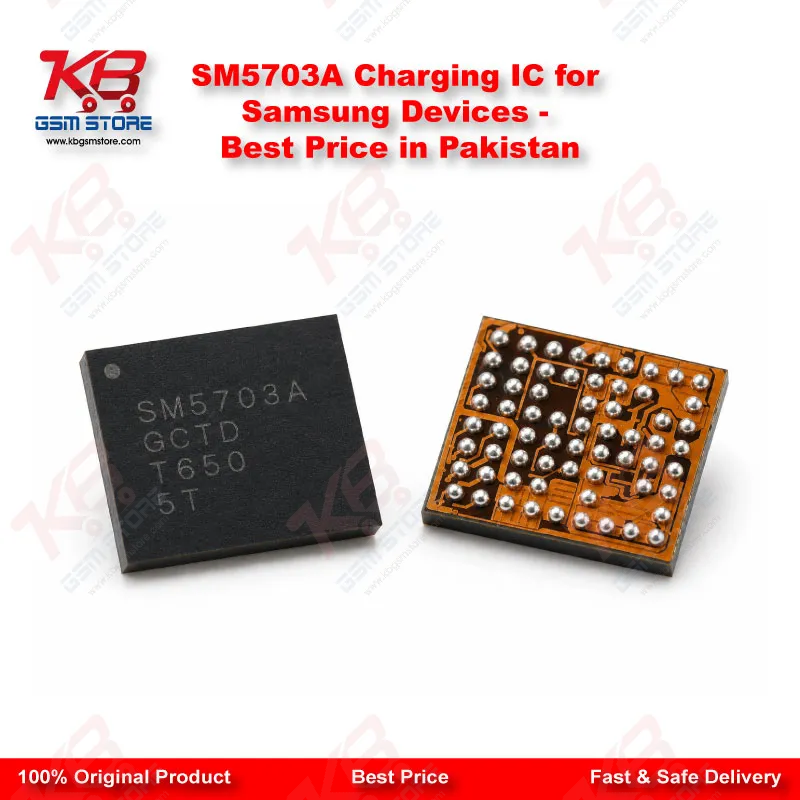

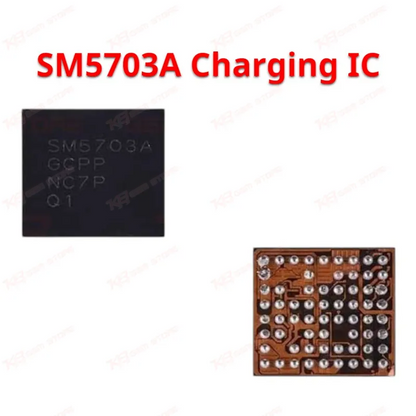

SM5703A Charging IC for Samsung Galaxy Tab S2, A8, J-Series

When a Samsung device stops charging, shows a charging icon with no current flow, or drains fast even while plugged in, the SM5703A charging IC is usually the first component you check. This IC handles power management and charge control on several Samsung boards, and a faulty or damaged one is a common reason boards show charging faults, dead phone symptoms, or unstable power delivery.

You'll find the SM5703A fitted on Samsung Galaxy Tab S2 8.0 (SM-T710/T715), Galaxy Tab S2 9.7 (SM-T810/T813/T815), Galaxy A8, Galaxy J5, Galaxy J7, Galaxy J3 (2016), Galaxy J2 (2017), and Galaxy J4 (2018) motherboards. If a customer brings in any of these models with a charging issue, dead after flash, or a board that only charges intermittently, this IC is worth testing before you assume the fault lies elsewhere.

On your repair bench, IC change karna on a Samsung board isn't something to rush. Start by confirming the fault isn't coming from the charging port, battery connector, or a broken track first, since replacing the IC won't help if the real problem sits elsewhere. Once you've isolated the SM5703A as the cause, remove the old chip with your hot air station at a controlled temperature, clean the pads properly, and reball before placing the new IC. A clean reflow with the right amount of flux prevents cold joints, which is one of the most common reasons a "repaired" board still shows the same charging fault after IC change.

This chip plays a role beyond simple charging. It manages power distribution to other components on the board, so a bad SM5703A can also cause symptoms that look unrelated to charging at first glance, like random restarts, hang on logo, or a board that won't power on at all. Technicians who deal with Samsung boards regularly know that power ICs like this one often get blamed last, even though testing them early can save hours of unnecessary diagnostics on network issue or software marna attempts that were never going to fix a hardware fault.

For shops handling volume repair work across Lahore, Karachi, and Islamabad, keeping SM5703A stock on hand means you're not waiting on a supplier every time a Tab S2 or J-series board comes in with a charging complaint. It's a small part, but it's one of those components that keeps recurring across a wide range of Samsung models, which makes it a practical addition to your parts drawer rather than a one-off purchase.

Installation requires BGA-level soldering skills and proper hot air rework equipment. This isn't a plug-and-play part, so if you're newer to board-level repair, practice reballing on scrap boards before working on a customer's device. Getting the pad alignment and reflow temperature right the first time protects the surrounding components from heat damage and keeps your rework clean.

KB GSM Store supplies the SM5703A charging IC for technicians who need dependable parts for Samsung board-level repair, without guesswork about compatibility or sourcing.
