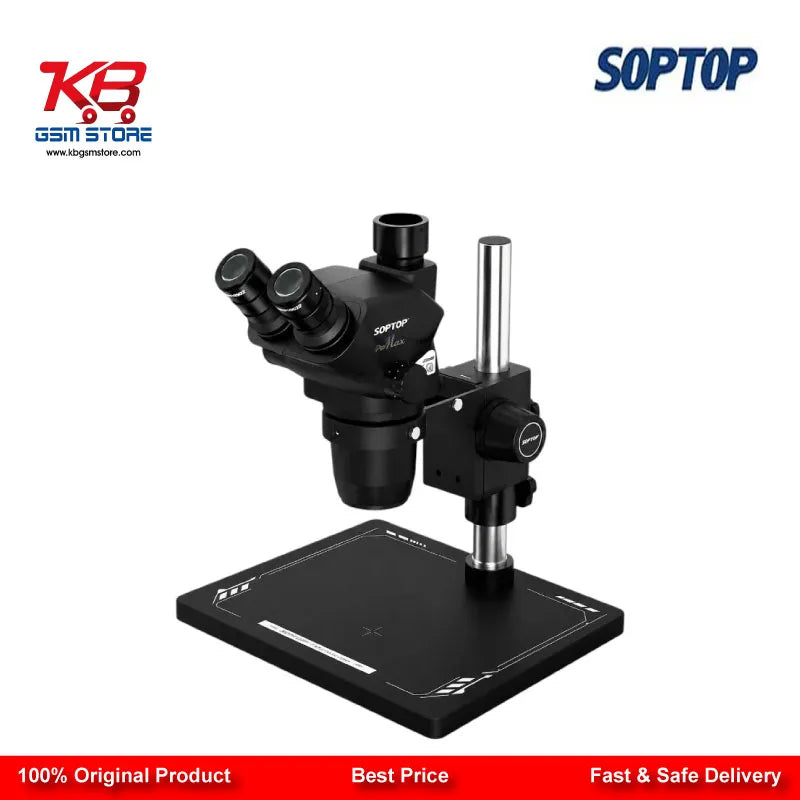

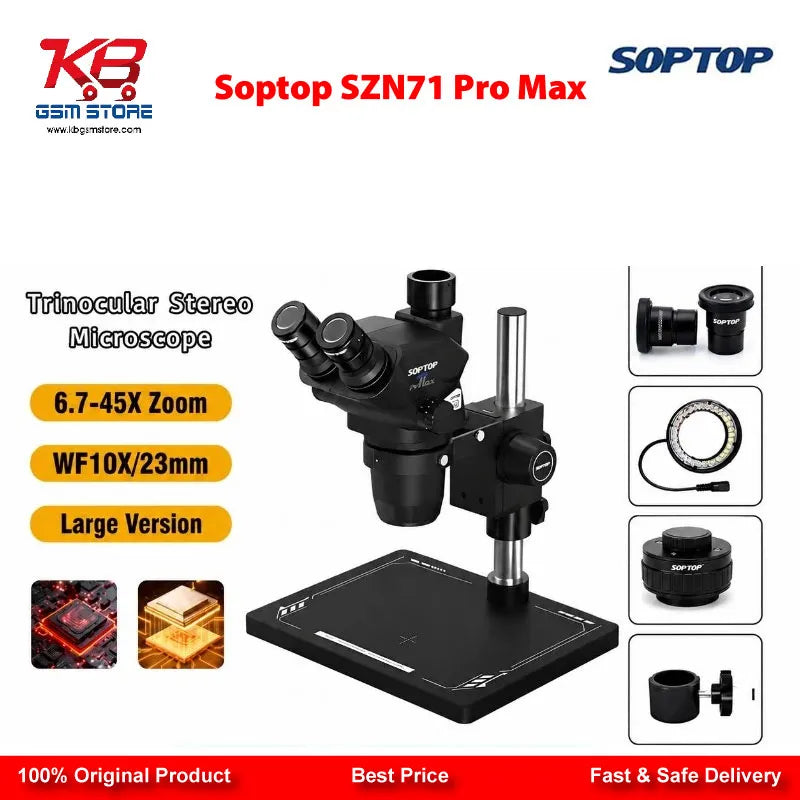

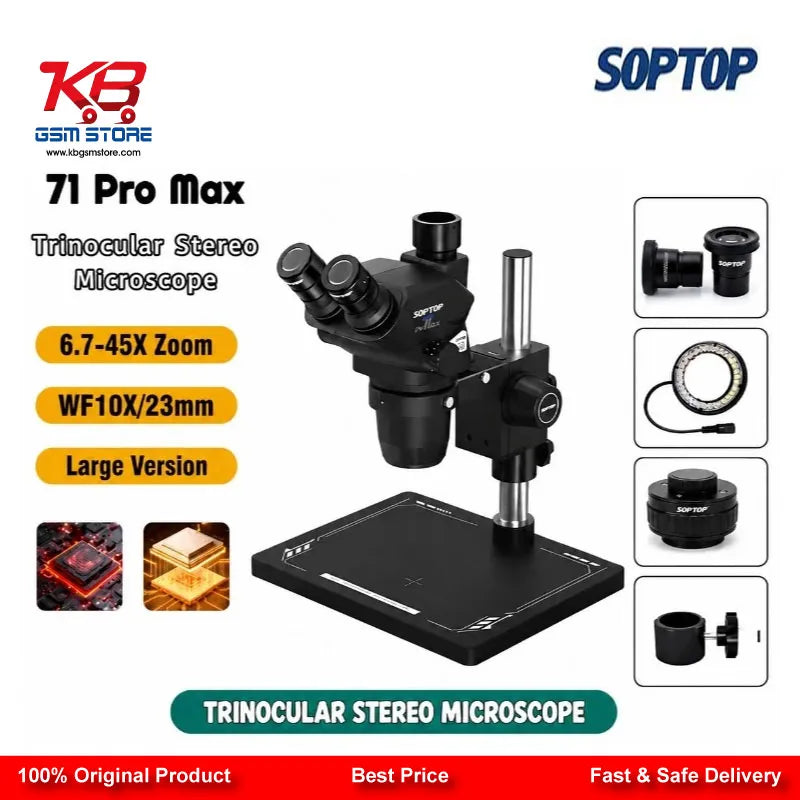

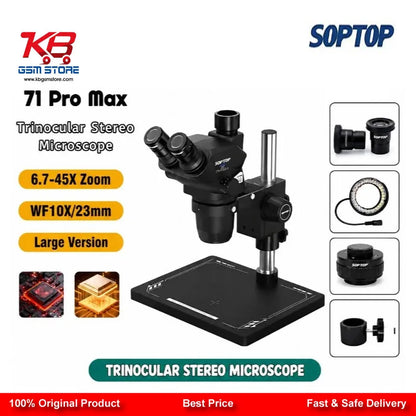

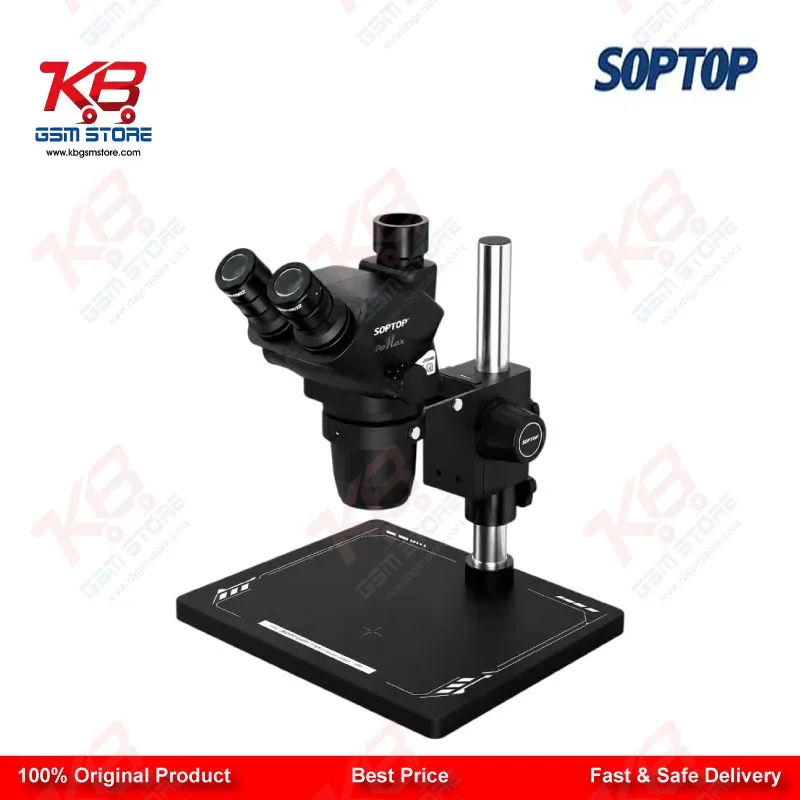

When you are doing IC change karna on a Qualcomm chipset or placing jumpers on a hairline PCB trace, your microscope is not just a tool — it is your eyes. The Soptop SZN71 Pro Max delivers the optical precision that serious chip-level repair demands. This is an industrial-grade trinocular stereo microscope designed from the ground up for electronics repair professionals, and its 6.7X to 45X continuous zoom range covers everything from broad PCB orientation scans to the most demanding fine-pitch BGA pad inspection.
The zoom system on the SZN71 Pro Max uses an 11-step click-stop magnification knob, giving you repeatable, calibrated zoom positions across your workflow. Whether you are setting up for a display problem diagnosis, chasing a network issue fault on a baseband IC, or inspecting solder joints after rework, you land on the same magnification every time without hunting for your working position. That consistency matters when you are handling dead phone hardware repairs back to back across a full workshop day.
The eyepiece configuration is a standout upgrade on the Pro Max variant. The WF10X/23mm bilateral adjustment eyepieces provide a wider field of view than standard 22mm eyepieces and allow independent diopter adjustment on both tubes. If your eyes carry a vision difference between left and right — common for technicians who spend hours daily at the bench — you dial each side to your exact prescription and work in genuine comfort. The 45-degree inclined trinocular head reduces neck strain during extended sessions and rotates a full 360 degrees to position the camera port precisely where your documentation setup requires it.
Depth of field on the SZN71 Pro Max is engineered wide. When you are working through a BGA reballing process or checking solder paste coverage on a reballing stencil, keeping your entire work surface in focus without constant refocusing is the difference between fast, clean rework and frustrating repeated adjustments. The 110mm standard working distance gives your hands and soldering tools enough clearance to operate freely under the optics — critical when you are using a hot air station for rework or handling flux and solder wick on a tight board.

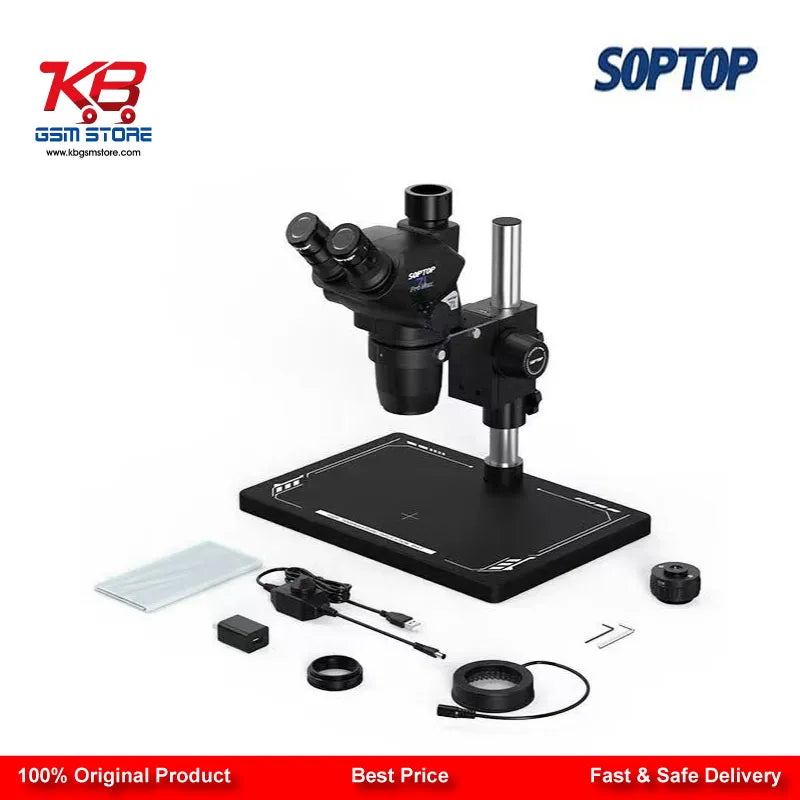

The included 0.5X CTV adapter connects directly to your 4K camera, turning the microscope into a full live-view documentation and training station. Service centers handling hardware fault diagnostics at scale use this setup to record repair procedures, share screens with trainees, and create timestamped documentation for customer records. The trinocular port design lets you observe simultaneously through the eyepieces while the camera captures the feed — no switching, no interruption to your repair flow.
Built-in LED ring illumination eliminates the shadow and glare problems that flat bench lighting creates on reflective PCB surfaces. Adjustable brightness lets you tune the light level for different surfaces — from matte PCB substrates to polished IC pads — without washing out fine detail. The oil-resistant, anti-glare eyepiece covers are included standard to protect the glass optics from the flux fumes and cleaning solvents common in active repair environments.
For repair shops handling modern Android devices with Qualcomm Snapdragon and MediaTek Dimensity chipsets, the SZN71 Pro Max provides the visual resolution to confidently inspect micro-BGA arrays, check PCB trace continuity at pad level, and verify cold joint or lifted pad conditions before and after rework. It fits naturally into a workflow alongside a hot air station, PCB holder, reballing kit, and soldering station — giving you the visual layer that transforms hardware fault diagnosis from guesswork into verified precision.
Repair training institutes and service centers also benefit from the camera documentation capability for building internal knowledge bases, recording the process of jumper lagana on damaged charging circuits, and producing training content for new technicians entering the GSM repair field in Pakistan.
