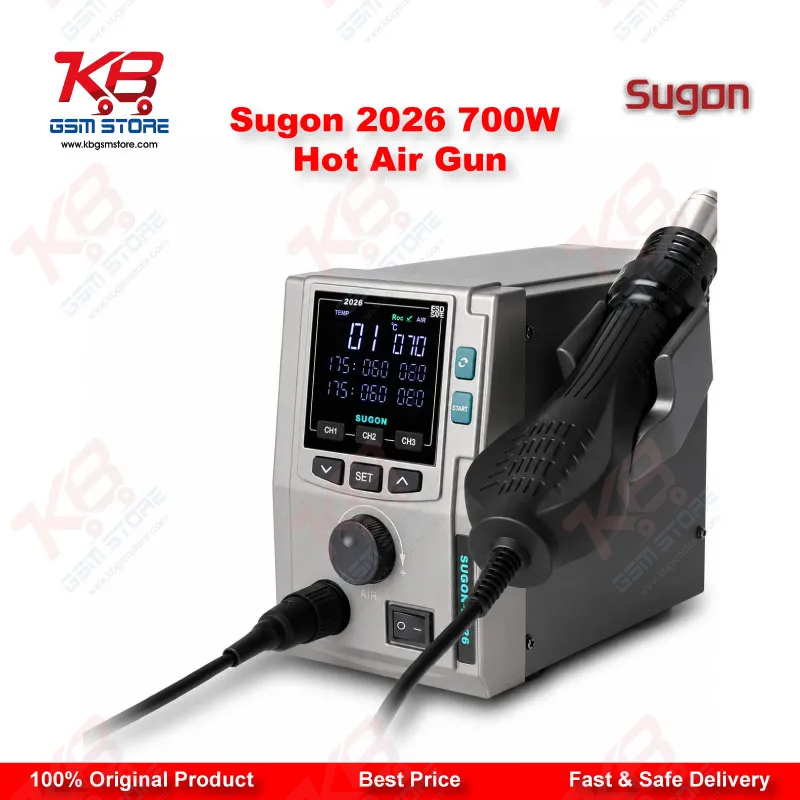

Sugon 2026 700W Hot Air Gun

Every GSM workshop reaches a point where a
basic hot air gun stops being enough. Chip-level work on modern mobile boards
needs heat that ramps up in stages, not a single blast that risks lifting pads
or cracking a nearby component. The Sugon 2026 700W Hot Air Gun BGA Desoldering
Rework Station is built around that exact problem, giving technicians a
segmented curve heating system that manages temperature the way board-level
repair actually demands.

At the center of this machine sits the Roc
curve mode, a three-stage heating process. You set the preheating temperature
and duration for each interval, and once a stage hits its target, the unit
automatically moves to the next one without you touching a dial. When the third
interval reaches its preset temperature, the machine beeps, telling you the
board is ready for desoldering or welding. This matters on real Pakistani
repair benches where IC change karna on a dead phone board often fails because
the chip gets shocked by uneven heat. The staged approach reduces that risk
considerably, especially on multi-layer PCBs where thermal stress can crack
solder joints on nearby ICs you never intended to touch.

The panel display keeps you informed
through every stage. You see the current stage number, real-time temperature
reading, active air volume, and a working countdown, all at once. For a
technician juggling multiple boards in a queue, this visibility means fewer
surprises and fewer overheated components. The 700W power rating pushes the
unit to a temperature range of 100°C to 500°C, wide enough to cover everything
from delicate camera module work to stubborn BGA chips that refuse to budge on
lower-power stations.

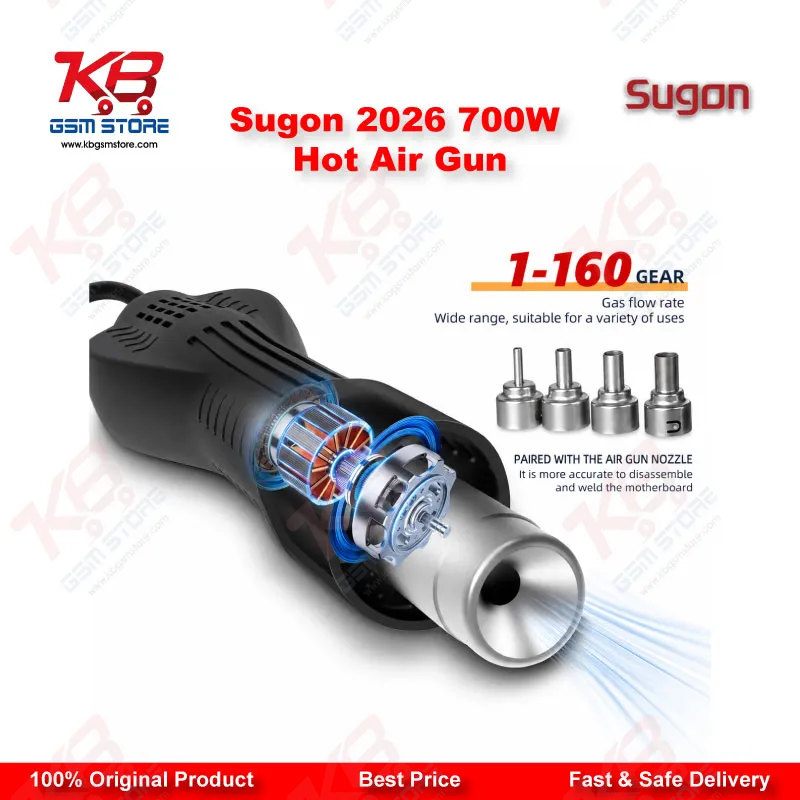

Airflow on the Sugon 2026 comes from an
original imported brushless fan, adjustable across 1-160 levels with a maximum
gas flow of 47L/min. Brushless fans run longer before wearing out and stay
noticeably quieter than the brushed motors found in cheaper hot air stations,
which matters if your bench sits in a shared workshop space in Lahore, Karachi,
or Islamabad where several technicians work side by side through the day. The
airflow itself stays soft and controlled rather than harsh, so you get consistent
heat distribution across SOIC, CHIP, QFP, PLCC, and BGA packages without
scattering nearby passive components.

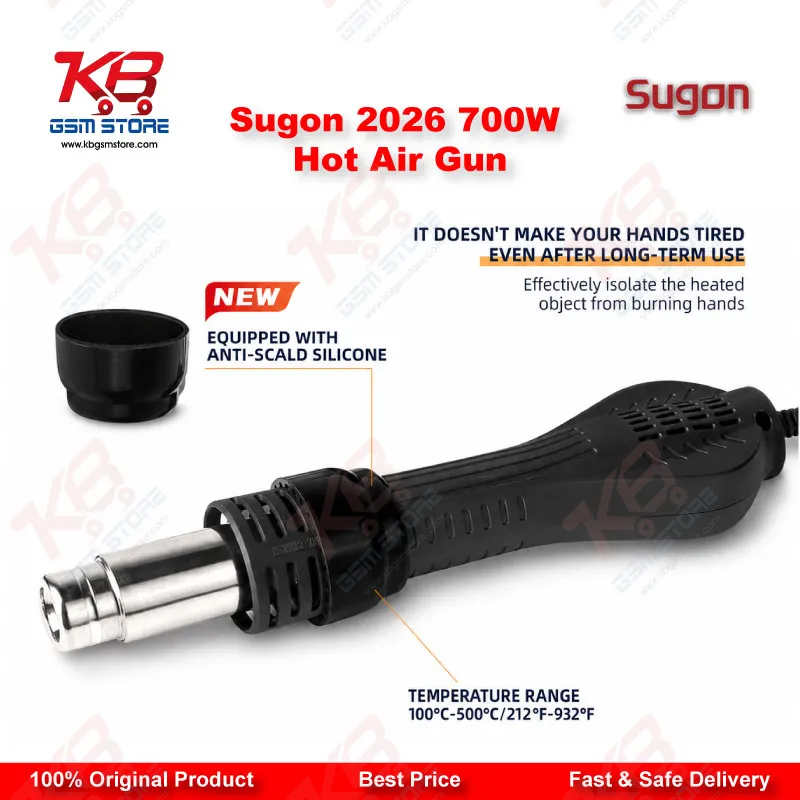

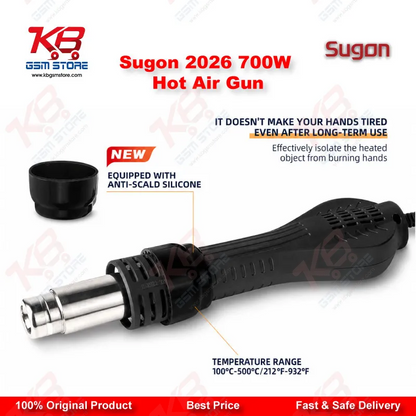

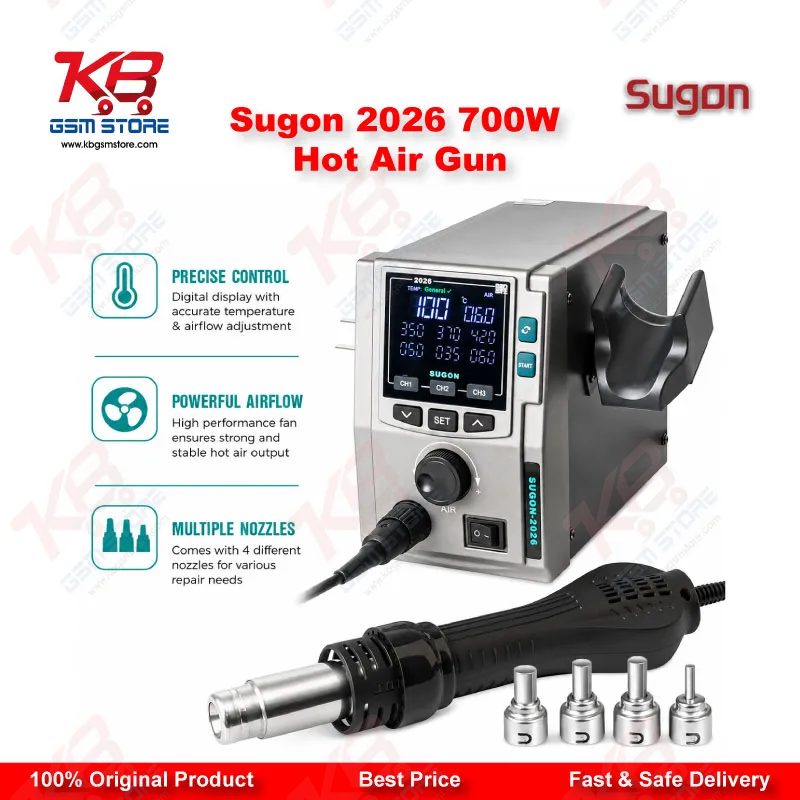

The air gun handle accepts SUGON 8650
series nozzles, and the unit ships with four straight nozzles in 6mm, 8mm,
10mm, and 12mm sizes, covering most chip and connector footprints you will
encounter on phone motherboards without needing a separate nozzle purchase
right away. A dedicated handle holder keeps the gun secured and out of the way
when not in use, and the station includes a full power cord for immediate setup
on your workbench.

Beyond BGA and CPU desoldering, this
station handles a wider range of daily workshop tasks. Heat shrinking, glue
removal, paint removal, general preheating, and standard soldering work all
fall within its capability. That versatility means a single machine covers both
software marna adjacent hardware fixes and heavier board-level jumper lagana
repairs, reducing how many separate tools your bench needs to hold. For
dead-after-flash boards, hang-on-logo cases traced back to a loose IC, or
charging issues rooted in a cracked solder joint under the charging IC, the
controlled heat curve gives you a repeatable process instead of trial and error
each time.

Build quality reflects what the Sugon name
is known for in the rework station category. The compact footprint of 108 x 200
x 168mm and a weight of just 2.4kg mean it sits comfortably on a crowded bench
without eating up space you need for other diagnostic equipment, multimeters,
or a microscope setup. Input voltage support for both 110V and 220V at
50Hz/60Hz means the unit works reliably on Pakistan's standard power supply
without needing a separate voltage converter.

For repair shop owners scaling up from
single-technician setups to a full service center, the Sugon 2026 fits
naturally into an ISP and eMMC repair workflow, sitting alongside programmers,
test boxes, and PCB holders as part of a complete board-level station.
Technicians moving from basic hot air guns to this level of equipment usually
notice the difference immediately in first-attempt success rate on BGA
reballing and IC replacement jobs, since the staged heating process removes
much of the guesswork that causes failed pulls and damaged pads.

Whether you run a dedicated GSM service
center or manage board repair alongside general mobile servicing, the Sugon
2026 gives you the temperature control, airflow precision, and stage visibility
needed to handle chip-level work with fewer failed attempts and less rework on
the same board.
