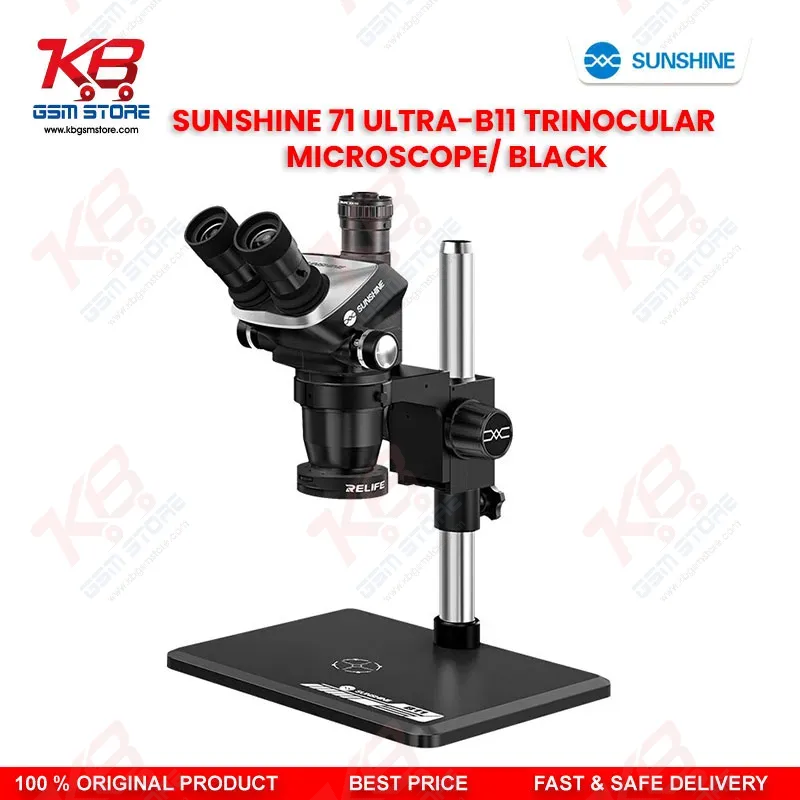

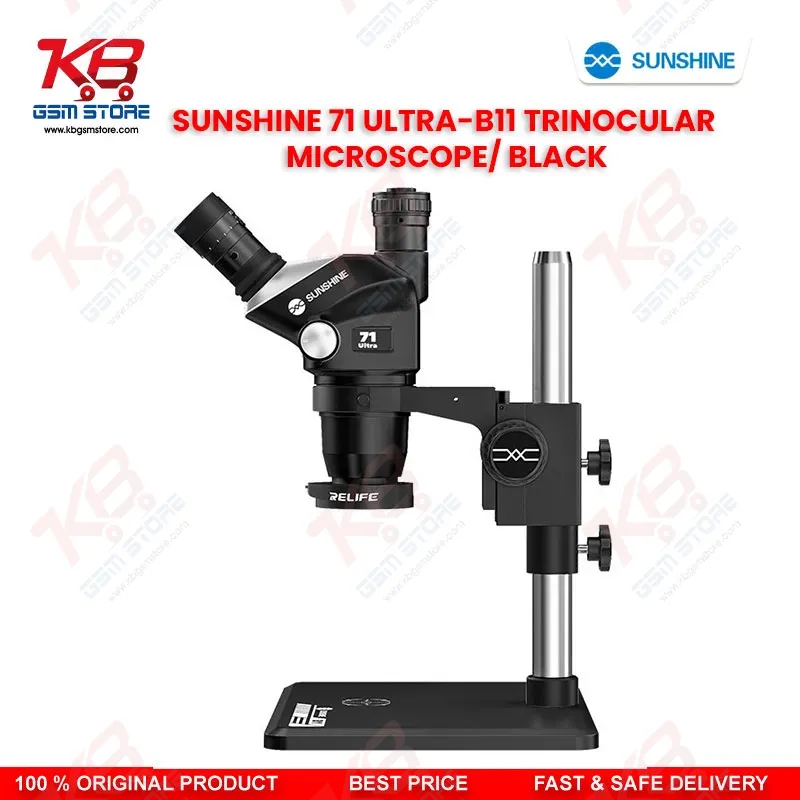

When you work on logic boards every day — tracing hairline PCB cracks, reading IC markings, placing BGA balls, or doing micro-soldering under 0402 components — your eyes carry the entire workflow. The SUNSHINE 71 Ultra-B11 Trinocular Microscope in Black is engineered specifically to take that load off your eyes and put precision optics to work instead. This is not a budget display unit. It is a workshop-grade stereo microscope built from the ground up for the demands of professional mobile phone repair.
Optical Performance That Matches Real Repair Work
The 71 Ultra-B11 runs on a 0.65X–5.5X continuous zoom objective, delivering a total magnification range of 6.5X to 55X when combined with the included PL10X/24 widefield eyepieces. The 1:8.5 zoom ratio is one of the largest in this class, which means you get meaningful magnification steps across the full range — not a narrow jump between extremes. At lower magnifications, you get a wide stage view ideal for positioning a dead phone board or checking solder bridges across multiple pads. Push it to maximum zoom and the optics stay sharp, high-contrast, and rich in detail even under low ambient light.

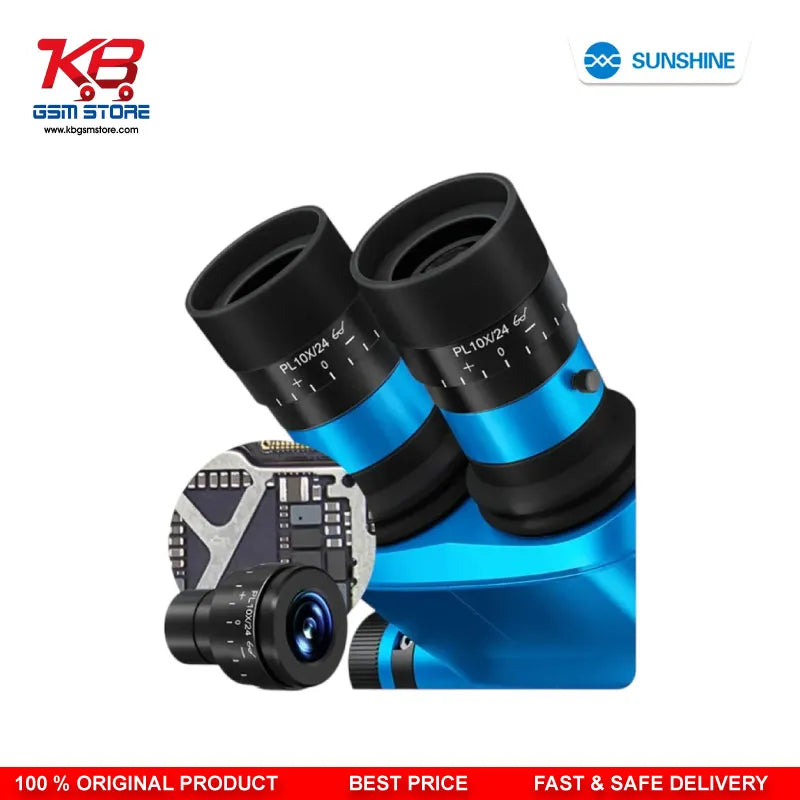

The PL10X/24 flat-field eyepieces give you a 24mm field of view with genuine flat-angle vision across the full field — no curved edges pulling your attention away from the component you are analyzing. Both eyepieces carry individual diopter adjustment, so if your technician team shares this unit across shifts, every user can calibrate to their own vision within seconds.
Zoom Control Designed for Workshop Speed
The 71 Ultra-B11 separates itself from older stereo microscopes through its dual zoom mode system. You get continuous zoom for smooth, flowing magnification adjustments during detailed inspections, and fixed-step zoom conversion for repetitive tasks where you need to return to the exact same magnification point every time — no hunting, no recalibration.
The handwheel magnification limit feature is especially practical here. Tighten the stop ring screw at your preferred zoom position and your handwheel locks to that limit. For technicians doing production-level IC change karna work or soldering sessions on multiple boards, this keeps your inspection angle consistent without requiring you to re-check your zoom level between boards. It directly cuts diagnostic time and reduces re-work errors.
Column Design and Working Height
The 350mm column gives you generous vertical travel for height adjustment. Turn the knob and raise or lower the microscope head freely — you can accommodate thick PCB holders, phone chassis, or component trays without repositioning the base. The column height is a real upgrade over standard 300mm designs found on budget units, and it matters when you are using a PCB holder or when you need working clearance for your soldering iron or hot air station nozzle underneath the microscope head.
The B11 aluminum alloy base is wide and flat, built to anchor the full weight of the microscope without shifting during work. On a busy repair bench where you are pulling wires, pushing boards around, or operating nearby hot air stations and soldering stations, a stable base is not optional — it is the difference between a clean diagnostic view and a blurred one.
Camera Ready Out of the Box
The third optical port on the trinocular head accepts a CTV camera via the included 0.5X C-Mount adapter. This is where the 71 Ultra-B11 becomes more than a microscope — it becomes a full documentation and training tool. Connect a compatible HDMI or USB microscope camera and stream your repair work live to a monitor, record your BGA reballing sessions, or use it for training junior technicians without everyone crowding around the eyepieces. One-turn precise focus on the camera port keeps your digital image sharp independently from the eyepiece focus, so both views stay usable simultaneously.
Illumination Built for Micro-Detail
The adjustable LED ring light delivers bright, even illumination across the work stage. The compact lamp head design keeps the light source close to the work area without blocking your access angle or field of view. Selected high-CRI LEDs bring out the true color of PCB traces, IC markings, and solder joints — critical when you are distinguishing burnt components, cold solder joints, or identifying component values on unmarked SMD chips.
Where This Microscope Fits Your Repair Workflow
On a professional repair bench, the 71 Ultra-B11 directly supports IC diagnosis, BGA reballing, micro-soldering on logic boards, SMD component replacement, pattern unlock hardware faults, display problem diagnostics, charging issue PCB inspection, hardware fault tracing, and jumper lagana work on dead phone boards. It also pairs naturally with your reballing kits, PCB holders, hot air stations, and soldering stations — all tools working together in your rework and diagnostics workflow.
Repair training institutes running microscope-based courses will find the trinocular port and live camera capability give their teaching sessions a clear, repeatable demonstration tool without requiring every student to handle the same microscope head.
