Every GSM workshop in Lahore, Karachi, or Islamabad deals with the same daily problem: screen replacement jobs pile up, and manual heating with a hot air gun or heating pad takes too long and risks cracking the panel. The SUNSHINE LS1 Screen Separator solves this by combining constant-temperature heating with vacuum suction in a single compact machine, so you get faster turnaround without babysitting the heat gun over every corner of the screen.

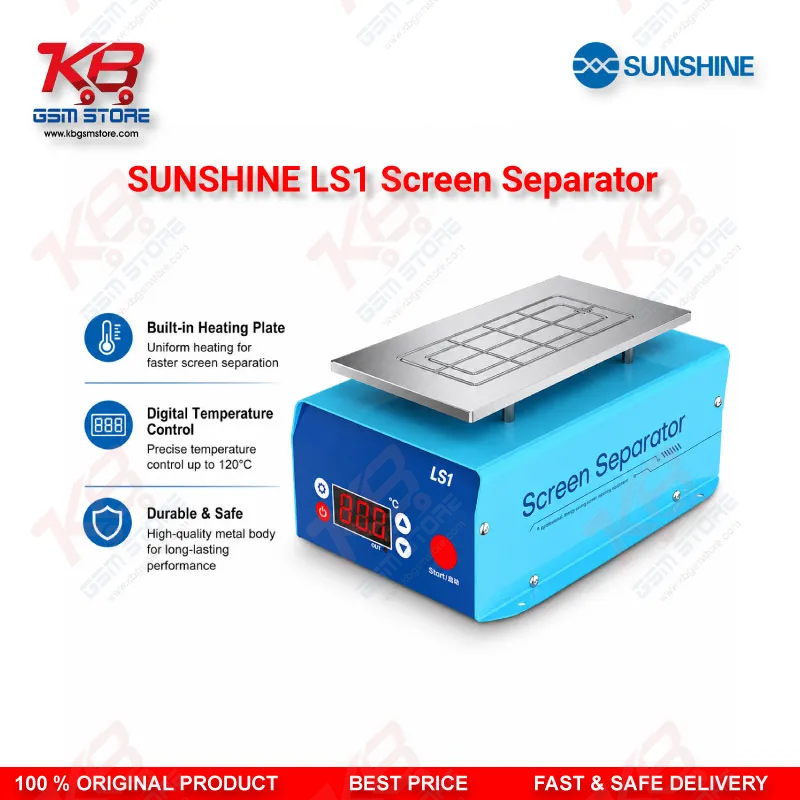

At the core of the LS1 is a PTC heating element built into a thickened aluminum plate. This gives you even heat distribution across the full working area instead of hot spots that scorch the frame or leave adhesive unevenly softened. You set your target temperature on the digital control panel, and the machine holds it steady through the whole separation cycle. The 0–120°C range covers everything from delicate OLED panels that need lower heat to stubborn glass-back or tightly glued LCD assemblies that need more aggressive softening.

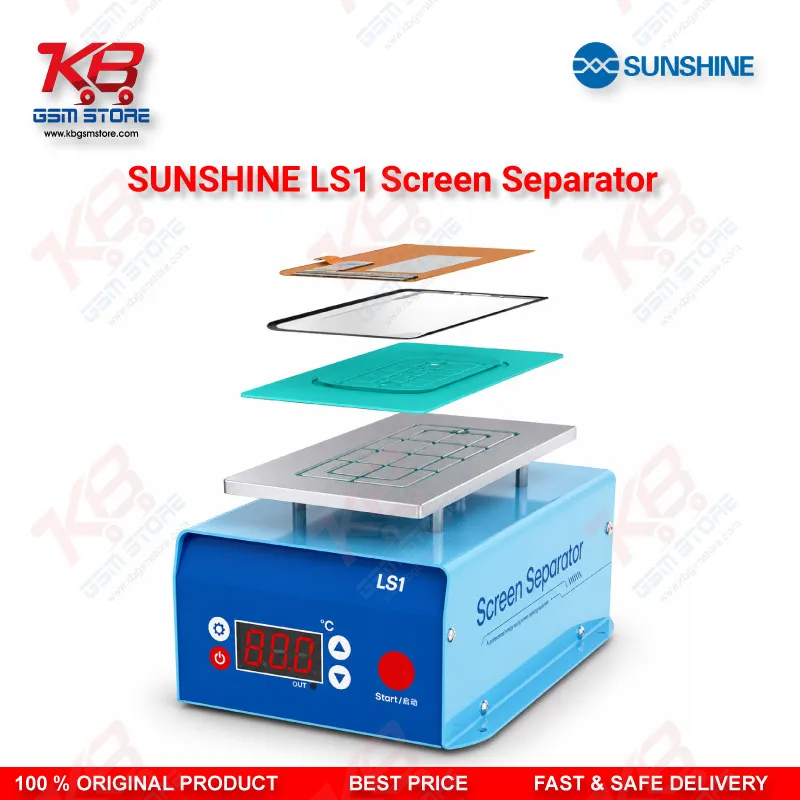

The 9 x 18cm heating table and 7.8-inch aluminum oxide working surface handle both straight and curved screens, which matters a lot on a Pakistani bench where you're moving between an iPhone with a flat display and a curved-edge Samsung or Huawei flagship in the same hour. You don't need a separate curved-screen fixture — the LS1's panel and heat-insulating silicone pad adjust to the contour without extra clamps or shims.
Once the adhesive softens, the built-in high-power vacuum pump takes over. Instead of prying blind with a metal spudger and risking a crack near the edge, you get controlled, even suction that lifts the screen cleanly from the frame. This is the part that actually protects your yield rate — most screen cracks during disassembly happen from uneven prying pressure, not from the heat itself, and the LS1's vacuum step removes that variable.
For workshops that handle iPhone display issues, this machine works well ahead of a battery swap, charging port repair, or backlight fix where you need the screen off without damaging the flex cables underneath. For Android jobs — Tecno, Infinix, Oppo, Vivo, Xiaomi — the same process applies whether you're pulling glass for a cracked-screen replacement or removing a display to reach a board-level fault. If you're chasing a "dead phone" that turns out to be a display connector issue, or you need to check a hardware fault under the screen, the LS1 gets you there without collateral damage to the LCD you're trying to reuse.
The body itself uses a metal appearance design — hardened, corrosion-resistant, and built to survive constant use on a repair bench without warping under repeated heat cycles. That matters if you're running this machine multiple times a day, every day, which is the reality for most Pakistani service centers doing volume screen repairs. The aluminum plate resists deformation even at sustained high temperature, so the surface stays flat and your heating stays consistent job after job.
Setup is straightforward. Place the screen on the heating pad, select your temperature preset on the digital panel, let the PTC element bring the surface up to temperature, then engage the vacuum suction to lift the screen. The whole cycle is faster than manual heat-gun-and-pry methods, and because the temperature is controlled rather than guessed, you reduce the risk of overheating the digitizer or damaging polarizer film underneath the glass.
This tool fits naturally into a workshop that already runs hot air rework stations, laminators, and OCA/glue removal equipment — it's the step that comes before you laminate a new screen or before you do glass-only repair on the original panel. If your bench already handles screen refurbishment (separating cracked outer glass from a working LCD to save the digitizer), the LS1 becomes one of your highest-use machines, since that workflow depends entirely on clean, damage-free separation.
For technicians running FRP lock jobs, pattern unlock work, or board-level repair where the display needs to come off just to access the motherboard, the LS1 turns what used to be a 10–15 minute manual prying job into a controlled few-minute cycle. Less time on disassembly means more repair jobs per day, and fewer cracked screens means less cost eaten from your margin on jobs where the customer expected their original display back intact.
Overall, the SUNSHINE LS1 Screen Separator earns its place on a repair bench where screen replacement and glass separation are routine work, not occasional jobs — it's built for workshops that need consistent results across many units a day, not a one-off hobbyist repair.
