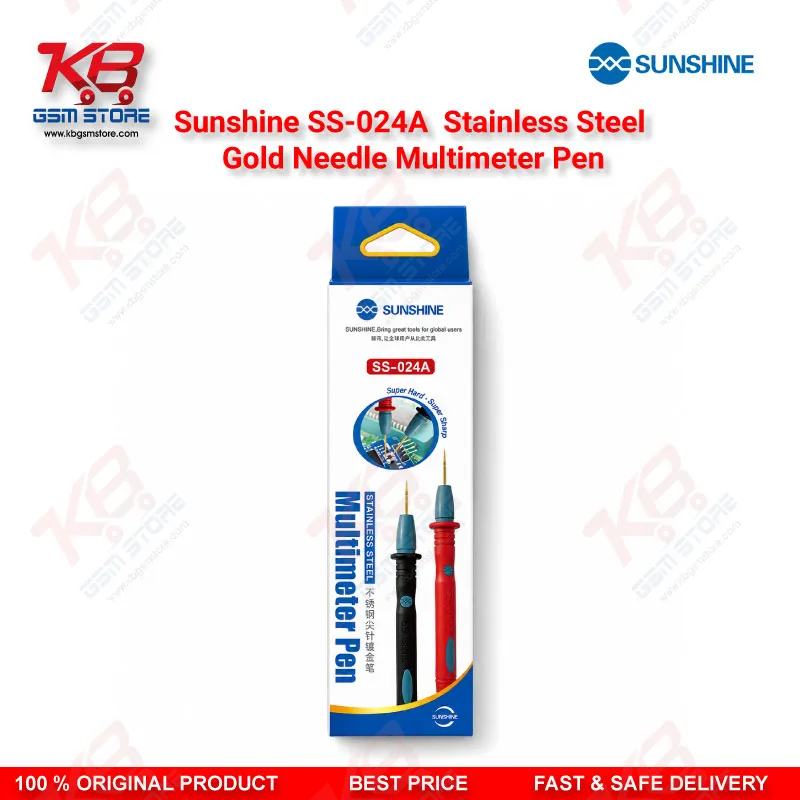

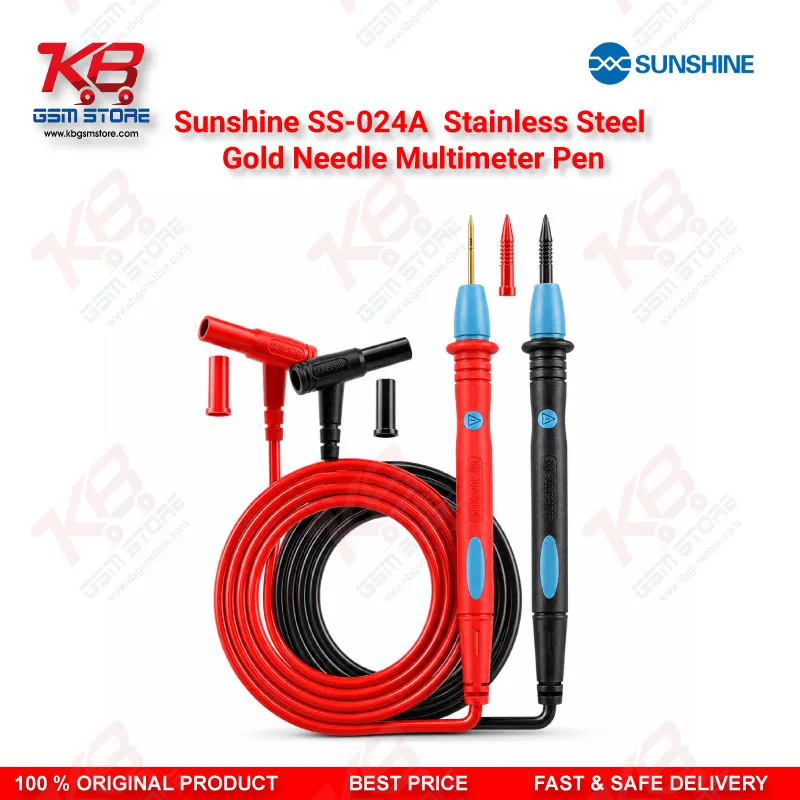

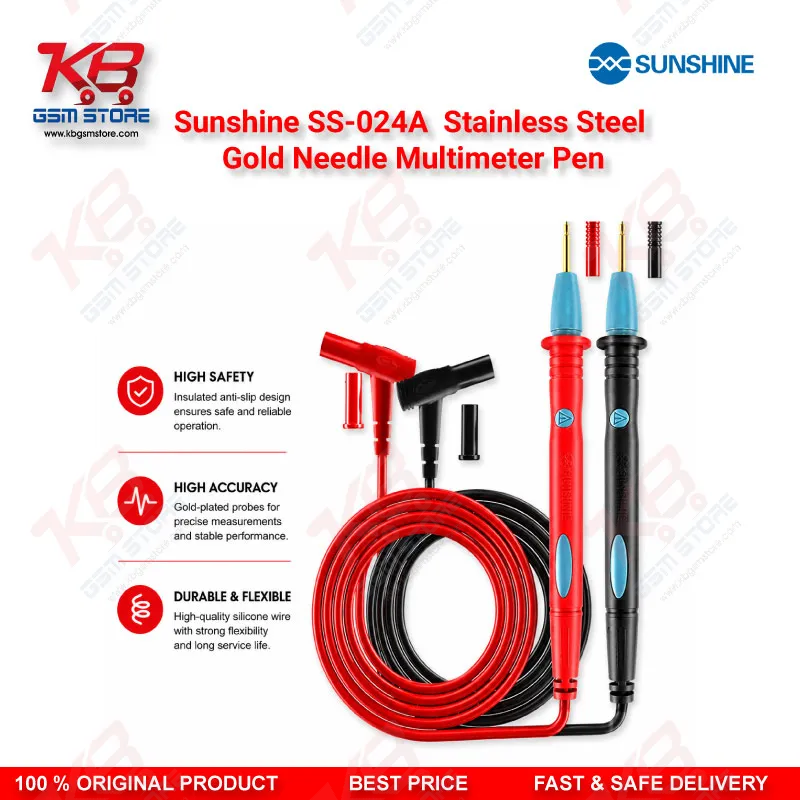

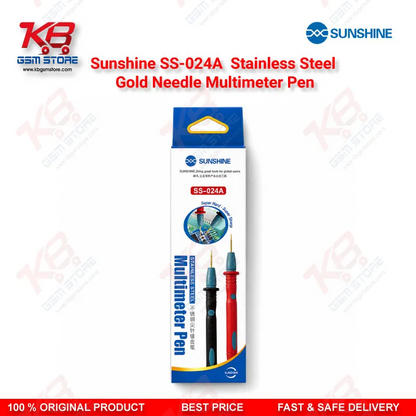

Sunshine SS-024A Stainless Steel Gold Needle Multimeter Test Lead Pen – 1000V 20A Precision Probe

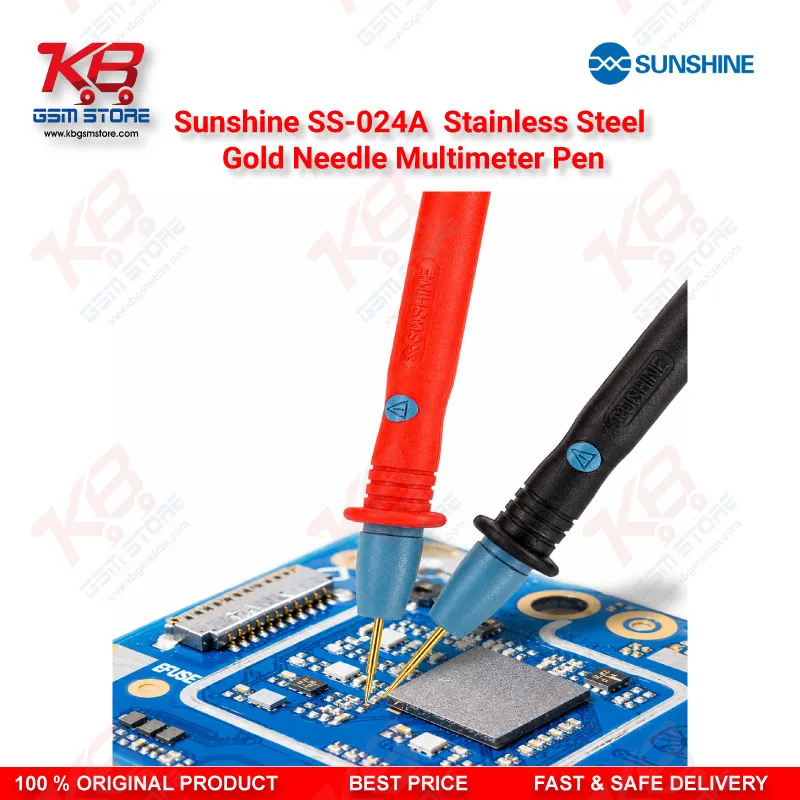

When you're chasing a short or checking continuity on a dead board, your test probe matters as much as your multimeter. The Sunshine SS-024A gives you a stainless steel, gold-electroplated needle tip built specifically for board-level work where standard multimeter leads are too thick or too dull to get an accurate reading. The tip is the core of this tool. Sunshine machined it into an ultra-sharp, ultra-hard point that penetrates lightly oxidized solder pads, IC legs, and cramped test points without slipping. You get a 2mm probe diameter with a 22mm probe length, so you can reach into tight spaces around PMICs, RF shields, and connector pins without disturbing neighboring components. The gold plating resists oxidation over time, so the tip keeps its conductivity and sharpness through repeated daily use on your bench. Inside the wire, a 42×0.1 stranded copper core carries the signal from tip to plug with minimal resistance. This matters when you're measuring small voltage drops or checking continuity on fine traces, where a weak or corroded lead can give you a false open or a misleading reading. The PVC-insulated wire runs 970mm, giving you enough reach to work comfortably around your workstation, hot air station, or microscope setup without the lead pulling taut. At the connection end, the SS-024A uses a standard 4mm banana plug, sealed for a secure fit. This makes it compatible with the vast majority of digital and analog multimeters used in mobile repair shops across Lahore, Karachi, and Islamabad, so you don't need to hunt for an adapter or a specific brand match. The plug and handle are built with a non-slip PVC grip, and the connection joint uses soft plastic injection molding at the stress point, which is where cheaper leads typically crack first. Rated for 1000V and 20A, this pen is built with enough safety margin for the voltage and current ranges you'll actually encounter in phone and board repair, while staying precise enough for low-voltage continuity checks on ICs and fine PCB traces. Whether you're isolating a shorted power rail, checking a jumper you just soldered, or confirming continuity after an IC change, this probe gives you a tight, accurate contact point instead of a rough, oversized tip that bridges pads it shouldn't. For technicians doing high-volume board work — hardware fault diagnosis, dead phone troubleshooting, charging issue tracing, or continuity checks after a reball — a dedicated fine-point probe like this cuts down on false readings and wasted time re-testing. It pairs naturally with your existing DC power supply, hot air station, and microscope setup as part of a proper board-level diagnostic workflow, and it's a straightforward upgrade if you're currently working with the thick, blunt leads that come standard with most entry-level multimeters.
