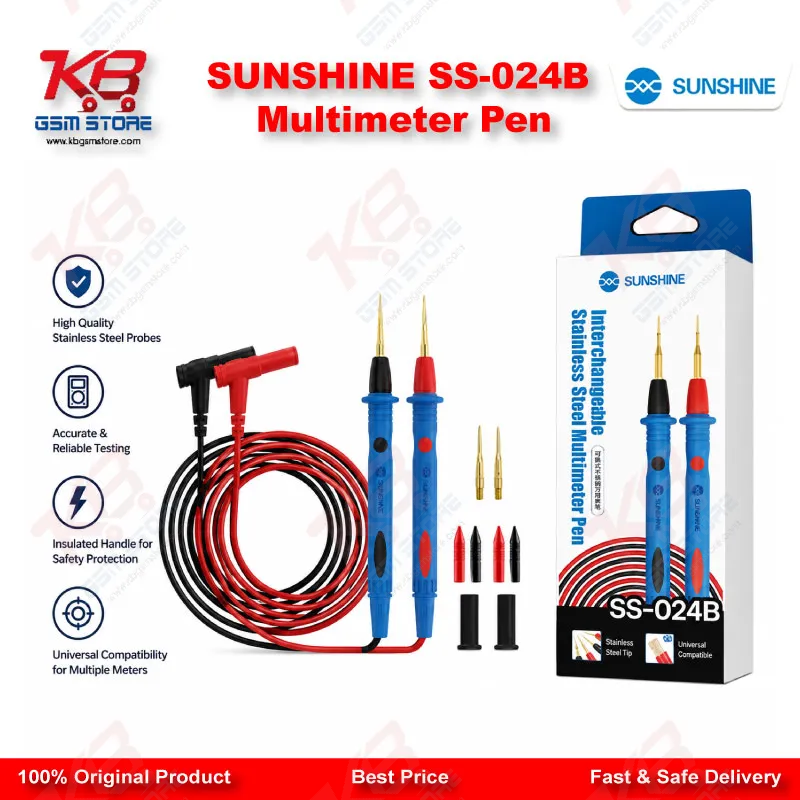

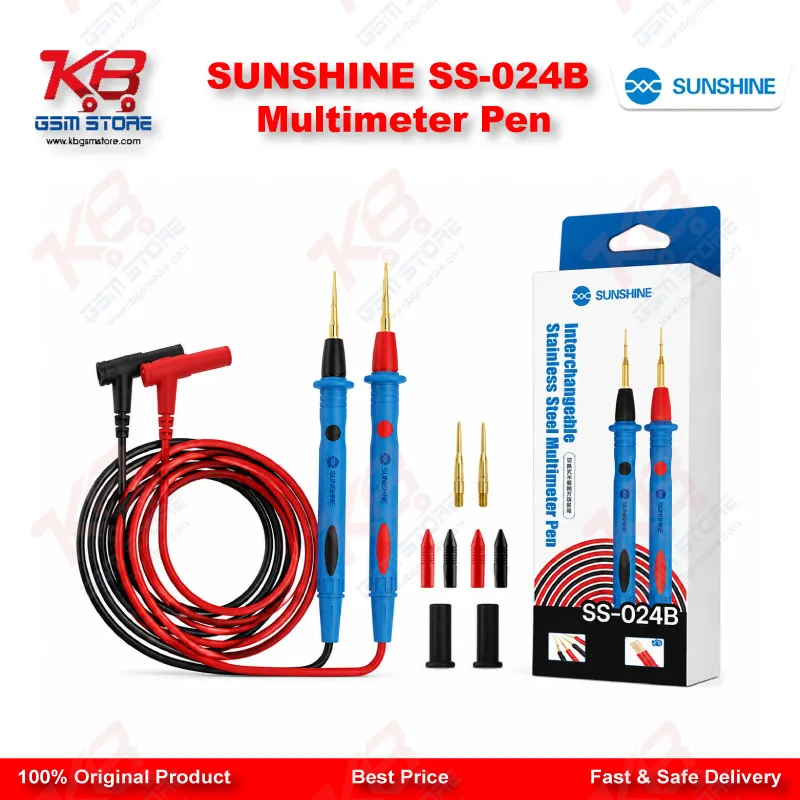

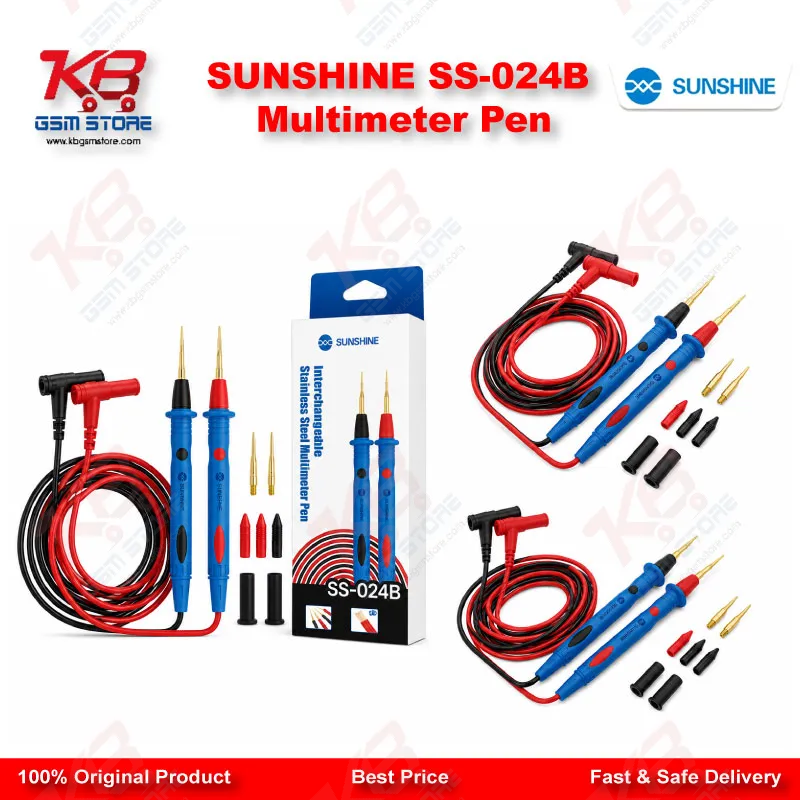

Board-level diagnostics on modern phone PCBs depend on how precisely a technician can land a probe tip on a solder pad, via, or IC pin without slipping onto neighboring traces, and the SUNSHINE SS-024B addresses exactly that problem with an interchangeable needle system built around 0.1mm and 0.2mm gold-plated stainless steel tips. The core of each lead carries 150 strands of pure copper wrapped in double-layer insulation, so current transfer stays consistent even during repeated flexing across a busy workshop shift, and the gold plating on the tips slows down oxidation that would otherwise dull contact accuracy over time. Rated for 1000V and 20A, the leads cover the voltage and current range most bench multimeters need, from checking continuity on a dead board to tracing a short across a power rail, without technicians worrying about the probe becoming the weak point in the measurement chain. The test pen body measures 115.5 by 15 by 15mm and pairs with a soft silicone jacket rated for cold and high-temperature resistance, so the cable stays flexible instead of stiffening or cracking after months of use near hot air stations or in cooler storerooms. A PVC non-slip handle wraps the grip section, giving technicians steady control when probing tightly packed components under a microscope, where even a small hand slip can bridge two pads and trigger a short. Interchangeable pin tips, available in 30mm and 26mm lengths with 1mm and 2mm diameters, let a single set of leads switch between fine-pitch IC testing and broader connector or battery terminal checks, cutting down on how many separate probe sets a bench needs to keep on hand. The universal 4mm banana plug on each lead fits the vast majority of digital and analog multimeters in circulation, so swapping this set onto a different meter brand does not require an adapter. Net weight sits around 77 grams, keeping the pair light enough for extended handheld use without wrist fatigue during long diagnostic sessions. For a workshop running through repeated cycles of continuity checks, voltage tracing, and component-level testing on dead phone boards, boot loop cases, and charging faults, having probes that hold a sharp point and resist tip rounding matters as much as the meter itself, since a worn or blunt tip produces inconsistent readings that waste time chasing false leads. The SS-024B fits naturally into an eMMC and ISP diagnostic workflow, where a technician moves from continuity testing on a dead board to voltage checks on a power IC, then to point-to-point resistance measurement while narrowing down a short before reaching for a soldering iron or hot air station. Because the tips are replaceable rather than fixed, a damaged or bent needle does not force a full lead replacement, which extends the working life of the set and keeps ongoing tool costs down for repair shops running high test volumes. Combined with the durable copper core and gold-plated contact points, this makes the SS-024B a dependable addition to any technician's test bench, sitting alongside microscopes, hot air stations, and IC-level diagnostic tools as part of a complete board repair setup.
