Sunshine SS-602 Multi-Function Hot Air Gun Bracket

Sunshine SS-602 Multi-Function Hot Air Gun Bracket for Hands-Free IC Rework

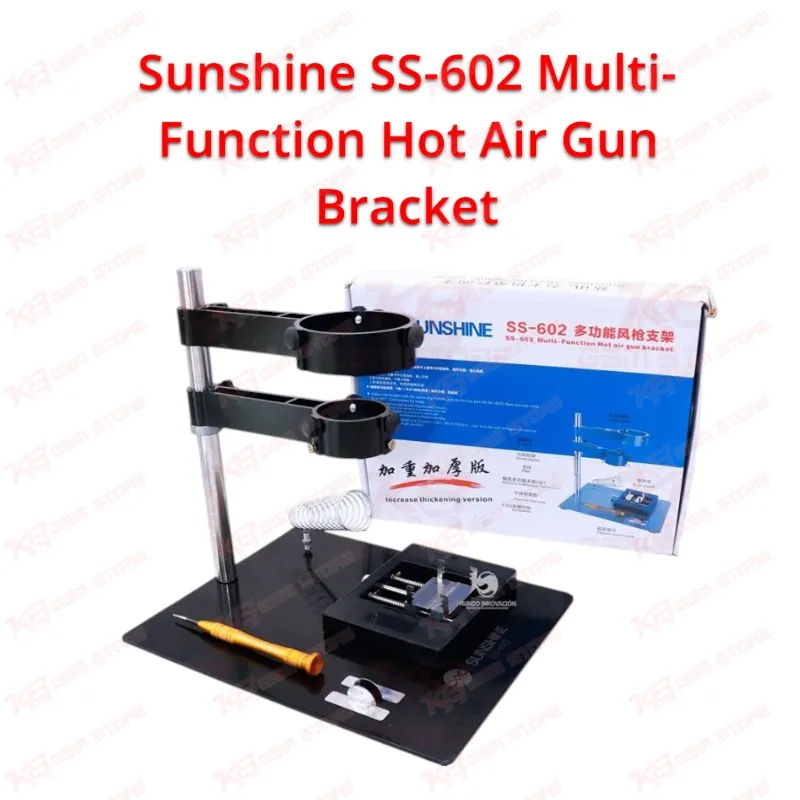

The Sunshine SS-602 Multi-Function Hot Air Gun Bracket turns a hand-held hot air gun into a fixed rework stand. You know the problem: one hand holds the gun, the other holds tweezers, and the board slips while the solder melts. This bracket fixes that on your repair bench with a steel base, a rotating gun holder, and a motherboard fixture that grips the PCB. KB GSM Store stocks the SS-602 for Pakistani shops that want cleaner IC change karna work, steadier heat, and a safer workflow without buying a full rework station.

Steel Frame and Rotating Gun Holder

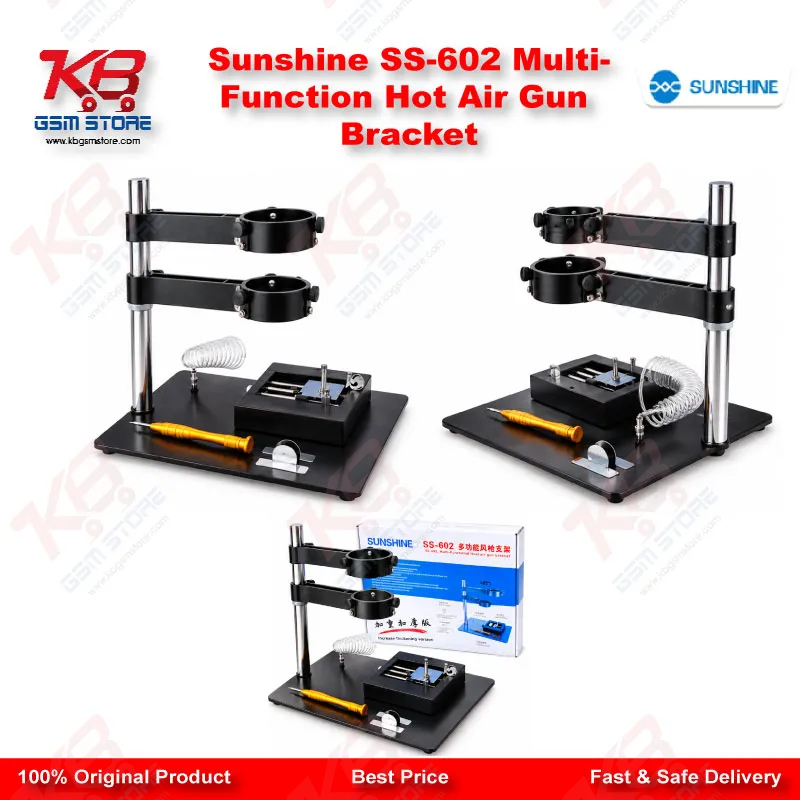

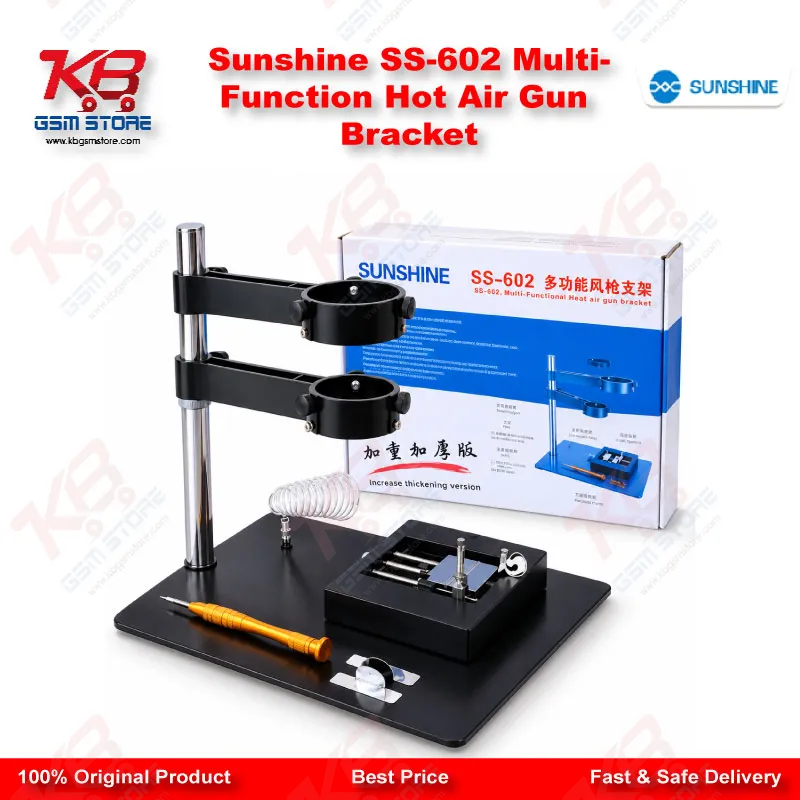

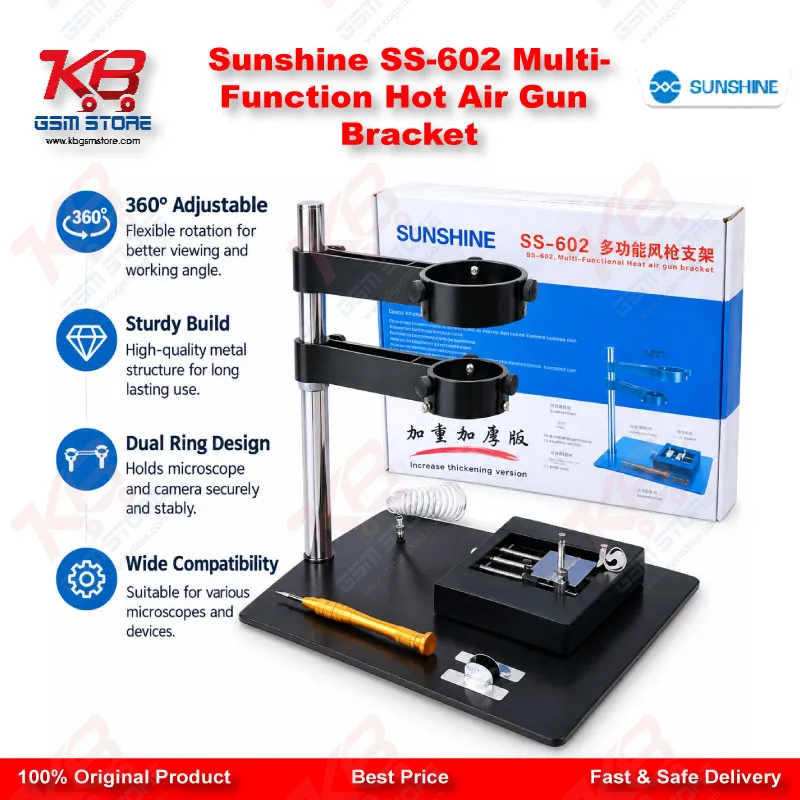

Sunshine builds the SS-602 with a real metal frame and a thickened base, so the stand stays planted on your bench while you work. You press the adjusting button to set the height, rest the hot air gun in the holder, and swing it a full 360 degrees over the chip. The holder comes in two diameters, 4.8cm for the small size and 6.4cm for the large size, so you match it to your gun barrel instead of forcing a bad fit. The listing describes the clamp as suitable for hot air guns and desktop hand-held heat guns. Measure your gun barrel before you order, because a loose holder defeats the whole purpose. The 360-degree turn lets you move the gun away between passes, so you can check the solder under a microscope without lifting the gun by hand. The frame also carries a soldering iron holder, so your iron stays within reach during jumper lagana and pad repair.

BGA Fixture That Holds the Motherboard

The 2-in-1 BGA fixture and jig keeps the board locked while you heat the chip. Two bayonets handle different board thicknesses, a 4mm slot and a 2mm slot, and the active spindle lets you slide the splint to the exact position you need. The fixture accepts boards from 2.3cm to 4.5cm wide, with unlimited length. Strong fixing magnets keep the multi-function fixture steady, and the upright clip design helps when you probe circuits during a hardware fault check. Slide the splint to the board edge, lock the position, and then bring the gun over the chip. A fixed stand removes hand shake, but you still need the correct temperature and airflow. Boards wider than 4.5cm will not fit, so measure before you buy.

Where the SS-602 Fits in Your Rework Workflow

Use this bracket for chip-level jobs where steady heat decides the result: IC change karna on a dead phone, glue removal around a CPU, and charging IC or display connector replacement after a charging issue or display problem. It works as a holder only and does not heat anything, so you still need your own hot air station or hot air gun with temperature and airflow control. Pair it with a good microscope, flux, and a reballing kit when you rework BGA chips. In a busy workshop, a fixed stand also protects your fingers and your board from accidental contact with the nozzle. Technicians who handle many dead phone jobs each day save time because the gun stays in position between boards. Browse the Hot Air Stations category on KB GSM Store if you need a gun to mount, and look at PCB holders if your boards run wider than this fixture allows. When your workload grows, a full hot air rework station is your next step up from a bracket setup.
