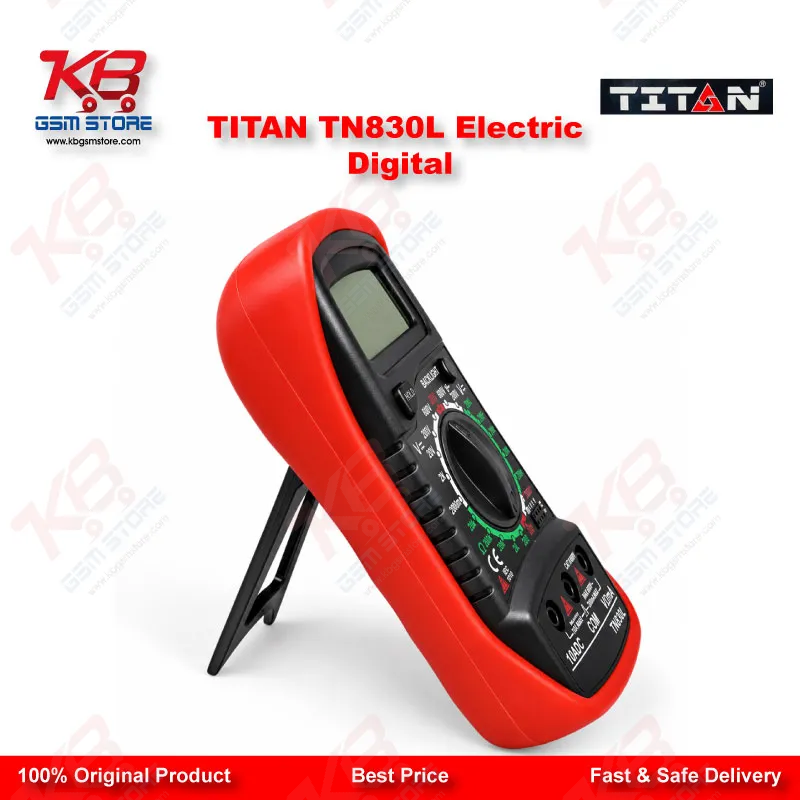

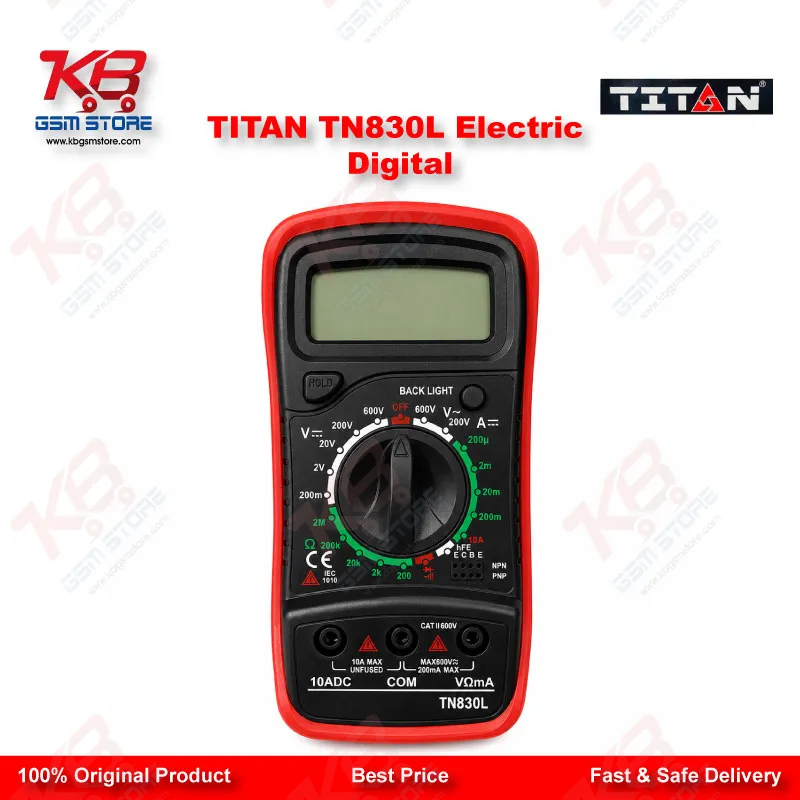

Every GSM repair bench needs a reliable way to check voltage, resistance, and continuity before touching a board with a soldering iron, and the TITAN TN830L handles that job without complications. This is a pocket-style digital multimeter designed for technicians who need fast, accurate readings during hardware fault diagnosis, not a lab-grade instrument loaded with functions you will never use on a phone PCB.
The meter covers DC voltage from 200mV up to 600V and AC voltage from 200V to 600V, both accurate to within 0.5 to 1.0 percent depending on range. That range covers everything from checking a 3.7V battery output to testing mains voltage on a power supply unit. DC current measurement runs from 2mA up to 10A, which lets you check current draw on a dead phone during boot to spot a short before it damages the board further. If a device is pulling excessive current the moment power is applied, this meter shows you that immediately, saving you from guessing which IC is shorted.
Resistance measurement spans from 200 ohms up to 2 megaohms, useful for checking coils, resistors, and continuity paths on the board. The built-in diode and continuity test mode is one of the most-used functions in daily repair work. When you are tracing a short on a dead-after-flash board or confirming a jumper wire connection after a jumper lagana job, the continuity beep tells you instantly whether the path is complete. This cuts down diagnosis time significantly compared to visually inspecting solder joints alone.
A feature that sets the TN830L apart from many basic meters in this price range is the K-type thermocouple temperature function, reading from minus 20°C up to 1300°C with roughly 3 percent accuracy. This is genuinely useful on a hot air rework station setup, letting you verify that your hot air gun or heating platform is actually reaching the temperature shown on its own display, rather than trusting the station's internal calibration blindly. Cross-checking iron and hot air temperatures against a separate meter is standard practice for technicians who do BGA reballing and IC change work regularly, since incorrect station temperature is a common cause of damaged ICs and lifted pads.

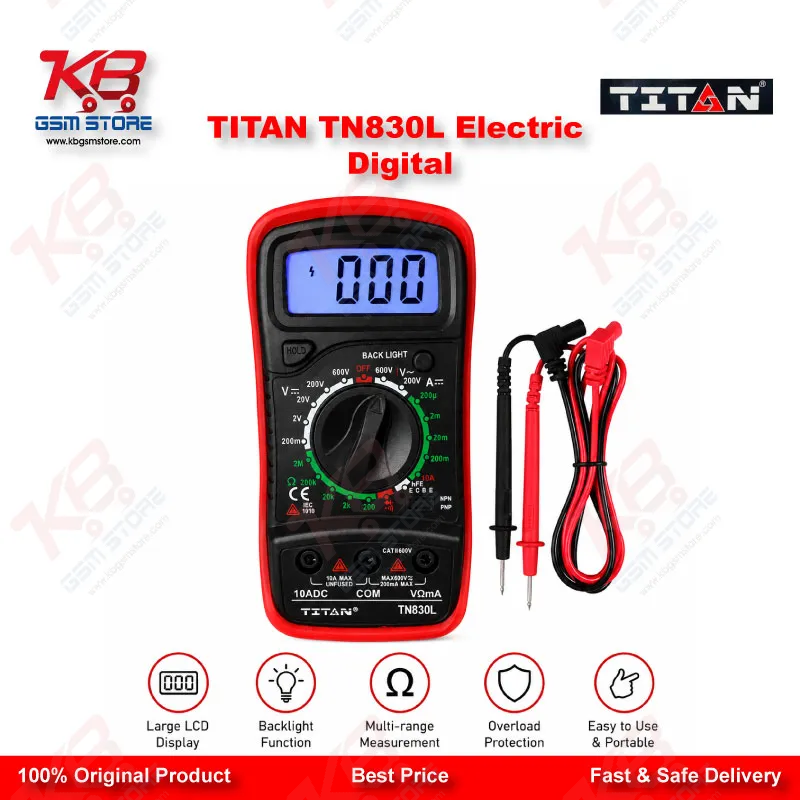

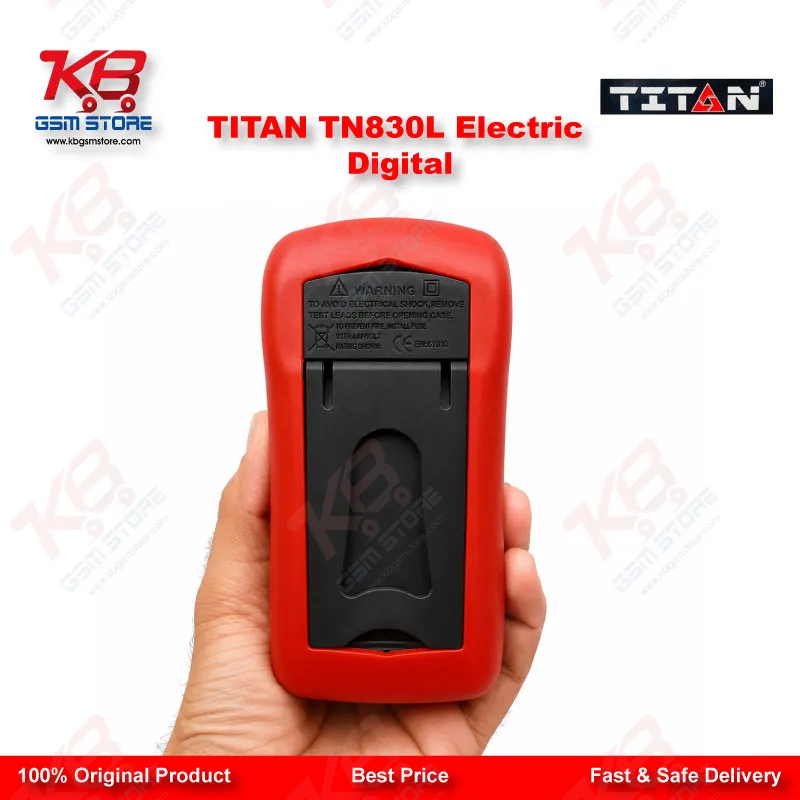

The display is a 3.5-digit LCD with a maximum reading of 1999, sized at 45 x 18mm, large enough to read clearly without straining under bench lighting. Input impedance is rated at 1 megaohm, keeping the meter's own draw from skewing sensitive voltage readings on delicate mobile circuitry. Power comes from a single 9V 6F22 battery, which is not included in the box, so keep a spare on hand for a shop that runs meters daily.
For a Pakistani repair shop working through daily hardware fault, charging issue, and dead phone cases, a meter like this earns its place on the bench fast. It is small enough to sit next to your soldering station without taking up space, simple enough that new technicians pick it up in minutes, and accurate enough for the voltage, resistance, and continuity checks that make up most day-to-day diagnostic work. Whether you are confirming charging IC output, chasing a short circuit before a box chalana session, or double-checking hot air temperature before an IC reflow, the TN830L covers the basics reliably.
