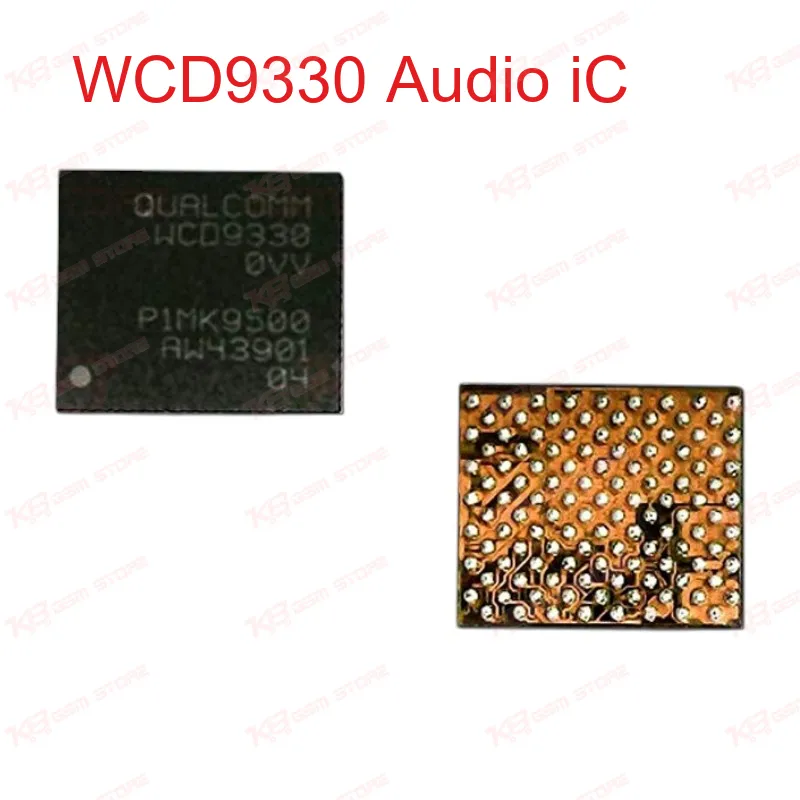

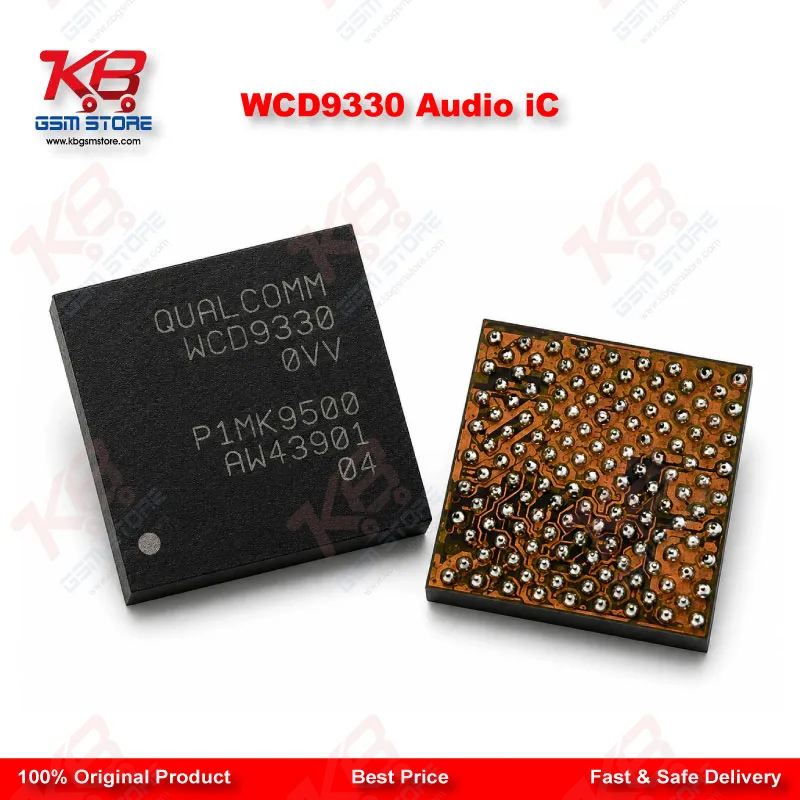

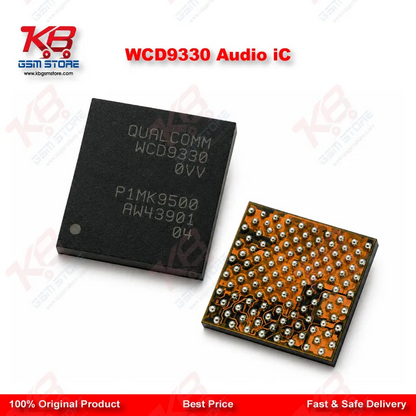

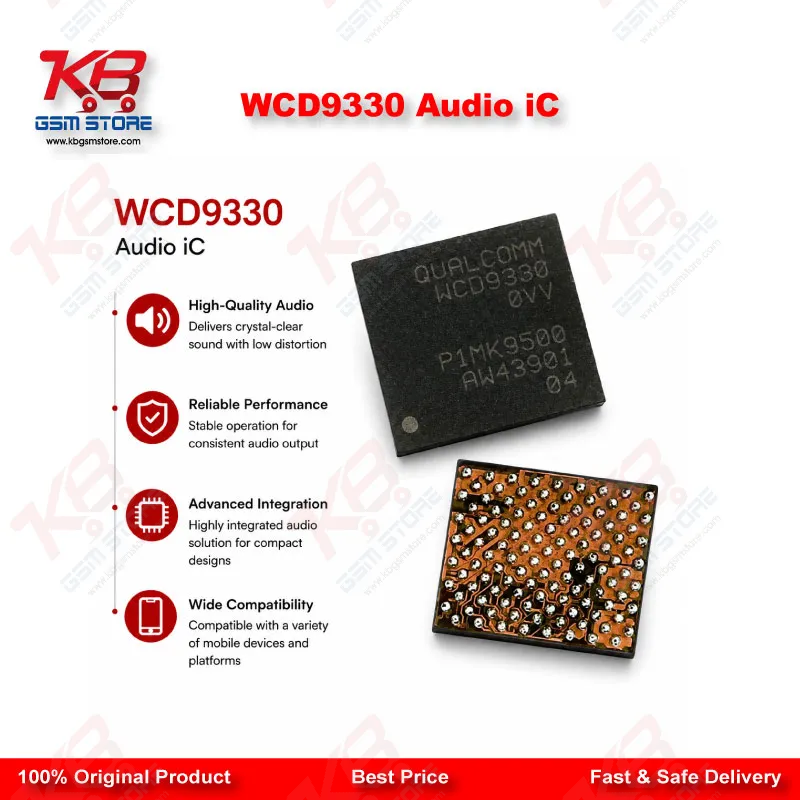

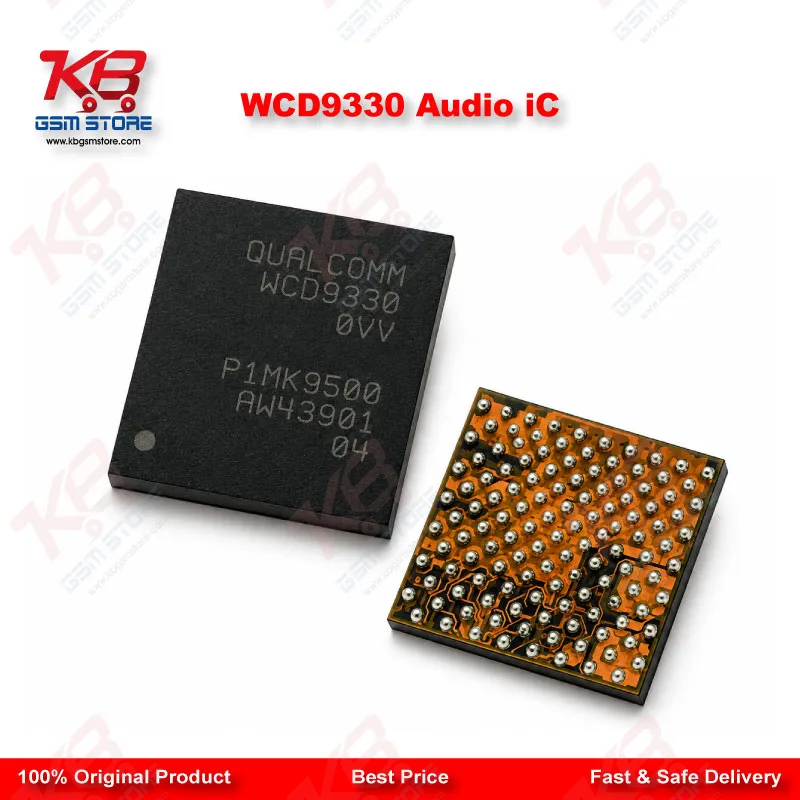

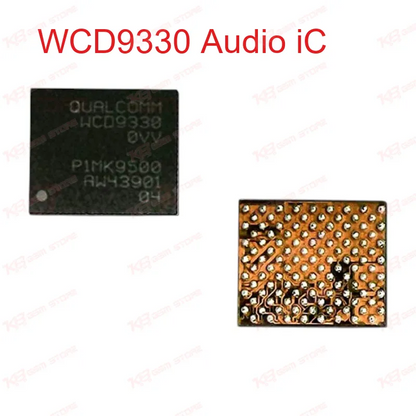

WCD9330 Audio iC

If a Samsung Galaxy Note 8, S8, or S8+ comes to your bench with no sound, no mic input, or a distorted speaker output, the WCD9330 audio codec IC is usually the first thing worth checking on the board. This chip handles the audio processing pathway between the phone's processor and its speaker, mic, and headphone circuit. When it takes damage from moisture, a short circuit, or ESD, symptoms show up as complete silence on calls, no ringer sound, one-way audio, or a mic that stops picking up voice even though the display and network work fine.Qualcomm manufactures this IC in a BGA package, which means it needs proper reballing and hot air rework to remove and remount — not a job for a soldering iron alone. On your repair bench, you'll want a hot air station set to the right profile, a BGA stencil matched to this chip's ball pattern, flux, and a microscope to check for lifted pads or bridging after reflow. Since it's a fine-pitch part, IC change karna on this component without a stencil often leads to a second failure from shorted balls, so most experienced technicians reball fresh rather than reuse.Before replacing, confirm the fault is actually on the IC and not on the flex, connector, or a cracked trace under the board coating. A quick way to isolate it: check continuity from the mic/speaker connector back to the IC pads, and inspect for burn marks or corrosion typical of liquid damage cases. If the board powers on, boots normally, and only the audio path fails, that points strongly to this chip rather than a software or logic board fault — this is a hardware fault, not something a box or flash tool will fix.This part sits within the audio and RF section of the board, working alongside the power management IC and baseband section, so a short here can sometimes trip related lines too. After installing a replacement WCD9330, always test speaker, mic, ringer, and headphone jack functions individually before closing the phone back up, since a partial fix (speaker works but mic doesn't) usually means a connector or flex issue rather than the IC itself.Stock this IC if you handle Samsung board-level repair regularly — audio and mic complaints are among the more common tickets that come in for the Note 8 and S8 family, and having a tested, verified part on hand saves a diagnosis-to-repair cycle that would otherwise mean sourcing it mid-job. Pair it with a compatible reballing stencil and BGA holder for a cleaner rework process on your bench.
