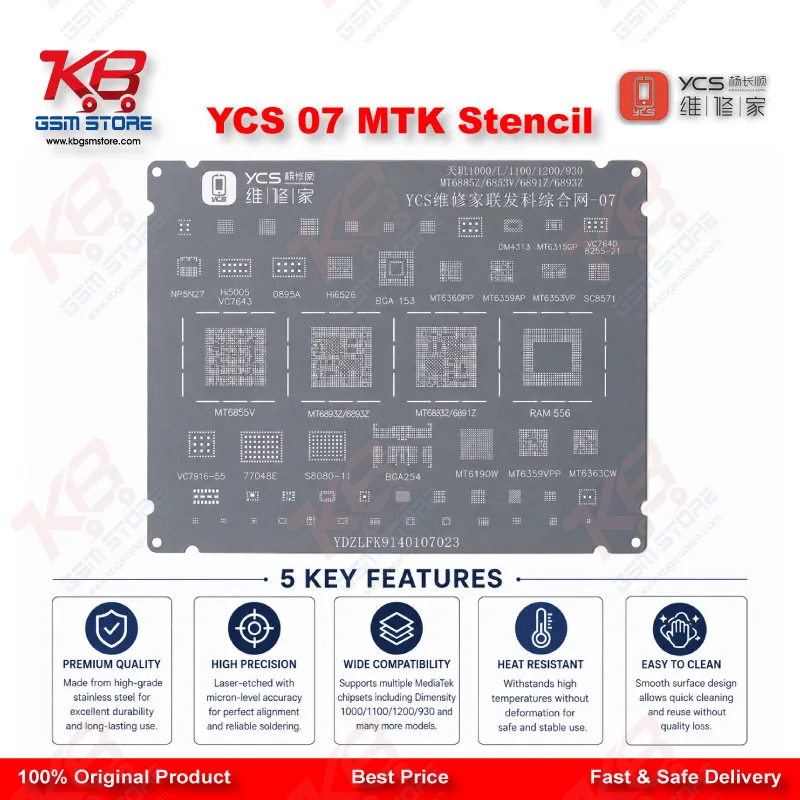

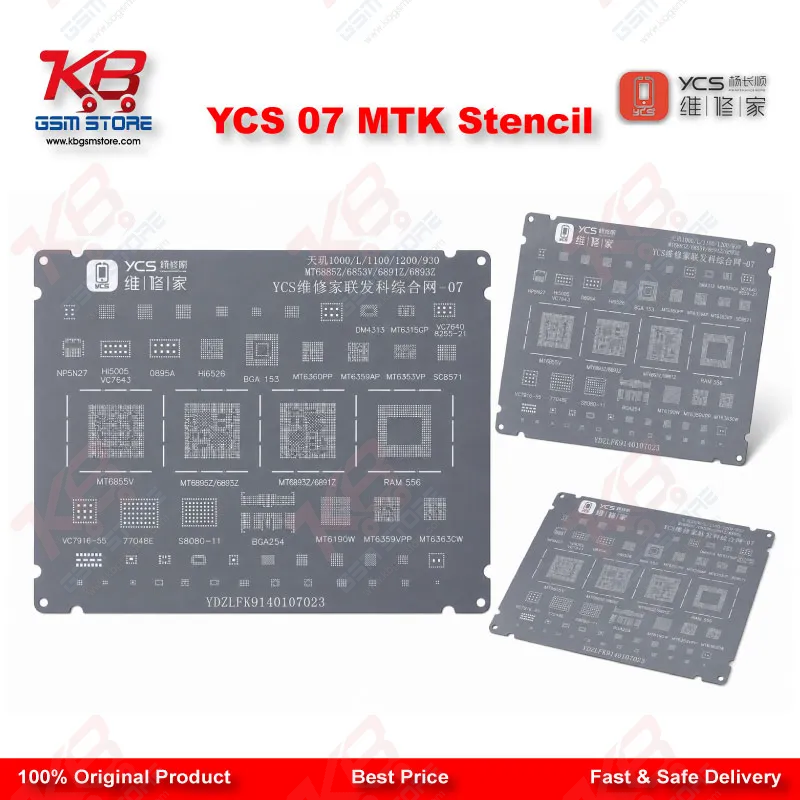

YCS 07 MTK BGA CPU Reballing Stencil for MediaTek

The YCS 07 MTK BGA CPU Reballing Stencil gives mobile repair technicians a dedicated solution for MediaTek CPU reballing work. YCS identifies this stencil as MediaTek CPU Set 07 under manufacturer part number YDZLFK9140107023. It belongs to the wider YCS Android CPU stencil range developed for precision BGA chip repair. CPU-level motherboard repair requires accurate solder ball formation. Small alignment errors, excess solder paste, or uneven ball formation can make an already difficult CPU repair even harder. The YCS 07 MTK stencil provides a precision mesh pattern for its supported MediaTek BGA layouts, helping you control solder placement during the reballing process. This stencil focuses specifically on MediaTek CPU repair rather than acting as a generic universal hole-pattern stencil. YCS separates its CPU stencil range into dedicated MediaTek sets, including Set 01 through Set 09, with YCS 07 representing MediaTek Set 07. This dedicated design makes the stencil useful on a repair bench where technicians regularly handle Android motherboard faults and CPU-level work. Before starting a repair, you should always match the chip marking and BGA layout with the stencil pattern instead of assuming compatibility from the phone brand alone. Clean CPU reballing depends heavily on accurate stencil alignment. The YCS stencil series uses precision mesh layouts designed to position solder across BGA contact points consistently. During reballing, you can align the compatible CPU with the correct section of the stencil, apply suitable solder paste, remove excess material, and heat the chip using your normal professional rework process. Accurate alignment helps create more consistent solder balls and gives you better control before reinstalling the CPU onto the motherboard. This becomes particularly useful when doing CPU rework after chip removal or when rebuilding solder contacts during board-level repair. YCS produces its chip repair stencil series from alloy steel designed to combine flexibility with resistance to high temperatures. The material helps the stencil retain its shape during repeated heating and soldering procedures. A flexible stencil matters during CPU reballing because a warped mesh can affect contact with the chip surface and disturb solder distribution. YCS designs these stencils to resist deformation while maintaining precise mesh alignment during professional repair work.
MediaTek processors appear across many Android mobile devices, making dedicated MTK CPU tools useful for technicians who regularly perform advanced hardware repair. The YCS 07 MTK stencil fits naturally into a professional reballing workflow alongside a PCB holder, microscope, solder paste, hot air station, tweezers, cleaning materials, and other BGA rework tools. For technicians doing IC change karna or CPU-level motherboard work, proper preparation matters as much as heating technique. Clean the chip pads carefully, inspect the BGA surface under a microscope, select the matching stencil layout, and keep the CPU properly aligned before applying solder. This product targets technicians who already perform chip-level soldering and rework. CPU removal and installation require controlled heat, correct alignment, suitable soldering materials, and experience with multilayer mobile PCBs. The stencil itself does not diagnose a dead phone, boot loop issue, hang on logo, network issue, or other motherboard fault. Instead, it supports the physical CPU reballing stage when diagnosis confirms that CPU/BGA rework forms part of the required repair. You can combine this stencil with professional reballing kits, PCB holders, microscopes, hot air stations, and soldering equipment to create a more controlled repair workflow. For repair shops handling MediaTek motherboard work, keeping dedicated stencil sets can reduce the need to work with generic mesh patterns. YCS 07 provides a clearly identified MediaTek Set 07 option for compatible BGA CPU repair. Its precision mesh, flexible alloy-steel construction, heat-resistant design, and dedicated MediaTek application make it a practical addition to a professional GSM hardware repair bench in Pakistan.
