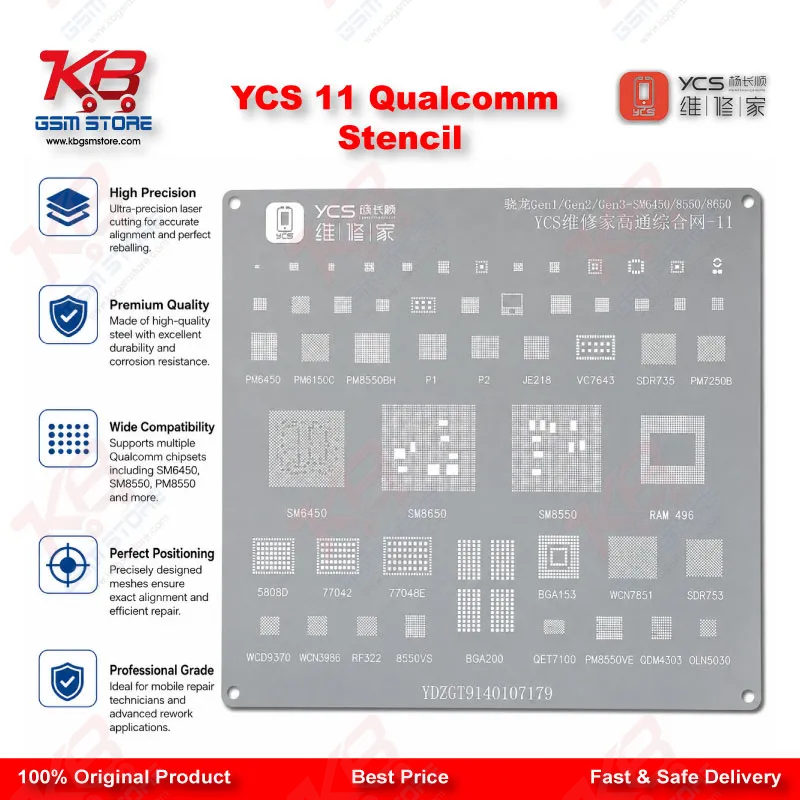

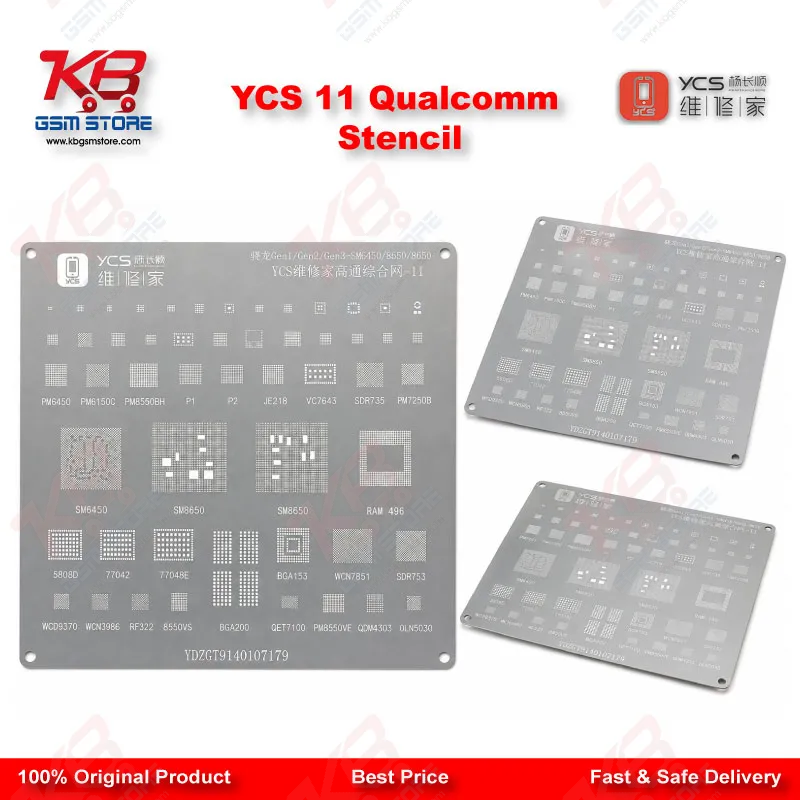

YCS 11 Qualcomm BGA Reballing Stencil – Snapdragon CPU Comprehensive Network Stencil

Reballing a Snapdragon-based motherboard without the correct stencil creates problems fast — balls misalign, bridging risk goes up, and rework time doubles. The YCS 11 Qualcomm BGA Reballing Stencil exists to close that gap on your reballing station.
This stencil follows the structure of the YCS Comprehensive Network series, where each numbered network targets a specific chipset generation. That means you're not working with a generic, one-size-fits-all stencil — you get a tool cut to match the ball pitch and pad layout of the Qualcomm Snapdragon platform it's built for. Precision-cut holes keep every ball in its correct position, so solder paste or solder ball placement stays consistent across the board. On the workshop floor, this stencil sees the most use during CPU reballing, PMIC reballing, and power IC replacement — particularly on boards that go dead after flash, or when diagnosis points to a CPU or power IC dry joint. When your board comes in with that dead-after-flash symptom and the root cause traces back to the CPU or PMIC, stencil accuracy directly affects your reballing success rate. A mismatched stencil raises the risk of shorts, bridging, or a loose ball connection — any of which can cause further board damage. On the material side, YCS stencils are typically cut from high-precision stainless steel or a comparable durable metal, built to hold up under repeated heat exposure and daily handling. Because the design is reusable, it becomes a one-time investment that serves multiple boards over its working life, rather than a single-use consumable. In terms of workflow, this stencil fits directly into your existing reballing setup — preheater, hot air station, and tin planting platform included. Clean the board, align the stencil, apply solder balls or paste, then run your reflow step. That's the standard sequence, and stencil accuracy is the part of it that determines whether the reballing holds. In Pakistan's repair market, where technicians need cost-effective tools that hold up under daily heavy use, YCS series stencils have built a reputation on consistency. Whether you're running an independent mobile repair shop or handling board-level work at a service center, this stencil is built to keep your reballing workflow steady without added guesswork.
Note: This stencil is Qualcomm Snapdragon-family compatible at a general level; confirm the exact chipset/model number with the seller or packaging before purchase.
