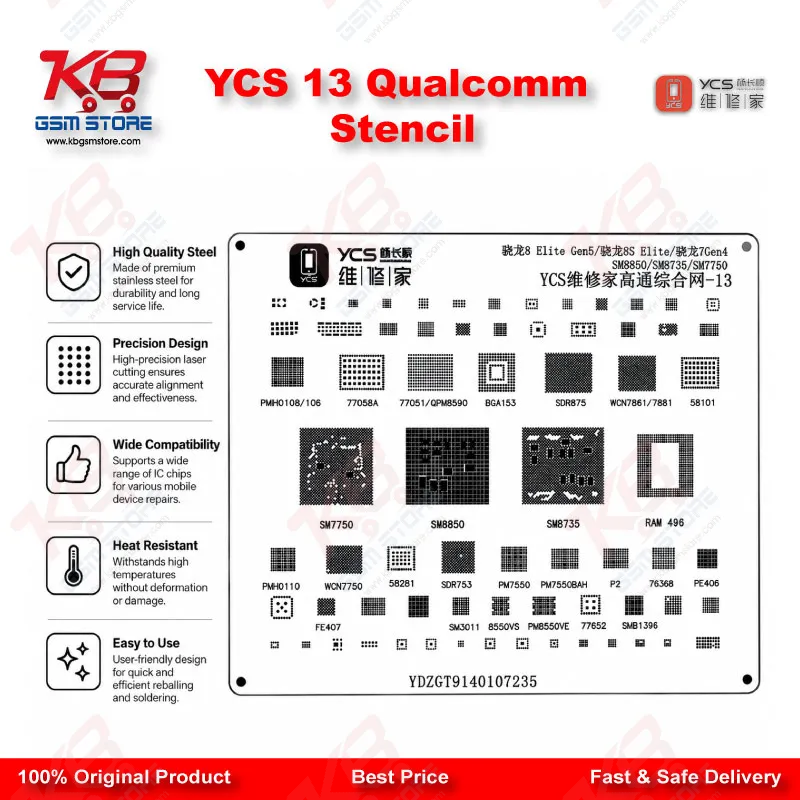

YCS 13 Qualcomm Snapdragon BGA Reballing Stencil

When a Snapdragon board comes into your workshop dead after flash, hanging on logo, or showing signs of a cracked CPU ball, reballing is often the only fix that actually holds. The YCS 13 stencil gives you a repeatable way to lay solder balls back onto the CPU footprint without guessing pad spacing by eye. You're not fighting a generic mesh here — this is part of YCS's numbered "Repairman Qualcomm Comprehensive Network" line, where each stencil number corresponds to a specific set of Snapdragon chipset footprints etched into the steel. The workflow is straightforward once you've confirmed the chipset match. You clean the board, remove the old solder residue from the CPU pads, seat the stencil over the footprint, and drop solder balls through the openings using a reballing tray or direct-drop method. A pass of flux keeps the balls seated while you reflow with a hot air station at a controlled temperature. Because the stencil holes are laser-cut to match the original ball pitch, you get uniform ball height across the whole grid — which matters more than most technicians think, since uneven balls are one of the biggest causes of a board that reballs fine but still won't power on. Where this earns its place on your bench is CPU-side work: IC change karna after a short, board cleaning before reflow, and reballing after you've already pulled a suspect CPU for testing. It's also useful when you're diagnosing a hardware fault versus a software issue — if a board is dead after flash and box software shows no response, pulling and reballing the CPU is often the next diagnostic step before you write it off as a board swap. A stencil like this doesn't replace skill at the bench, but it removes one variable from a job that already has enough. Manual ball placement without a stencil is slow and inconsistent even for an experienced technician, and a bad reball means a repeat job — sometimes on a board that's already been opened twice. Using the correct numbered stencil for your chipset cuts that risk down to technique and reflow temperature, which are things you control. One thing worth being upfront about: because YCS numbers this series by chipset family, and the physical stencil carries printed markings for the exact Snapdragon models it covers, always cross-check those markings against your board's CPU marking before you start the job. A mismatched stencil won't seat the balls correctly even if the chip looks similar. This is standard practice across the whole YCS 01–13 range, not unique to this one. For a repair shop running Qualcomm boards regularly, having the matching stencil on hand alongside your ISP tools, hot air station, and a decent microscope turns CPU reballing from a rare, stressful job into routine bench work. Pair it with proper flux and solder paste rated for BGA work, and you'll get consistent results job after job.
