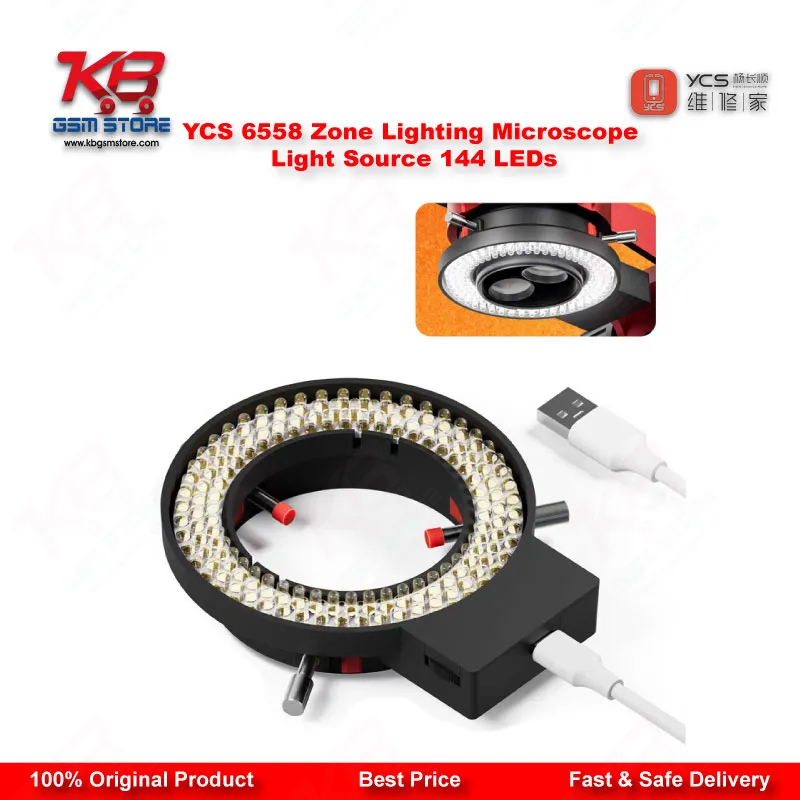

When you're doing micro-soldering under a microscope, light direction matters as much as light brightness. A single fixed bulb throws shadows across BGA balls and CPU pads, and you end up tilting your head or repositioning the lamp every few minutes just to see the joint clearly. The YCS 6558 Zone Lighting Microscope Light Source solves this with a 144-LED ring built around four independently controllable lighting zones — up, down, left, and right. Instead of one flat light source, you switch on whichever zone suits the angle you're working from, killing reflections off shiny solder and giving you a cleaner view of the pad before you commit the iron or hot air.

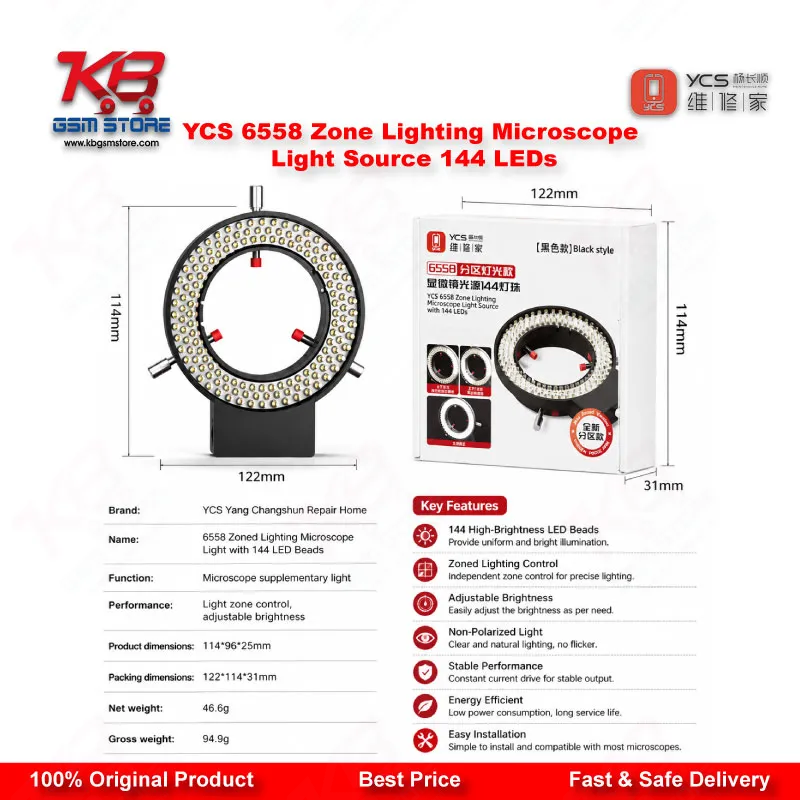

This light mounts directly onto the objective lens housing of YCS 6558 series trinocular microscopes, the kind found on most repair benches doing motherboard-level work — phone PCB soldering, CPU/BGA chip repair, IC change, and dead-after-flash diagnostics where you need to inspect a board pad-by-pad. The 144-bead configuration spreads illumination evenly around the full field of view, so you're not getting a bright center ring with dark edges, which is a common complaint with cheaper, lower-count ring lights.
Brightness on the YCS 6558 is adjustable, so you're not stuck at one intensity. Lower settings work better for inspecting boards under higher zoom where excess brightness washes out fine detail on a hang-on-logo board or a charging-port flex; higher settings suit lower-magnification general inspection or photography through the scope's camera port. Because the light runs on LEDs rather than older halogen or incandescent ring lights, heat buildup near your hands and the board stays low even during long sessions — useful when you're running back-to-back jobs on a busy repair day and the scope light is on for hours at a stretch.
For technicians, the zone control is the real workflow upgrade. When you're chasing a hairline crack on a PCB trace or trying to confirm a cold joint on an IC, you angle the light from one side using a single zone, see the shadow line shift across the suspect area, and confirm the fault visually before you touch anything with a soldering iron. That kind of directional inspection is harder to do with non-zoned ring lights that fire all LEDs at once in a flat, shadowless wash — good for general viewing, but less useful when you actually need shadow contrast to spot a defect.

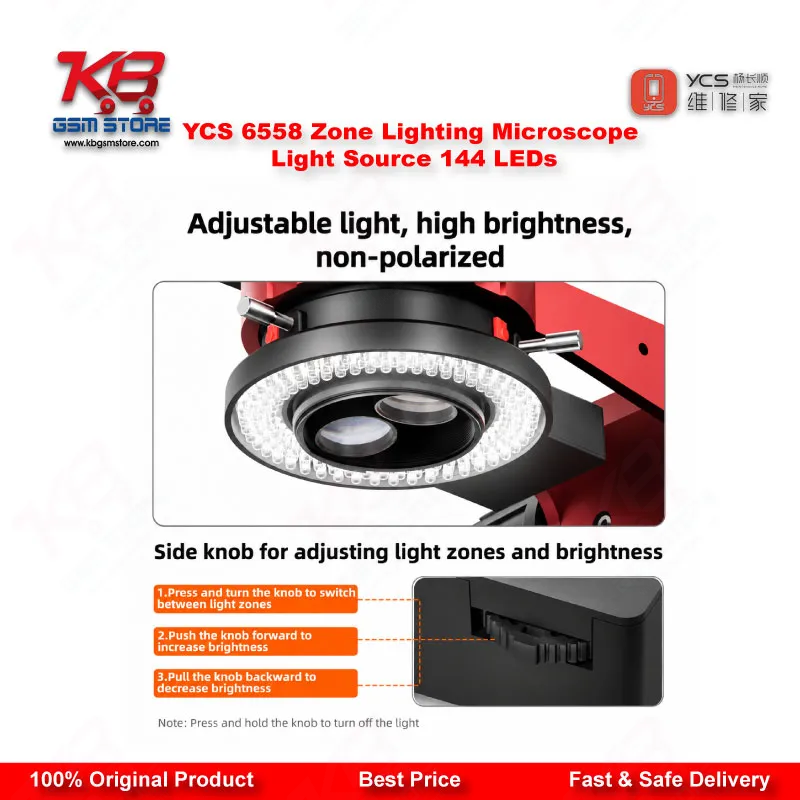

Installation is straightforward: the ring light fits onto the lower objective barrel of the YCS 6558 microscope head, secured the same way most microscope ring lights are — no rewiring, no extra bracket needed if you already run a YCS 6558-series scope. Once mounted, you control zones and brightness from the ring itself without breaking your focus or stepping away from the eyepiece, which matters when you're holding a board with one hand and a probe or iron with the other.
If your bench already runs a YCS 6558 trinocular scope for phone PCB welding, CPU/BGA soldering, or general motherboard diagnostics, this light source slots into your existing setup without requiring you to change your microscope or camera arrangement. It pairs naturally with hot air stations, soldering iron stations, and reballing kits already on your table, since better lighting at the inspection stage reduces the back-and-forth between soldering and re-checking your work under the scope.
