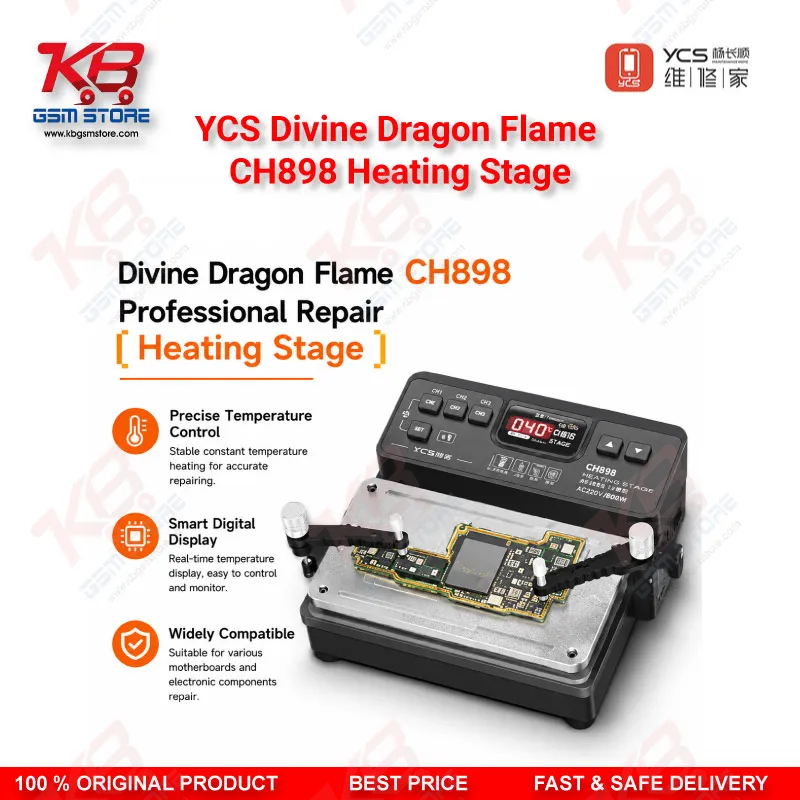

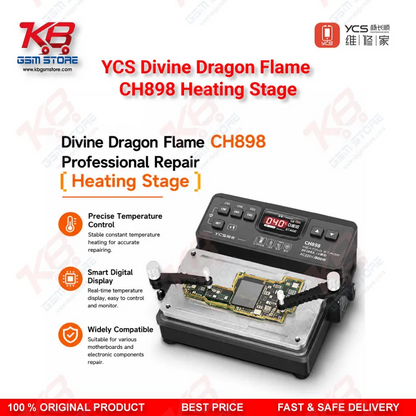

YCS CH898 Divine Dragon Heating Stage – iPhone Motherboard PCB Preheating Station

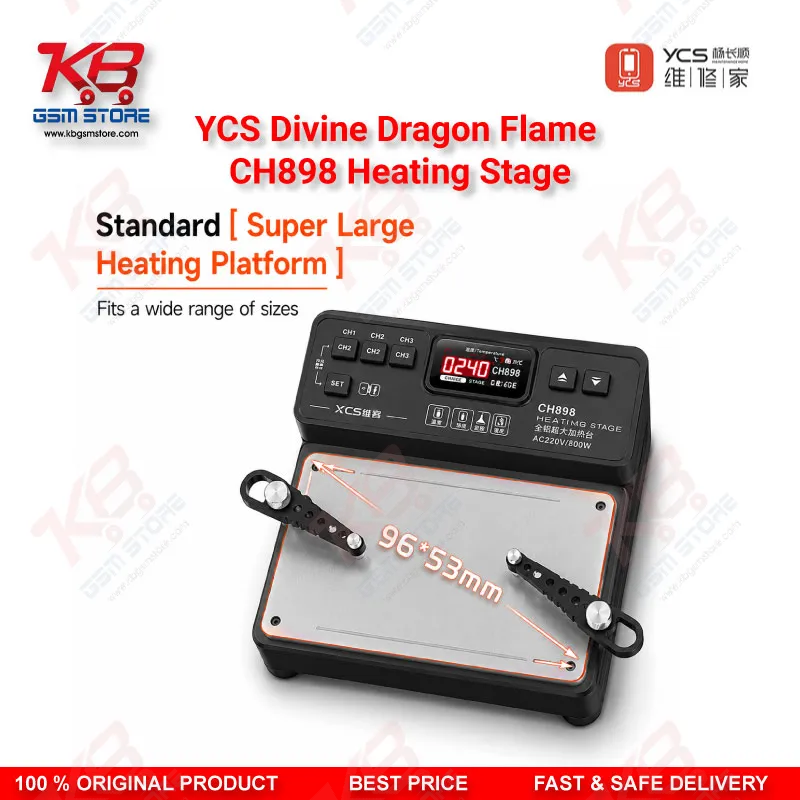

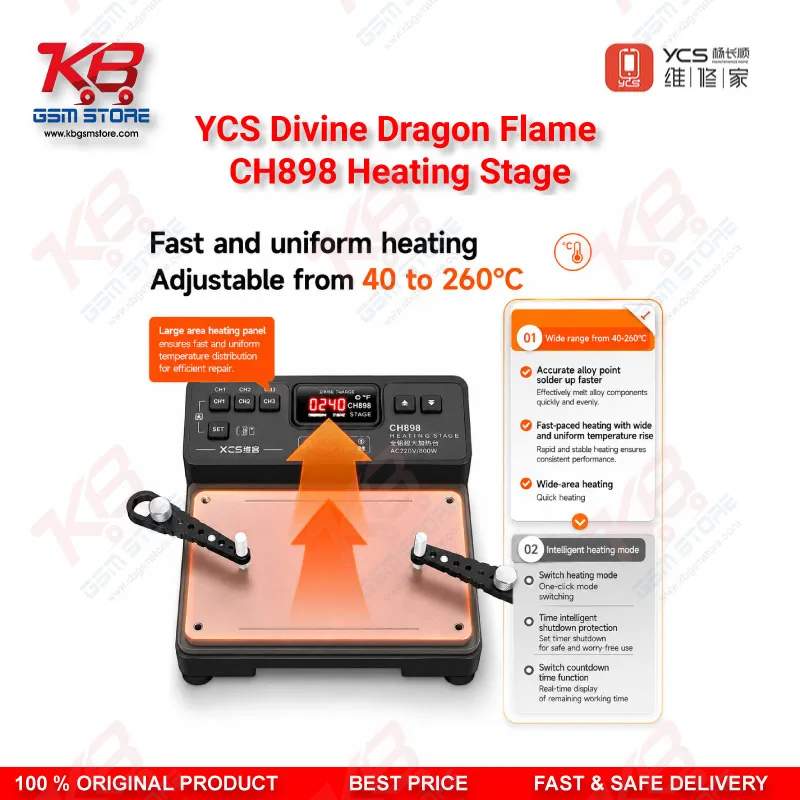

When you're working on iPhone motherboard layering or bonding, uneven heat distribution is one of the most common causes of failed repairs. A standard hot air gun heats different points of the board at different rates, which can shift layers out of position or damage the Face ID dot matrix during rework. The YCS CH898 Divine Dragon Heating Stage addresses this directly with a dedicated 96×53mm aluminum alloy heating plate that delivers uniform heat across the entire board instead of concentrated hot spots.This heating stage targets technicians who handle layer separation, rebonding, and Face ID repair on Apple and Android motherboards as part of their regular workflow. The aluminum alloy heating structure eliminates localized hot spots, so the whole board stays at a consistent temperature even while you're working close to a chip. The temperature range extends from 40°C to 260°C, and you set the exact value manually depending on what a specific repair job calls for.The three preset temperatures are what make this unit practical on a busy bench: 100°C, 220°C, and 240°C. Use the lower preset for micro-soldering work, and switch to a higher preset for multi-layer board rework or bonding operations. You don't need to type in a temperature value every time — one button press gets you there, which matters in shops processing dozens of boards a day where every saved minute adds up.Holding the board in position matters just as much as controlling the heat. The CH898 includes a 360° rotatable sliding rail fixture that clamps the motherboard securely while still giving you the freedom to rotate it to any working angle. When you're working around the Face ID dot matrix or a chip-level component, this rotation feature lets you change your viewing angle without disturbing the board itself — useful when you're also working under a microscope and need to hold precision.The dual digital display shows temperature and timer in real time, giving you full control over heat exposure. In bonding and layering work, timing is just as critical as temperature — too long under heat can burn the adhesive or damage a component, while too short leaves a weak bond. Having both values visible on one screen removes the guesswork from that balance.The non-slip rubber base adds stability when you're applying pressure against the board, and the anti-scratch fixture design protects the PCB surface and back cover during clamping and rotation. The compact body keeps its footprint small on the bench, which matters in shops where a hot air station, microscope, and soldering iron are already competing for table space.The CH898 fits naturally into Pakistani repair shops handling iPhone board-level repair, dead-board recovery, and complex issues like hang-on-logo or no-power faults that require layer separation or rebonding. It becomes a core part of the motherboard bonding and multi-layer PCB rework workflow once it's integrated alongside your existing hot air station and microscope setup.
Power comes through a standard repair workstation adapter, available in 110V US plug and 220V EU plug options, both compatible with local power supply setups. Overall, the YCS CH898 Divine Dragon Heating Stage is a focused, single-purpose tool that does its job with precision — even heating, a stable fixture, and real-time monitoring in one compact unit.
