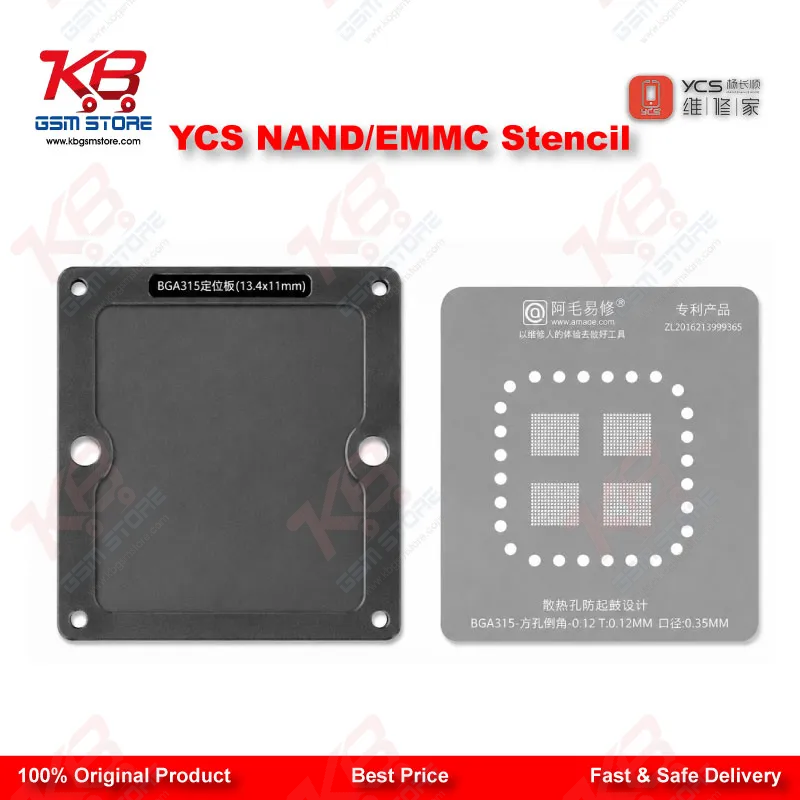

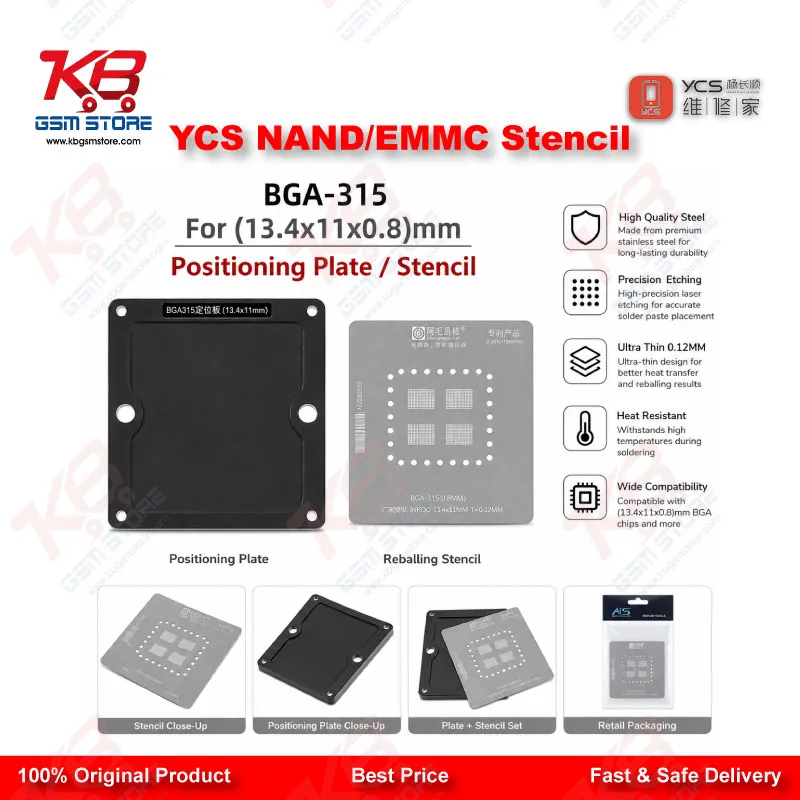

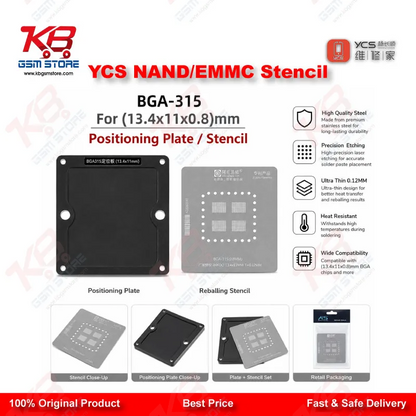

YCS Character Library Hard Disk BGA Reballing Stencil - EMMC/EMCP/NAND Chip Reballing Tool

Reballing an EMMC or NAND hard disk chip without the right stencil is a gamble most technicians can't afford. One misaligned ball, one bridged pad, and the chip that was already dead after flash becomes a chip that's dead for good. The YCS Character Library/Hard Disk BGA Reballing Stencil solves that problem by giving you twelve verified ball patterns on a single tool, so you're not hunting through a drawer of mismatched mesh plates every time a different hard disk footprint lands on your bench.
This stencil is built for the reality of a Pakistani repair shop workflow, where the same day might bring a Snapdragon-based Android phone with a swollen hard disk IC, a tablet motherboard needing NAND reballing after water damage, and a used board bought for parts that needs its EMMC chip pulled and reused. The twelve patterns covered — 60, 70, 110, 153, 162, 169, 178, 200, 221, 254, 297, and 315 balls — span the footprint range you'll actually encounter across EMMC, EMCP, and NAND hard disk packages on current Android hardware.

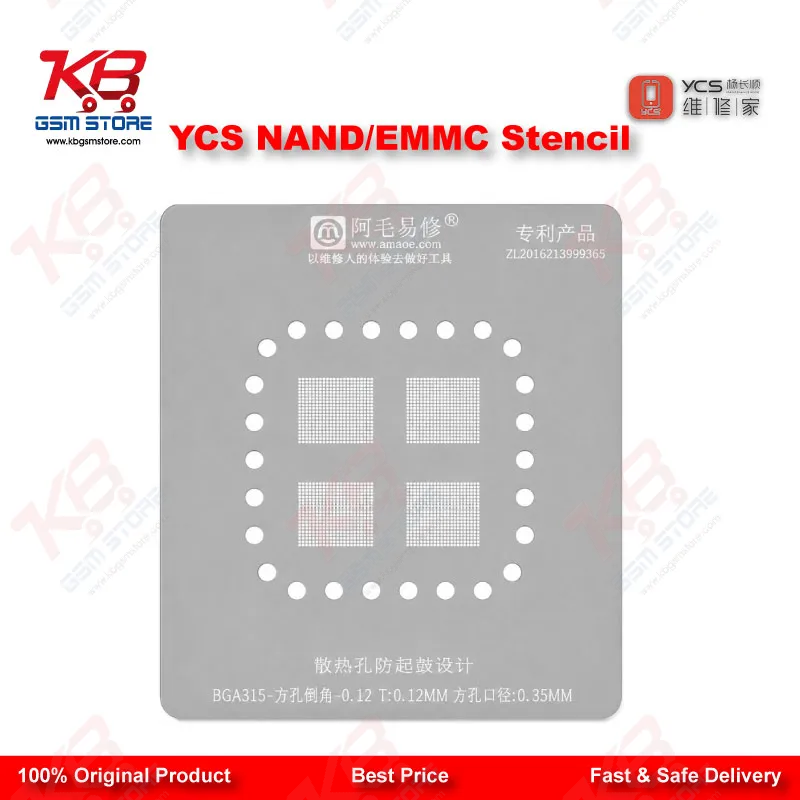

Using it is straightforward once you've done the prep work right. After you've removed the old chip with your hot air station and cleaned the pads on both the board and the chip itself, you align the matching stencil pattern over the chip's ball grid. The openings in the mesh are cut to the exact ball layout, so tin balls or solder paste sit precisely where they need to be — no eyeballing, no guessing whether row three lined up with the pad beneath it. Heat is applied evenly, the solder reflows through the stencil openings, and you get a clean, uniform ball grid ready for remounting.
For technicians who do IC change karna and jumper lagana as daily work, a stencil like this earns its place fast. Hard disk faults are one of the most common reasons a phone goes into boot loop or gets stuck on logo — sometimes the chip itself is fine and it's a software marna job, but plenty of times the fault is physical, and the chip needs to come off, get reballed, and go back on clean. Having the correct pattern ready means you're not stalling a repair because the stencil in your kit doesn't match the footprint on the board.
Model YDZZH9140107067 keeps to the character library format that YCS is known for, which is why you'll see it referred to as a "character library" or "comprehensive network" stencil — it's built to cover a wide character set of chip footprints rather than a single fixed pattern. At 0.01 kg, it's light enough to keep in your daily toolkit without adding bulk, and it pairs naturally with a hot air rework station, flux, and solder paste as part of a complete hard disk reballing setup.
Whether you're running a dedicated mobile repair shop in Karachi, Lahore, or Islamabad, or handling GSM repair work as part of a broader service center, this stencil covers the majority of EMMC/EMCP/NAND reballing jobs you'll face without needing a separate tool for every chip size.
