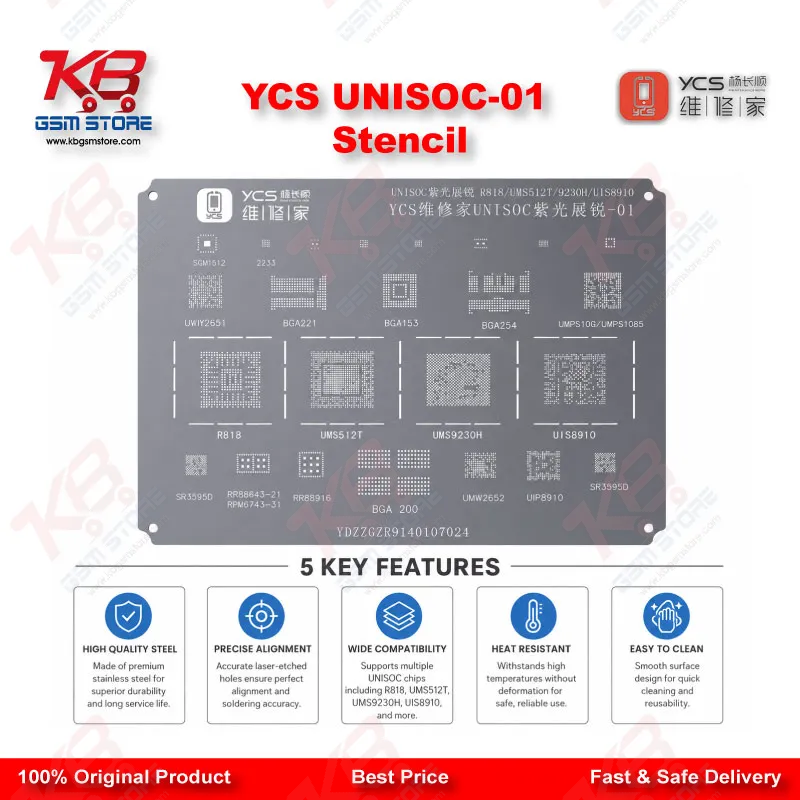

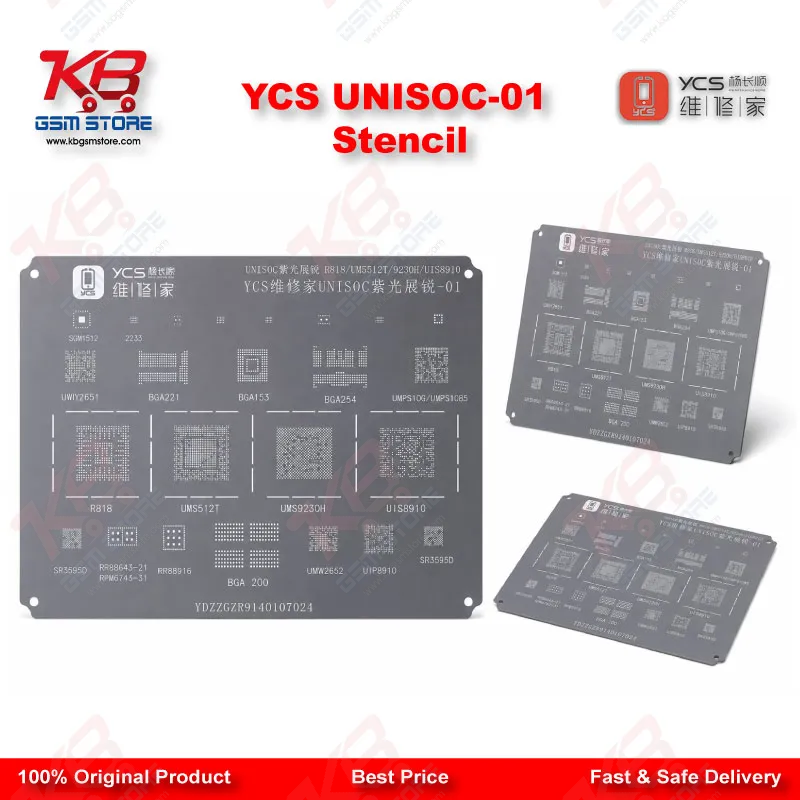

UNISOC chipsets show up in a growing share of budget and mid-range Android phones sold across Pakistan, and when one of these boards comes in dead after flash or stuck on logo, the fault often traces back to a cracked solder joint under the CPU or power management IC. The YCS UNISOC-01 stencil solves the reballing step of that repair. Instead of guessing ball placement by hand, you drop the stencil over the exposed BGA pad and get accurate hole alignment matched to the UNISOC package layout. This stencil covers the chipset family that shows up most often on your bench: UMS9230H, UMS512T, UIS8910, R818, UMW2652, UMP510G5, SGM41512, and T820. These parts appear across a wide spread of UNISOC-powered devices, so one stencil handles several board variations instead of forcing you to stock a separate template for each chip. Your workflow with this stencil follows the standard reballing sequence. Once you remove the faulty chip with hot air and clean the board of old solder, you place the stencil directly over the footprint, apply solder paste across the openings, and run your hot air station over it to melt fresh, evenly sized balls onto the pads. Lifting the stencil cleanly afterward leaves a uniform ball grid ready for chip remount. Skipping this step and reballing by hand raises your risk of uneven balls, which leads straight back to charging issue or hang on logo complaints after the repair. The stencil suits both training and daily repair shop use. If you're teaching a junior technician the reballing process, a stencil-based approach gives more consistent results than freehand tinning, which shortens the learning curve for new hires at a service center. For an experienced technician, it simply speeds up a repetitive task and cuts down on rework calls. Within the wider PCB repair process, this stencil sits at the reballing stage, right after IC removal and board cleaning and right before chip remount and functional testing. It works alongside your hot air rework station, flux, solder paste, and a stable soldering platform. If your bench already runs UNISOC diagnostics through a flash box or JTAG tool, this stencil becomes the hardware-side counterpart to that software marna work; you fix the physical chip mounting first, then move to programming or testing to confirm the repair holds. Boot loop issue and dead after flash symptoms on UNISOC boards frequently point to either a corrupted eMMC or a failing CPU/PMIC solder joint. Where diagnostics rule out flash corruption, IC change karna followed by proper reballing with this stencil becomes the direct fix. Because the stencil is purpose-built for UNISOC packages rather than a universal grid, alignment stays tighter, which matters most on tightly spaced pads where a slight offset causes a short or an open joint after reflow. For a Pakistani repair shop juggling Qualcomm, MediaTek, and UNISOC boards in the same week, keeping a chipset-specific stencil like this one on hand avoids the trial-and-error of forcing a universal template onto a UNISOC pad layout that it wasn't designed for. It's a small, low-cost addition to your kit, but it directly affects whether a reballed board comes back working the first time or ends up on your bench again next week.
