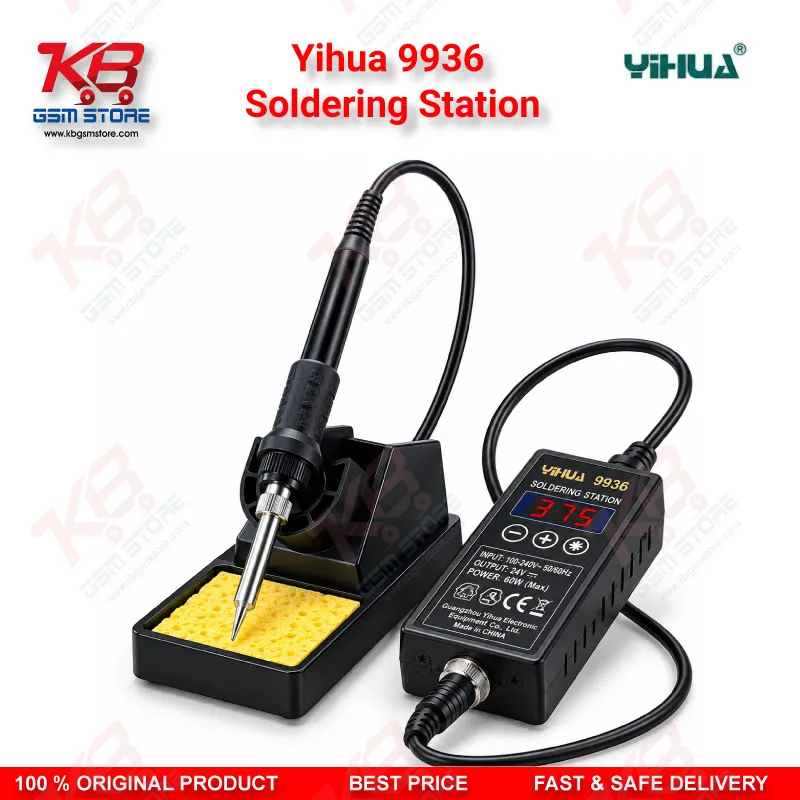

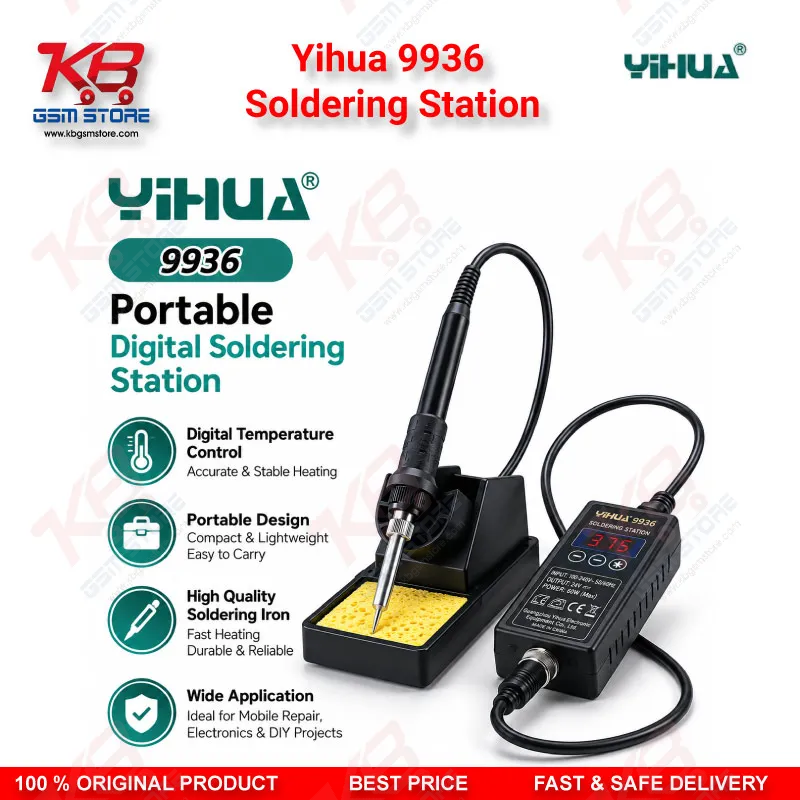

A dead phone on your bench rarely needs a heavy machine. It usually needs a clean, controlled joint on a charging port, battery connector, or flex pad, and the Yihua 9936 Soldering Station gives you that control in a compact unit that weighs roughly 500 g. Yihua builds this portable soldering station around a Samsung microcomputer PID controller, so the iron climbs from 30°C to 300°C in about 15 seconds. That speed pays off on a busy repair counter, because you pick up the iron, tin a pad, and start the joint without waiting on a cold heater. You set your working temperature anywhere between 200°C and 480°C from the control unit, and the LED Nixie tube display shows the actual temperature in real time, so you read the number you are working at instead of guessing. Standby time also adjusts from the control unit, which lets you decide how soon the iron rests when you step away to test a board, take a measurement, or talk to a customer. The station runs on 100–240V AC at 50/60Hz and needs no separate power adapter, so it plugs straight into Pakistani 220V mains, a workshop extension board, or a training-lab bench. Yihua rates it at 30W, which fits precision work on SMD chip components, plug-in components, cables, and the integrated components that crowd a mobile phone mainboard. The control unit measures about 127 x 54 x 32 mm, so it sits beside your microscope without crowding your PCB holder, and it drops into a toolbag when you travel to a customer's shop or a service center. Built-in software protects you as well: it raises an automatic high-temperature alarm and runs automatic fault detection, so you catch a heating problem before it lifts a pad on somebody's board. Yihua lists the tip-to-ground resistance at under 2 ohms, a figure that matters when you work near static-sensitive boards. Temperature control changes how you solder. Set the iron toward the lower end of the range for small pads and flex connectors, raise it when a joint soaks heat into a larger copper area, and confirm the reading on the display before you touch the board. Think about where the Yihua 9936 Soldering Station fits in your repair workflow. Most jobs start with diagnosis. You measure rails with a multimeter, find the shorted or damaged part, and decide whether the fix needs a hot air station or a fine-tip iron. This soldering station covers the fine-tip side of that decision: you desolder a burnt connector, clean the pads, and fit the new part on charging issue, display problem, and hardware fault repairs. A typical PCB repair sequence with this iron runs like this: you inspect the joint under the microscope, add flux, remove the old solder, clean the pad, tin it, place the new part, solder it, and test the phone against the fault you started with. For boot loop issue and hang on logo jobs that trace back to a lifted or cracked joint, you reflow the joint and test the board again. When you work through eMMC or ISP repair, you solder thin wires to test points, then connect them to your ISP pinout tools or test boxes, and a controlled temperature helps you protect those tiny pads. Cable and wire work benefits too, because cables and plug-in components sit squarely inside the maintenance work Yihua lists for this model. Know the limits as well. A 30W portable iron handles small and medium joints well, but you still reach for hot air stations, reballing kits, and a preheater when you lift shield cans or replace BGA packages, and you still bring in UFS adapters and eMMC programmers for chip-level data and flashing jobs. Treat the 9936 as the everyday iron beside those tools rather than a replacement for them. If you outgrow it, the upgrade path leads to higher-power soldering stations and full rework setups in the same category. The package gives you the machine unit, a soldering iron handle with iron tip and heater, an iron holder, a cleaning sponge, a manual, and a power plug, so you start work the day it arrives. Keep the sponge damp, tin the tip after each session, and wipe it before you return the iron to the holder to extend tip life. If you run a repair shop in Lahore, Karachi, Islamabad, or anywhere else in Pakistan, you get fast heat-up, a readable temperature display, and worldwide voltage input in one small unit that fits on every technician's bench. Technical training institutes can use the same soldering station to teach new students temperature control, pad preparation, and clean joint formation before those students move on to microscope work and board-level PCB repair. Order the Yihua 9936 Soldering Station from KB GSM Store and you add a dependable iron to your bench for daily repair jobs, from charging port replacement to cable soldering and general electronics maintenance.
