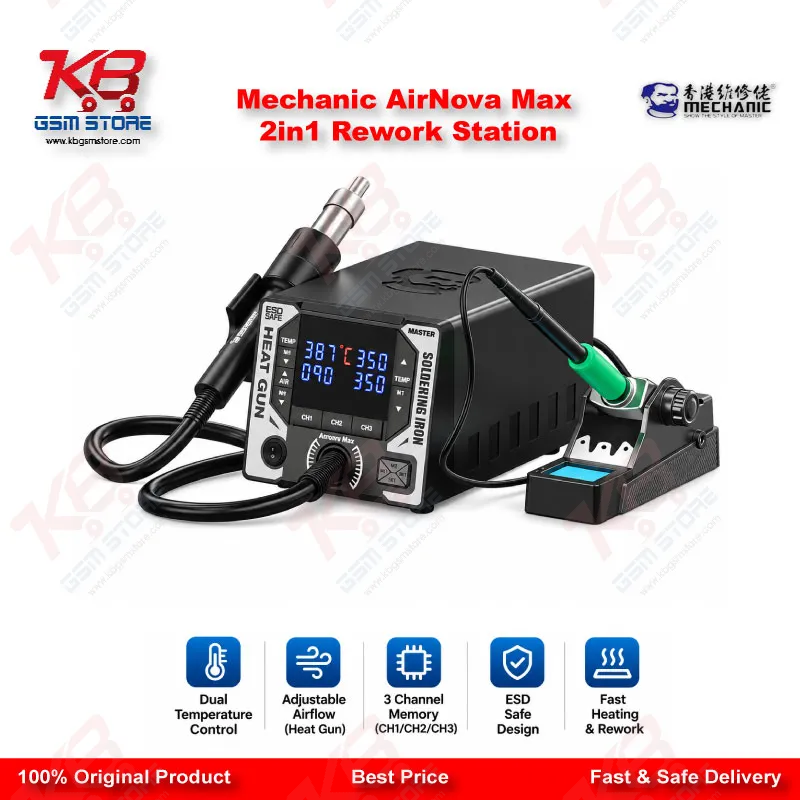

Mechanic AirNova Max 2in1 Rework Station: One Bench Setup for Hot Air and Iron Work
When a dead phone lands on your repair bench, you rarely fix it with one tool. You lift a shield with hot air, clean the pads with an iron, swap the IC, and then add a jumper wire to finish the job. The Mechanic AirNova Max 2in1 Rework Station brings the hot air gun and the soldering iron into one unit, so you stop juggling two separate stations and two power cables. The manufacturer rates the combined output at 1200W, and the unit runs on AC 220V or 110V at 50/60Hz. For Pakistani repair shops that fight for every inch of bench space, a compact body of 215 x 155 x 175mm makes a real difference. Whether you run a small mobile shop or a busy service center, you get one station that covers desoldering, soldering, and BGA IC rework. This page explains how the station works, where it fits in your workflow, and what you should confirm before you buy it.
Dual Channel Design That Keeps Both Hands Productive
The AirNova Max runs two independent channels, so you operate the hot air gun and the soldering iron at the same time or one after the other. You preheat one area of the board with hot air while you hold the iron ready for pad cleaning, and neither channel disturbs the other. This matters on a charging issue job, where you often remove the charging IC, wick the old solder, and fit a fresh chip in one sitting. Each quick-swap handle rests on its own cradle, and the intelligent auto-sleep sensor activates the moment you place a handle back. That habit saves heat while you test the board or reach for the multimeter. You also keep your bench cleaner, because one cable bundle replaces two. Technicians who handle five or six phones a day feel this saving most, because they pick up and put down both tools dozens of times. On a hang on logo job that ends in an IC change, you finish the hardware step without leaving your seat.
Turbo Fan Airflow and Temperature Range for Careful Rework
The integrated high-speed turbo fan gives you 1 to 160 airflow levels, and the hot air side covers 100°C to 500°C. Low airflow protects small neighbouring parts on a crowded phone motherboard, while higher levels help you move heat across a larger shield or IC. The iron side covers 100°C to 450°C, which suits pad cleaning, jumper lagana, and small component replacement. The manufacturer rates the 1200W core at about 2 seconds for rapid heating and about 1 second for thermal recovery, so you lose less time between joints. You still need to match your temperature to the solder on the board and to test your settings on a scrap PCB first. Good airflow control separates a clean IC change karna job from a lifted pad, and this station gives you the range to control it. If you work on display problem repairs near flex connectors, keep the airflow low and the nozzle moving. Move the nozzle in small circles and watch the board instead of trusting the setting alone.
CH1, CH2, CH3 Presets and M1, M2, M3 Memory Modes
Every technician repeats the same jobs, so the station stores your settings for you. The standard interface gives you CH1, CH2, and CH3 presets plus M1, M2, and M3 storage modes. You can save one profile for shield removal, another for BGA IC work, and a third for light desoldering, then recall each one without turning controls again. This saves minutes on a busy day when ten phones wait on your bench. It also keeps your results consistent when a second technician shares the station, because both of you start from the same saved values. New staff in your shop learn faster too, since you hand them a ready profile instead of a long explanation. Repair shops in Pakistan often run one station from morning to evening, so a fast recall method protects your time and your patience. You also reduce the chance of a wrong setting burning a board when you rush. Test every saved profile on scrap boards before you trust it on a customer’s phone.
Handle Compatibility and Quick-Swap Pluggable Handles

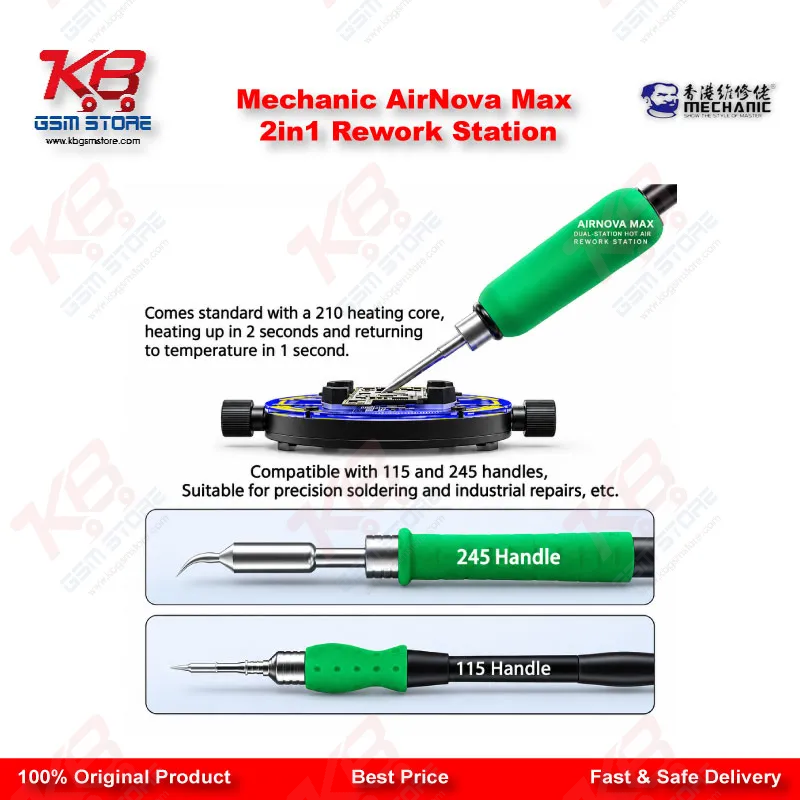

The station ships with a standard 210 handle, and it accepts 115 and 245 handles as well. The pluggable, quick-swap design lets you change a handle without opening anything, so you move from a fine micro-soldering handle to a different style when the job changes. If you already own compatible 115 or 245 handles, this compatibility lets you keep that investment instead of buying everything again. Confirm the handle, tips, and nozzles that come with your order with KB GSM Store before you pay, because accessory sets vary between listings. Your hardware fault repairs on dense boards depend on the right tip as much as on the station itself. A fine tip helps you clean tiny pads, while a larger tip helps you work on ground planes and shield frames. Many technicians in Pakistan prefer to test a handle on a spare board before they commit it to a customer’s phone. That small check costs you two minutes and often saves a pad.
Where It Fits in Your Mobile Repair Workflow
The Mechanic AirNova Max 2in1 Rework Station sits in the soldering and rework stage of your repair flow, after diagnostics and before final testing. You trace the fault with a multimeter, find the damaged part under a microscope, and then use this station to remove and replace it. Pair it with a PCB holder so the board stays steady under hot air, and add a reballing kit when you work on BGA chips. If your daily volume outgrows a 2in1 setup, browse the Hot Air Stations and Soldering Stations categories at KB GSM Store for a dedicated upgrade path. Your dead after flash cases often need both hardware and software attention, so look at ISP pinout tools and eMMC programmers for the data side. The station handles the heat and the soldering, while your programmer handles the software marna part. Together they cover most of the bench work a mobile repair shop sees every day. Add a good microscope and a steady supply of flux and solder wire, and you build a complete micro-soldering corner on a small budget. You control the cost, and the station keeps your workflow tidy.
