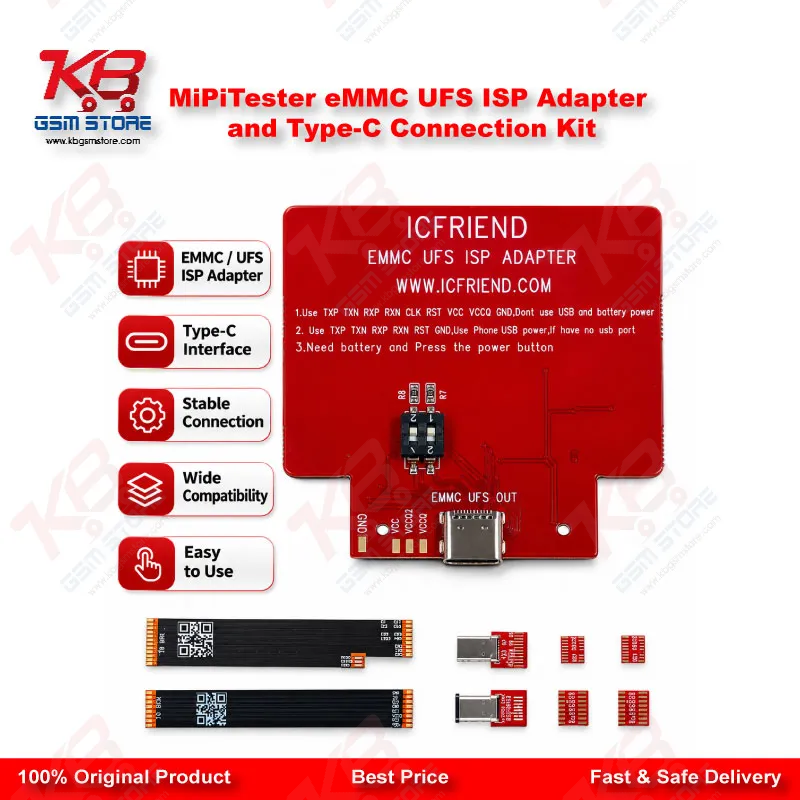

MiPiTester eMMC UFS ISP Adapter and Type-C Connection Kit

MiPiTester eMMC UFS ISP Adapter and Type-C Connection Kit for ISP Storage Repair .The MiPiTester eMMC UFS ISP Adapter and Type-C Connection Kit gives your MiPi Tester box a direct route to the storage chip through ISP points on the board. A dead phone often lands on your bench with customer data inside, and you need access before you think about chip-off. This kit lets you solder a few pads, connect, and read or write from your repair bench. If you search for the price in Pakistan, you will find it costs far less than the time you lose on a failed IC change karna job.

Where This Kit Fits in Your Repair Workflow .You use this kit at the storage stage of the repair. It serves phones with a hardware fault in the flash area, a corrupted partition, or a software marna job that no longer works over USB. You probe the board, find the ISP pinout, solder your jumper wires, and connect through the adapter. Your MiPi Tester software then talks to the eMMC or UFS chip directly.

This beats the chip-off route in many cases. Heating a board to remove storage risks neighbouring components, and one bad reball turns a repair into a scrapped motherboard. ISP keeps the chip on the PCB, so your hot air station stays cold for this job. You still keep a UFS socket adapter and hot air equipment on hand for cases where the ISP points fail or the chip itself is damaged.

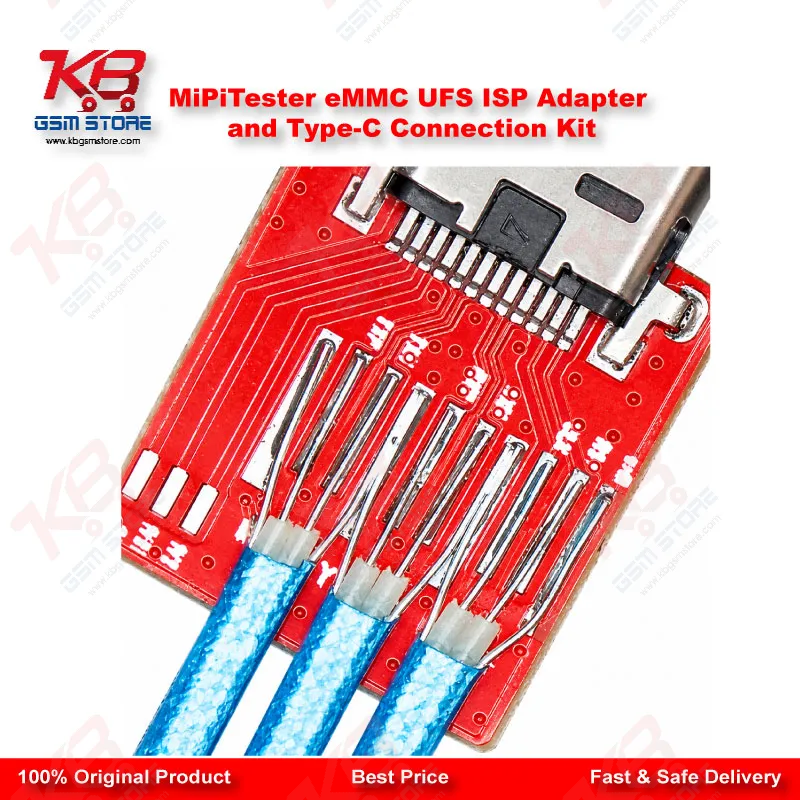

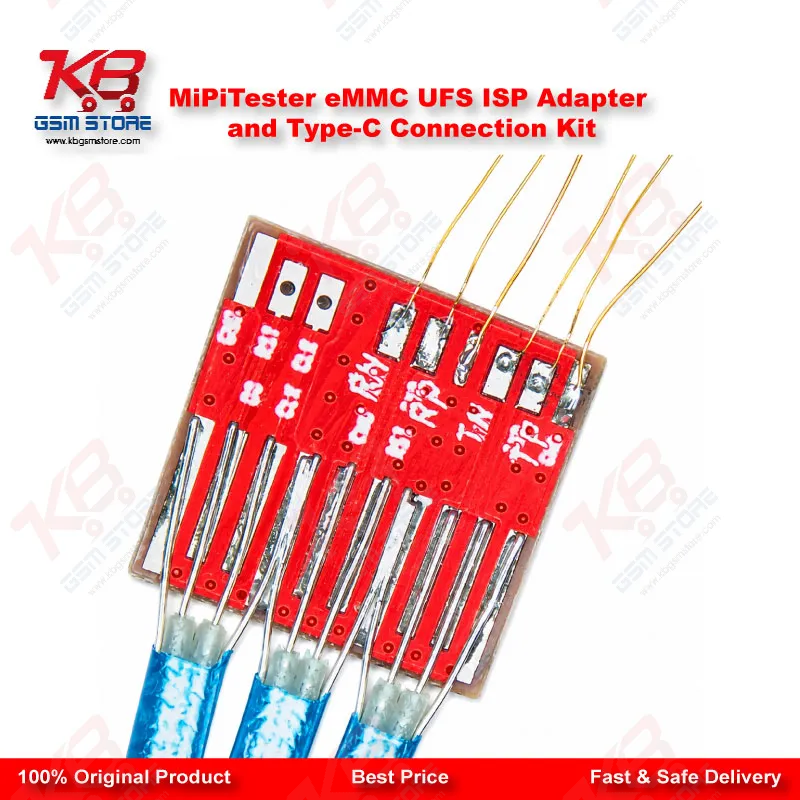

Working With eMMC and UFS ISP Pinouts .The adapter serves devices that expose ISP pinouts on either eMMC or UFS storage. You match the pinout diagram to your board, solder carefully, and verify each connection with your multimeter before you power up. A weak jumper lagana causes most failed reads, so take your time and use a microscope for fine pads.

Once you connect, you read the user data, write it back, or repair the partition layout, depending on what your software supports. Technicians commonly use this route for phones that hang on logo, loop in boot, or stay dead after a bad flash. You also reach FRP lock and pattern unlock cases when the repair requires direct storage access, as long as your software handles that device.

Pairing It With Your MiPi Tester Box .This adapter is built for MiPi Tester boxes. The kit pairs with the MiPi Pro, MiPi Plus, MINI, and Gear 2 lines, and you confirm the exact adapter revision against your box before you order. If you run an older box, check the matching ISP adapter version first. Buying the wrong revision wastes your money and your time.

Think of this kit as one piece of a larger storage workflow. For chip-off jobs you still need UFS BGA153, BGA254, and BGA297 sockets, plus an eMMC socket set. If you want an upgrade path, a MiPi Pro with the full socket set covers both ISP and socket work on one bench. Keep a reliable hot air station and a microscope nearby, because ISP soldering rewards steady hands and good magnification.

Shop owners who handle storage repairs every week get the most from this kit. A single recovered phone often pays for the adapter, and the customer’s data stays intact.
