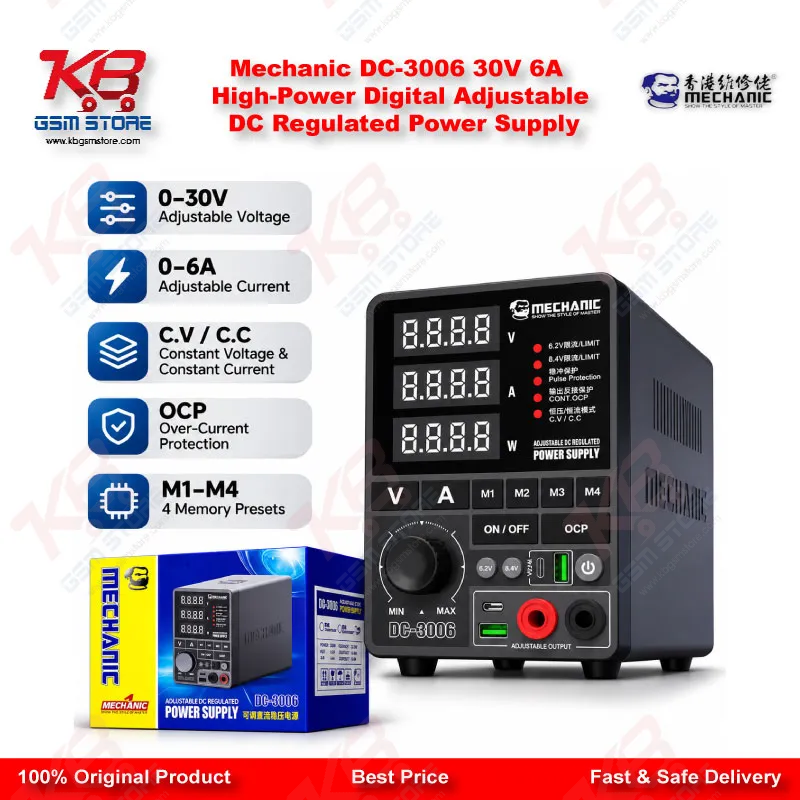

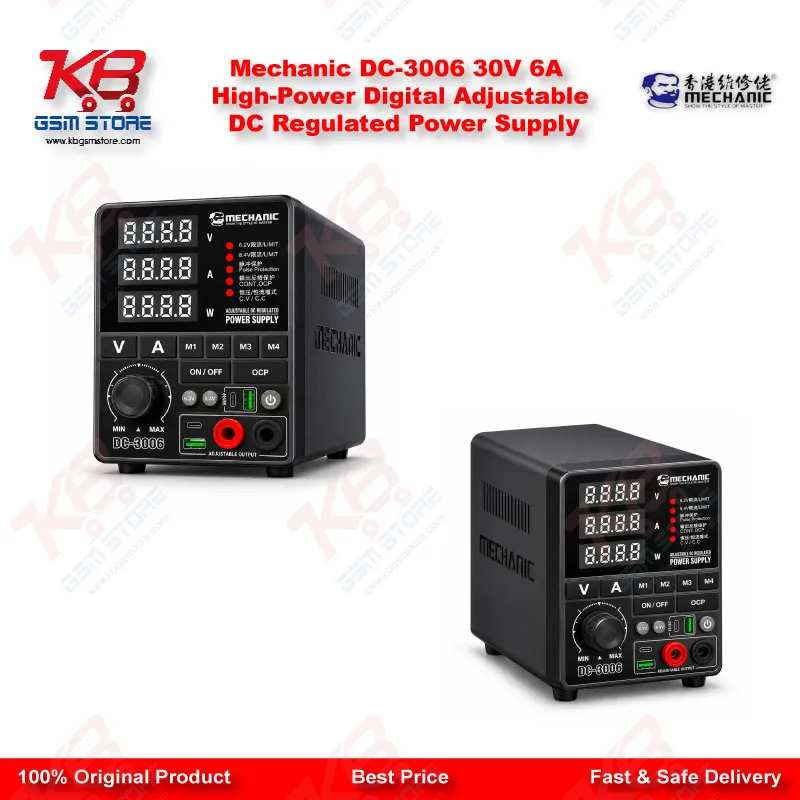

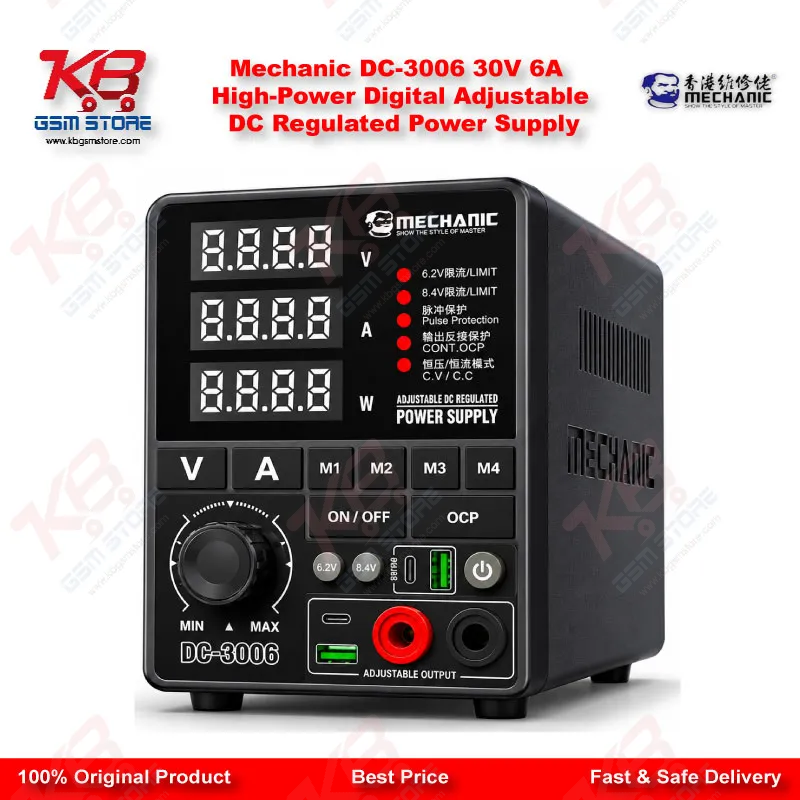

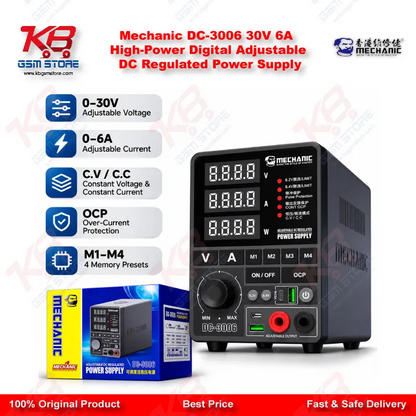

Mechanic DC-3006 30V 6A High-Power Digital Adjustable DC Regulated Power Supply

Mechanic DC-3006 30V 6A High-Power Digital Adjustable DC Regulated Power Supply sits at the heart of a serious hardware repair bench, because a dead phone tells you almost nothing until you watch how much current it draws. Most shops in Pakistan face a boot loop issue, a charging issue, or a phone that is dead after flash every single day, and the fastest way to separate a software problem from a hardware fault is to feed the board a controlled voltage and read the current on the display. This supply gives you an adjustable 0–30V output and a 0–6A current range, so you cover a battery-line feed for phone boards, higher-voltage test rails, and the heavier loads of small power boards without swapping equipment. The 4-digit display shows what the board pulls in real time, so you spot a short on the VBAT line, a leaking capacitor, or a half-dead power IC long before you pick up the hot air gun. You set the voltage first, set the current limit second, and let the supply protect the board while you probe. Constant voltage and constant current modes decide how safely you hunt a fault. In constant voltage mode, the supply holds your chosen voltage and the board draws whatever it needs, which suits normal boot checks and charging issue tests. In constant current mode, you cap the current and the voltage falls when the board tries to pull more, which is the classic way to find a shorted capacitor: you push a limited current into the shorted rail, and the component that heats up first becomes your suspect. This method saves boards, because the limit stops a short from burning copper traces or neighbouring ICs while you diagnose. The DC-3006 carries continuous overcurrent protection (CONT.OCP), pulse protection, and constant current protection, so a slipped probe or a sudden short does not turn a repairable board into scrap. Four parameter memory groups, M1 to M4, store the voltage and current pairs you use all day. You save a battery-style feed with a safe current limit, a 5V setting for charging checks, and a higher setting for other work, then recall them instead of turning the knobs for every phone. That saves minutes on every board when your queue holds display problem, network issue, and hang on logo complaints back to back. The fixed 5V 2A USB output gives you a quick power source for charging cables, test phones, and small accessories, so you check whether a device draws current without hunting for an adapter. Good habits make this supply far more useful. Set a low current limit before you touch the board, raise the voltage slowly, and watch the display. A board that jumps straight to the limit usually hides a hard short, while a board that climbs slowly and settles at a high idle current often points to a leaky component or a damaged power IC. Compare the idle current, the boot current, and the charging current against a known good board of the same model, and you build a quick reference that speeds up every later repair. Place this supply in the middle of your repair workflow. You measure the board with your multimeter first, power it from the DC-3006 to read the current draw, narrow the fault area under your microscope, and then reach for your soldering station or hot air station to do the IC change karna. Many technicians also power a battery-less board from the supply while they do jumper lagana on test points and software marna through ISP pinout tools and eMMC programmers, because a steady feed keeps a dead phone from dropping out mid-process. After the repair, you power the board again and confirm the idle current falls to a normal level before you close the phone, which catches a second fault early. Choose the DC-3006 when your repairs sit at or below 6A and your bench needs a digital display, memory groups, and a USB port in one body. If your workload includes heavier loads, the Mechanic DC-3010 with a 30V 10A rating gives you the next step up on the same 0–30V range. Pair either unit with PCB holders, reballing kits, and test boxes from the KB GSM Store catalog, and you build a bench that handles diagnostics from the first power-up to the final test. Pakistani technicians who search for a reliable digital DC power supply price in Pakistan will find this model a practical fit for a mobile repair shop that wants stable power on every board.
