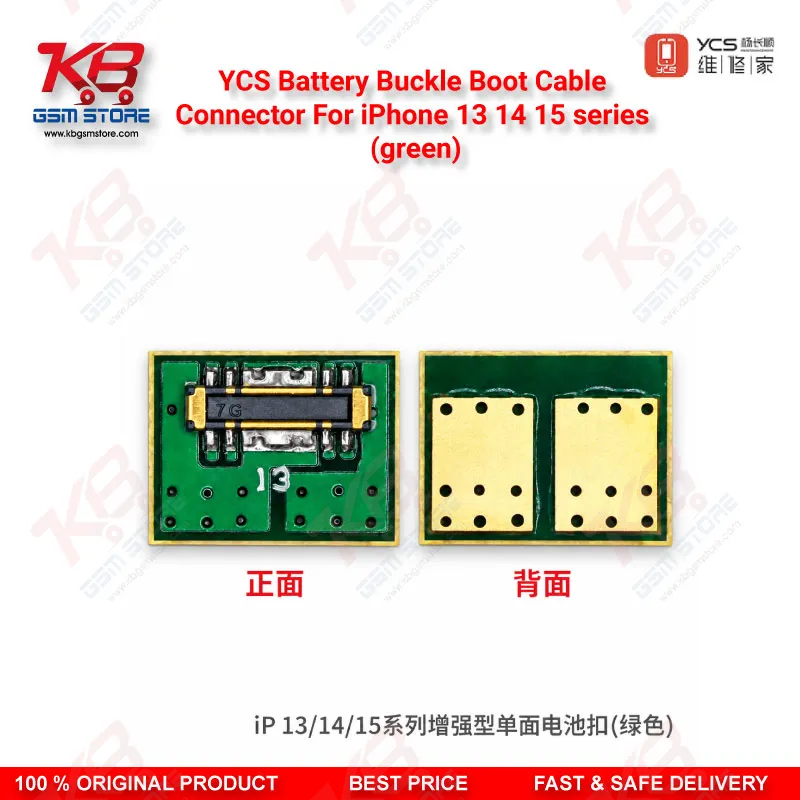

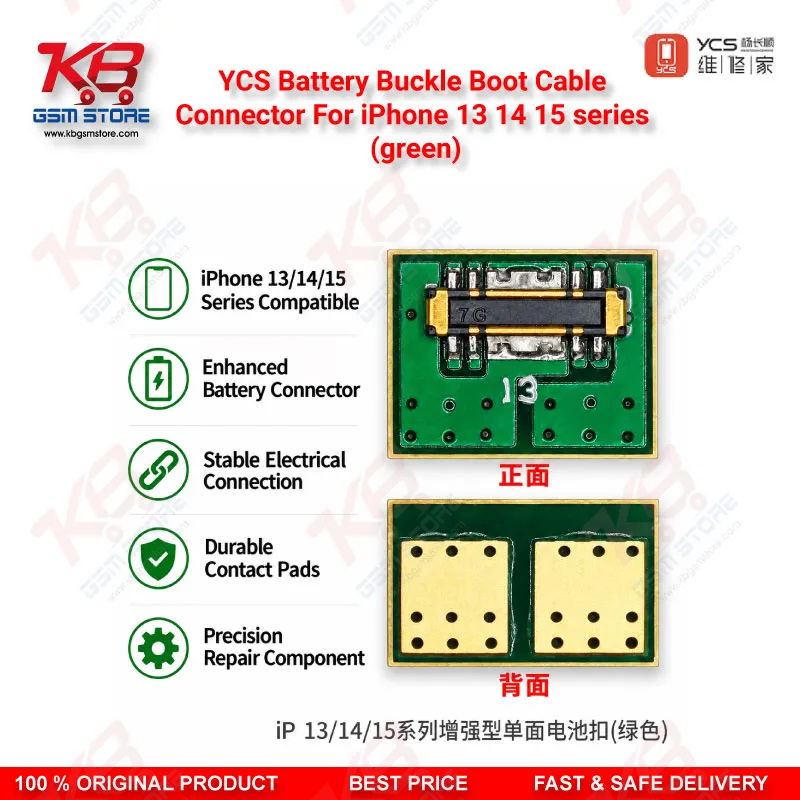

When an iPhone 13, 14, or 15 series board lands on your bench as a dead phone, you first need clean, controlled power going straight into the board, and the YCS Battery Buckle Boot Cable Connector For iPhone 13 14 15 series (green) handles exactly that job. YCS shapes this buckle to match the motherboard battery connector on these models, so it seats with a firm click instead of the loose, shaky contact you get from a worn-out generic clip. You solder it onto the end of your boot cable or DC power supply lead, and from then on you can power the logic board without the original battery whenever a customer brings in a phone that shows no sign of life. Battery-free power-up matters because a weak or swollen battery hides the real fault, and once you take the battery out of the equation, your DC power supply ammeter tells you what the board is actually doing. A short circuit shows up as an instant high current spike, a board stuck in a boot loop issue shows a repeating current pattern, and a phone that hangs on logo shows current climbing and then freezing at a fixed point. You read those patterns in seconds and decide whether the job needs a rail check with your multimeter, a thermal check under the microscope, or a deeper hardware fault trace around the PMIC and charging circuit. The connector sits in the diagnostics stage of your repair workflow, right after visual inspection and before any soldering or rework starts. An accurate buckle protects the board-side connector too, because these connectors use fine pins, and a badly matched clip can bend pins, lift pads, or give you an intermittent connection that wastes time with false readings. The YCS buckle holds stable contact while you flip the board, probe test points, or check a shorted line with rosin or freeze spray. The green colour serves a real purpose on a crowded bench, since most technicians keep several boot cables or a multi-buckle harness for different Apple and Android generations, and colour coding lets you grab the iPhone 13–15 connector at a glance instead of trying each clip against the board. Installation stays simple when you build or rebuild your own power harness: disconnect the DC supply, cut off the old or damaged buckle, solder the new buckle to the positive and negative leads with correct polarity, insulate each joint, and confirm polarity with your multimeter before the first power-up. Treat polarity as non-negotiable, because a reversed connection can damage the board instantly. Some boards also need battery data to boot fully on DC power, so pair the buckle with a battery definition board when a phone draws current but refuses to start. On charging issue jobs, the buckle helps you separate battery faults from board faults fast, because a board that powers up and pulls normal current from the supply but refuses to charge with a battery fitted points you straight toward the charging section. The same approach works for display problem and network issue jobs, where you need the board running on the bench while you test the screen connector, measure lines, or check the baseband area. Keep this buckle alongside tools from KB GSM Store categories such as Test Boxes, Multimeters, Microscopes, Hot Air Stations, Soldering Stations, and PCB Holders, since a steady holder and a reliable buckle together let you power and probe a board without fighting your setup. If you power several models every day and want one-click switching, a multi-port boot control power cable makes the logical upgrade, and this buckle still earns its spot as a spare or replacement when your current connector wears out. For Pakistani repair shops handling a steady flow of iPhone 13, 14, and 15 boards, a dedicated colour-coded battery buckle saves minutes on every diagnosis and keeps your power-up readings consistent from one job to the next.
