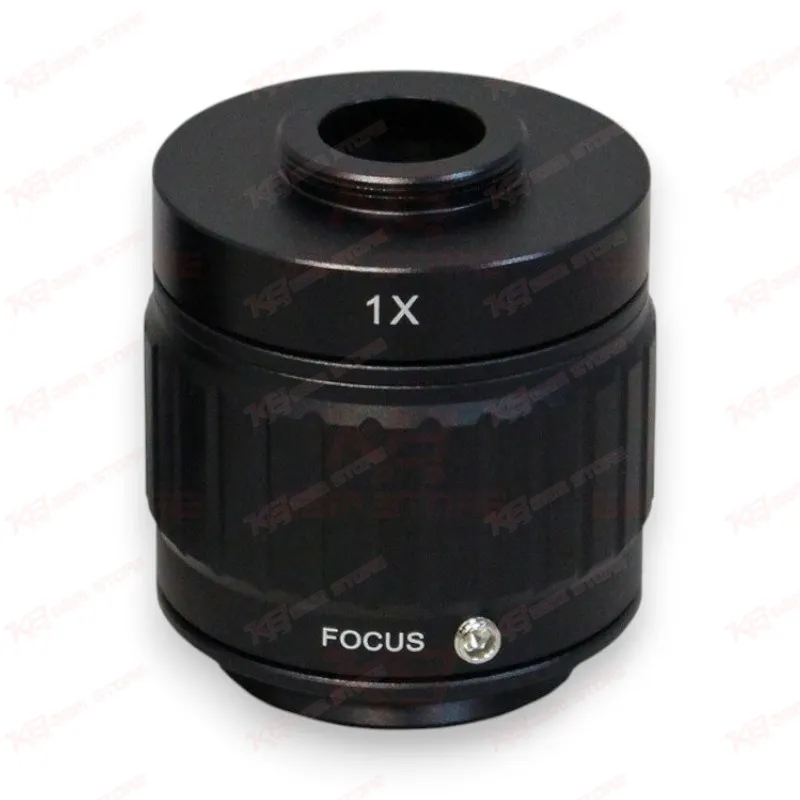

1X C-mount Camera Lens Adapter for Microscope

1X C-mount Camera Lens Adapter for Microscope

Regular price Rs.6,500.00 PKR
Regular price Sale price Rs.6,500.00 PKR
Sale Sold out
Shipping calculated at checkout.
Quantity

1X C-mount Camera Lens Adapter for Microscope: Camera Mount for Board Repair The 1X C-mount Camera Lens Adapter for Microscope connects a C-mount industrial or HDMI camera to the trinocular port of your repair microscope. You see the same magnified board on a monitor that you see through the eyepieces, so you can check IC pads, reballing results, and micro-soldering joints without bending over the lens. The 1X ratio passes the image to the camera without extra magnification or reduction. If you work on dead phones, charging issues, or hang on logo faults, this adapter gives you a live screen view and clean photos for customer proof.

⚖️ Weight: 0.19 kg

SKU:MST-MICROSCOPES-143

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Why a 1X C-mount Camera Lens Adapter for Microscope Belongs on Your Repair Bench The 1X C-mount Camera Lens Adapter for Microscope solves a simple problem on a mobile repair bench. Your microscope shows the board clearly, but only one person can look at it, and only while you hold your neck at an awkward angle. Mount a C-mount camera through this adapter and the same view appears on a monitor. You work with your head up, your hands steady, and your eyes on the screen. For long jobs like IC change karna on a dead phone, that comfort adds up across a full shift.How the 1X Ratio and C-mount Thread Work The “1X” means the adapter relays the image at 1:1. It does not enlarge or shrink what the microscope produces. The C-mount thread on the camera side is the standard 1-inch, 32 threads-per-inch type, and C-mount cameras use a flange distance of 17.526 mm. That standard lets you screw in any compatible C-mount camera without forcing it. The camera sensor size decides how much of the microscope’s field you capture. A small sensor shows a tight, cropped view, while a larger sensor shows more of the board. Check your camera’s sensor size before you expect the full eyepiece view on screen.Check your microscope port before you buy. Trinocular heads use different tube diameters, and 23.2 mm, 30 mm, and 30.5 mm are common sizes. Measure your port or read the microscope manual, then match it to the adapter you order. A loose fit tilts the camera and softens the image. Tighten the set screw gently and recheck focus.Where It Fits in Your Repair Workflow This adapter sits in the inspection and rework stage of PCB repair. Use it when you check for lifted pads after a hot air station removes an IC, inspect reballing results, or trace a burnt track near the charging port. A camera view helps most with hardware fault diagnosis, because you can zoom the monitor, compare joints side by side, and save photos of the board before and after the repair.Pair it with a stable PCB holder so the board stays still under the lens. A good soldering station, a hot air station, and a reliable multimeter complete the setup. If you run a repair shop, a camera feed also helps you train juniors, because they watch your technique live on the screen.Parfocal setup matters here. Focus the eyepieces first, then adjust the camera focus until both views match. If you skip this step, the screen looks sharp while your eyes see a blur, or the reverse. Spend two minutes on it once and you save frustration on every job after.Who Should Buy It and What to Upgrade To Pick the 1X C-mount Camera Lens Adapter for Microscope if you already own a trinocular microscope and a C-mount camera, and you want to join them cheaply. It suits software marna technicians who also do hardware work, ISP pinout checking, and micro-soldering. If your microscope has no trinocular port, you cannot use this adapter, so confirm the head type first. When you outgrow a basic setup, the upgrade path is a trinocular stereo microscope with a built-in HDMI camera and a stable boom stand. That removes the adapter step but costs more. For most Pakistani repair shops, this adapter plus a decent camera gives the best return.

Key Features

  • Connects a C-mount camera to a trinocular microscope port
  • 1X ratio relays the image without extra magnification
  • Standard 1-inch, 32 TPI C-mount thread on the camera side
  • Lets you view the board on a monitor instead of the eyepieces
  • Supports photo and video proof of repairs for customers
  • Reduces neck and eye strain during long micro-soldering jobs
  • Helps train juniors through a live shared view
  • Fits into an existing microscope and camera setup without replacing either

Specifications

Brand Entity KB GSM Store (supplier)
Product Entity 1X C-mount Camera Lens Adapter for Microscope
Technology Entity C-mount camera interface, 1X optical relay, trinocular microscope port
Compatible Device Entities Trinocular microscopes, C-mount industrial cameras, HDMI microscope cameras
Repair Process Entity PCB inspection, micro-soldering, IC rework, reballing check
Industry Entity Mobile repair industry Pakistan

Compatible Devices

  • Trinocular microscopes (confirm your tube diameter before ordering)
  • C-mount industrial cameras
  • C-mount HDMI and USB microscope cameras

Common Repair Uses

  • Inspecting pads after IC removal with a hot air station
  • Checking reballing and BGA solder joints on a monitor
  • Tracing burnt or broken tracks near charging ports and power ICs
  • Recording before-and-after photos of board repairs for customers
  • Showing technique to trainees on a live screen
