Brand: 2UUL

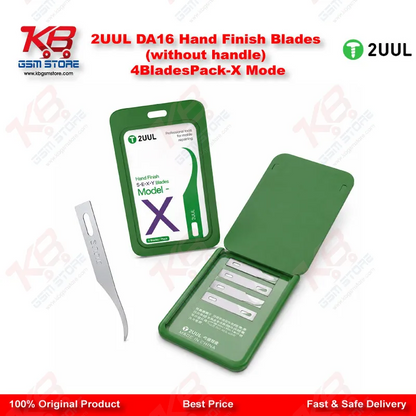

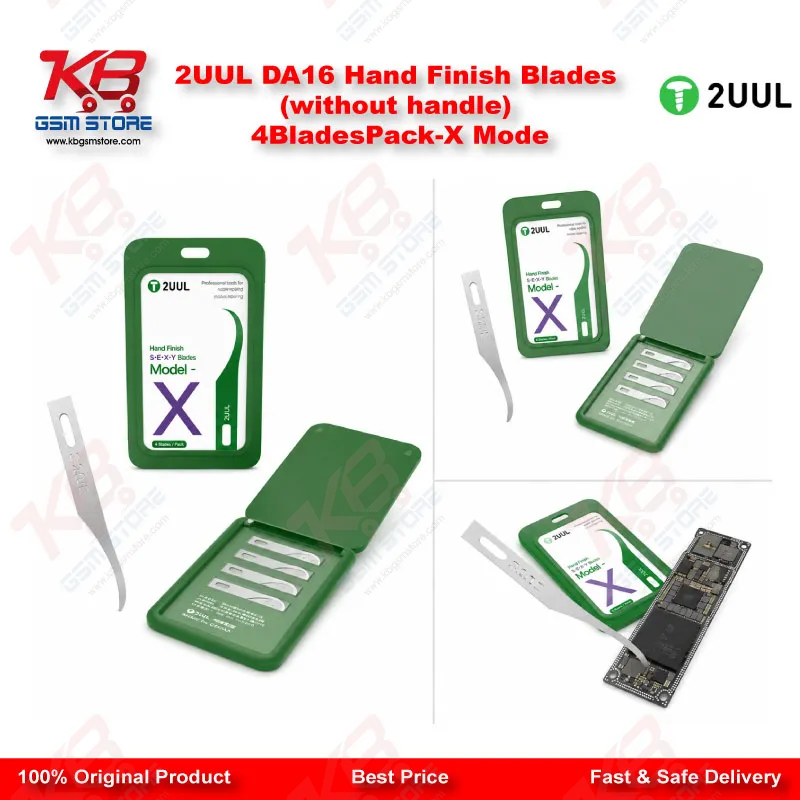

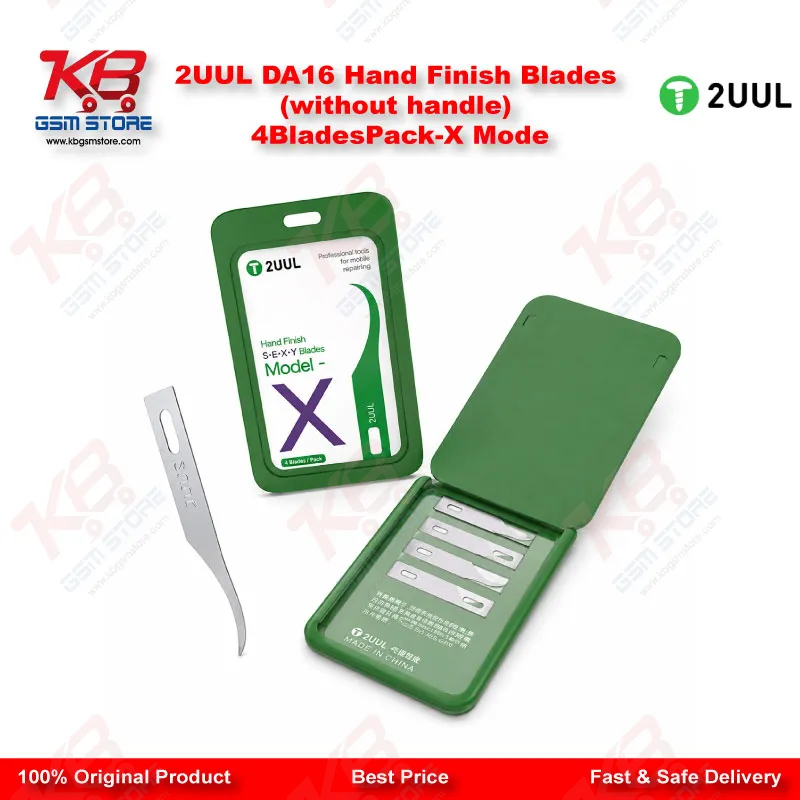

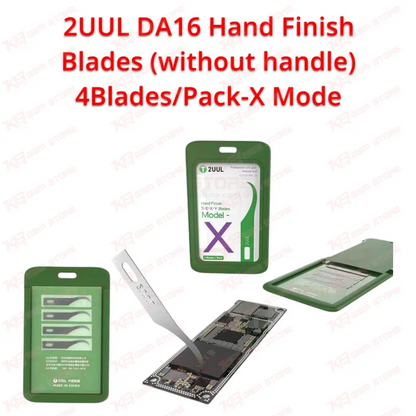

2UUL DA16 Hand Finish Blades (without handle) 4BladesPack-X Mode

2UUL DA16 Hand Finish Blades (without handle) 4BladesPack-X Mode

Regular price Rs.1,200.00 PKR
Regular price Sale price Rs.1,200.00 PKR
Sale Sold out
Shipping calculated at checkout.
Quantity

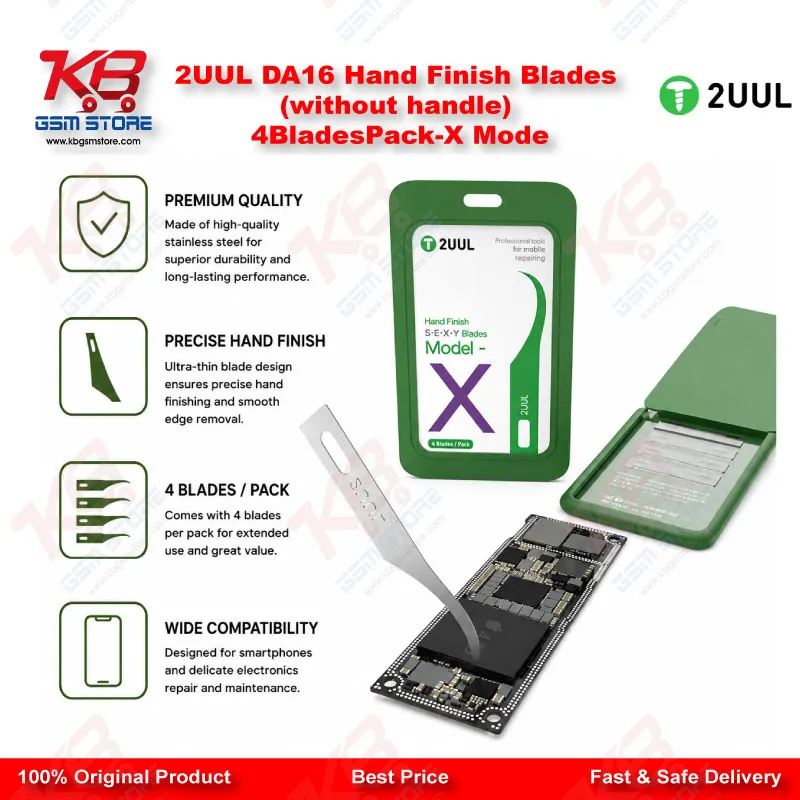

The 2UUL DA16 Hand Finish Blades give you a Model X thin-to-thick blade profile built for uniform force distribution during motherboard glue removal. Each blade tapers from a 0.06mm tip to a 0.3mm tail, so you cut cleanly under underfill without gouging the PCB. The double-sided trimming design uses 2UUL's patented utility model process, and the nano-coated surface resists rust on your repair bench. This pack contains 4 blades without a handle, so you fit them straight onto your existing 2UUL blade handle. Technicians use this blade for CPU removal, screen IC removal, screen debonding, and clearing stubborn glue from small motherboard parts and separators.

SKU:MST-SOLDERING-ACCESSORIES-302

⚖️ Weight: 0.1 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

When you work on a dead phone that needs a CPU reflow or a screen IC swap, the blade you pry with decides whether the board survives or the pads lift with it. The 2UUL DA16, known as Model X in the 2UUL hand finish blade lineup, solves this with a blade that changes thickness across its length: the tip measures just 0.06mm for getting under fine-pitch ICs and screen glue without scratching the PCB, while the tail thickens to about 0.3mm so you get real leverage once the blade is seated. This thin-to-thick geometry means you apply steady, even pressure instead of fighting a blade that flexes unpredictably or one that's too rigid to slip under a chip safely. 2UUL cuts the blade with double-sided uniform trimming under its own patented utility model process, so both edges hold a consistent profile from batch to batch, which matters when you're doing dozens of IC changes a week and can't afford a blade that behaves differently every time you switch packs. The bent-blade design on Model X is a deliberate upgrade over flat hand blades: bending the blade changes the angle of contact against the motherboard, chip, or screen, and that reduces the stress transferred into solder joints and glass during removal, which directly improves your yield on boards where you're trying to save the chip or the panel rather than scrap it. A nano-coating covers the blade body, giving it anti-rust protection that holds up against flux residue, cleaning alcohol, and humidity sitting on your workshop bench, so the blade stays sharp and usable instead of pitting after a few weeks of daily contact with solder flux and glue solvents. The blade body itself stays thin, flexible, and elastic rather than stiff, letting it absorb small shocks as you work it under a chip edge instead of transferring that shock straight into the board, which is exactly what you want when you're separating a screen without cracking the digitizer or removing an IC without lifting a pad. This pack ships as 4 blades without a handle, which keeps the cost down for technicians who already run a 2UUL non-slip handle or a compatible blade grip on their bench and just need replacement blades in rotation. If you're setting up fresh, pair this pack with a 2UUL blade handle so you're not gripping bare metal during fine motherboard work. In a typical repair workflow, this blade slots in right after you've applied heat with your hot air station to soften adhesive or solder, and right before you move to reballing or new chip placement on a PCB holder or fixture stand, giving you a controlled, repeatable step for glue removal, CPU removal, screen IC removal, and general motherboard cleanup under a microscope. Technicians handling dead-after-flash boards, hang-on-logo repairs after IC replacement, or software marna cases that turn out to need a hardware fault fix all rely on a blade like this to get components off cleanly the first time, since a slip during IC change karna often turns a simple repair into a board with lifted pads. Because the blade tip is thin enough for screen IC and separator work but the tail carries enough strength for stubborn CPU glue, one pack covers most day-to-day prying tasks on a repair bench without switching tools mid-job. Store the blades flat and dry between uses so the nano-coating keeps doing its job, and replace a blade once the tip rounds off, since a dull edge is what causes slips and scratched boards, not the blade design itself.

Key Features

• Double-sided uniform trimming using 2UUL's patented utility model process
• Thin-to-thick blade profile for even, controlled cutting force
• 0.06mm blade tip for fine work under ICs and screen glue
• 0.3mm blade tail gives you leverage once the blade is seated
• Nano-coating resists rust from flux and cleaning solvents
• Bent-blade design reduces stress on motherboard, chip, and screen during removal
• Flexible, elastic blade body absorbs shock while prying
• Pack of 4 blades without handle, fits standard 2UUL blade handles

Specifications

Brand Entity 2UUL
Product Entity Hand Finish Blade / Model X Blade Pack (DA16)
Technology Entity Nano-Coating, Thin-to-Thick Blade Profile
Compatible Device Entities Universal Mobile Motherboards and Screens
Repair Process Entity CPU Removal, Screen IC Removal, Glue and Underfill Cleaning
Industry Entity Mobile Repair Tools, PCB Rework

Compatible Devices

Universal — not device-specific. Works across mobile phone motherboards, screens, and chip packages regardless of brand, since the blade is a hand tool rather than a device-locked accessory.

Common Repair Uses

Screen glue removal and screen debonding, CPU removal, screen IC removal, motherboard underfill and glue cleaning, and prying small parts such as separators and chips off the PCB.

FAQ

What is the product name?
The product name is 2UUL DA16 Hand Finish Blades (Without Handle) 4Blades/Pack, Model X.
What is the brand of this product?
The brand of this product is 2UUL.
What is the model of this product?
The model of this product is X, listed under item code DA16.
What is this product used for?
This product is used for glue removal, CPU removal, screen IC removal, and prying small motherboard parts during mobile repair work.
Which devices are compatible with this product?
This product works as a universal hand tool across mobile phone motherboards and screens, and isn't limited to a specific brand or device.
Does this pack include a handle?
No, this pack contains 4 blades only. Pair them with a 2UUL non-slip blade handle for a secure grip during fine motherboard work.
