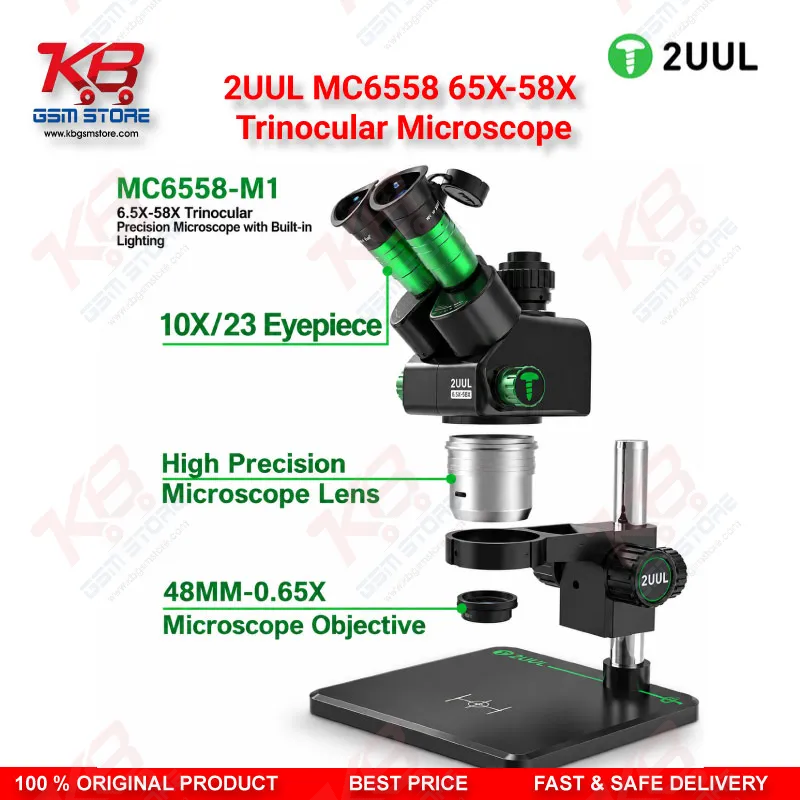

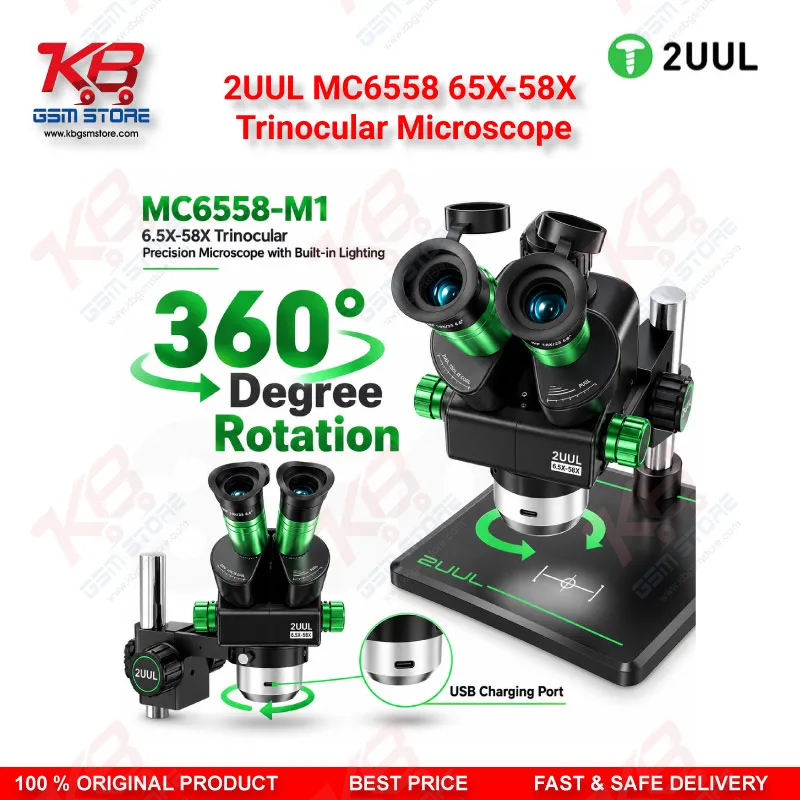

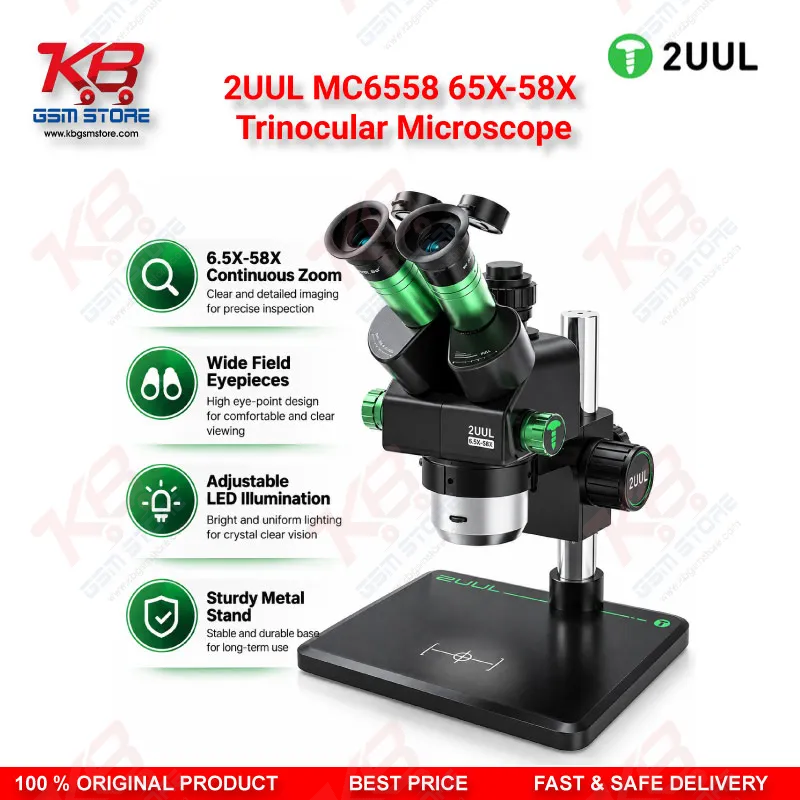

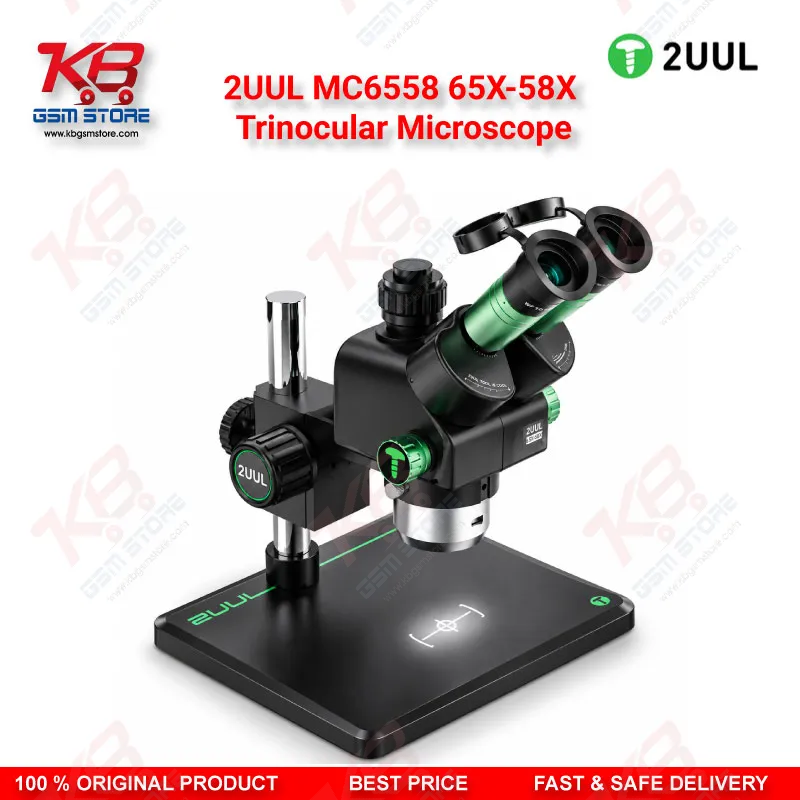

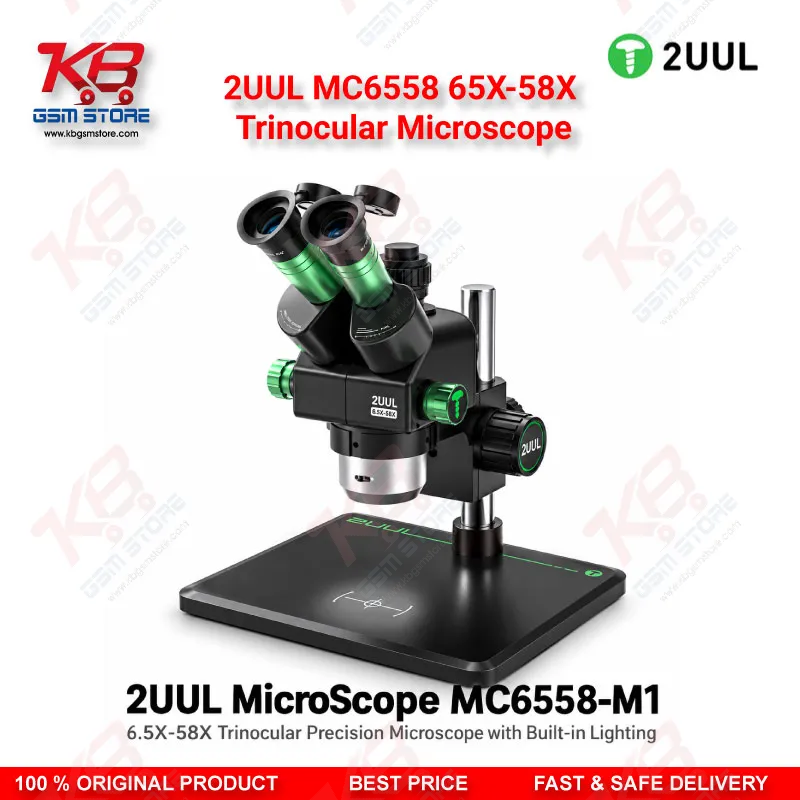

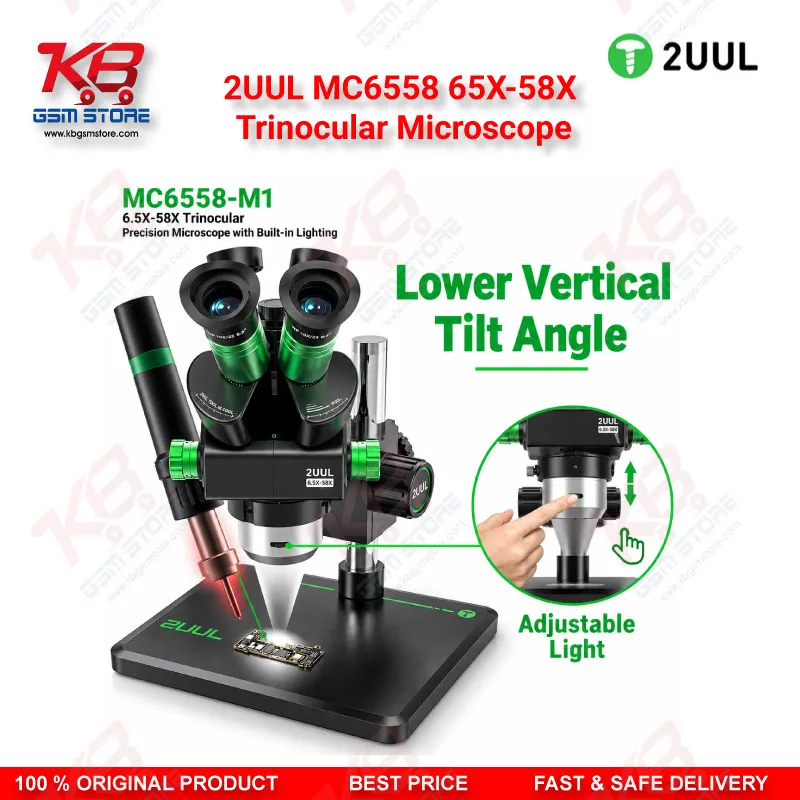

Every technician who has squinted at a phone motherboard under a cheap loupe knows the moment a proper microscope changes the job, and the 2UUL MC6558 65X-58X Trinocular Microscope is built for exactly that shift on a busy repair bench. You get a continuous 6.5X to 58X zoom range through a single smooth control, so you move from a wide 31.4mm field of view for locating a component on the board down to a tight 3.7mm field at full 58X magnification when you need to confirm a hairline crack on a BGA ball or a lifted pad. The WF10X/23mm high-eyepoint wide-angle eyepieces sit at the front of that optical path, and their large 23mm lens diameter means you keep a comfortable eye relief even with safety glasses on, which matters when you are running reballing or CPU-level rework for hours without a break. Two eyepieces come fitted with rubber cushions, so pressure on your eye sockets stays low across a full shift of board inspection, continuity checks, and post-repair verification. Illumination is where a lot of cheaper microscopes fall apart, and this one solves it with a built-in adjustable LED ring light made from 32 individual 5mm LED beads arranged around the lens housing. That ring produces shadow-free, even light across the whole board surface, so solder joint color reads accurately instead of washing out under a single harsh point source, and you stop second-guessing whether a joint is cold or just poorly lit. Brightness is adjustable, which lets you dial the light down for reflective components like camera modules or connectors and back up for matte PCB surfaces where you need every bit of contrast to catch a hairline trace break. The trinocular port is the feature that turns this from a personal viewing tool into a documentation and training tool for your workshop. It accepts a camera or CCD unit through the included 0.4X CTV adapter, so you can pull a live feed to a monitor while you work, record a repair for a client dispute, or walk a junior technician through a board-level fault without both of you crowding one eyepiece. A 0.65X auxiliary lens ships in the box as well, letting you extend the usable field when you need a broader initial look at a larger board before zooming into a specific IC or connector footprint. Build quality carries the weight of daily bench use: the main host, host bracket, column, and base are all metal, giving the whole assembly a stable, wobble-free stance even when you are applying steady pressure with a soldering iron or hot air nozzle directly under the lens. A dustproof eyepiece cap comes included to protect the optics between jobs, which matters in a workshop environment where solder flux fumes and board dust are constant. In terms of where this sits in your actual repair workflow, the 2UUL MC6558 65X-58X Trinocular Microscope earns its place at the diagnostics and rework stages rather than the initial disassembly stage. Once a board is opened and you have narrowed a fault to a specific region through multimeter or boot-current testing, this microscope becomes the tool you use to confirm the exact component, inspect a solder joint before you commit to reflow, or verify a BGA chip is seated correctly after reballing. It fits naturally alongside your existing bench setup, whether that is a hot air station, a preheater, a reballing platform, or a fume extractor, since none of those tools replace the need for magnified visual confirmation before and after the work. For shops handling iPhone motherboard repair, Android PMIC or charging IC replacement, or general PCB trace repair, this microscope removes the guesswork that comes from working at native eyesight resolution on components smaller than a grain of rice. It is not tied to any single phone brand or chipset family, since it is an optical inspection tool rather than a diagnostic or programming device, so it stays useful across your entire catalog of repair work regardless of whether the board in front of you is a Samsung, Oppo, Vivo, Infinix, Tecno, or Apple device. The package itself includes everything needed to get running immediately: the main host, host bracket, base, column, two WF10X/23 eyepieces with rubber cushions, the 0.4X CTV adapter, the 0.65X auxiliary lens, the adjustable LED ring light, and the dustproof eyepiece cap. Assembled dimensions run 38 x 26 x 37cm with a gross shipping weight of 5.5kg, so it holds a stable footprint on a repair bench without needing a dedicated microscope table. If your workshop is scaling up from handheld magnifiers or basic single-lens loupes into proper board-level micro-soldering and BGA work, the 2UUL MC6558 65X-58X Trinocular Microscope gives you the optical foundation that IC-level and chip-level repair actually depends on, and it pairs naturally with your existing ISP tools, UFS adapters, and eMMC programmers as the visual-confirmation step in that same repair chain.
