2UUL MS03 SpaceCam Lite 4K Microscope Camera Pakistan

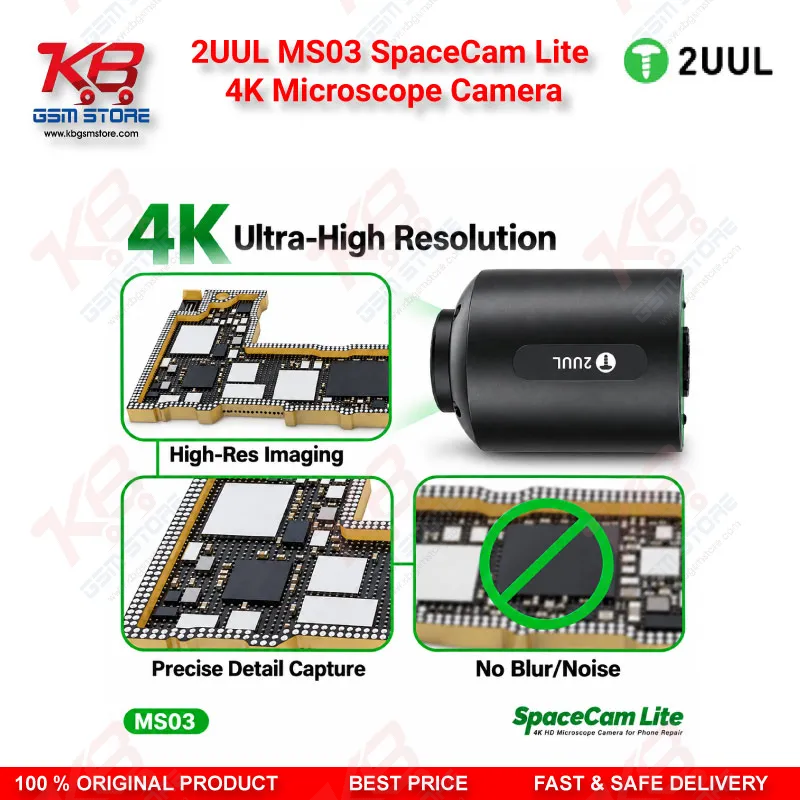

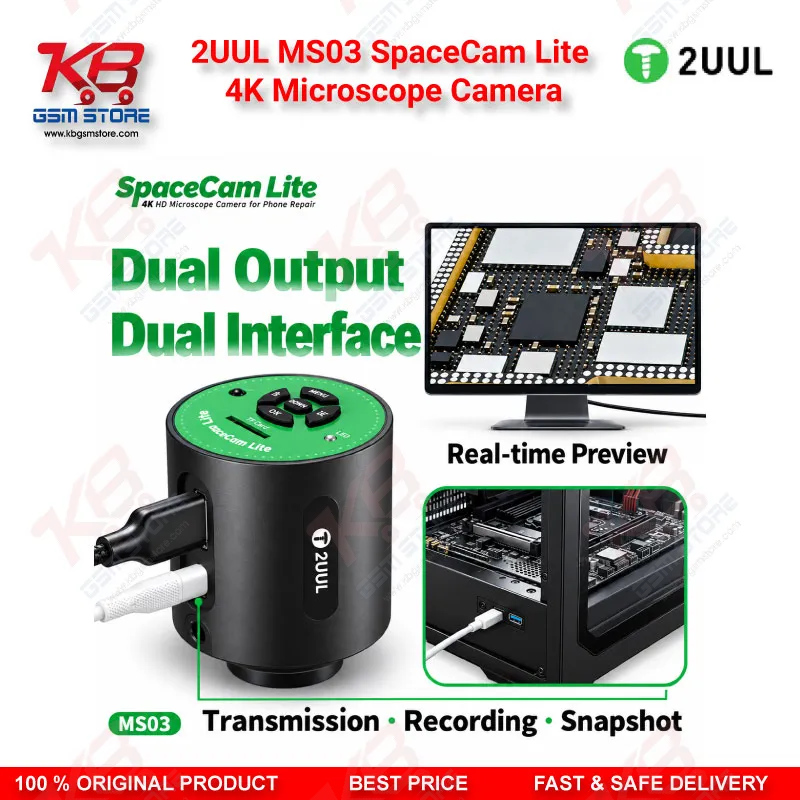

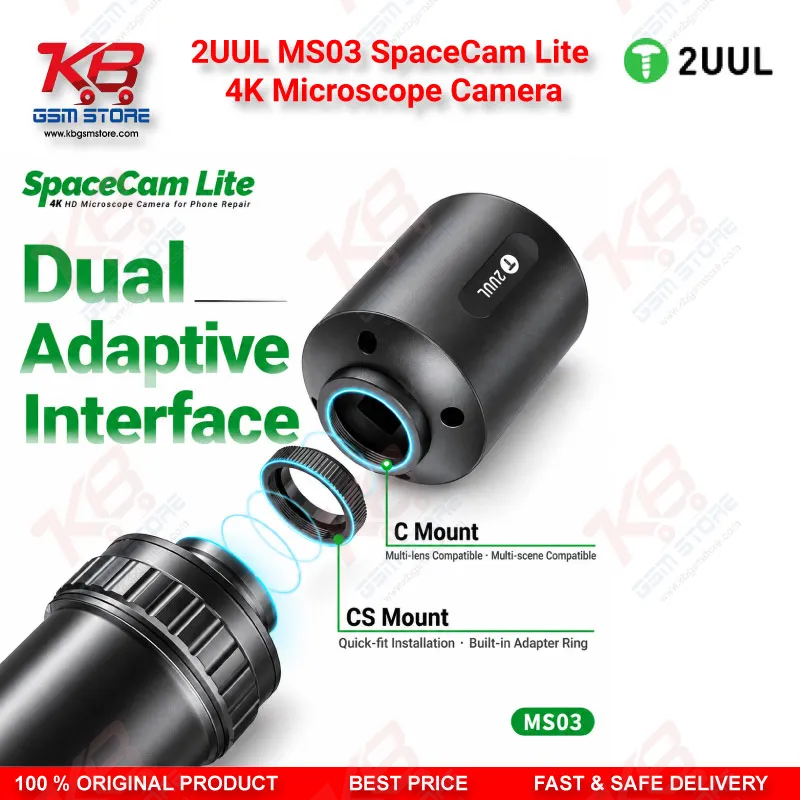

The 2UUL MS03 SpaceCam Lite 4K Microscope Camera turns your bench into a shared inspection station, because a live 4K picture on the monitor beats bending over the eyepiece for every IC check. If you handle dead phone complaints, boot loop jobs, charging issue repairs or a hang on logo board, you already know that a board you cannot read clearly becomes a board that eats your whole day. This camera sends HDMI video straight to a screen, and it also runs over USB to a laptop when you want to save photos for a customer or log the job for your records. Your junior can watch the same solder joint you are fixing, and your customer can see the burnt track before you quote the repair. The sensor is an 8MP back-illuminated CMOS chip with 1.5 by 1.5 micron pixels, which gives you enough detail to read small component markings on a crowded motherboard. The HDMI output runs 3840 by 2160 at 30 frames per second and switches to 1920 by 1080 at 60 frames per second when you need smoother motion while you move the tweezers. The USB feed supports MJPG at resolutions up to 4K, so your capture software can record clean frames. The C/CS lens interface lets you fit the camera to a trinocular head through a matching C-mount adapter, so you can keep the microscope your bench already uses. Set the exposure to auto for quick checks, or switch to manual when a dark board under a bright lamp needs a fixed setting. Adjust white balance in auto or manual mode, and fine-tune the red, green and blue channels when a green PCB looks yellow under your lamp, so the solder pads show their true colour. The built-in line marking feature lays 16 straight guide lines over the live image, and you can change their colour, thickness and position. Use those lines to square a new IC to its pads before you start the hot air station. Use the remote control to change settings without touching the body with flux-covered fingers, and pick the menu language that suits your team. The camera runs on DC 5V, so keep a stable power source close to the scope. The internal storage supports up to 64GB, so you can save a full day of before and after shots for each job. Keep those photos as proof for warranty claims, for training notes, or for the customer who doubts that you replaced the right component. In phone repair, this camera works at the inspection stage, before you lift any part. For a dead phone, scan the board, check the charging circuit and power rails, and look for lifted pads, cracks, or dark burnt spots that a multimeter alone will miss. For an eMMC or UFS job, examine the pad area under the lens before you run the ISP pinout tool or the eMMC programmer, so you confirm no pads are damaged before you start. For CPU and board-level work, use the picture to trace short circuits between power and ground, then confirm the fix on the same live image. Pair the camera with a stable microscope stand, an LED ring light with adjustable colour temperature, a hot air station for rework, a soldering station with fine tips, a PCB holder that keeps the board still, and a multimeter for continuity checks. The camera shows the fault, the multimeter confirms it, and the programmer proves the software side. Keep the lens clean with a soft brush, keep the lamp off the sensor, and store the camera dust-free when the bench is idle. Mobile repair technicians, GSM hardware engineers, repair shop owners, service centres and technical training institutes across Pakistan will find this camera useful for daily work and for teaching new staff. Add it to your bench, and your move from diagnosis to repair gets faster.
