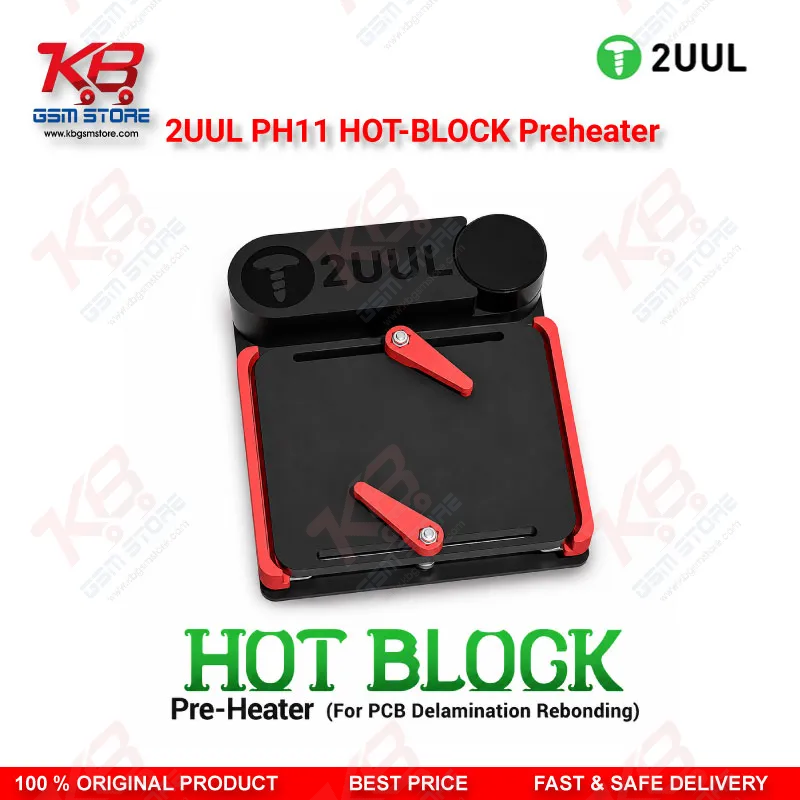

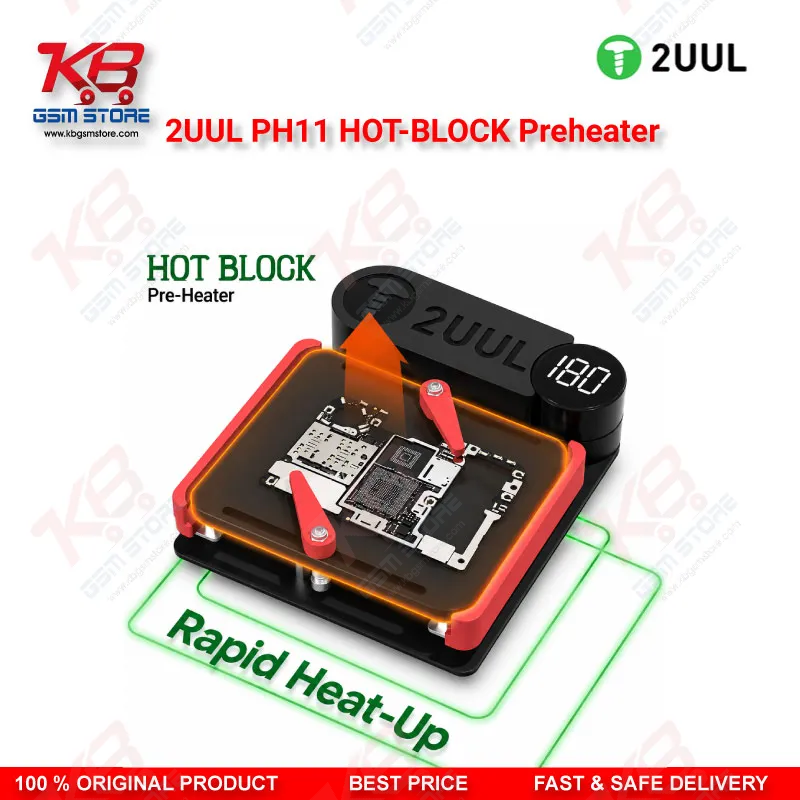

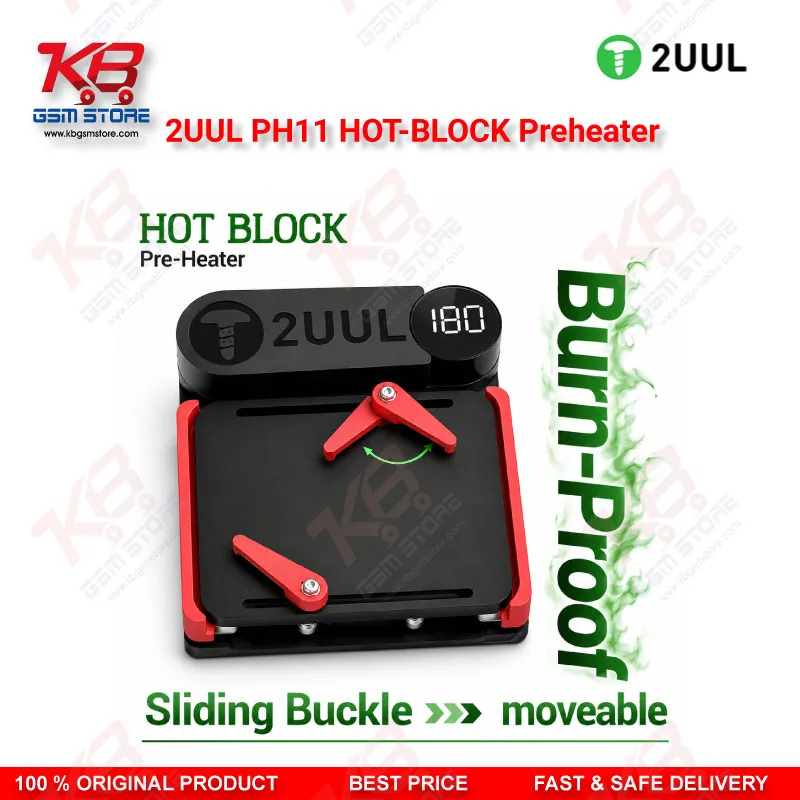

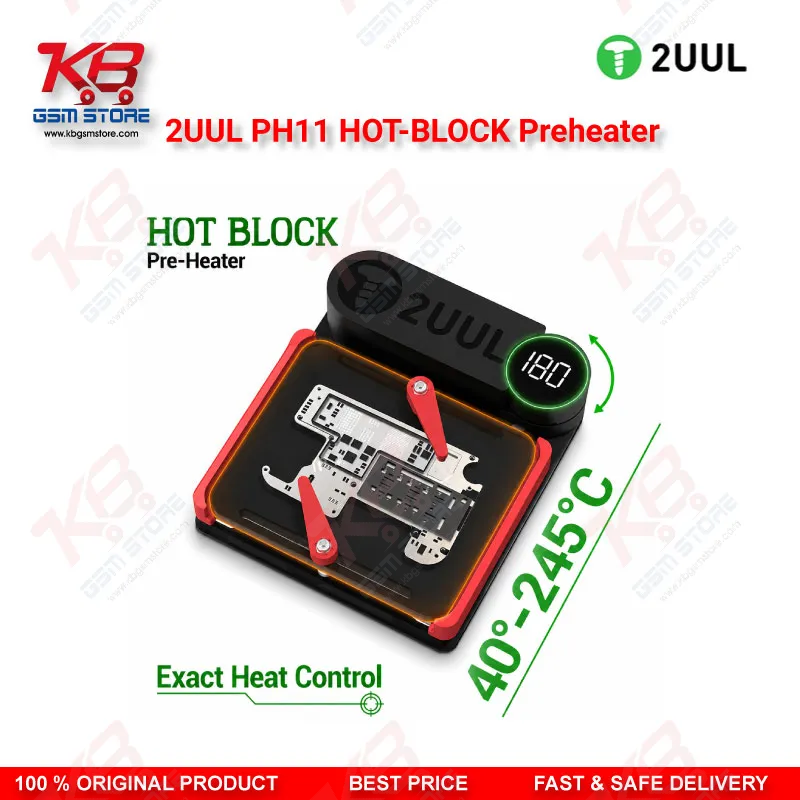

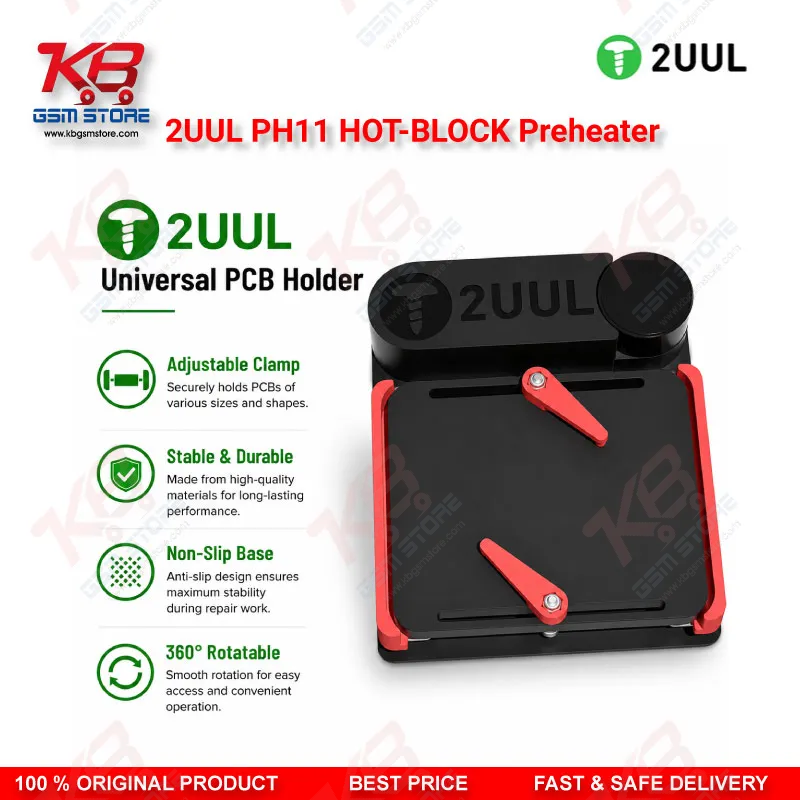

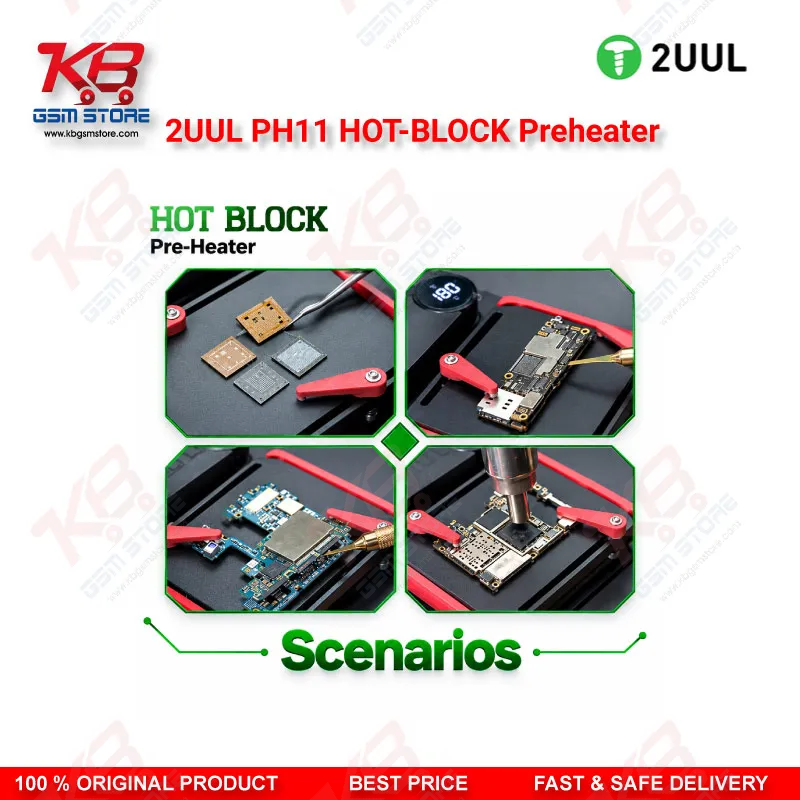

The 2UUL PH11 Hot-Block Preheater solves a problem every motherboard-level technician runs into eventually: getting a multi-layer PCB warm enough to separate or rebond without cooking the components sitting right next to the work area. Unlike a hot air station that concentrates heat in a narrow nozzle zone, the PH11 uses a flat resistive heating block that the board rests directly on, so the entire underside of the motherboard climbs to temperature at the same rate. That uniformity matters most on delamination jobs, where uneven heating is what causes hairline cracks between layers or damages the ball grid array pads underneath ICs you were not even trying to touch. Set the target temperature on the built-in LCD panel, place the board on the sliding buckle platform, and lock it in place with the movable red corner clamps, which adjust to accommodate different motherboard sizes and shapes rather than forcing every board into one fixed footprint. The heating block runs from 40°C up to 245°C, giving you enough range to gently warm a board before hot air rework, soften adhesive layers holding a shield or coating in place, or bring a delaminated PCB to a stable rebonding temperature before pressing the layers back together. In a typical Pakistani repair workshop, this tool sits between the diagnostic stage and the actual rework stage. A dead phone with a hang on logo issue traced to a cracked or delaminated PCB layer, for instance, needs the board pre-warmed evenly before a technician attempts CPU reball or IC replacement, because working on a cold board risks thermal shock cracking the solder joints on adjacent components. The PH11 also earns its place on the bench for glue removal work, where underfill or waterproofing adhesive around a charging port or camera connector needs gentle, sustained heat to loosen without a heat gun blasting nearby flex cables. Dual voltage support for 110V and 220V input means the unit runs directly on Pakistan's standard mains supply without a step-down converter, which keeps the setup simple for shops running multiple bench tools off the same power strip. At 465g net weight and a compact 105 x 122 x 32mm footprint, the preheater does not eat up much bench space next to a microscope, hot air station, or soldering iron, and it stays light enough to reposition without disconnecting cables every time. The sliding buckle mechanism deserves a closer look because it is the part that separates the PH11 from a plain flat hot plate. Rather than relying on gravity or tape to hold a board in position while it heats, the movable clamps grip the edges and keep the PCB flat against the heating surface throughout the cycle, which matters when boards warp slightly as they warm. That flat contact is what gives the block its consistent heat transfer, and it is also what prevents a board from shifting mid-process and knocking loose components that are already at a softened, vulnerable state. Technicians working eMMC or UFS chip-off recovery jobs use a preheater like the PH11 for a related reason: bringing the board to a stable, even temperature before attempting to lift a memory chip reduces the risk of pad lift, which turns a recoverable data job into a scrapped board. The same logic applies to CPU and baseband IC rework, where a cold board forces a hot air rework session to run longer and hotter than necessary just to reach reflow temperature, increasing the odds of damaging the substrate or nearby passives. By handling the preheating stage separately and letting the block hold a steady, monitored temperature, the PH11 shortens the actual hot air exposure time needed for the delicate part of the job. The LCD readout removes the guesswork that comes with judging temperature by touch or by watching for visual cues like slight discoloration, both of which are unreliable and inconsistent between technicians. For a repair shop juggling network issue, charging issue, and display problem tickets alongside motherboard-level work, having a preheater that gives a clear numeric readout means less variance between different staff members handling the same repair category. The unit's build targets professional and semi-professional repair environments rather than one-off hobbyist use, and it fits naturally into service centers, mobile repair training institutes, and independent repair shops that handle board-level work as a regular part of their ticket volume. Because the PH11 is a preparation tool rather than a standalone repair solution, it works best paired with the rest of a board-repair station: a hot air rework station for the actual reflow or component removal, a microscope for pad inspection afterward, and a board holder or PCB fixture to keep the motherboard steady during the follow-up soldering work. Positioned this way, the PH11 becomes the first station a delaminated or glue-bonded board passes through before any hot air or soldering iron touches it, reducing the overall thermal stress the board experiences across the full repair cycle and improving the success rate on rebonding and IC-level jobs that would otherwise carry a higher failure rate on cold boards.
