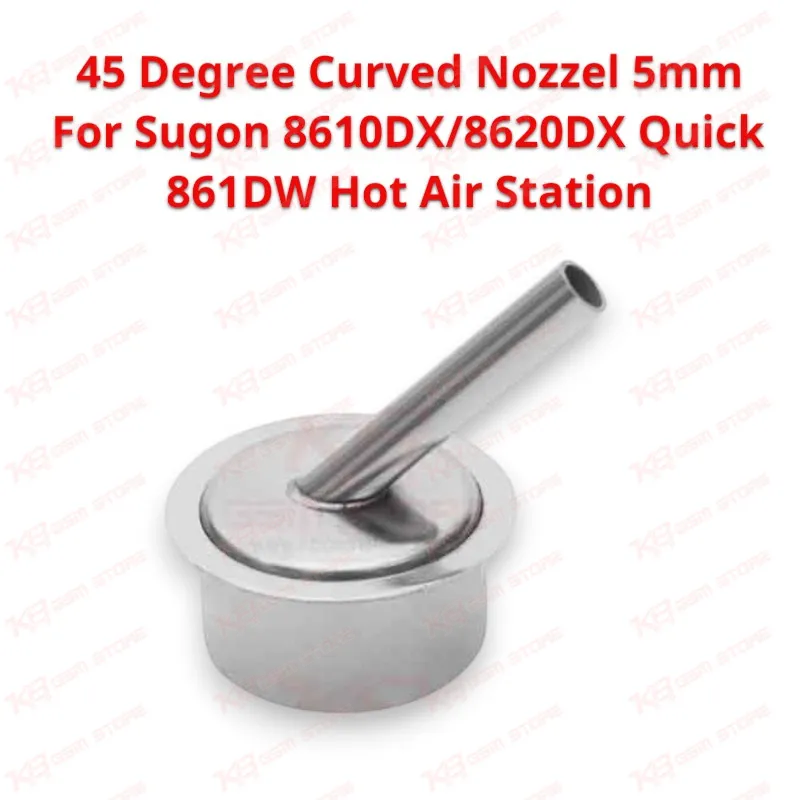

45 Degree Curved Nozzel 5mm For Sugon 8610DX/8620DX Quick 861DW Hot Air Station

Bent Hot Air Nozzle for Microscope-Side Rework on Sugon and Quick Stations The 45 Degree Curved Nozzel 5mm For Sugon 8610DX/8620DX Quick 861DW Hot Air Station fixes a problem every board-level technician meets early: a straight nozzle blocks your view of the chip you want to lift. On a dead phone board, one wrong angle of heat can lift a neighbouring component or cook a flex connector. This 5mm curved nozzle bends the airflow 45 degrees, so you keep your eyes on the IC while the heat lands exactly where you need it. If your shop runs a Sugon 8610DX, Sugon 8620DX, or Quick 861DW, this is a cheap upgrade that changes how comfortably you work all day.How the 45-Degree Bend Changes Your Work Under the Microscope A straight nozzle points down at the board. Your handpiece, your wrist, and the nozzle body all sit between the microscope lens and the chip. The 45-degree bend tilts the airflow away from your viewing axis, so you see the solder reflow in real time instead of guessing.This matters most on the CPU side of a phone motherboard. An ordinary straight nozzle struggles to push heat horizontally across a shielded area or into a crowded corner. The curved nozzle lets you approach from the side, heat the target IC, and watch the balls melt before you lift it. You also hold the handpiece at a more relaxed angle, which cuts hand fatigue when you run long reballing or IC change karna sessions.Where the 5mm Opening Fits on Phone Motherboards The 5mm opening concentrates heat on small areas. You get enough coverage for charging ICs, audio ICs, small PMICs, connectors, and chip resistors and capacitors without blowing air across half the board. A tighter airflow protects the components around your target, which counts on densely packed boards from budget Android phones and flagship models alike.Technicians use this size for charging issue repairs, display problem fixes that involve connector rework, and network issue jobs where you replace a small RF-area IC. For larger shields and bigger packages, step up to a wider curved nozzle. Sellers list the same curved design in 7mm and 10mm as well, so you can build a set around your most common jobs. Pair the nozzle with flux, a PCB holder, and a good microscope for clean results.Fitting, Handling, and Care on Your Repair Bench Match the nozzle to your station before you buy. This 5mm curved nozzle targets the Sugon 8610DX, Sugon 8620DX, and Quick 861DW handpieces. Slide it on, confirm it seats firmly, and test the airflow at a low setting before you start on a live board.Let the handpiece and nozzle cool before you swap or store them. Hot metal burns fingers fast, and a rushed swap in the middle of a job also invites a dropped handpiece. Wipe flux residue off the nozzle once it cools so it does not build up and restrict airflow. Keep your station temperature and airflow within the range your solder and your target component require, and test on a scrap board when you try a new angle.Stock this nozzle next to your hot air stations, soldering stations, reballing kits, and microscopes at KB GSM Store. Whether you fix hang on logo boards, repair charging ports, or run a full motherboard repair service, it earns its place in your toolkit. Order it from KB GSM Store and check the latest price in Pakistan before you buy.
