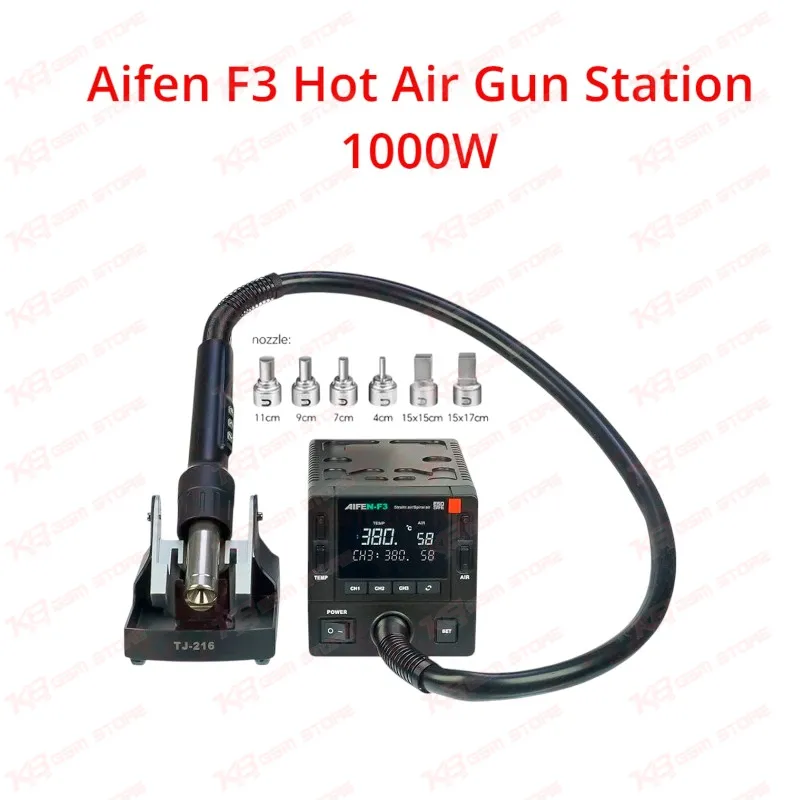

Aifen F3 1000W Hot Air Gun BGA Rework Station — Digital Display

Aifen F3 1000W Hot Air Gun BGA Rework Station — Digital Display

Rs.28,000.00 PKR
Rs.28,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

The Aifen F3 is a professional 1000W hot air gun BGA rework station with a vibrant color digital display, Roc curve preheating mode, 100°C–500°C temperature range, and a high-speed motor for efficient, stable SMD soldering and component rework.

MST-SOLDERING-TOOLS-1257

⚖️ Weight: 4.0 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

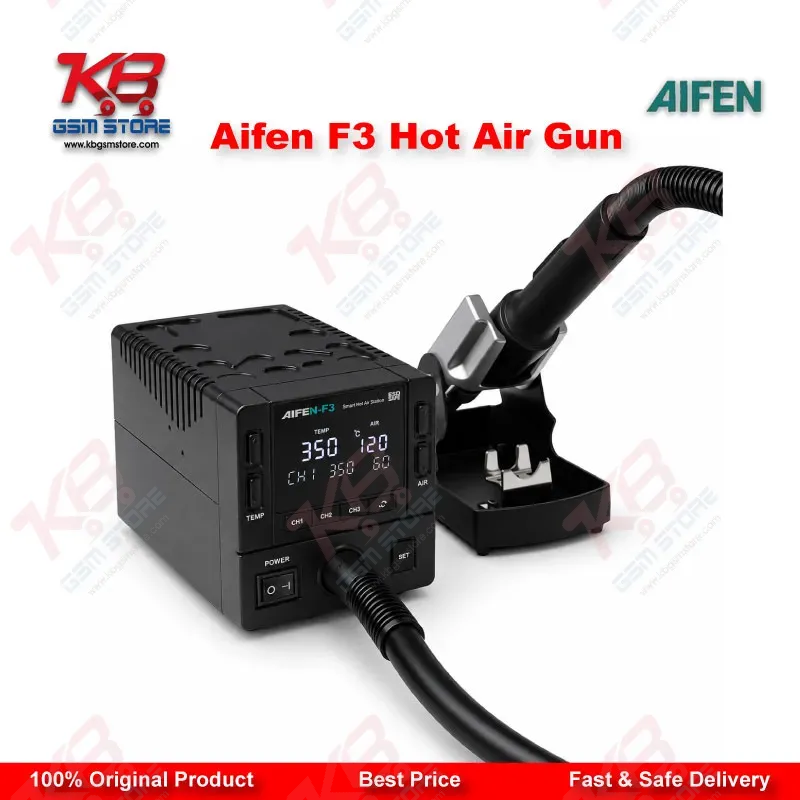

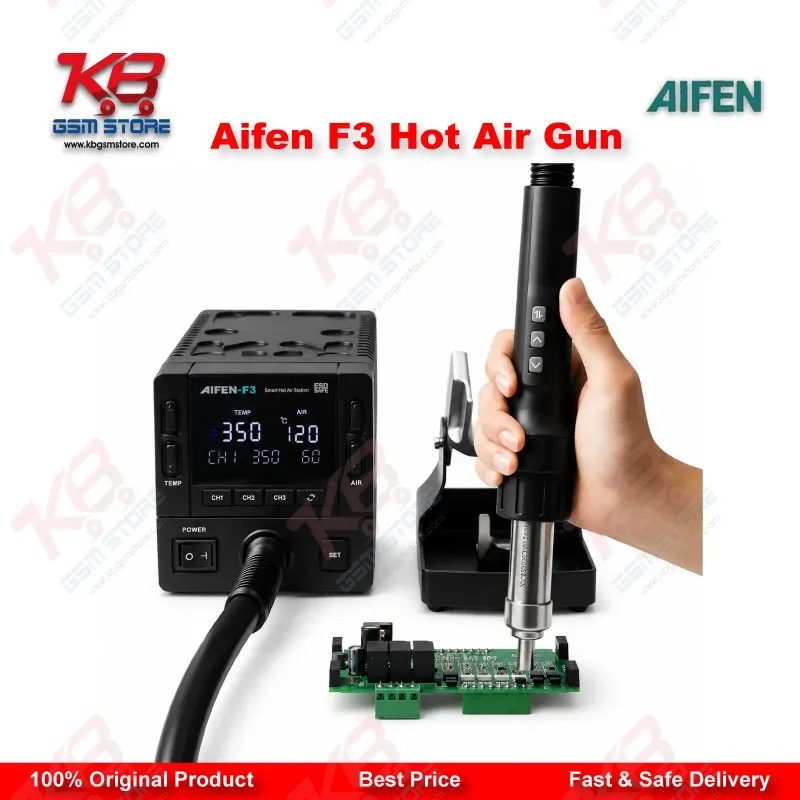

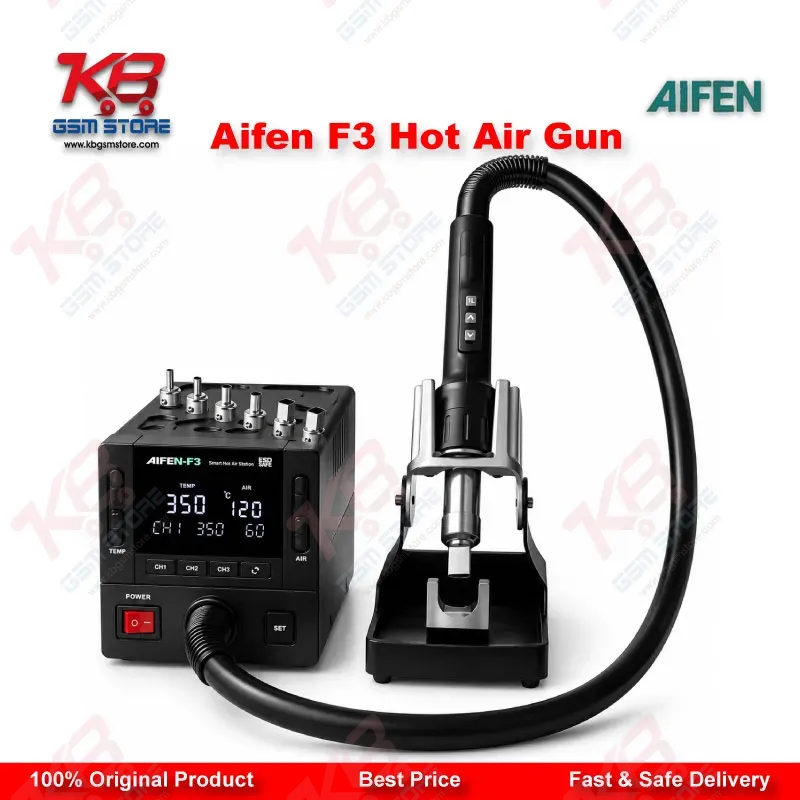

The Aifen F3 1000W Hot Air Gun BGA Rework Station is an industrial-grade soldering tool engineered for professional PCB repair, SMD rework, and BGA reballing. Featuring a vivid color digital display, the F3 delivers an intuitive, modern user experience that sets it apart from standard rework stations.

Its exclusive Roc Curve Mode allows you to preset three independent heating intervals, each with its own target temperature and duration. The station automatically transitions through each stage — from preheating to peak reflow — without manual intervention, ensuring repeatable and precise thermal profiles ideal for sensitive components and motherboard rework.

The upgraded twist-and-lock heating core eliminates the need for screws, allowing quick tool-free replacement. The station ships with a standard 7B heating core and two precision nozzles (15mm and 17mm square), along with a dedicated gun holder stand for safe and organized operation.

Powered by a switching power supply, the F3 is compact and lightweight, making it easy to carry between workbenches or field service locations. The high-speed brushless motor ensures consistent airflow (001–160lv), delivering strong air output for efficient solder reflow.

The dual-input design supports both AC 220V/50Hz and AC 110V/60Hz, making the Aifen F3 suitable for use across Pakistan and internationally. Whether you are a professional technician or an advanced hobbyist, the Aifen F3 offers the reliability, flexibility, and precision needed for modern electronics repair.

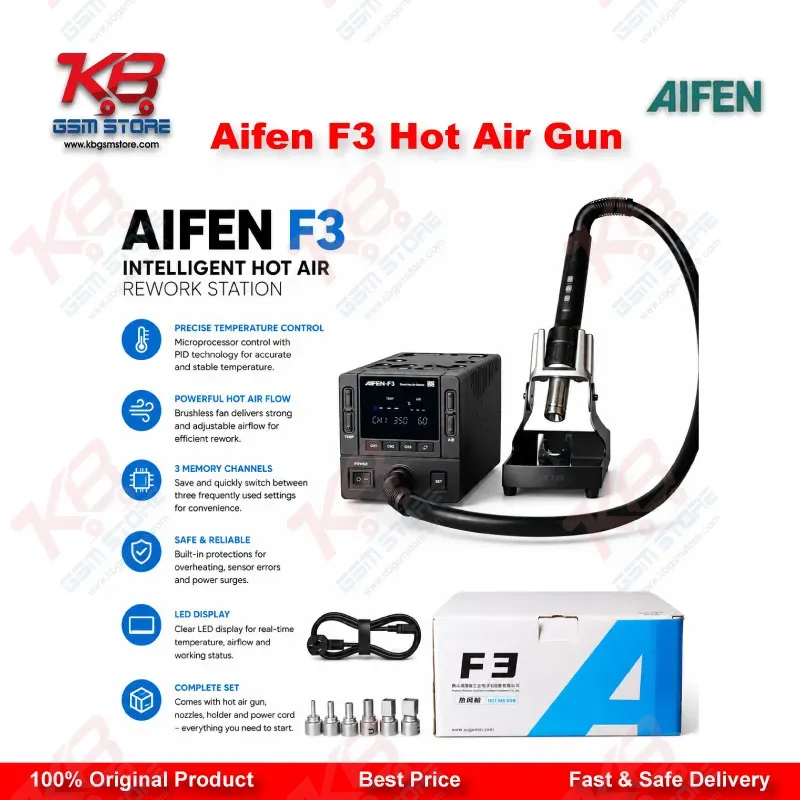

Key Features

  • Color digital display for intuitive temperature and airflow monitoring
  • Roc Curve Mode with 3 preset heating stages — each with independent temperature and timer settings
  • Automatic stage progression: panel shows current stage, real-time temperature, air volume, and countdown
  • Twist-and-lock heating core — tool-free replacement, no screws required
  • Standard 7B heating core included; compatible with aftermarket cores
  • Wire controller + key control mode with temperature memory function
  • High-speed small motor for strong, stable airflow (001–160lv range)
  • Switching power supply — compact, lightweight, travel-friendly design
  • Wide temperature range: 100°C–500°C / 212°F–932°F
  • Includes 15mm and 17mm square nozzles + dedicated gun frame/stand
  • Dual voltage support: AC 220V/50Hz and AC 110V/60Hz
  • New UI interface — beginner-friendly operation

Specifications

Brand Aifen
Model F3
Power 1000W
Input Voltage AC 220V/50Hz or AC 110V/60Hz
Temperature Range 100°C – 500°C / 212°F – 932°F
Air Volume 001 – 160lv
Display Color Digital Display
Heating Core 7B (Twist-and-lock, tool-free replacement)
Roc Mode Stages 3 Segments (max 330 seconds each)
Nozzles Included 15mm Square, 17mm Square
Accessories Included Gun frame/stand, 7B heating core
Power Supply Type Switching Power Supply
Control Mode Wire controller + Key control, Memory mode
Application BGA Rework, SMD Soldering, PCB Repair

FAQ

Q1: What is the power consumption of the Aifen F3 Hot Air Gun Station?
The Aifen F3 operates at 1000W power with input voltage support for AC 220V/50Hz and AC 110V/60Hz, making it compatible for use in Pakistan and internationally.
Q2: What temperature range does the Aifen F3 support?
The Aifen F3 offers a wide temperature range of 100°C to 500°C (212°F to 932°F), suitable for delicate SMD components as well as heavy-duty BGA rework.
Q3: What is Roc Curve Mode in the Aifen F3?
Roc Curve Mode is a unique 3-stage automatic heating function. Each stage has its own preset temperature and timer (up to 330 seconds per stage). The station automatically moves to the next stage after each one completes, ideal for precise BGA reflow and motherboard rework.
Q4: What nozzles are included with the Aifen F3?
The Aifen F3 comes with two square nozzles — a 15mm and a 17mm — along with a dedicated gun frame/stand for stable and accurate motherboard rework.
Q5: How do I replace the heating core in the Aifen F3?
The Aifen F3 features an upgraded twist-and-lock heating core mechanism. No screws or tools are required — simply twist to unlock and replace by hand. A standard 7B heating core is included in the package.
Q6: Is the Aifen F3 suitable for beginners?
Yes, the Aifen F3 features a new simplified UI interface designed for easy operation, allowing beginners to quickly get started while also offering advanced features like Roc Curve Mode and memory mode for experienced technicians.
Q7: Does the Aifen F3 support memory mode?
Yes, the Aifen F3 supports both temperature control mode and memory mode via its wire controller and key control panel, allowing users to save and recall preferred settings quickly.
Q8: What is included in the Aifen F3 package?
The package includes the Aifen F3 Hot Air Gun Station (1000W), one 7B heating core, one 15mm square nozzle, one 17mm square nozzle, and a dedicated gun frame/stand.
Q9: What is the air volume range of the Aifen F3?
The Aifen F3 provides an adjustable air volume range from 001 to 160lv, powered by a high-speed small motor for strong, consistent, and stable airflow during soldering and rework.
Q10: Is the Aifen F3 available at the best price in Pakistan?
Yes, the Aifen F3 1000W BGA Rework Station is available in Pakistan at a competitive market price, offering industrial-grade features at an affordable cost for both professional technicians and hobbyists.
