Amaoe BCM1 Stencil

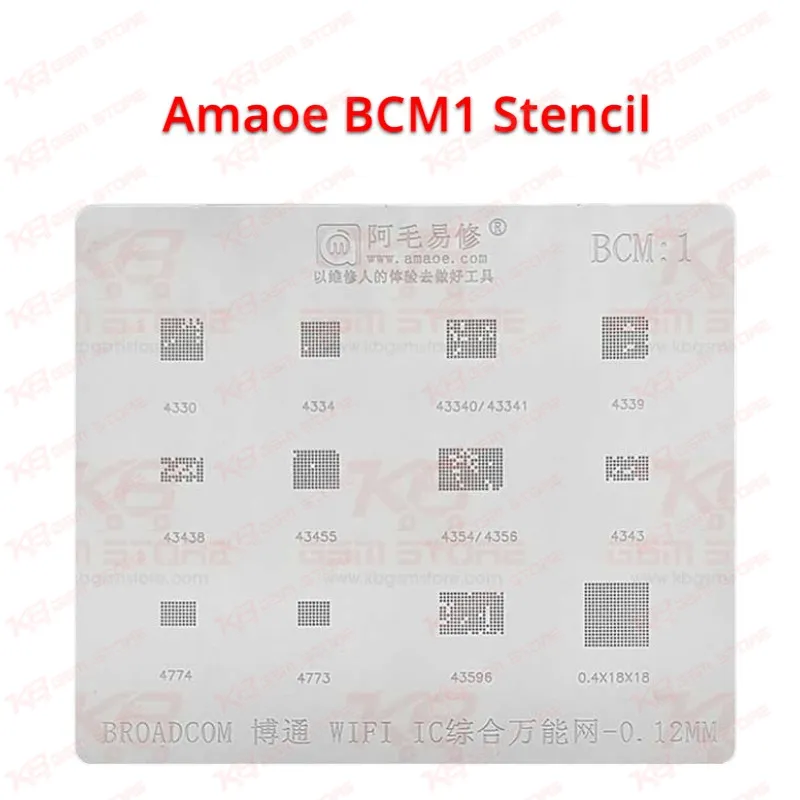

Amaoe BCM1 Stencil For Broadcom WiFi IC Reballing WiFi greyed out, Bluetooth not turning on, or a board that stays weak after a hot air session on the wireless chip: these jobs reach your bench every week. The Amaoe BCM1 Stencil gives you a 0.12mm steel mesh made for reballing Broadcom WiFi and Bluetooth ICs, so you lift the chip, clean the pads, and rebuild the balls with a clean, repeatable pattern. One stencil covers many Broadcom part numbers, so you skip buying a separate template for every IC. If you handle network issue complaints on Android boards, this small piece of steel earns its place in your drawer.Why the Broadcom IC list matters on your bench Broadcom wireless chips show up on many boards, and each model number tempts you to hunt for a new stencil. The Amaoe BCM1 Stencil removes that problem for a long list of parts: BCM4330, BCM4334, BCM43340, BCM4339, BCM43438, BCM43455, BCM4354, BCM4356, BCM4343, BCM4774, BCM4773 and BCM43596. You read the marking on your chip, check it against this list, and pick the stencil with confidence. Always match the chip marking before you heat anything, because a wrong template wastes your solder and your time. Keep in mind that the stencil covers the listed chip family, not every phone model by name, so you verify the IC on the board in front of you.Reballing steps with the Amaoe BCM1 Stencil Start with a clean chip. Lift the Broadcom IC with your hot air gun at a controlled temperature, then wipe the old solder from both the chip and the pads with flux and a soldering iron with braid. Put the chip on a flat surface, apply a thin layer of flux, and lay the Amaoe BCM1 Stencil over the pads so every hole sits exactly on a pad. Hold it steady with a PCB holder or tape, then spread your solder paste or drop in solder balls through the mesh. Heat the chip gently until the balls form, let it cool, and lift the stencil away. Check the result under a microscope: every ball should sit round, even, and separate from its neighbours. Then place the chip back on the board and reflow it with your hot air station. This process helps with the dead after flash cases where the wireless section stopped responding, and with the hardware fault cases where a weak WiFi IC joint caused the problem. If the chip still fails after a clean reball, you move on to checking the surrounding circuit with your multimeter.Care, storage and where it fits in your toolkit The 0.12mm steel mesh resists bending and survives repeated heat, so you reuse it job after job. Wipe it with flux remover after every use, because leftover solder clogs the holes and ruins the next pattern. Store it flat, away from other stencils, so the thin mesh never creases. In your workflow, this stencil sits between lifting the chip and testing the board, right beside your hot air station, soldering station, microscope and reballing kit. You can pair it with a magnetic stencil positioning platform if you want faster alignment on repeat jobs. Many Pakistani repair shops keep a full set of Amaoe BGA stencils so the same technician handles WiFi IC, audio IC and CPU reballing without sending boards outside. If you search for the Amaoe BCM1 Stencil price in Pakistan, KB GSM Store gives you a ready local source for your next WiFi IC repair.
