Amaoe DDR1 BGA Reballing Stencil

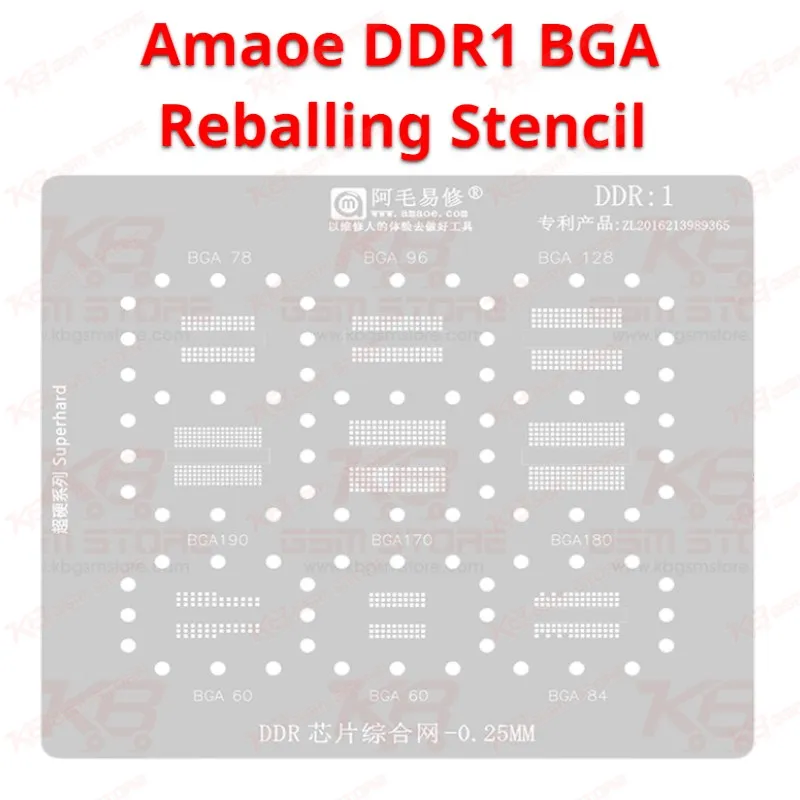

Amaoe DDR1 BGA Reballing Stencil for DDR Memory Chip Reballing When a DDR chip comes off the board, the old balls never go back on cleanly. You need a fresh set of evenly sized spheres before the chip returns to its pads, and that is the job of the Amaoe DDR1 BGA Reballing Stencil. It is a steel mesh template built around DDR memory packages, so your shop can reball memory and video memory chips without hunting for a different stencil each time. Think of it as a low-cost consumable that protects an expensive hot air session.One Stencil, Several DDR Package Layouts The Amaoe DDR1 BGA Reballing Stencil covers BGA96, BGA78, BGA190, BGA180, BGA170, BGA128, BGA60 and BGA84 packages. Those are the ball-grid layouts you see most often on DDR memory and graphics memory chips. Because the mesh carries several layouts on one piece of steel, you pick the matching pattern, align it over your chip, and ignore the rest. Before you order, check the package on your chip against that list. If your chip uses a different package, this stencil will not help you, and no template should be forced onto a chip it does not match.Where It Fits on Your Repair Bench Reballing sits in the middle of a memory repair. You diagnose the board with a multimeter, remove the chip with your hot air station, clean the pads with a soldering iron and flux, then reball. The stencil does the reballing step. You hold the chip steady in a PCB holder or positioning base, lay the mesh over the pads, fill the apertures with solder paste or balls, and reflow with controlled heat. A microscope helps you check that every ball sits where it should before you place the chip back on the board.You will reach for this stencil when you replace a failed video memory chip, when you reuse a good chip after rework, or when oxidized and lifted balls leave you with a hardware fault you cannot clear any other way. A clean reball also helps when a board shows display problems or hangs on logo after a memory-related fault. If you already own a universal multi-function stencil or a full reballing kit, the Amaoe DDR1 BGA Reballing Stencil gives you a dedicated DDR template, so you stop guessing with a stencil that only half fits.Handling Tips and Buying Notes for Pakistani Technicians Keep the mesh flat and clean. After every reball, wipe flux residue off the steel and store the stencil in a dry place, so the apertures stay clear and the next job starts clean. Bent or clogged mesh gives uneven balls, and uneven balls cause the same fault you tried to fix. Work under magnification and keep your temperature steady, because a rushed reflow ruins both the ball and the chip.KB GSM Store stocks the Amaoe DDR1 BGA Reballing Stencil for technicians and repair shops across Pakistan. Pair it with a hot air station, a soldering station, flux, solder paste, a PCB holder and a microscope from our reballing and rework categories to build a complete memory repair setup. If you do a lot of different chips, add a multi-function stencil next to it. The package includes one stencil. Order it with your next tool shipment, so your bench always has a spare DDR template ready.
