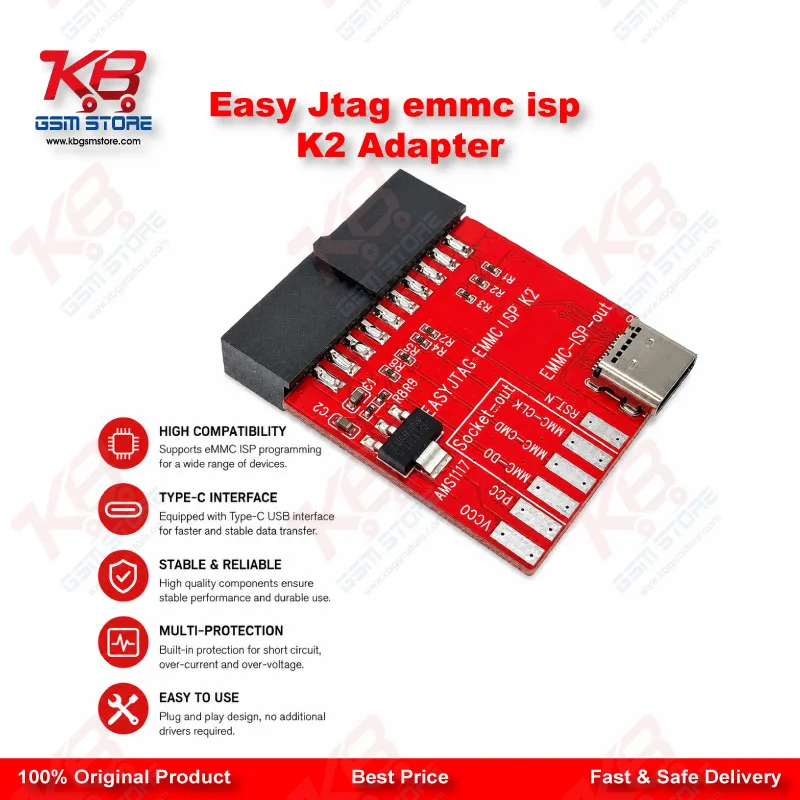

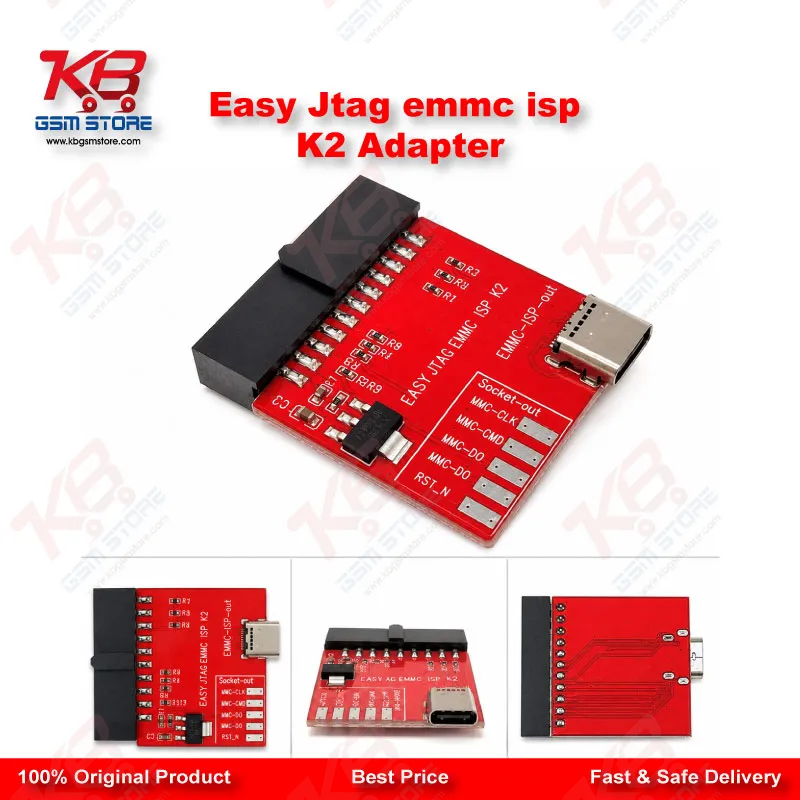

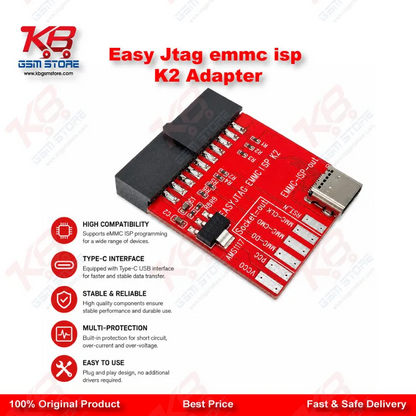

Easy Jtag eMMC ISP K2 Adapter – Solderless eMMC/UFS ISP Connector for Easy Jtag Plus & MiPi Tester

When a phone comes in dead after flash or stuck in a boot loop, you don't always get the luxury of a clean eMMC pad to solder onto. That's where ISP connection earns its place on the bench. The Easy Jtag eMMC ISP K2 Adapter connects your Easy Jtag Plus Box or MiPi Tester Box straight to a device's ISP test points, letting you read, write, and repair eMMC and UFS storage without lifting the chip.
This K2 adapter is built specifically for In-System Programming work. Instead of desoldering an eMMC or UFS chip and mounting it on a socket, you wire directly to the ISP pins already present on the board — TX, RX, CLK, RST, and GND. That means less rework risk, faster turnaround, and a repair path that still works even when the BGA pads are damaged or inaccessible.
For UFS 2.0 and 2.1 chips, the adapter handles power delivery at VCC 3.3V and VCCQ 1.8V, matching what these generations expect. Newer UFS 3.0, 3.1, and 4.0 chips need their TX, RX, CLK, and RST lines run as flying wires instead of through a fixed socket, since the interface no longer sits on a standard seat. The K2 adapter is built to support both approaches, so you're not stuck buying a separate tool every time a client walks in with a newer flagship.
Wiring discipline matters more here than with most repair tools. Keep your GND, TX, and RX lines under 15mm, and route the ground junction as close to TX/RX as you can — this keeps signal timing tight and avoids the intermittent "UFS not powering up" issue that shows up when wire runs get sloppy. If you're already running Easy Jtag or MiPi Tester in your shop, this discipline is probably familiar, but the K2 makes it easier to get right by giving you a stable physical connection point instead of loose flying wires alone.
Power supply choice also affects reliability. A regulated bench power supply, rather than USB power alone, gives cleaner current delivery for UFS power-up — usually in the 100–200mA range once the connection is stable. If you're relying on USB and battery power, check Device Manager for the CPU port to appear; if it doesn't, the UFS side hasn't powered up correctly and the ISP link needs rechecking before you proceed.
In day-to-day workshop use, this adapter shows up constantly in dead phone recovery, software marna jobs where a direct flash won't take, FRP and pattern unlock cases that need a firmware-level fix, and IC-level board work where the eMMC or UFS chip itself is suspect. It pairs naturally with your existing ISP cable set and works alongside EJ2025-style UFS key adapters for shops running mixed eMMC/UFS repair queues.
If your bench already runs Easy Jtag Plus or MiPi Tester and you're doing ISP-level work regularly, the K2 adapter closes a real gap — solderless access to storage that would otherwise need a full chip-off approach.
