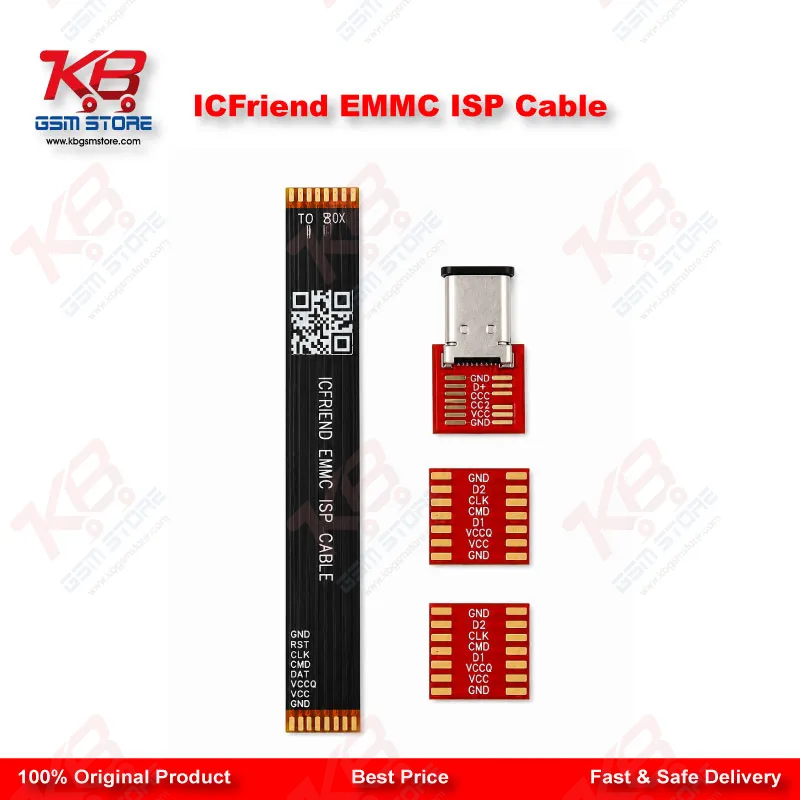

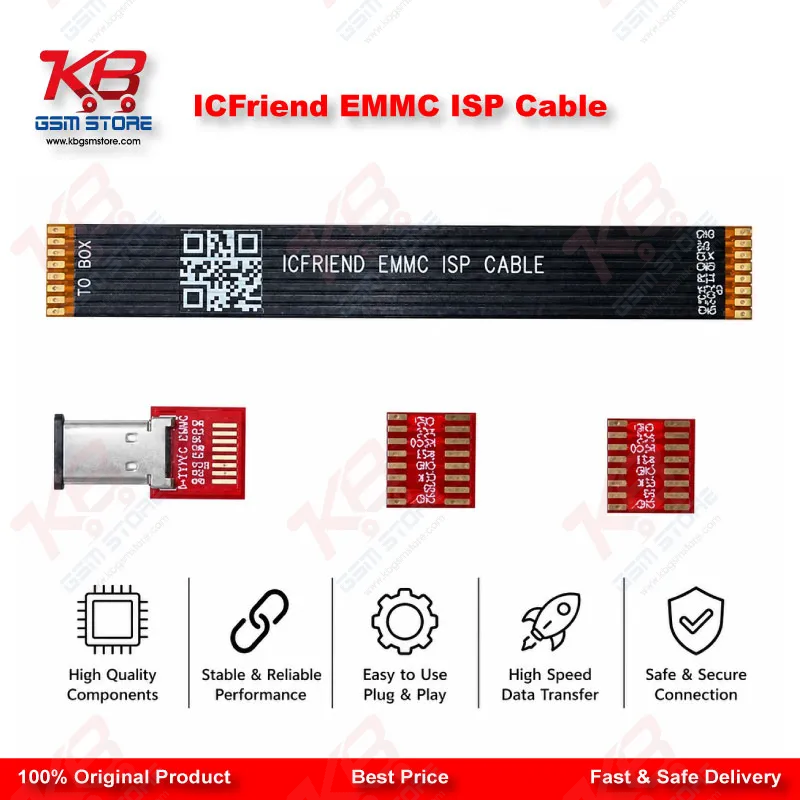

ICFriend EMMC UFS ISP Cable Kit – 2/3/4/6-in-1 Modify FPC Cable for EasyJtag

When a phone comes to your bench completely dead, boot-looping, or stuck after a bad flash, desoldering the eMMC or UFS chip is often the last resort — not the first move. The ICFriend EMMC UFS ISP Cable Kit exists for exactly this reason: it connects to the chip's ISP (In-System Programming) test points directly on the board, so you read, write, and recover data without ever pulling the chip. That single difference cuts repair time and removes the risk of pad damage during reballing.

This kit ships with modify FPC ISP cables in 2-in-1, 3-in-1, 4-in-1, and 6-in-1 configurations, giving you flexibility across different board layouts and chip packages. You wire it into your EasyJtag or Z3X Easy Jtag Plus setup, and the cable carries the signal lines between your programmer and the target chip.

Power handling matters a lot with ISP work, and this cable is built around a specific, tested procedure. Run it from a regulated power supply rather than USB. Press and hold the on button, and the current draws 100–200mA when the UFS chip powers up correctly. If you're using USB power with the phone's own battery instead, your device manager needs to show the CPU port — if it doesn't appear, the UFS chip hasn't powered up and won't come online. That's the first thing to check when a chip refuses to connect.

The wiring approach changes depending on which UFS generation you're servicing. For UFS 2.0, 2.1, and 2.2 chips, the cable runs VCC at 3.3V and VCCQ2 at 1.8V. For UFS 3.0, 3.1, and 4.0 chips, TX, RX, CLK, RST, and GND all connect through direct flywire — there's no shared seat connection at that point, so the host power supply becomes the only power source once you're wired in this way.

Signal integrity is where a lot of ISP jobs go wrong, and the cable design accounts for it. Keep your GND-TX-RX wiring under 15mm, and place the GND junction as close as possible to TX and RX so the lengths stay equal. Some CPUs also need a dedicated RST signal wire — skipping it is a common reason a chip won't respond even when everything else looks correct.

For a Pakistani repair shop, this tool covers the cases you see constantly: dead phone after a failed software update, boot loop issue that won't clear through normal flashing, dead after flash where the phone won't power on post-update, and hardware fault diagnosis where you need to confirm whether the eMMC/UFS chip itself is the problem before you commit to an IC change. It also supports straightforward data recovery jobs where the customer just wants their photos and contacts off a phone that won't boot.

Because the cable interfaces at the chip level rather than through the phone's software stack, it works independently of screen condition, charging port damage, or network issue diagnosis — as long as you can get clean ISP test points, you have a path to the chip. This makes it a core addition to any ISP, eMMC, or UFS repair station, sitting alongside your existing EasyJtag or Z3X hardware rather than replacing it.

Handle the FPC connectors carefully — they're precision components, and the cable's usefulness depends on a clean, secure connection every time you hook it up to a board.

Specifications: Brand: ICFriend Category: eMMC/UFS ISP Cable Kit Compatibility: EasyJtag, Z3X Easy Jtag Plus, MiPi Easy UFS Kits Technology: ISP (In-System Programming) via flywire connection to eMMC/UFS chips
