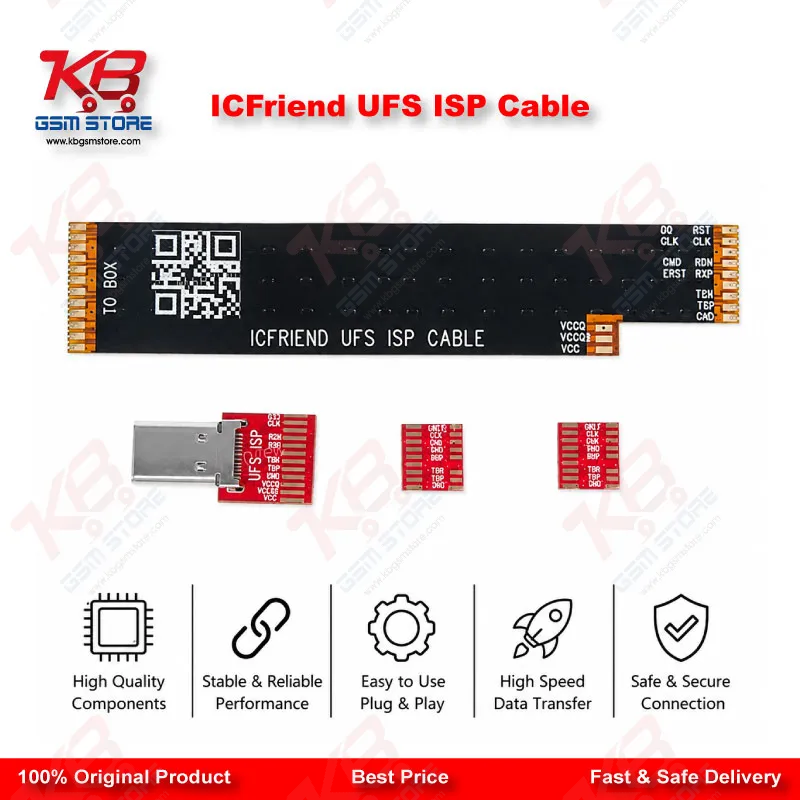

ICFriend UFS ISP Cable – EMMC/UFS FPC Modify Cable for EasyJtag

When a phone comes in dead after flash or completely unresponsive, pulling the eMMC or UFS chip off the board isn't always the smart move. The ICFriend UFS ISP Cable gives you a way in through ISP mode instead — you connect the flywires straight to the chip's pads while it's still soldered, run your read/write operation, and put the board back together without a reball. That's the whole point of this cable, and it's built specifically around ICFriend's modify socket family.
This cable supports the ICFriend 2-in-1, 3-in-1, 4-in-1, and 6-in-1 modify FPC sockets, so if you're already running one of those adapters on your EasyJtag or EasyJtag Plus box, this cable slots directly into your existing workflow. You're not buying a new system — you're extending the one you already trust.
Chip compatibility splits into two groups, and both matter depending on what generation of UFS you're working on. For UFS 2.0, 2.1, and 2.2 chips, the cable routes VCC at 3.3V and VCCQ at 1.8V — the standard voltage pair these chips expect during ISP power-up. For UFS 3.0, 3.1, and 4.0, the connection changes: TX, RX, CLK, RST, and GND all run through direct flywire connections instead of a fixed pinout. That's because the newer UFS generations need a tighter, more direct signal path — you can't rely on a seated socket alone for these, only the flywire setup gets a stable connection.
Power supply choice affects your success rate here, so it's worth getting right. Recommended practice is running a regulated power supply without USB — press and hold the power-on button, and you should see current draw sit around 100 to 200mA once the UFS chip powers up successfully. If you go the USB-plus-battery route instead, your device manager needs to show a CPU port. If that port doesn't appear, the UFS chip hasn't powered up correctly and you won't get an online connection, no matter how good your flywire soldering is.

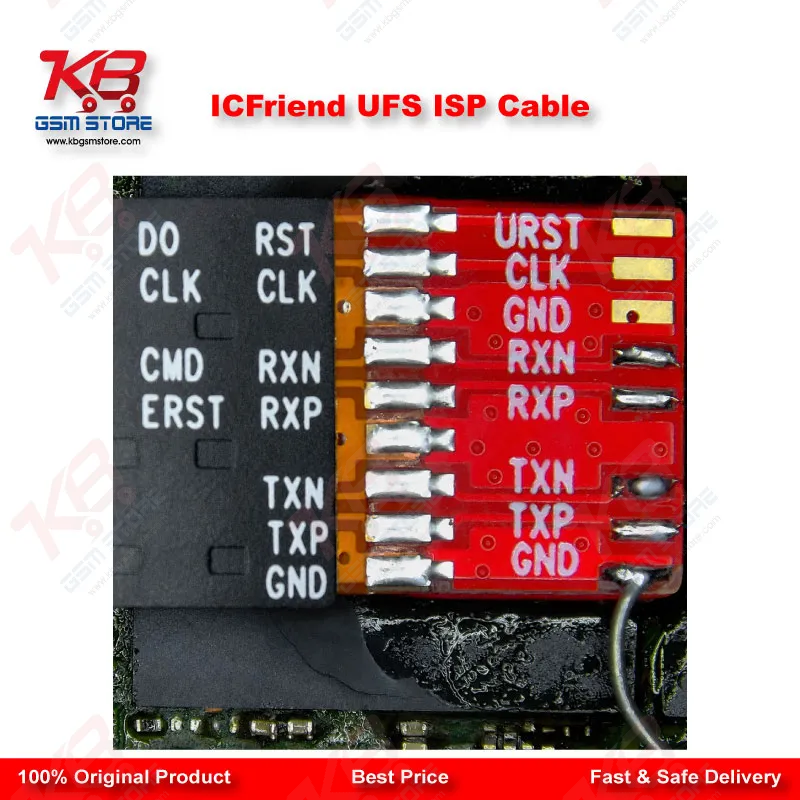

Flywire length and routing aren't just cosmetic details — they determine whether your signal stays clean. Keep GND, TX, and RX wire runs under 15mm, and position the GND junction as close to TX and RX as you can so all three stay roughly equal length. Some CPUs also demand a separate RST signal wire — skip that step on the wrong chipset and you'll fight connection issues that have nothing to do with your programmer or software.
For Pakistani repair shops running high volumes of eMMC and UFS jobs — FRP lock cases, boot loop boards, hardware fault diagnosis, or straight-up dead phone recovery — this cable earns its place on the bench because it removes the guesswork from ISP wiring. You're not building your own flywire harness from scratch for every job; you're working with connectors and routing that ICFriend has already mapped out for their socket ecosystem.
It fits into the standard ISP repair workflow: diagnose the fault, decide the chip needs direct ISP access rather than a socket-only approach, connect through this cable, then move into your programmer's read, write, or repair operation. Pair it with a stable regulated bench supply, keep your flywire runs short, and this cable holds up as a dependable link between board-level chip access and your EasyJtag programming session.
