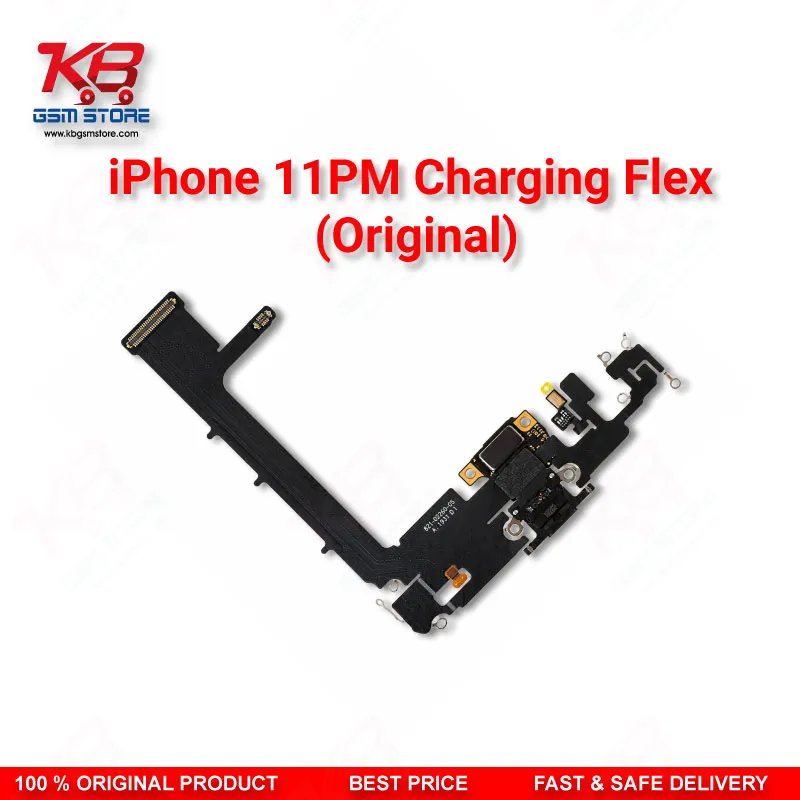

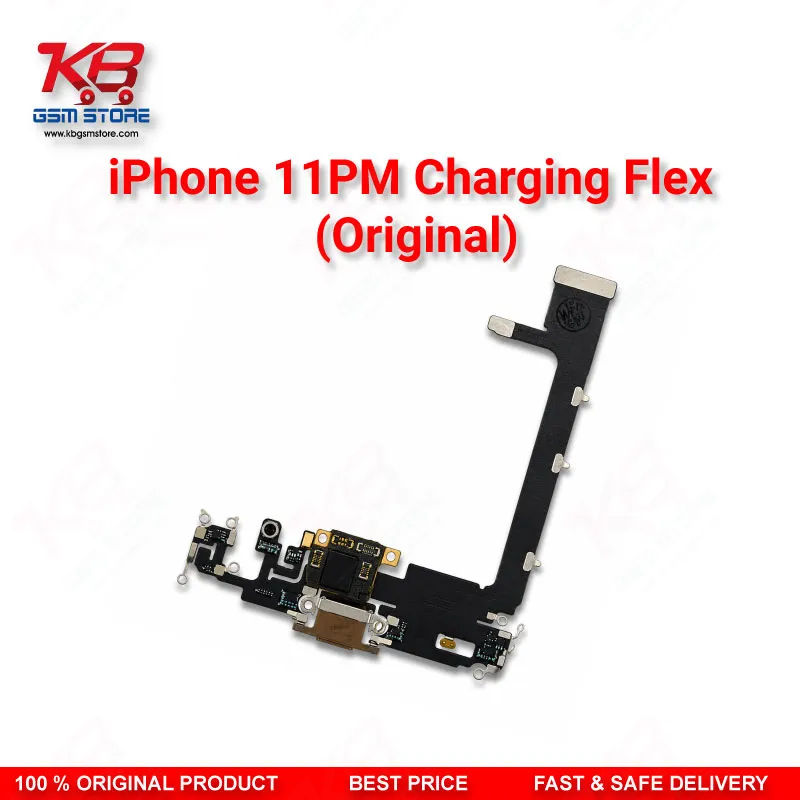

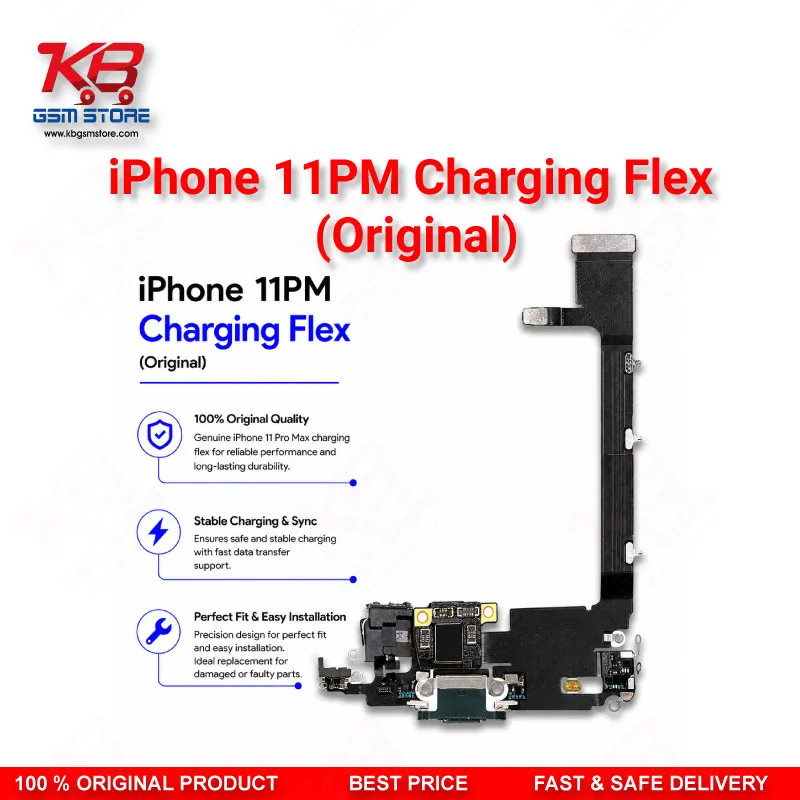

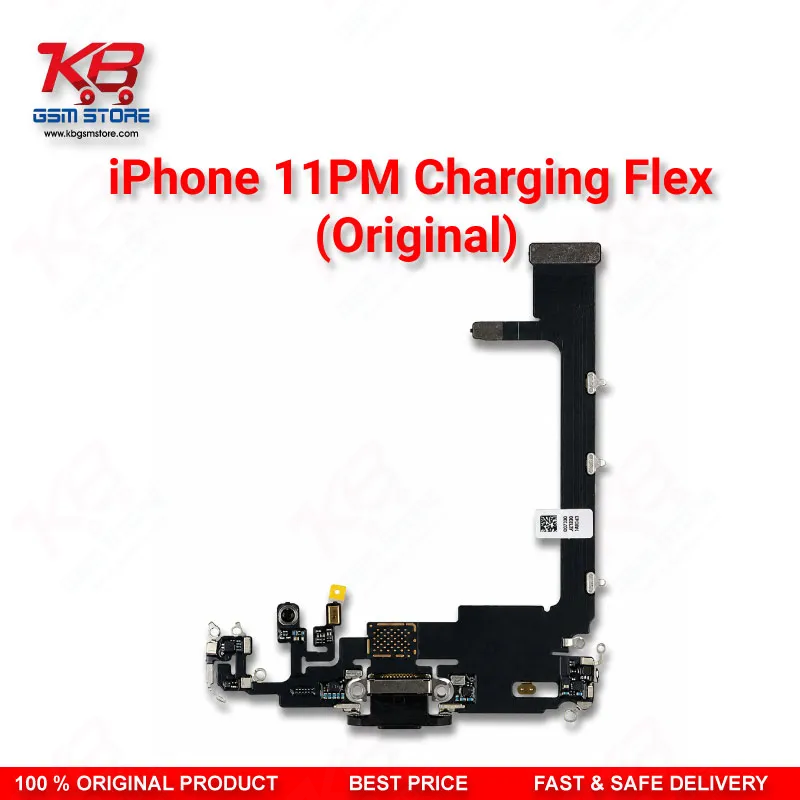

iPhone 11 Pro Max Original Charging Flex Cable – Lightning Port Replacement

Charging port problems are one of the most common hardware faults that land phones on a repair technician's bench. When an iPhone 11 Pro Max comes in with a charging issue — cable nahi pakad raha, sirf ek side se charge ho raha hai, ya bilkul charge nahi ho raha — the first component you check is the charging flex. This original charging flex cable for iPhone 11 Pro Max gives you a reliable, verified replacement that solves the problem cleanly without the need for further board-level work in most cases.

This flex assembly covers the Lightning connector, the bottom microphone, and the antenna connection — all built into a single ribbon cable unit. That means one replacement part fixes multiple complaint points at once. Technicians working on iPhone 11 Pro Max repairs in Pakistan know that a dead mic or call quality complaint often comes packaged with the charging issue. Replacing this flex resolves both in a single swap.

What This Flex Cable Covers

The charging flex for iPhone 11 Pro Max is not just a port. It carries the Lightning dock connector, which handles both power delivery and data sync. It also integrates the lower microphone used for calls and voice recording, and connects the bottom antenna line that feeds into the cellular and Wi-Fi system. A faulty flex can cause network issue, poor call audio, or complete charging failure — all from one damaged ribbon.

Compatible Model Numbers

This part is verified compatible with iPhone 11 Pro Max across all three model variants released globally: A2161 (USA), A2220 (China), and A2218 (international). Before ordering for your customer's phone, confirm the model number from the Settings or the back of the device. All three models share the same flex cable design.

Available Color Variants

The iPhone 11 Pro Max was released in Space Gray, Silver, Gold, Midnight Green, and other colors. The charging flex cable comes in matching color variants — typically Space Gray (Black), Silver (White), Gold, and Midnight Green — because the bottom housing area of the flex is visible at the port opening. Match the cable color to the device color for a clean, professional repair finish.

Installation Notes for Technicians

This is a plug-and-play replacement at the connector level — no soldering required. You disconnect the battery first, remove the display assembly, then access the bottom board connectors. The flex unplugs from the logic board side and lifts out with the port frame. The new cable seats in the same position and connects using the original screw points. Use a proper plastic pry tool and magnetic screw mat to avoid losing the small screws. A good pentalobe screwdriver set and a Y-type Tri-point driver are required for the outer screws.

Why Original Grade Matters

Aftermarket charging flex cables for iPhone 11 Pro Max are widely available, but they frequently cause issues — slow charging, phone nahi pehchanta cable ko, ya bar bar disconnect hota hai. An original or OEM-grade flex maintains proper Lightning handshake signaling, which means your customer won't come back with the same complaint. For a professional repair shop, using quality parts protects your reputation and reduces comebacks.

This part fits into your standard iPhone hardware repair workflow alongside tools like a hot air station, PCB holder, and precision screwdriver set. For technicians running a volume repair operation, keeping stock of this flex means faster turnaround on one of the most commonly requested iPhone repairs in Pakistan.
