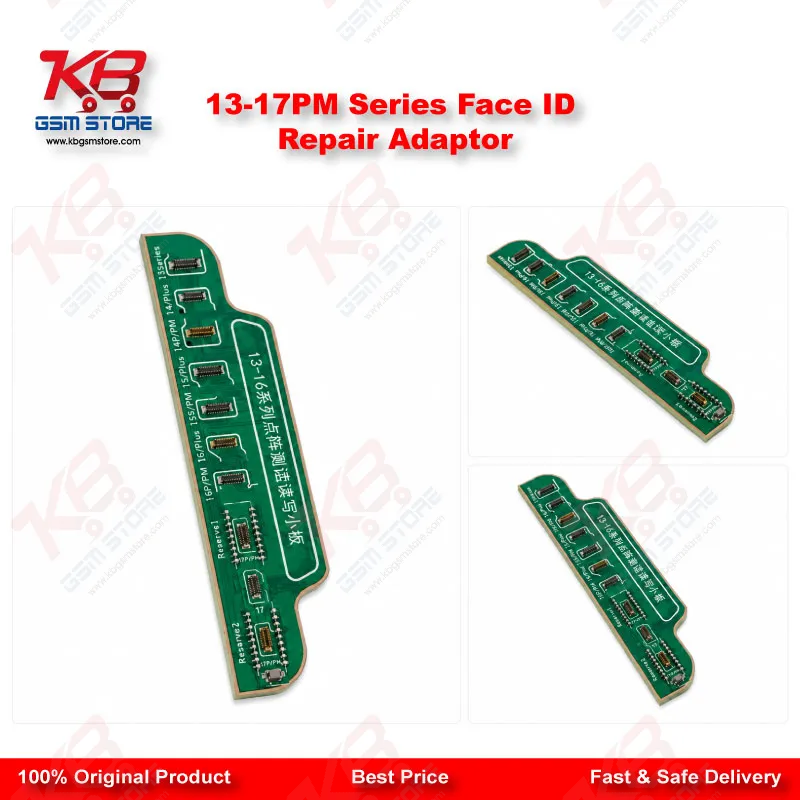

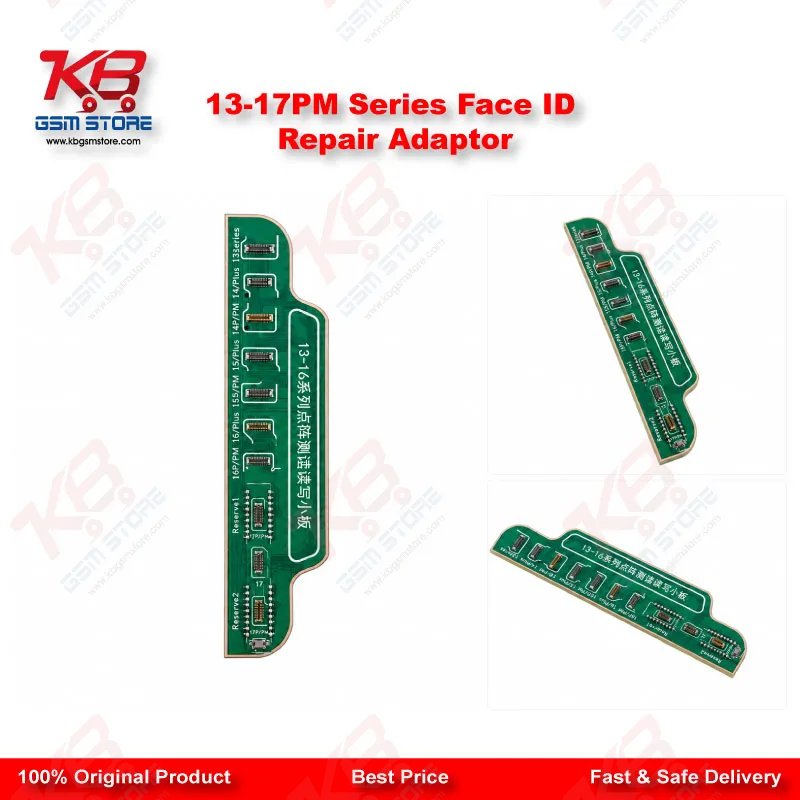

JCID 13-17PM Series Face ID Dot Matrix Activation Adaptor (V1SE / V1S Pro)

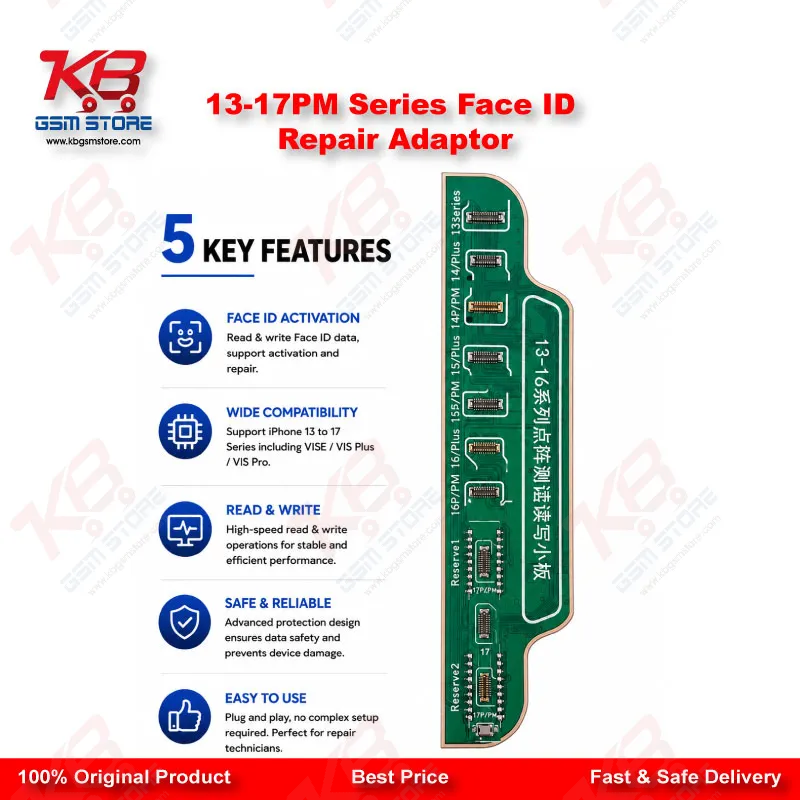

Face ID repair used to mean pulling the dot projector under a microscope, realigning it by hand, and hoping the reball held. The JCID 13-17PM Series Face ID Dot Matrix Adaptor changes that workflow. You get a dedicated activation, read, and write board that plugs into your JCID V1SE or V1S Pro programmer and handles the entire dot matrix data exchange through software instead of a hot air gun. The adaptor covers the full current-generation iPhone lineup — 13, 13 mini, 13 Pro, and 13 Pro Max, the complete 14 series, 15 series, 16 series, and 17 series. That range matters on a Pakistani repair bench, where you're rarely servicing just one model in a week. One adaptor board replaces the need to stock separate rigs for each generation. Here's how the repair actually runs. You open JC Repair Assistant on your PC and connect your V1S Pro or V1SE with this adaptor attached. The software pulls a cloud backup of the TrueDepth module data, then tests the module and checks the fuse status. Once you hit activate and the process completes, you connect the matching JCID tag-on flex cable, write the device's original Face ID data onto it, and verify the flex carries the correct TrueDepth data. Snap that flex onto the module and recheck — it should now read "NORMAL" instead of "FUSED." No soldering, no realignment, no risk of cracking the dot projector lens mid-repair. This solves a repair headache every technician knows: Face ID that reads "move higher" or "move lower" after a screen or front camera swap, or Face ID that drops out completely after board-level work. Instead of chasing a hardware fault with a multimeter and a schematic, you isolate whether the dot matrix module or the flex cable is the actual problem, then fix it through data activation rather than component replacement. The adaptor works as an add-on board only — it has no standalone function and won't do anything without a JCID V1SE or V1S Pro programmer already on your bench. If you're running a different brand of Face ID box, this piece won't help you; it's built specifically for JCID's ecosystem. That's worth knowing before you order, since a lot of shops assume any Face ID adaptor works with any programmer. Where this earns its place on the bench is turnaround time. A traditional dot projector reball or replacement can eat 30-45 minutes even for an experienced tech, plus the risk of a failed realignment that sends the phone back to the bench a second time. The tag-on activation workflow with this adaptor typically finishes in a few minutes once the backup and write steps run, and there's no physical component swap to get wrong. For a shop doing volume iPhone repairs, that's the difference between one job and three in the same slot. It also pairs naturally with the rest of a JCID-based Face ID repair setup. If you're already running true tone repair adaptors, battery data adaptors, or receiver FPC detection boards on the same V1SE/V1S Pro programmer, this slots into that same workflow without retraining your team on a new interface. Technicians who've worked ISP pinout tools or UFS/eMMC programmers will recognize the same read-backup-write logic here, just applied to Face ID rather than storage or firmware. One thing to flag honestly: this adaptor handles the activation and data side of Face ID repair. It doesn't replace a damaged dot projector, cracked lens, or physically broken TrueDepth camera assembly — for that you still need the actual hardware component and, in some cases, the matching JCID tag-on flex cable sold separately per model. Think of this as the tool that makes Face ID data writable and diagnosable without invasive surgery, not a substitute for a genuinely dead sensor. For a repair shop or service center handling iPhone volume, stocking this adaptor alongside your existing JCID programmer setup closes a gap that used to require either turning away Face ID jobs or subcontracting them out. You keep the repair — and the margin — in house.
