Brand: JTX

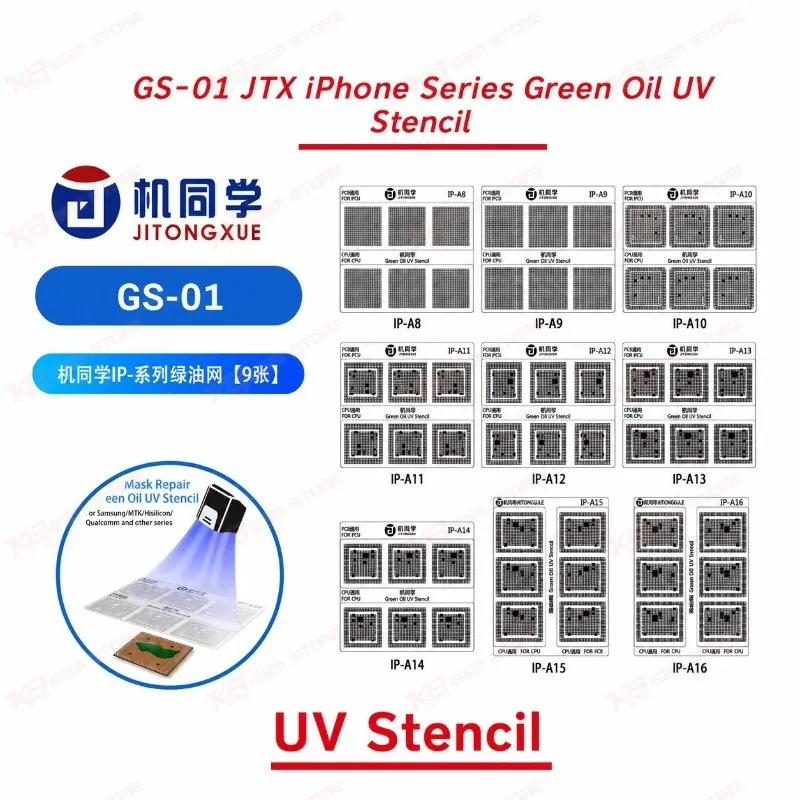

JTX GS-01 iPhone Green Oil UV Stencil Series 9 Models

JTX GS-01 iPhone Green Oil UV Stencil Series 9 Models

Rs.1,600.00 PKR
Rs.1,600.00 PKR
Sale Sold out
Shipping calculated at checkout.

Precision-engineered for professional mobile repair technicians, the JTX GS-01 iPhone Green Oil UV Stencil covers 9 iPhone models from A8 to A16. It ensures pinpoint green oil application over solder pads and IC chips, protecting circuit integrity during PCB-level repairs. Ideal for board repair labs and phone technicians who demand clean, consistent results every time.

MST-SOLDERING-ACCESSORIES-967

⚖️ Weight: 0.03 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Restore iPhone Boards with Professional-Grade Precision

When a motherboard suffers IC chip damage, solder mask wear, or pad exposure, the margin for error during repair is essentially zero. The JTX GS-01 Green Oil UV Stencil for iPhone Series is built around that reality. Designed specifically for professional board-level repair, this set of 9 stencils covers iPhone models from the A8-chip generation through A16, giving repair technicians a single reliable kit for a wide range of iPhone PCB jobs.

What Makes This Stencil Different

Each stencil in the GS-01 series is proofread against original factory schematics. The mesh holes are cut with high precision — no burrs, no irregular openings — so the UV-curable green oil flows cleanly into the target area without bleeding onto adjacent pads or traces. This level of accuracy is what separates a professional repair outcome from a rework job. For technicians working under magnification on fine-pitch BGA pads, that consistency matters enormously.

How It Works in Practice

After cleaning the motherboard or damaged chip area, the surface is dried thoroughly using a hot air gun. A thin, even layer of UV-curable green oil is applied using a blade directly over the repair zone. The GS-01 stencil — printed side down — is then carefully aligned over the chip. The UV light cures the exposed green oil through the mesh openings, creating a precise solder mask layer that insulates and protects the target circuit area. Any excess oil is cleaned away, leaving a clean, professional finish that closely mirrors factory-applied solder mask.

Built for Efficiency, Designed for Reliability

The stencil material is durable enough for repeated use across multiple repair sessions, making it a cost-effective addition to any repair bench. Whether you are dealing with a scratched WiFi IC, a worn CPU pad, or a damaged NAND area, the GS-01 gives you the template accuracy needed to protect your repair work long-term.

Who Should Use This Kit

This is a professional-grade tool. It is best suited for experienced board repair technicians, micro-soldering specialists, and repair shop owners handling iPhone PCB work on a regular basis. The 9-model iPhone-specific stencil set means you are not working with generic templates — every stencil is designed around the exact chip layout of the corresponding iPhone generation.

For repair businesses in Pakistan serving customers with iPhone motherboard faults, WiFi issues, or boot failures linked to IC damage, the JTX GS-01 is a practical, dependable investment that improves repair quality and reduces the chance of repeat failures.

Key Features

  • Covers 9 iPhone models from A8 to A16 chip generations in a single stencil set
  • Each stencil is proofread against original factory drawings for solder joint accuracy
  • High-precision laser-cut mesh holes with no burrs for consistent green oil flow
  • UV-curable green oil application for durable, factory-like solder mask results
  • Reusable design suitable for multiple repair sessions without degradation
  • Protects solder pads and IC components from short circuits and oxidation
  • Compatible with standard UV-curable green oil used in professional board repair
  • Compact and lightweight, easy to store and organize on a repair bench

Specifications

Name JTX GS-01 iPhone Green Oil UV Stencil
Brand JTX (Jitongxue)
Series Compatibility iPhone A8 to A16 (9 Models)
Type UV Solder Mask Repair Stencil
Color Green
Material High-precision stainless steel / laser-cut film stencil
Usage PCB solder mask repair, IC chip green oil application
Package Contents 9 stencil sheets (iPhone series)
Application Method Blade application with UV light curing
Reusability Yes

FAQ

Q1: Which iPhone models are covered in this 9-model stencil set?
The JTX GS-01 iPhone series covers chip generations from A8 through A16, including iPhone 6, 6s, 7, 8, X, XS, 11, 12, and later models depending on the variant. Each stencil corresponds to a specific chip layout verified against factory schematics.
Q2: What type of green oil should be used with the GS-01 stencil?
This stencil is designed for use with standard UV-curable green solder mask oil commonly used in PCB and motherboard repair. The oil is applied in a thin layer, the stencil is aligned over the target IC, and then cured using a UV light source.
Q3: Can the stencil be reused after a repair session?
Yes, the GS-01 stencil is reusable. After each use, clean it carefully with isopropyl alcohol to remove residual green oil before storing. With proper care, it can be used reliably across multiple repair jobs.
Q4: Is this tool suitable for beginners or only for experienced technicians?
The JTX GS-01 is primarily intended for professional board repair technicians and micro-soldering specialists. While it can be used by advanced hobbyists, correct alignment and thin application technique are important for achieving quality results.
Q5: Does this stencil help prevent short circuits during IC repair?
Yes. By guiding the green oil precisely onto the target pads and chip areas while masking surrounding traces, the stencil helps insulate exposed conductors, significantly reducing the risk of short circuits caused by solder mask damage.
Q6: Where can I buy the JTX GS-01 iPhone Green Oil UV Stencil in Pakistan?
This product is available through local mobile repair tool suppliers and online stores serving Pakistan. Look for authorized JTX distributors to ensure you receive a genuine product with accurate stencil specifications.
