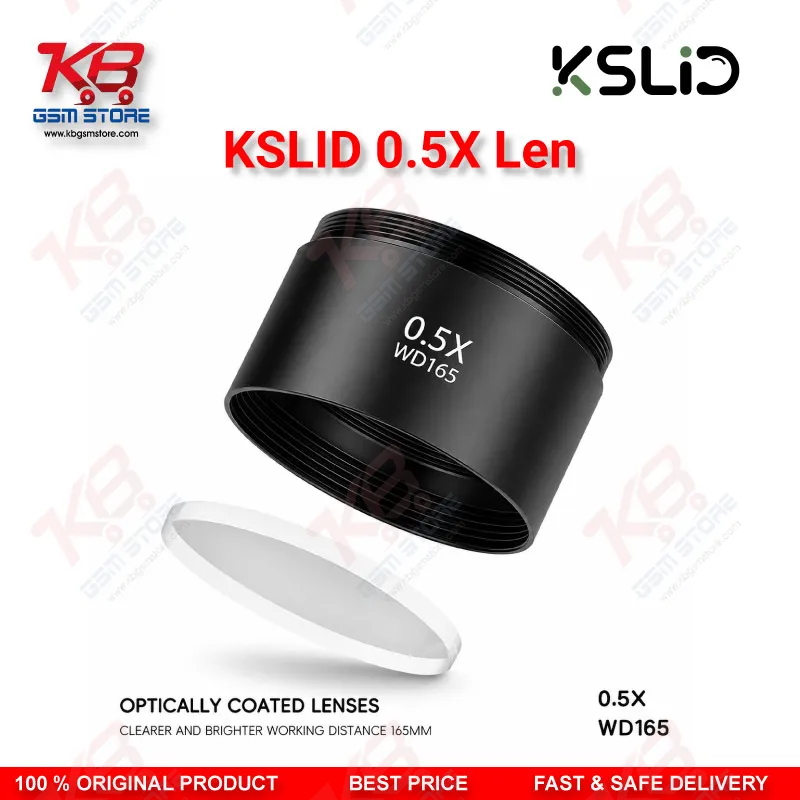

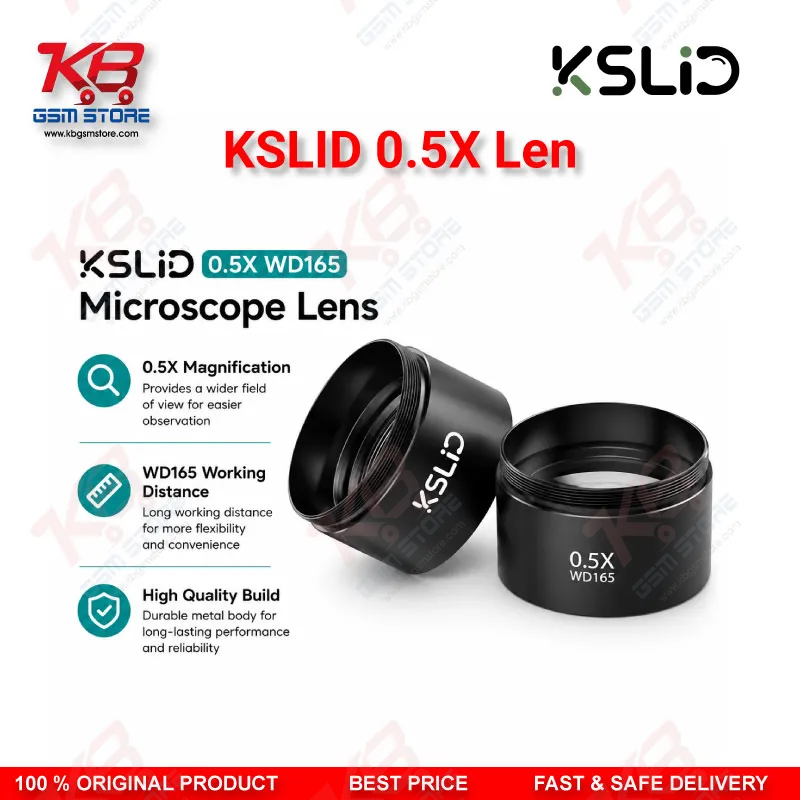

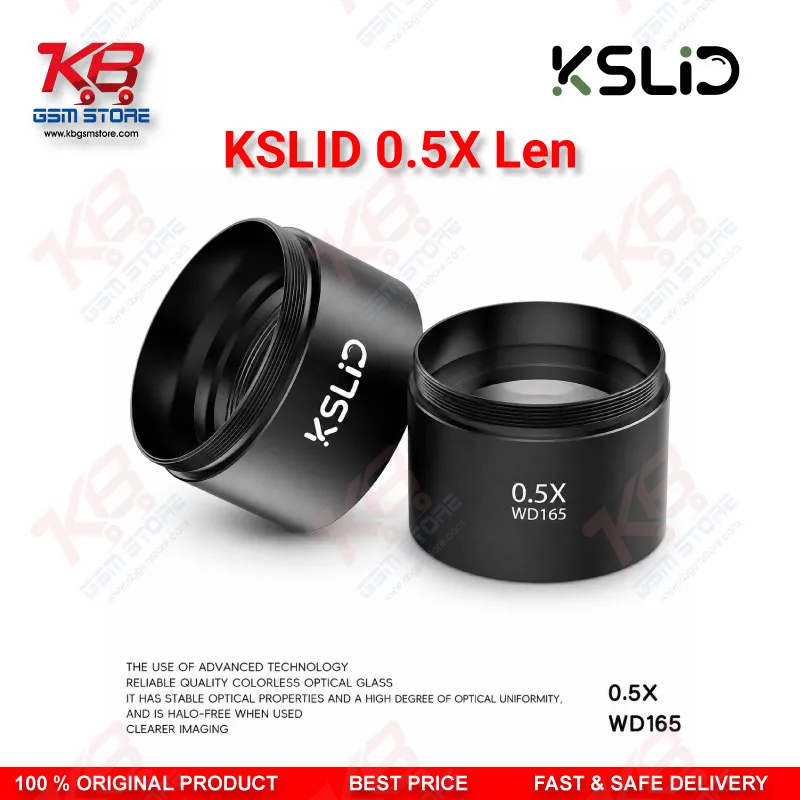

KSLID 0.5X Auxiliary Barlow Objective Lens for Stereo Microscope – M48 Mount

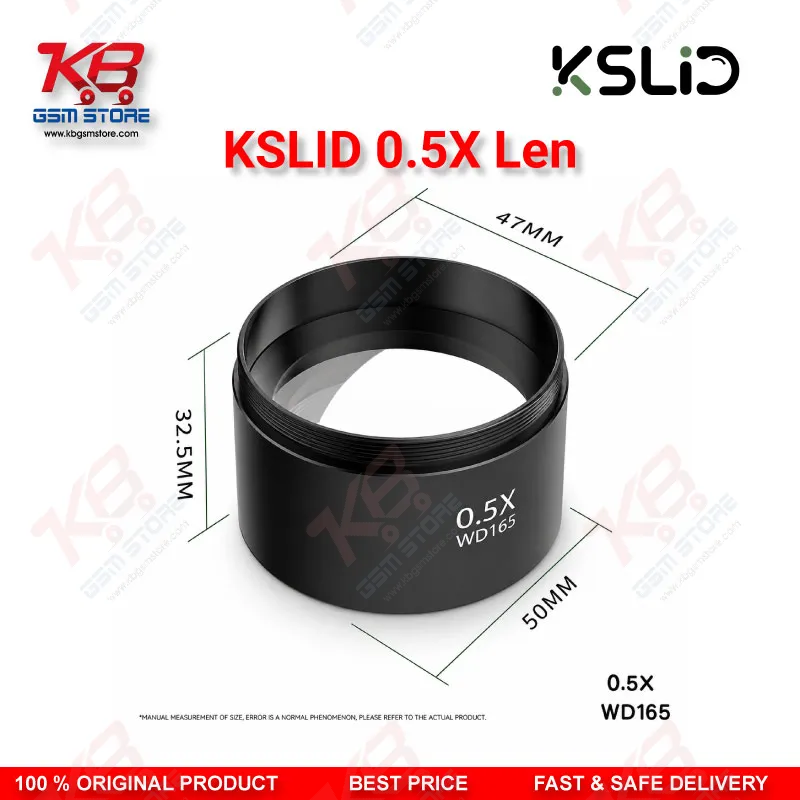

A stock stereo microscope gives you sharp detail, but it also puts your tip and your fingers uncomfortably close to the board. That's fine for inspection, but it becomes a problem the moment you start reballing an IC, reworking a CPU, or running hot air near sensitive components. The KSLID 0.5X auxiliary barlow lens solves exactly this problem by mounting in front of your existing objective lens and pushing your working distance out, giving your tools and your hands the room they need. The way a barlow lens works is straightforward. It sits between the microscope head and the sample, and it reduces the effective magnification by half while proportionally increasing both the working distance and the field of view. If your microscope normally runs at 60x maximum, adding this lens brings that down to around 30x, but you get a noticeably wider view of the board and far more physical clearance underneath the lens barrel. For technicians doing eMMC reballing or fine-pitch IC work, that wider field of view means you can track solder ball placement across the whole footprint instead of only seeing a narrow slice at a time. Mounting is a direct screw-on fit. The lens uses an M48x0.75 thread, which is the standard mount used across most stereo microscopes sold to repair technicians, including common trinocular and binocular setups used in mobile repair workshops across Pakistan. There's no adapter fiddling or drilling required — it threads onto the existing objective housing the same way the stock lens does, so you can swap it in and out depending on whether you need standard magnification for inspection or the extended working distance for hands-on rework. On the repair bench, this lens earns its place during CPU reballing, BGA rework, jumper wire soldering, and any hot air job where the nozzle needs to sit close to the board without colliding with the microscope housing. Technicians running "IC change karna" or fixing a board that's "dead after flash" already spend long stretches under the microscope — having enough clearance to move a soldering iron or hot air gun freely under the lens cuts down on the awkward angling that normally comes with tight working distances. It's also useful when you're inspecting a board with a probe or multimeter tip in hand, since the extra room keeps your tools from bumping the lens barrel mid-diagnosis. Build-wise, the lens body is metal with an internal optical glass element, matching the construction used across this class of auxiliary objective lenses. It's a passive optical accessory with no electronics involved, so there's nothing to charge, calibrate, or configure. Once it's threaded on, image quality depends on your microscope's existing optics and lighting setup — the barlow lens itself doesn't introduce noticeable distortion when properly seated. This is a practical, low-cost upgrade for any repair shop already running a microscope with an M48 thread. Rather than buying a second microscope for close-clearance rework, technicians add this lens when the job calls for more working room, then remove it when they go back to standard inspection work. For service centers handling a mix of board-level repair and everyday phone diagnostics, keeping one of these in the toolbox alongside your existing objective covers both use cases without extra investment.
